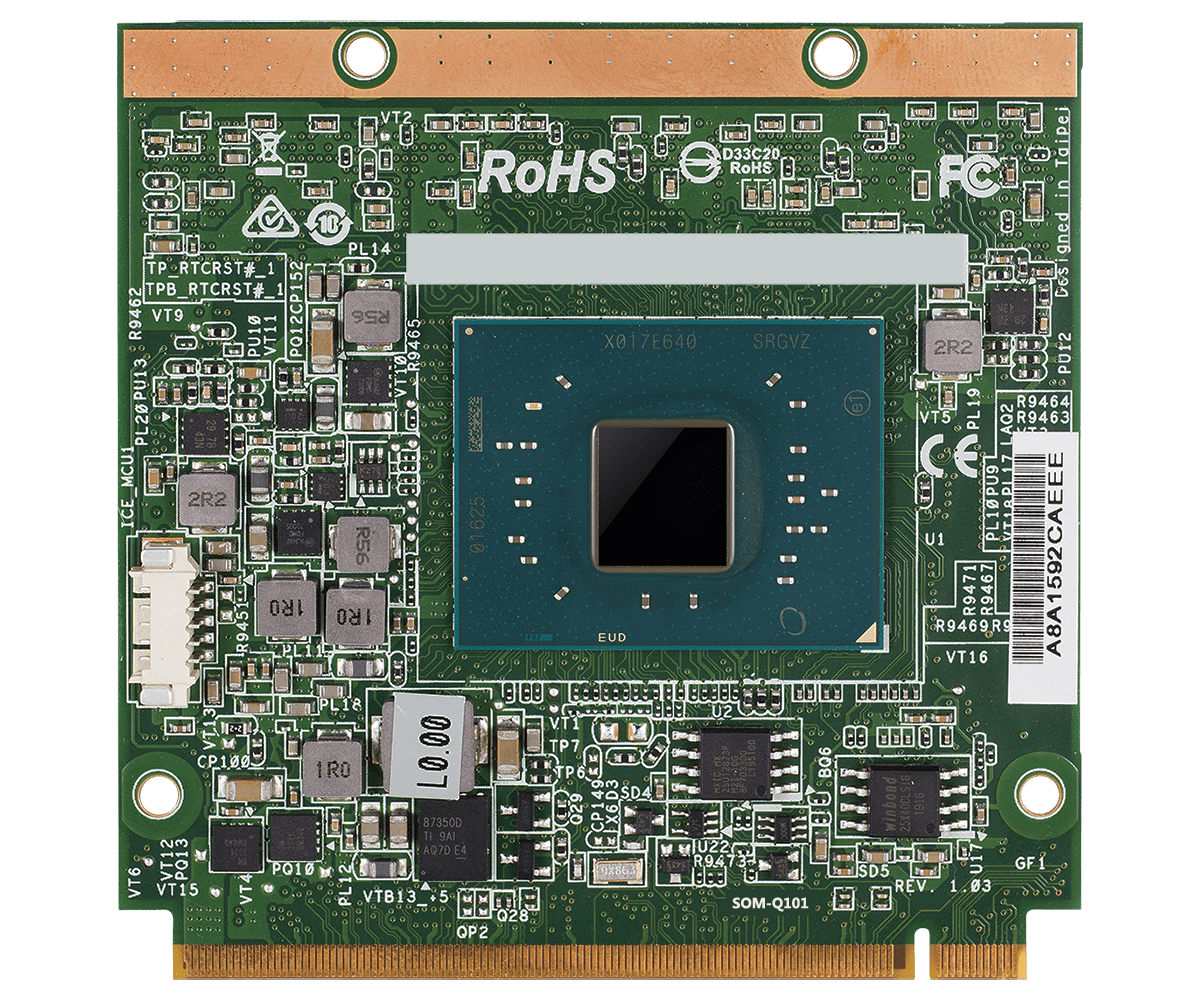

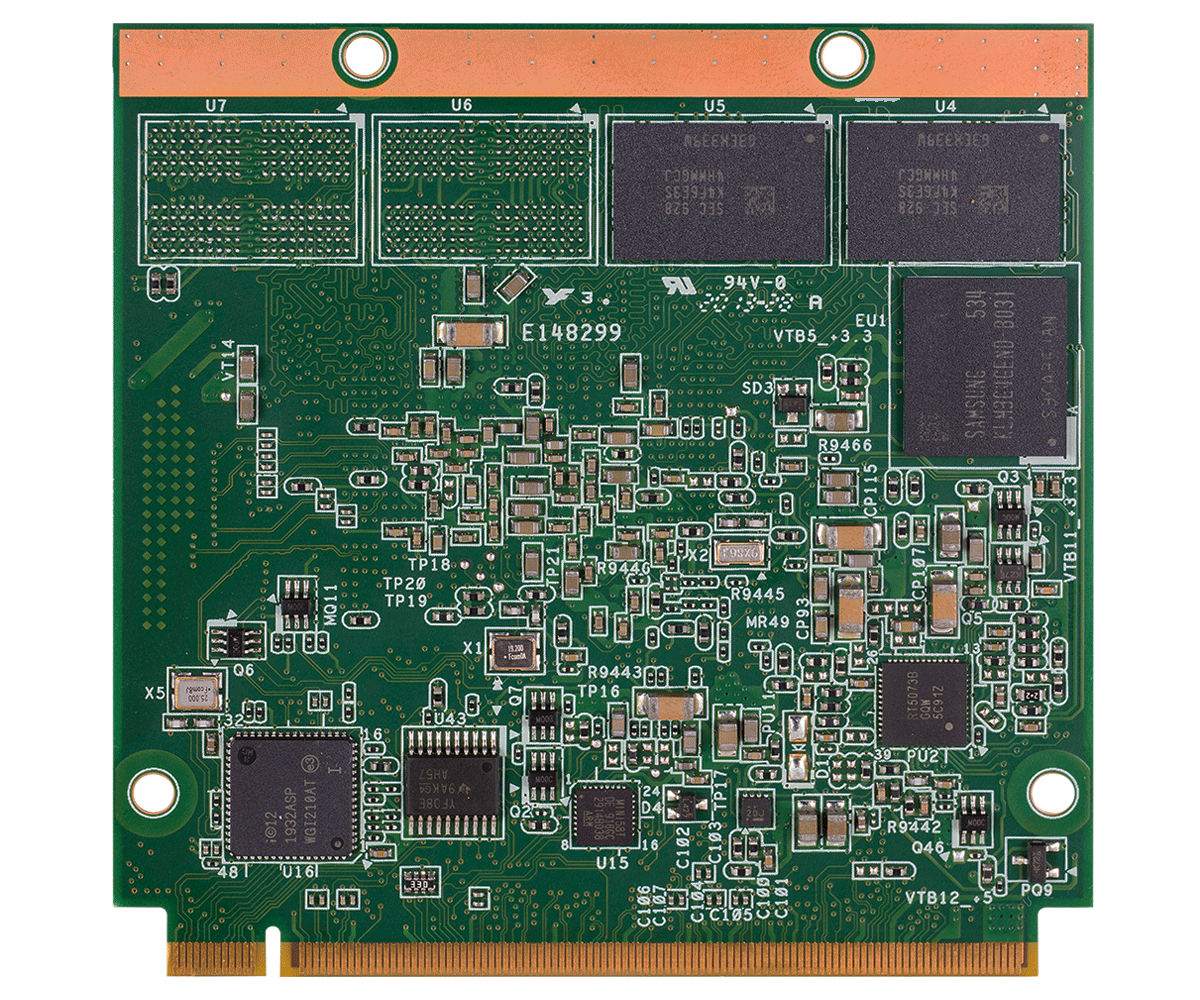

SOM-Q101D QSeven Motherboard

  • Intel® Apollo Lake - I
  • support LPDDR4 2400MHz, single/Dual/Quad channel, up to 4GB
  • 1 x eDP channel, 1x DDI0 channel
  • 2 x USB 3.0 signals, 6 x USB 2.0 signals, 1x TX/RX signal
  • 1 x Intel LAN I210-IT
Datasheet
Specification

Form Factor

Dimensions Qseven (70x70x6.45mm)

Processor System

CPU Intel® Apollo Lake - I , N4200
Chipset integrated SoC
BIOS AMI SPI 128 Mbit

Memory

Technology Single / Dual / Quad Channel LPDDR4,2400MHz
Capacity 4 GB

Graphics

Controller Intel® HD Graphics 505
DisplayPort DDI0 signal support DP++
eDP eDP signal support (4 Lanes)
MultiDisplay Dual Display

Expansion Slot

PCI 4x PCIEx1 Gen2 signal

Audio

Interface Intel® HD Audio integrated in SoC
On carrier MB (ALC233 )

Ethernet

Controller/ Speed 1 x Intel® I210 IT, with 10/100/1000 Mbps

Internal Connector

USB 2 x USB 3.0 signal
6 x USB 2.0 signal
COM TX/RX signal(1 UART signal)

Storage

SATA 2 x SATA3 (6Gb/s) signal to Carrier board
eMMC on board 32GB

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C – 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

Support

OS:

Description OS Date Download
Description ASRock 3TB+ Unlocker utility ver:1.1.1 OS Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-08 Download
Description Intel Lan driver ver:23.2 OS Win 10 x 64 , Win 8.1 x 64 , Win 8 x 64 , Win 7 x 64 Date 2020-05-08 Download
Description Realtek high definition audio driver ver:7514 OS Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 7 x 64 Date 2020-05-08 Download
Description Intel iRMT ver:1.1.50.493 OS Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 7 x 64 Date 2020-05-08 Download
Description Intel Serial IO driver ver:30.100.1631.03_PV OS Win 10 x 64 , Win 10 , Win 8.1 x 64 Date 2020-05-08 Download
Description INF driver ver:10.1.1.34 OS Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 7 x 64 Date 2020-05-08 Download
Description Intel Trusted Execution Engine ver:3.1.55.2269 OS Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8 x 64 , Win 7 x 64 Date 2020-05-08 Download
Description COM Port driver ver:1.0.2011.1109 OS Win 8.1 x 64 , Win 8 x 64 , Win 7 x 64 , Win 7 Date 2020-05-08 Download
Description VGA driver ver:15.45.20.64.4727 OS Win 10 x 64 Date 2020-05-08 Download

The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.

Description Language Date Download
Description GF pin define Language English Date 2021-10-26 Download
Description Jumpers and headers setting guide Language English Date 2020-05-06 Download
