CAB-701
CAB-701

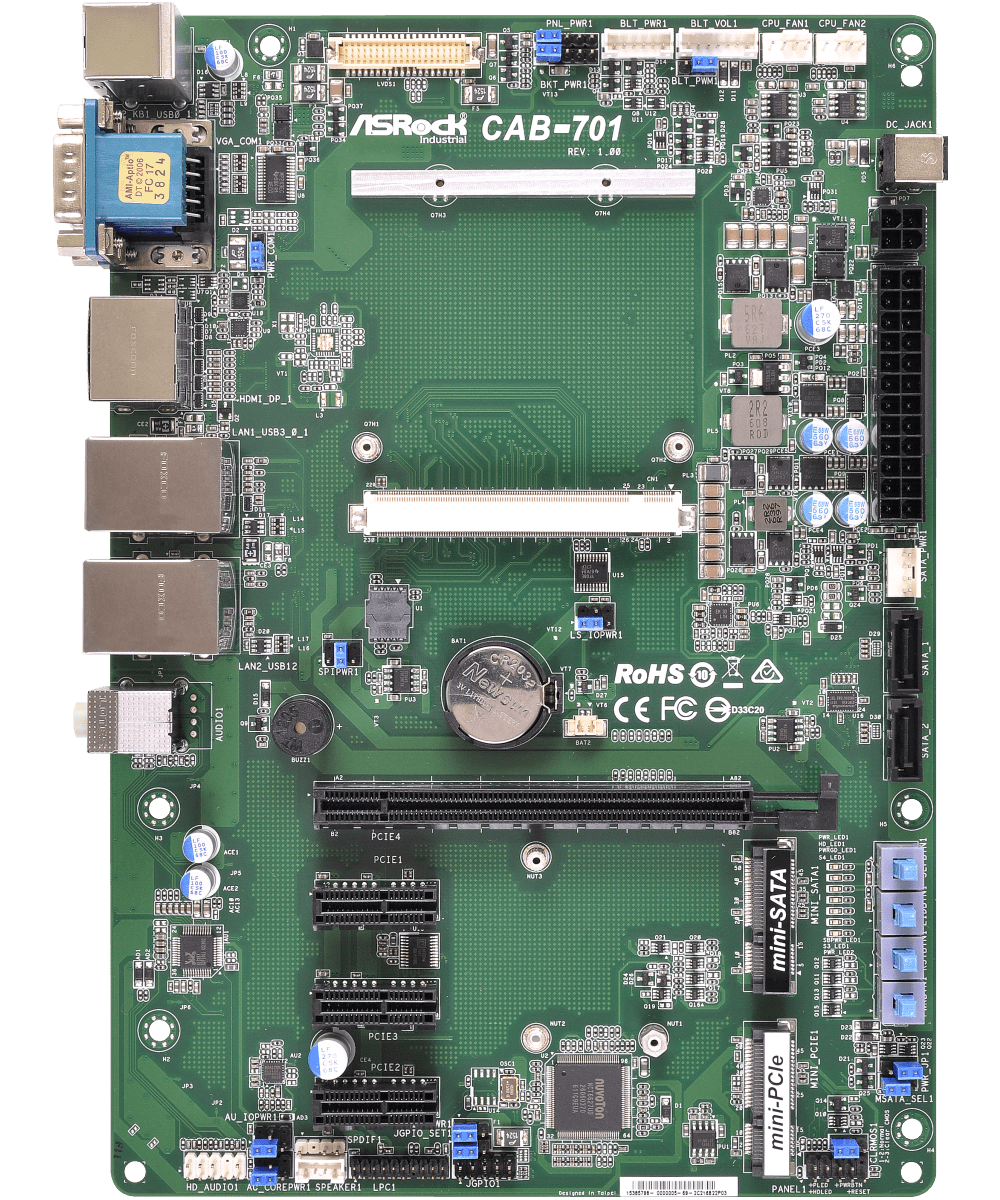

CAB-701 QSeven Motherboard

  • Supports Qseven Module
  • 1 x HDMI, 1 x DisplayPort, 1 x LVDS
  • 1 x USB 3.0, 5 x USB 2.0 , 2 x SATA3
  • 3 x PCIe x1 slot
  • 1 x Mini-PCIe
  • 1 x mSATA
  • 2 x Intel LAN
  • 12~24V DC-in
Datasheet
Specification

Form Factor

Dimensions Micro ATX ( 9.6-in x 6.7-in)

Expansion Slot

PCIe 3 x PCIe x1
mini-PCIe 2 x Half/Full size

Ethernet

Controller/ Speed 2 x Intel® I211 with 10/100/1000 Mbps

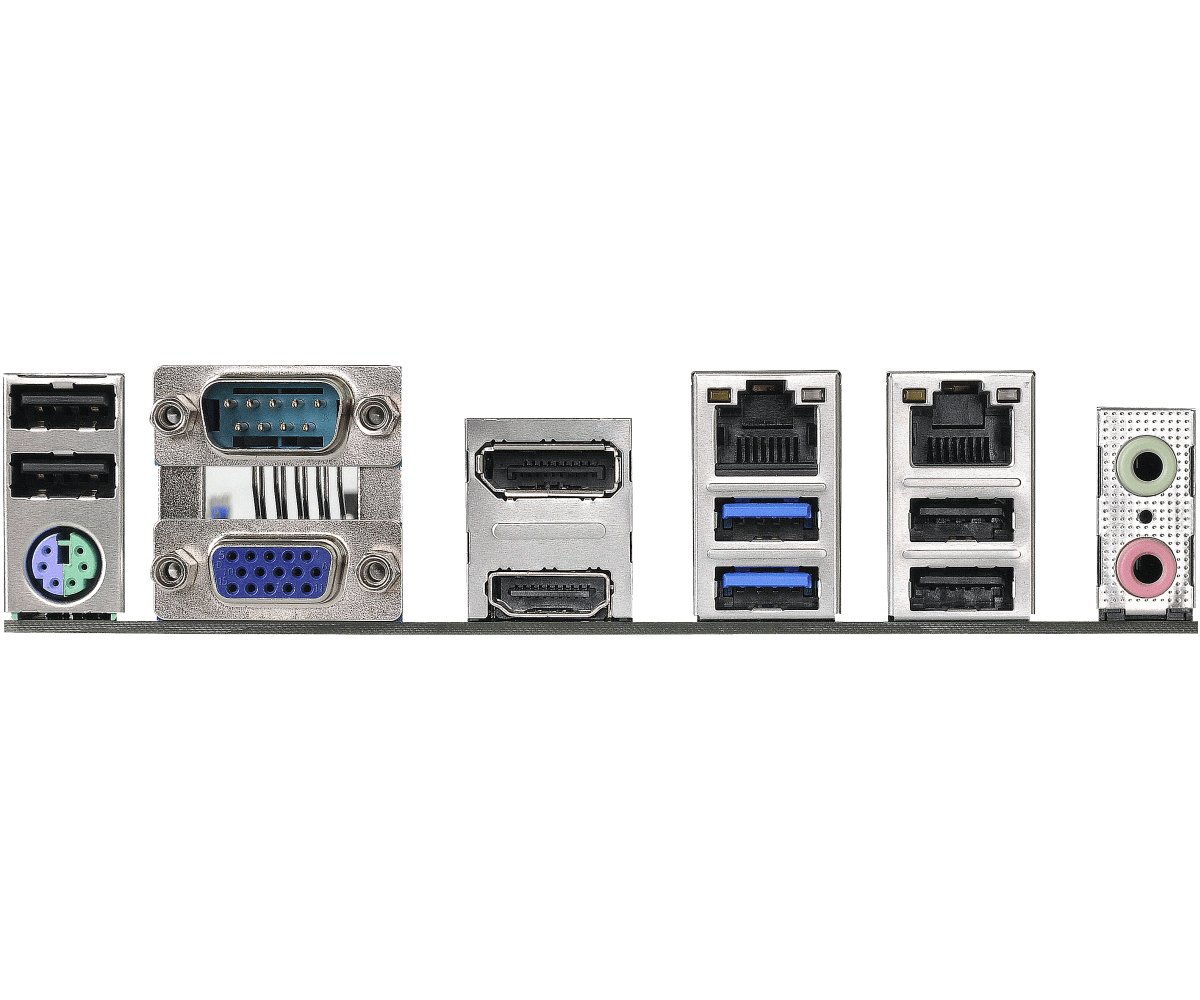

Rear I/O

HDMI 1
DisplayPort 2
Ethernet 1
USB 1 x USB 3.0 , 5 x USB 2.0
Audio 2
COM 2 x COM (RS-232)
PS2 1

Internal Connector

GPIO 4 x GPI , 4 x GPO
LVDS 1
SATA PWR Output 1

Storage

SATA 2 x SATA3
mSATA 1xfull , shared with SATA_2

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 12V~24V DC-In
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C – 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
