Preliminary EOL

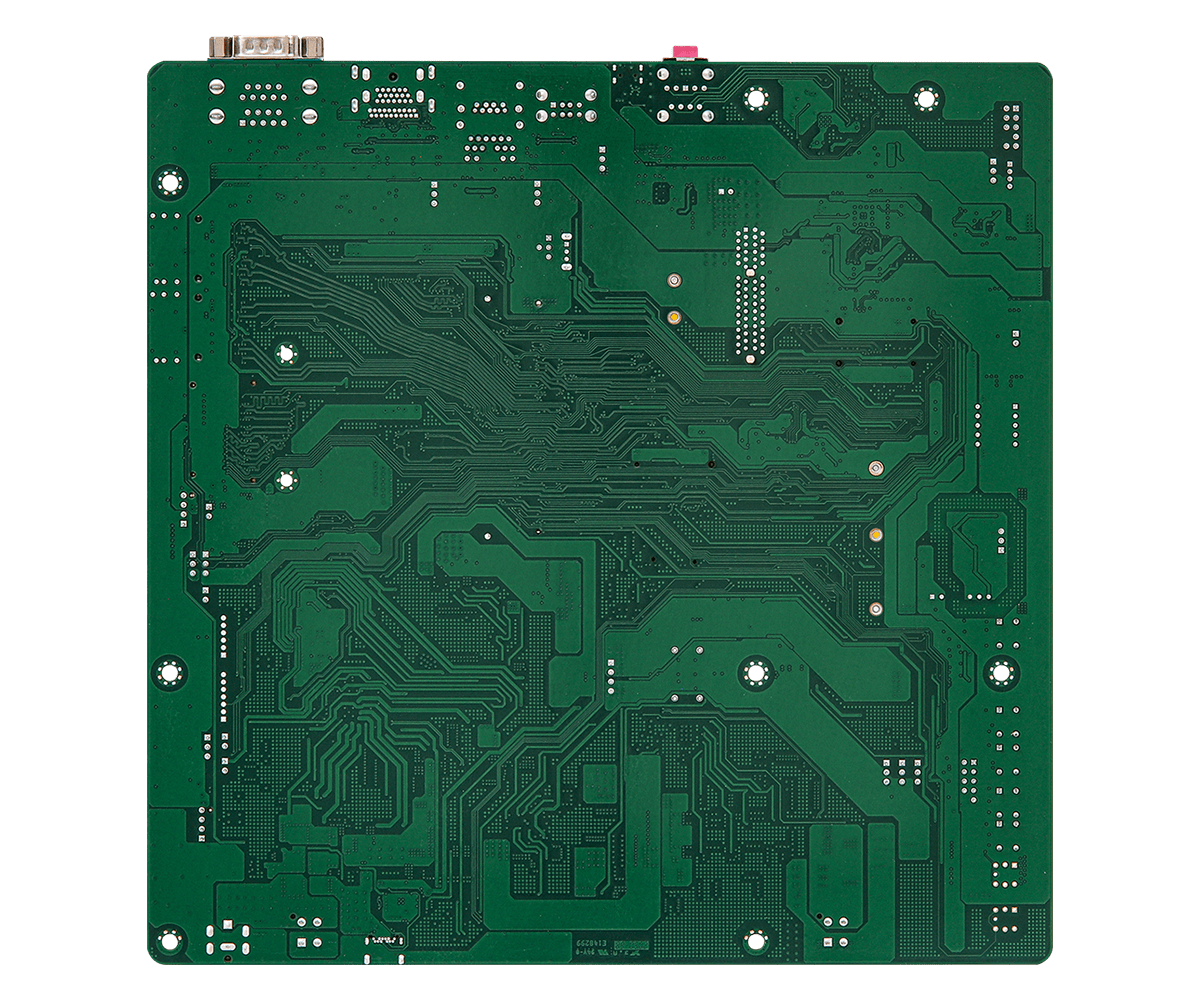

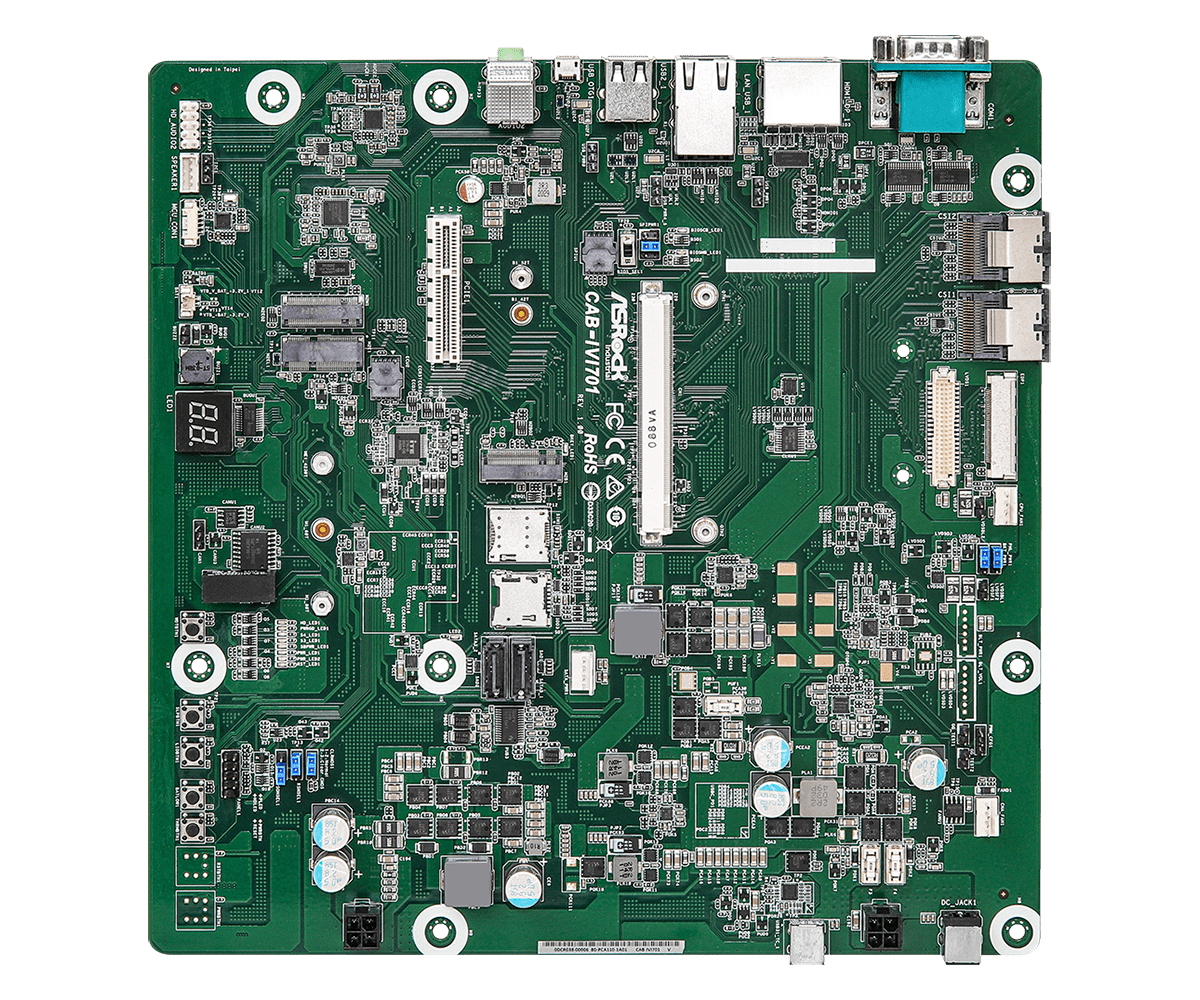

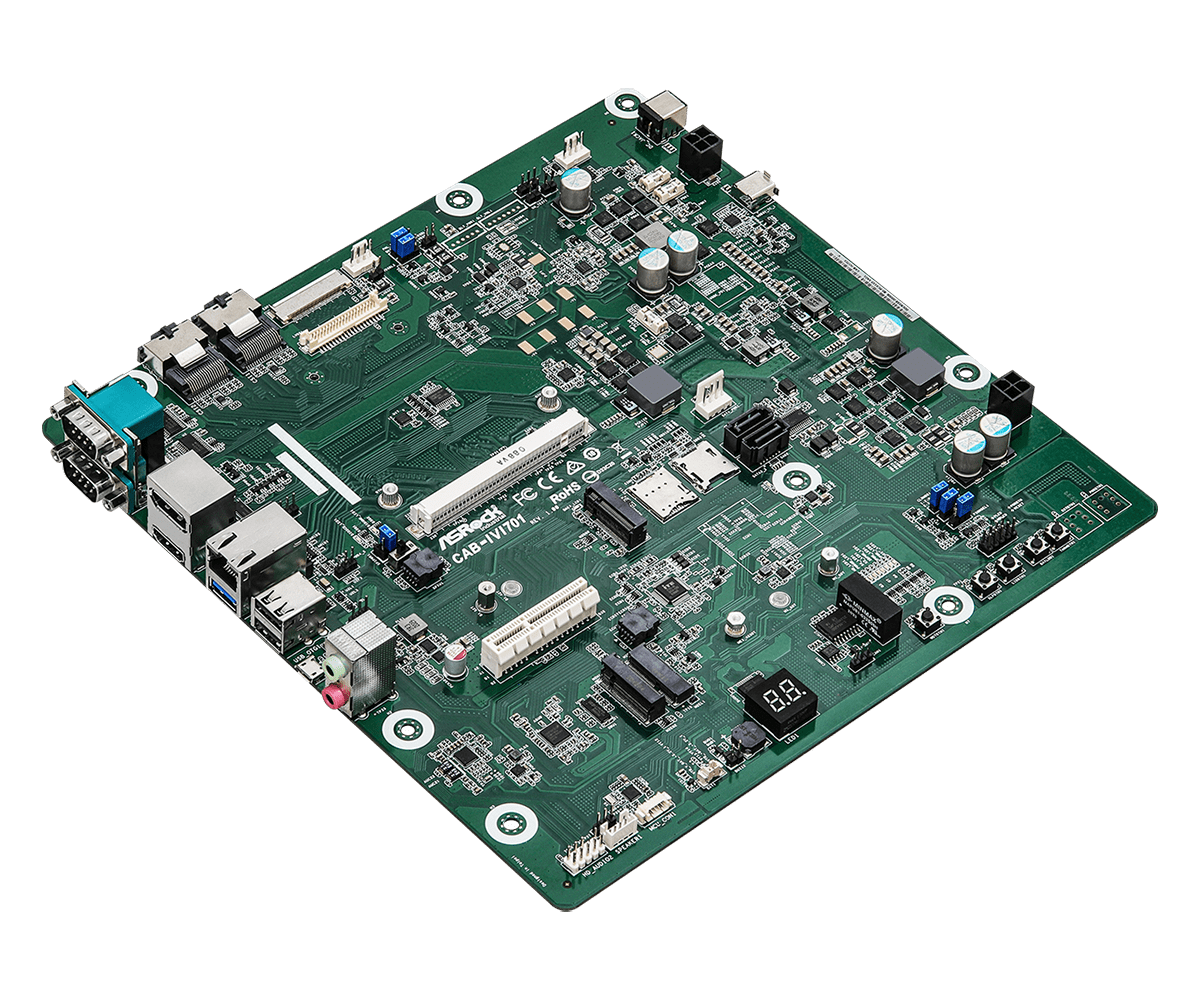

CAB-IVI701 QSeven Carrier Motherboard

  • Supports QSeven Module
  • 1 x PCIe x2 (Gen3), 1 x USB 3.2 Gen1, 2, USB 2.0, 1 x USB 2.0 OTG, 1 x M.2 Key B, 1 x M.2 Key M, 1 x M.2 Key E, 2 x COM, 2 x SATA3
  • 1 x Realtek Gigabit LAN
  • 1 x HDMI 2.0a or 1 x DP 1.2, 1 x LVDS or 1 x eDP, 2 x MIPI-CSI (By CPU Board)
  • 1 x SIM Socket
  • 1 x SD Slot
  • 20V, 3A with USB Type-C
Datasheet
Specification

Form Factor

Dimensions Micro ATX (9.6-in x 9.6-in)

Processor System

CPU By CPU Board
Chipset By CPU Board
BIOS AMI SPI 128 Mbit (For x86 CPU)

Memory

Technology By CPU Board
Capacity By CPU Board

Graphics

Controller By CPU Board
HDMI By CPU Board (shared with internal Display Port, by CPU Board)
DisplayPort By CPU Board (shared with internal HDMI, by CPU Board)
LVDS By CPU Board, up to Dual channel 24 bit up to 1920x1080
(shared with internal eDP, by CPU Board)
eDP By CUP Board (shared with internal LVDS, by CPU Board)
MIPI 2 x MIPI-CSI (By CPU Board)

Expansion Slot

PCIe 1 x PCIe x2 (Gen3)
M.2 1 x M.2 (Key B, 3042 / 3052) (PCIe x1 Gen3 + 1 x USB 3.2 Gen1 + 1 x USB 2.0)
1 x M.2 (Key M, 2242/2260/2280) (PCIe x1)
1 x M.2 (Key E, 2230) (PCIe x1 + 1 x USB 2.0)
SIM Socket 1 x Socket connected to M.2 Key B

Audio

Interface Nuvoton NAU88U22A, High Definition Audio Mic-In, Line-Out

Ethernet

Controller/ Speed By CPU Board
Connector 1 x RJ-45

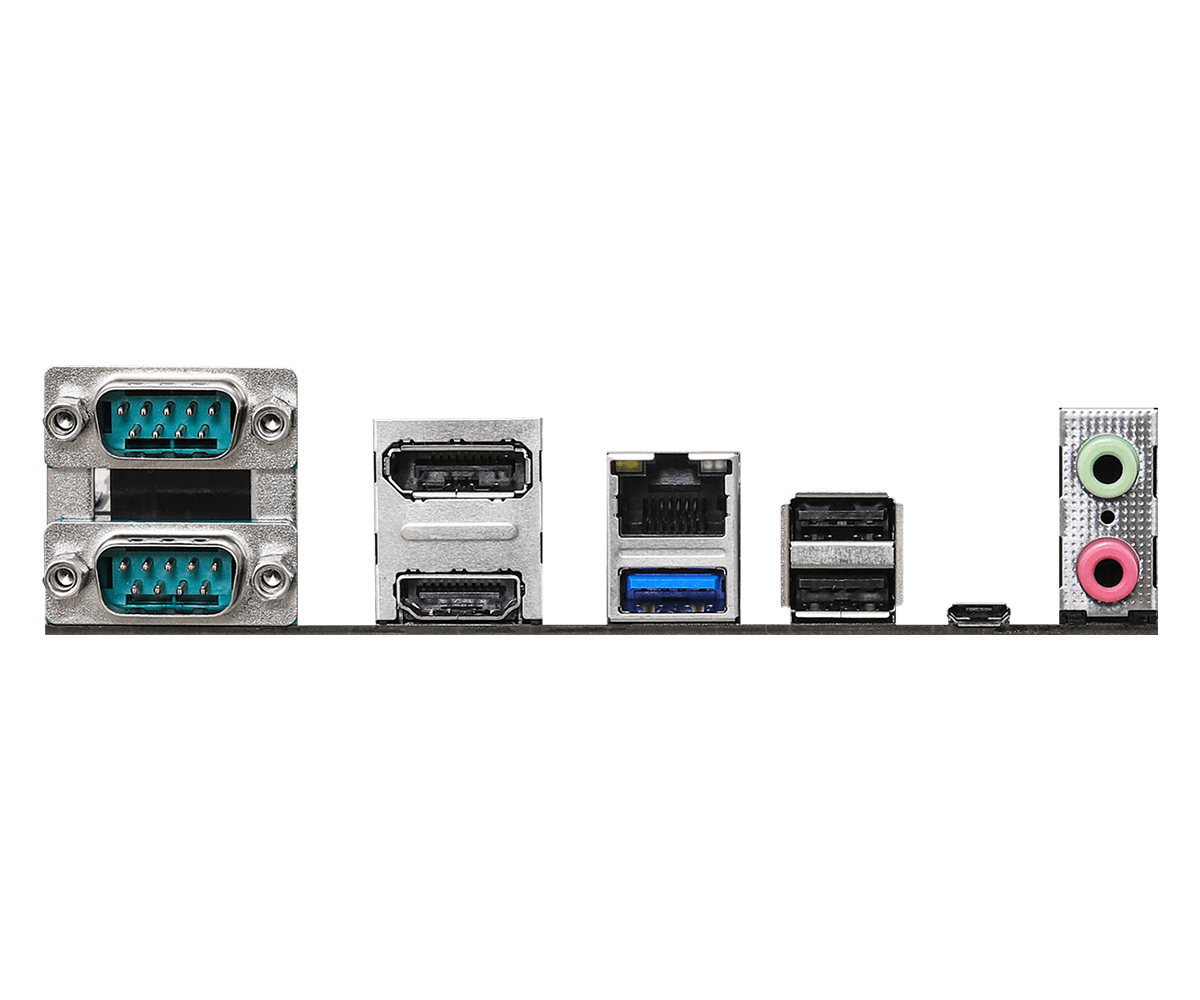

Rear I/O

HDMI 1 x HDMI 2.0a
DisplayPort 1 x DP 1.2
Ethernet 1 x 1 Gigabit LAN
USB 1 x USB 3.2 (GEN1)
2 x USB 2.0
1 x USB 2.0 OTG
Audio 2 (Mic-in, Line-out)
COM 2 x COM (RS485)

Internal Connector

LVDS 1
eDP 1
SATA PWR Output 1
Speaker Header 1
MIPI 2 x MIPI-CSI
Audio Header 1

Storage

M.2 1 x M.2 (Key M, 2242/2260/2280) with PCIe x1 Gen3
SATA 2 x SATA3 (6Gb/s)
SD Slot 1

Power Requirements

Input PWR 20V, 3A with USB Type-C connector

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C – 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
