SOM-QA101 QSeven Motherboard

  • AMD Embedded G-Series SOC processor
  • Supports DDR3L 1333, up to 8GB
  • 1 x HDMI , 1 x DP , 1 x LVDS (By Carrier Board)
  • 1 x USB 3.0, 5 x USB2.0 , 2 x SATA3 (By Carrier Board)
  • 3 x PCIe x1 slot (By Carrier Board)
  • 1 x Mini-PCIe (By Carrier Board)
  • 1 x mSATA (By Carrier Board)
  • 2 x Intel LAN (By Carrier Board)
  • 12~24V DC-in (By Carrier Board)
Datasheet
Specification

Form Factor

Dimensions Qseven (2.8-in x 2.8-in)

Processor System

CPU GX-412HC, QC, 1.2GHz, 7W
Chipset By CPU

Memory

Technology DDR3L 1333MHz
Capacity 8 GB

Graphics

Controller Integraded AMD Radeon™ R3E Graphics
LVDS Supports max resolution up to 1920 x 1200@60Hz
HDMI Supports max resolution up to 4096 x 2160@24Hz
DisplayPort Supports max resolution up to 4096 x 2160@60Hz
MultiDisplay Dual Display

Expansion Slot

PCIe 3 x PCIex1 (By Carrier Board)
mini-PCIe 1 x full/ half size (By Carrier Board)
mini-PCIe/mSATA 1 x full size (By Carrier Board)

Ethernet

Controller/ Speed 10/100/1000 Mbps
Connector 1 x Intel® I211 (By Carrier Board)

Rear I/O

HDMI 1 (By Carrier Board)
DisplayPort 1 (By Carrier Board)
Ethernet 1 (By Carrier Board)
USB 1 x USB3.0 , 5 x USB2.0 (By Carrier Board)
Audio 2 (By Carrier Board)
Serial Port 2 x RS-232 (By Carrier Board)
PS2 1 (By Carrier Board)

Internal Connector

LVDS 1 (By Carrier Board)
GPIO 4 x GPI + 4 x GPO (By Carrier Board)
SATA PWR Output 1 (By Carrier Board)

Storage

SATA 2 x SATA3 (By Carrier Board)

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR By Carrier Board
Power On By Carrier Board

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C – 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

Related Products

CAB-701

QSeven Motherboard

Supports Qseven Module

CAB-IVI701 New

QSeven Carrier Motherboard

Supports QSeven Module

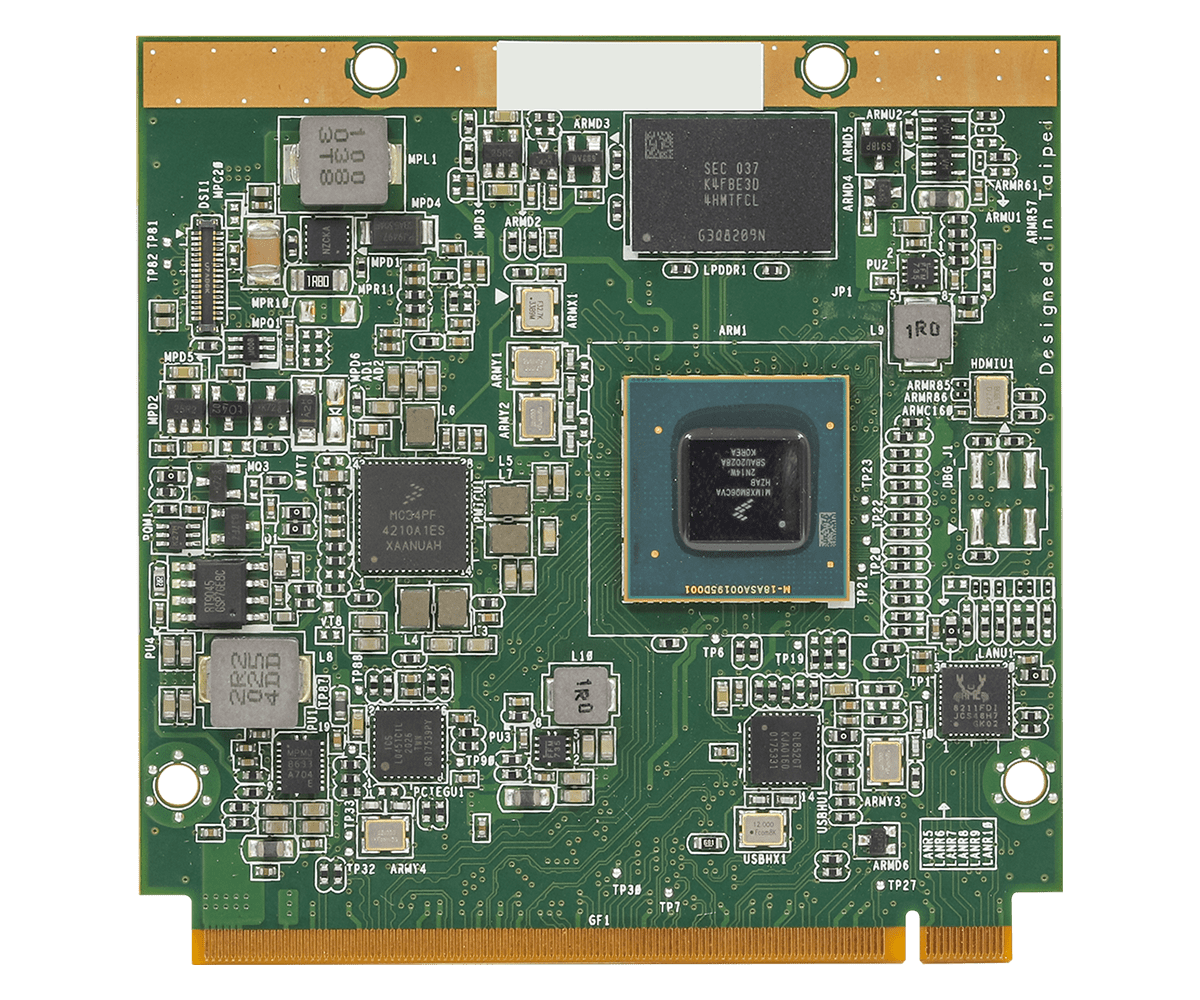

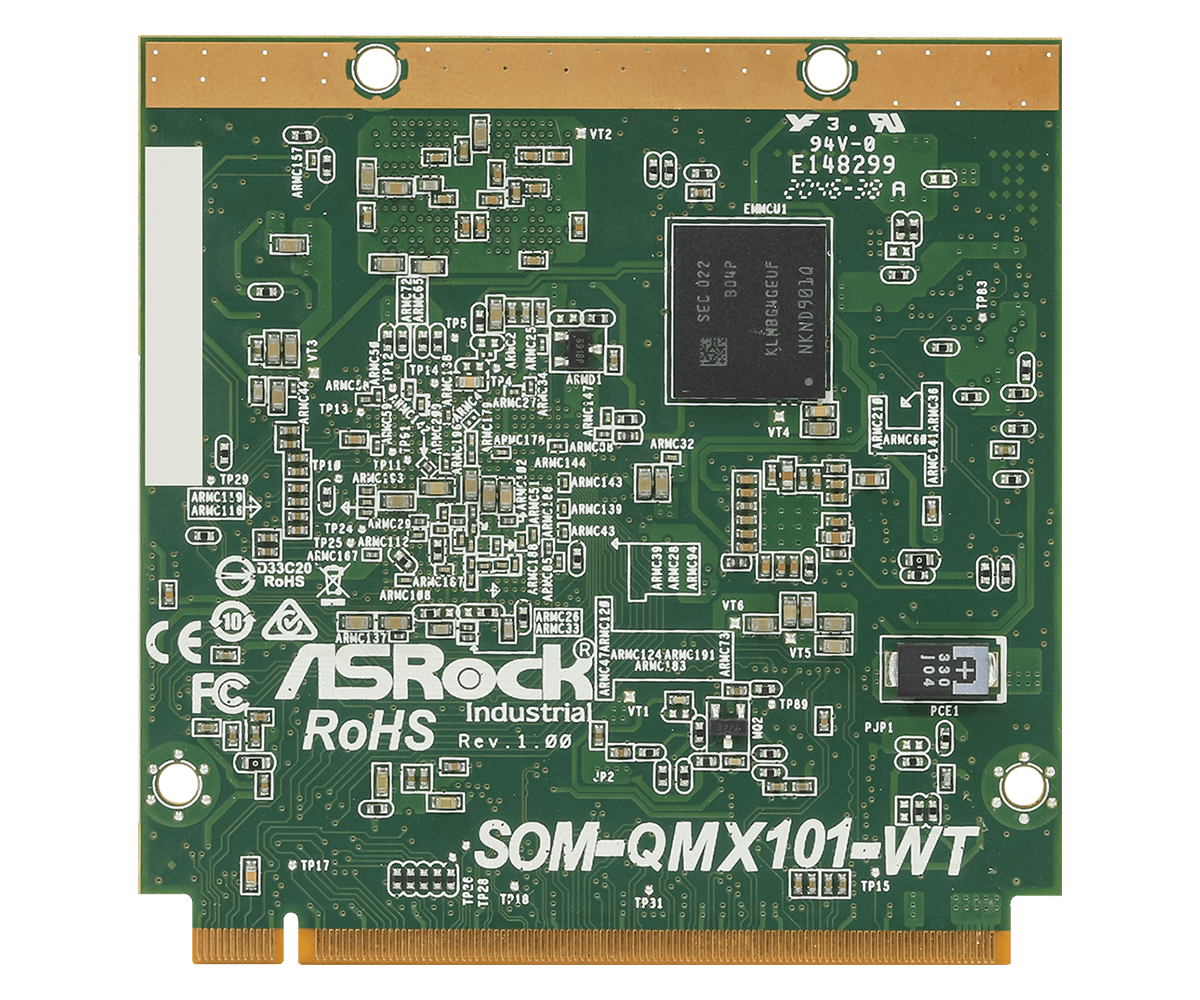

SOM-QMX101-WT New
