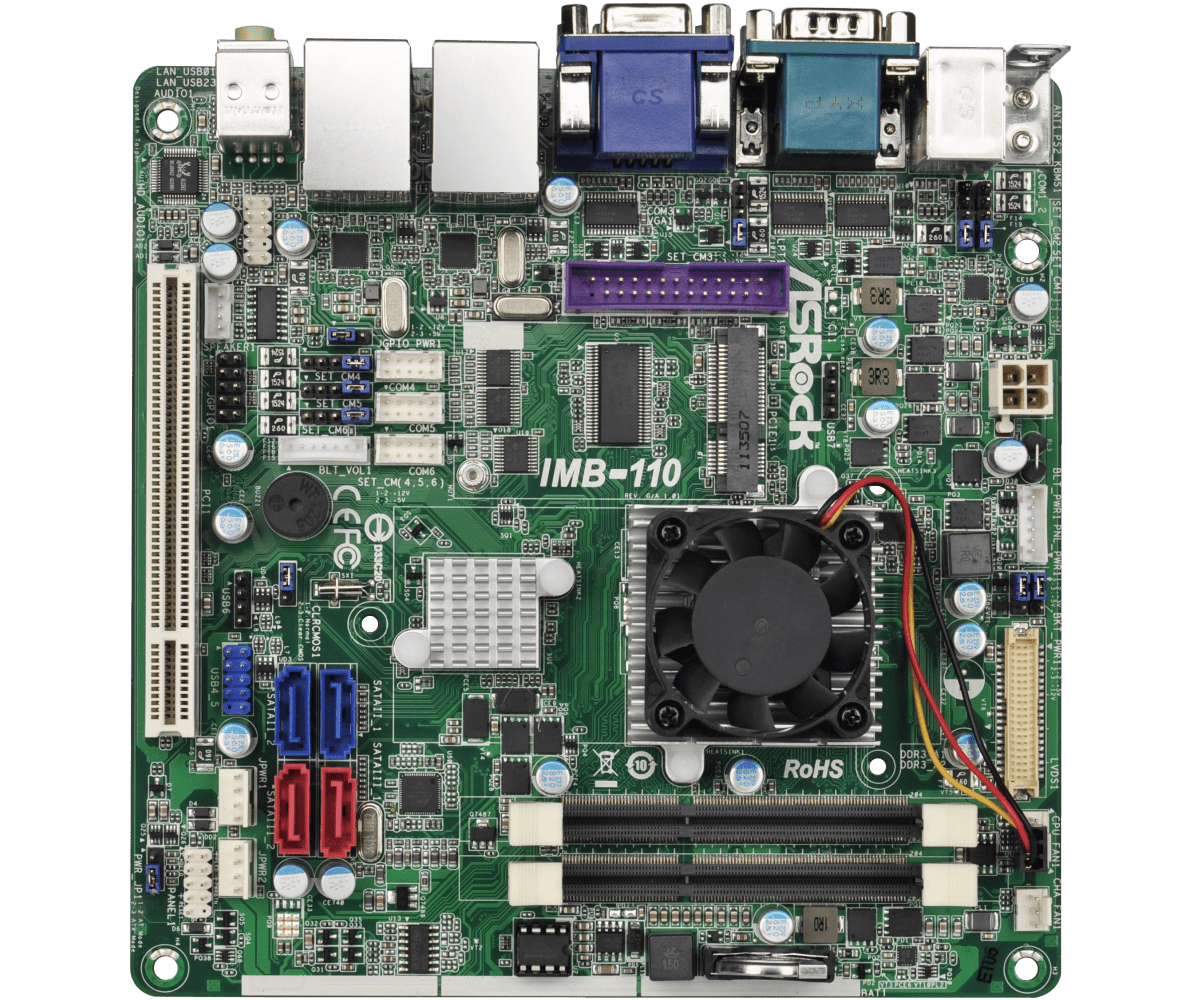

IMB-110 Series Mini-ITX Motherboard

  • Intel® Atom™ PineView Processor D525/D425/N455
  • Intel® NM10 Express Chipset
  • Integrated Intel® Graphics Media Accelerator 3150, DirectX 9.0
  • Supports DDR3 800MHz, 2 x SO-DIMM, up to 4GB system memory
  • 3 x COM (RS-232/422/485), 3 x COM (RS-232)
  • 1 x D-Sub, 1 x Single Channel 18-bit LVDS
  • 8 x USB 2.0, 2 x SATA3, 2 x SATA2
  • 1 x PCI, 1 x mini-PCIe
  • Gigabit LAN : 2 x Realtek RTL8111E-VL
Datasheet
Specification

Form Factor

Dimensions Mini-ITX (6.7-in x 6.7-in)

Processor System

CPU Intel® Dual-Core Atom™ PineView Processor D525 / D425 / N455
Supports Hyper-Threading Technology
Chipset NM10

Memory

Technology D525/D425: Single Channel DDR3 800 MHz SDRAM
N455: Single Channel DDR3 667 MHz SDRAM
Capacity D525 / D425: 4 GB
N455: 2 GB
Socket 2 x SO-DIMM

Graphics

Controller Intel® Graphics Media Accelerator 3150
Pixel Shader 2.0, DirectX 9.0
VGA D525/D425: supports max. resolution 2048x1536 @ 60Hz
N455: supports max. resolution 1400x1050 @ 60Hz
LVDS Single Channel 18-bit, max resolution up to 1366 x 768
MultiDisplay Yes

Expansion Slot

PCI 1
mini-PCIe 1 (Full Size)

Ethernet

Controller/ Speed 10/100/1000 Mbps
Connector 2 x Realtek RTL8111E-VL

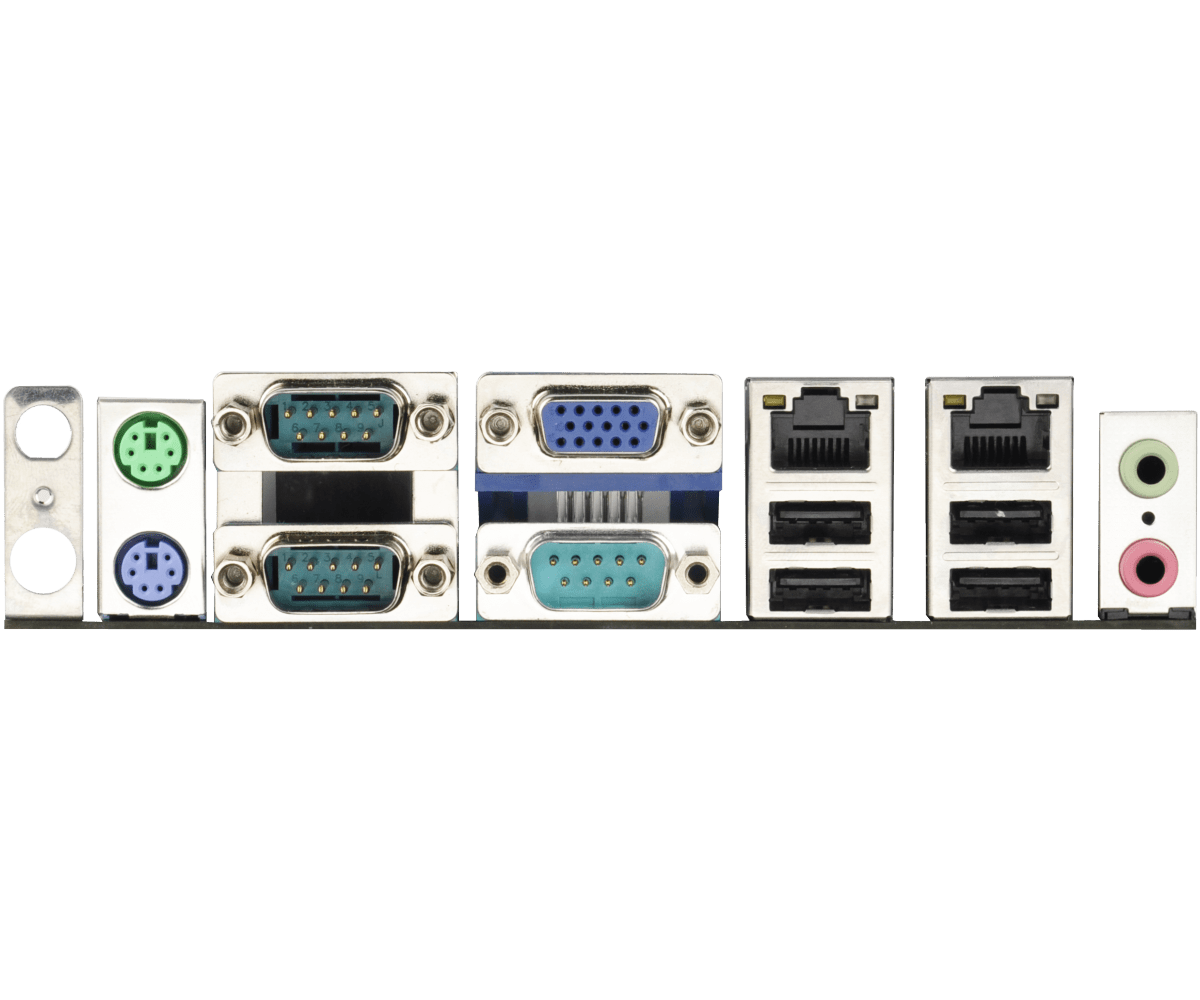

Rear I/O

VGA 1
Ethernet 2
USB 4 x USB 2.0
Audio 2 (Mic-in, Line-out)
COM 3 x COM (RS-232/422/485)
PS2 2

Internal Connector

USB 4 x USB 2.0
COM 3 x COM (RS-232)
Parallel 1
GPIO 4 x GPI + 4 x GPO
LVDS 1
SATA PWR Output 2
Speaker Header 1

Storage

SATA 2 x SATA2 (3.0Gb/s), 2 x SATA3 (6.0Gb/s), Support RAID 0/1

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 9-19V DC-In (4-pin ATX PWR Con)
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%
