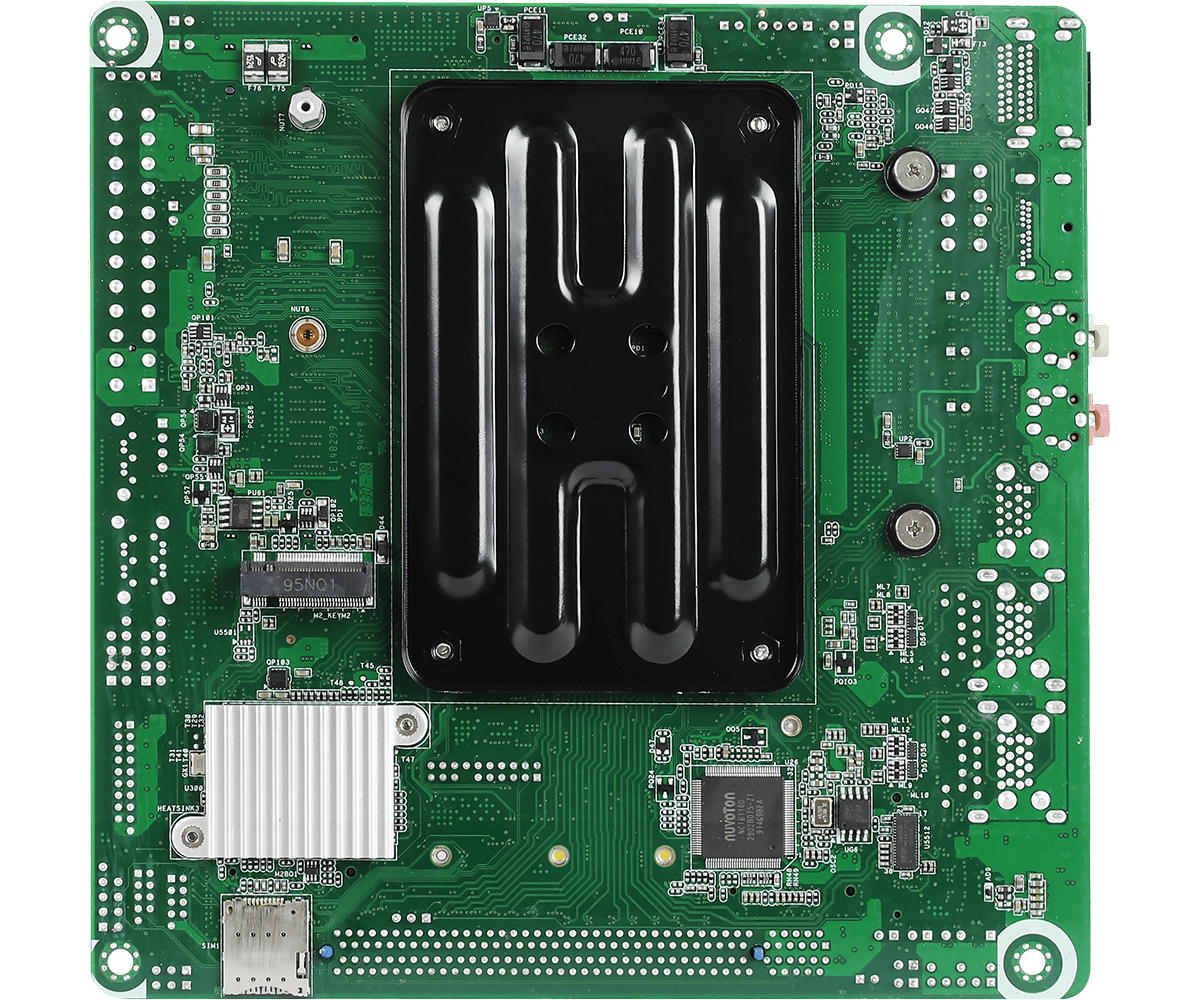

IMB-A1000 Mini-ITX Motherboard

  • AMD Ryzen 7th/5th/3th Gen (Raven Ridge/Matisse) Core™ Processors with B450 chipset
  • 2 x 204-pin SO-DIMM up to 32GB DDR4 3200 MHz (16GB per DIMM)
  • 1 x PCIe x16 (Gen3), 4x USB 3.1 Gen2, 4 x USB 3.1 Gen1, 4 x USB 2.0 with Matisse CPU
  • 1 x PCIe x16 (Gen3), 8 x USB 3.1 Gen1, 4 x USB 2.0 with Raven Ridge CPU
  • 2 x M.2 Key M, 1 x M.2 Key E, 1 x M.2 Key B, 2 x COM, 3 x SATA3
  • 2 x Intel 1 Gigabit LAN
  • Supports Triple display, 3 x DP++ 1.2, 1 x eDP
  • TPM 2.0 onboard IC
  • ATX PWR (24+8-pin)
Datasheet
Specification

Form Factor

Dimensions Mini-ITX (6.7-in x 6.7-in)

Processor System

CPU AMD Ryzen 7th/5th/3th Gen (Raven Ridge/Matisse) Core™ Processors
Ryzen 7th: Matisse (3700X,8cores,3.6GHz,65W)
Ryzen 5th: Raven Ridge (2400G, QC, 3.6GHz,65W); Matisse (3600,6cores,3.6GHz,65W)
Ryzen 3th: Raven Ridge (2200G, QC,3.5GHz,65W )
Chipset AMD Promontory B450
Socket AM4
BIOS AMI SPI 128 Mbit

Memory

Technology Dual Channel DDR4 3200 MHz
Capacity 32 GB (16 GB per DIMM)
Socket 2 x 204-pin SO-DIMM

Graphics

Controller AMD Radeon™ HD Vega DirectX 12
DisplayPort DisplayPort 1.2, DP++ Max resolution up to 4096x2160@60Hz
eDP eDP 1.4 (share with DisplayPort) Max resolution up to 4096x2160@60Hz
MultiDisplay Triple Display

Expansion Slot

PCIe 1 x PCIe x16 (PCIe Gen3 x8 for Raven Ridge)
1 x PCIe x16 (PCIe Gen3 x16 for Matisse)
M.2 1 x Key B (3042) with PCIe, USB 2.0 and SIM Socket for 4G
1 x Key E (2230) with PCIe x1 and USB 2.0 for Wireless
SIM Socket 1 x Socket connected to M.2 Key_B

Audio

Interface Realtek ALC887, High Definition Audio. Line-out,Mic-in

Ethernet

Controller/ Speed 2 x Realtek RTL8111G with 10/100/1000 Mbps
Connector 2 x RJ-45

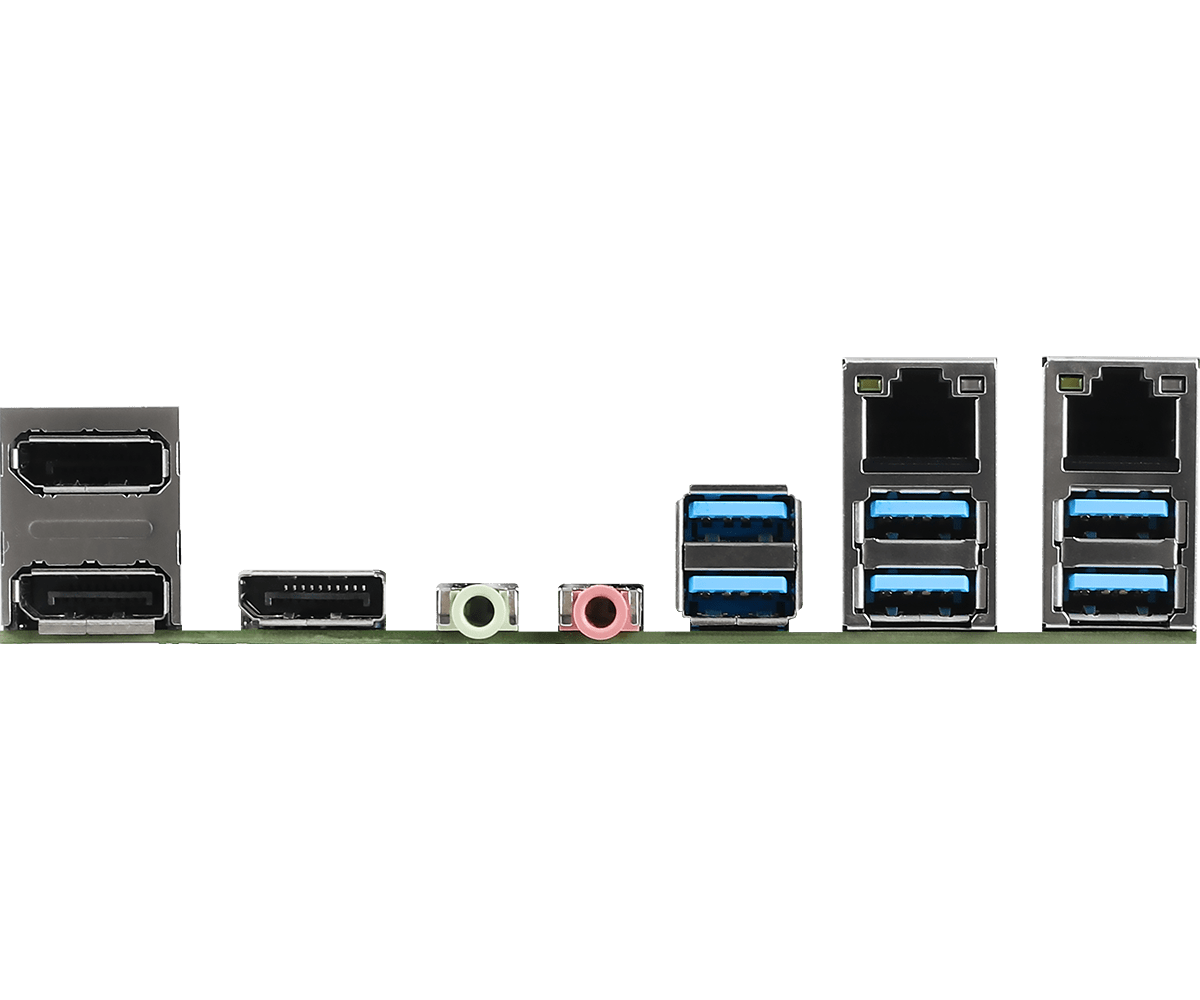

Rear I/O

DisplayPort 3x DP 1.2++
Ethernet 2 x 1 Gigabit LAN
USB Matisse: 4 x USB 3.1 (Gen2), 2 x USB 3.1(Gen1)
Raven Ridge: 6 x USB 3.1(Gen1)
Audio 2 (Mic-in, Line-out)

Internal Connector

USB 2 x USB 3.1 Gen1 (1 x USB 3.1 header)
4 x USB 2.0 (2 x 2.54 pitch header)
COM 2 x COM (RS232/422/485)
TPM TPM 2.0 onboard IC
LVDS N/A
eDP 1 (share with DisplayPort)
SATA PWR Output 1
Speaker Header 1

Storage

M.2 1 x Key M (2242/2260/2280) with PCIe x4 and SATA3 for SSD
1 x Key M (2242/2280) with PCIe x1 for SSD
SATA 3 x SATA3 (6Gb/s), SATA3_1 shared with M.2_Key M

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR ATX PWR (24+8-pin)
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

Support

OS:

Description OS Date Download
Description [Beta] Intel Lan driver ver:23.2_PV
OS Win 10 x 64 Date 2020-05-15 Download
Description [Beta] AMD RAIDXpert2 utility ver:8.1.0.75
OS Win 7 x 64 Date 2020-05-15 Download
Description [Beta] AMD RAIDXpert2 utility ver:9.2.0.120
OS Win 10 x 64 Date 2020-05-15 Download
Description [Beta] Realtek high definition audio driver ver:8519_FF00
OS Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-15 Download
Description [Beta] SATA Floppy Image ver:8.1.0.26
OS Win 7 x 64 Date 2020-05-15 Download
Description [Beta] SATA Floppy Image ver:9.2.0.120 OS Win 10 x 64 Date 2020-05-15 Download
Description HD Audio Driver and Application:8519_FF00 OS Win 10 x 64 Date 2020-05-08 Download
Description HD Audio Driver and Application:8519_FF00 OS Win 7 x 64 Date 2020-05-08 Download
Description Intel LAN Driver:v23.2_PV OS Win 10 x 64 Date 2020-05-08 Download
Description AMD ALL in 1 with VGA Driver:19.10.16_19H1_WHQL OS Win 10 x 64 Date 2020-05-08 Download
Description COM Port driver:v1.0.2011.1109 OS Win 10 x 64 Date 2020-05-08 Download
Description COM Port driver:v1.0.2011.1109 OS Win 7 x 64 Date 2020-05-08 Download
Version Update BIOS Under / How to Update Description Date Download
Version 1.50 Update BIOS Under / How to Update BIOS Description Improve system compatibility Date 2020-05-06 Download
Version 1.50 Update BIOS Under / How to Update Windows Description Improve system compatibility Date 2020-05-06 Download

The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.

Description Language Date Download
Description User Manual Language English Date 2020-05-06 Download
Description Date Download
Download CPU Support List Date 2020-05-06 Download
