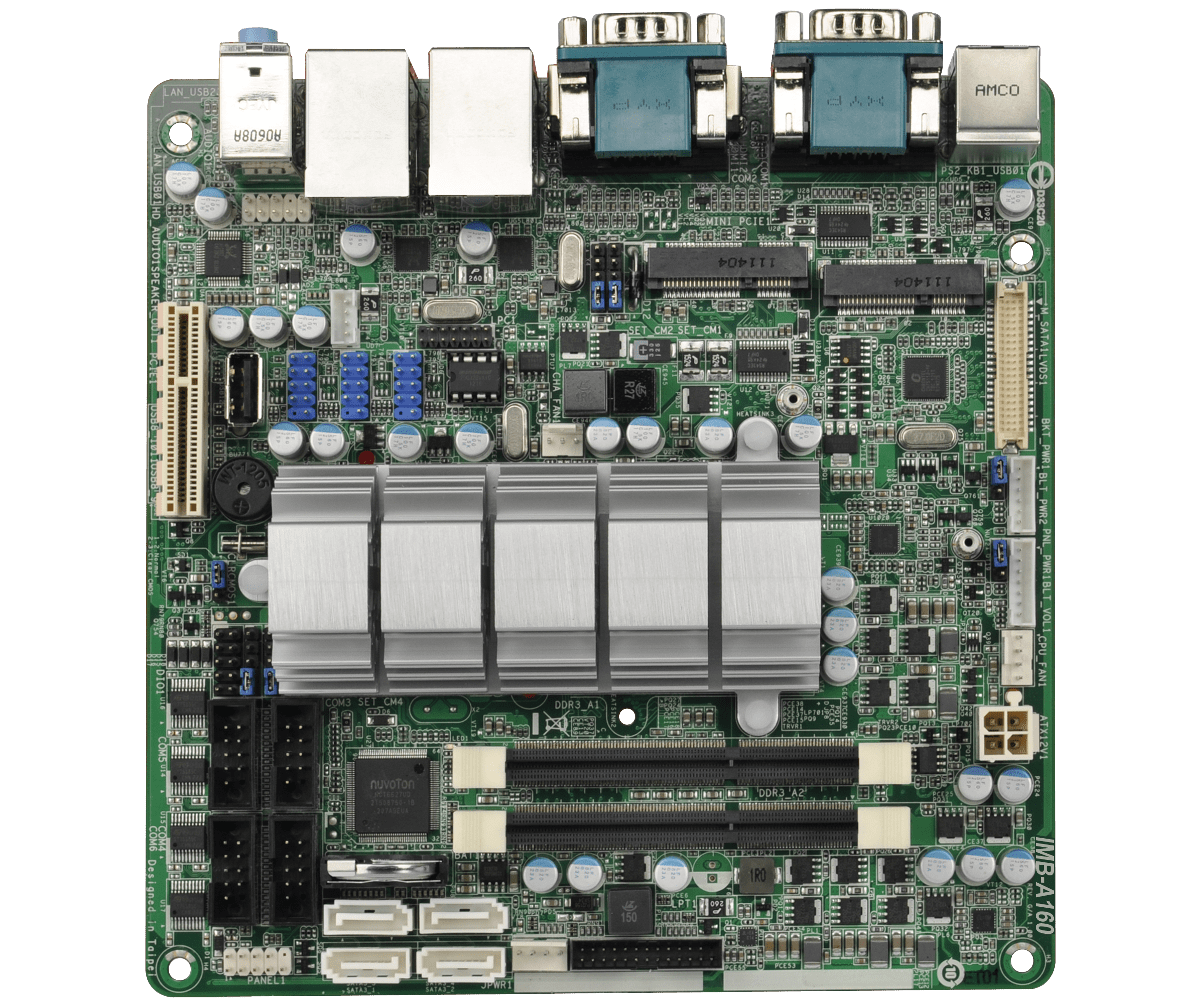

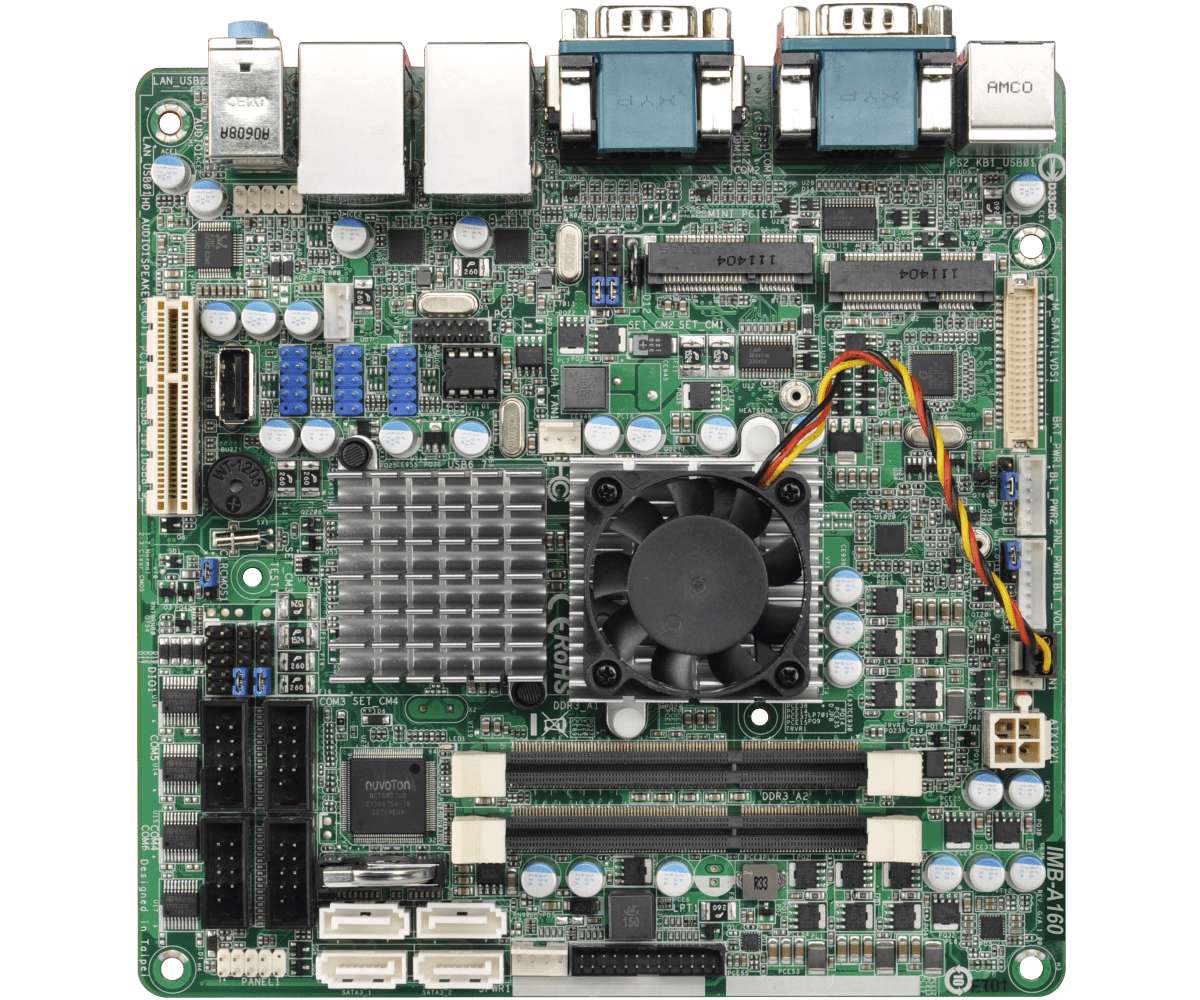

IMB-A160 Mini-ITX Motherboard

  • AMD Embedded G-Series APU T56N/T48E/T40E
  • AMD A50M Express Chipset
  • Integrated AMD Radeon HD 6320 (T56N)/ HD 6250 (T48E, T40E) Graphics
  • Supports DDR3 1333MHz, 2 x SO-DIMM, up to 8GB system memory
  • 2 x COM (RS-232/422/485), 4 x COM (RS-232)
  • 1 x D-Sub, 1x HDMI, 1 x Dual Channel 24-bit LVDS
  • 6 x USB 2.0, 4 x SATA3
  • 1 x mini-PCIe, 1 x mSATA, 1 x PCIe x4(x16)
  • Gigabit LAN : 2 x Realtek RTL8111E
  • 1 x TPM Header
Datasheet
Specification

Form Factor

Dimensions Mini-ITX (6.7-in x 6.7-in)

Processor System

CPU AMD Embedded G-Series APU T56N / T48E / T40E
Supports AMD Virtualization Technology (AMD-V)
Chipset AMD A50M
BIOS UEFI

Memory

Technology Dual Channel DDR3 1066 / 1333 / 1600 MHz SDRAM
Socket 2 x SO-DIMM
Capacity 8GB

Graphics

Controller T56N : AMD Radeon HD 6320
T48E : AMD Radeon HD 6250
T40E : AMD Radeon HD 6250
VGA Supports max resolution up to 1920x1200
HDMI Supports HDMI, max resolution up to 1920 x 1080
LVDS Supports Dual Channel 24-bit, max resolution up to 1920x1200
MultiDisplay Dual Display

Expansion Slot

mini-PCIe 1 (Half Size)
PCIe 1 (x4), x16 add on card compliant

Ethernet

Controller/ Speed Realtek RTL8111E with 10/100/1000 Mbps
Connector 2 x RJ - 45

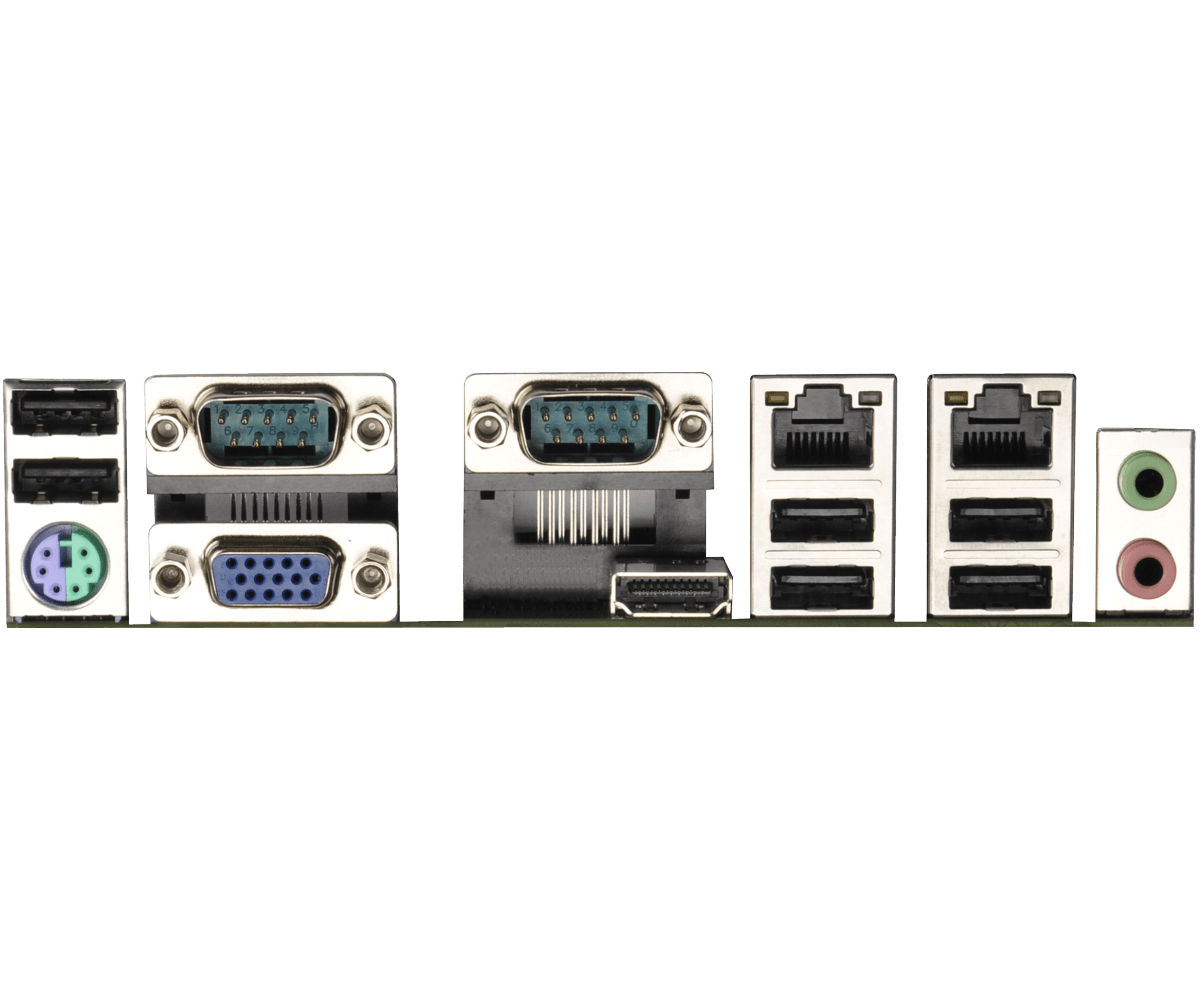

Rear I/O

Ethernet 2
USB 6 x USB 2.0
HDMI 1
Audio 2 (Mic-in, Line-out)
COM 2 x COM(RS-232/422/485)
VGA 1
PS2 1 (Combo)

Internal Connector

USB 6 (USB 2.0 compliant, Header)
1 Vertical Type A USB Connector
COM 4 x COM(RS-232)
GPIO 4 x GPI +4 x GPO
LVDS 1
Parallel 1
SATA PWR Output 1
Speaker Header 1

Storage

SATA 4 x SATA2 (6.0Gb/s)

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR ATX PWR
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

Support

OS:

Description OS Date Download
Description ASRock 3TB+ Unlocker utility ver:1.1.1 OS Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 , XP x 64 , XP Date 2020-07-07 Download
Description VGA driver ver:9.001 OS Win 8 x 64 , Win 8 Date 2020-07-07 Download
Description VGA driver ver:9.001 OS Win 7 x 64 , Win 7 Date 2020-07-07 Download
Description VGA driver ver:9.00 OS XP x 64 , XP Date 2020-07-07 Download
Description SATA RAID utility ver:3.3.1540.24 OS Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 , XP x 64 , XP Date 2020-07-07 Download
Description SATA RAID Driver (For systems to get the drivers from USB stick during Windows installation)
[Installation Guide]
OS Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 , XP x 64 , XP Date 2020-07-07 Download
Description Realtek Lan driver ver:5790 OS XP x 64 , XP Date 2020-07-07 Download
Description Realtek Lan driver ver:8003 OS Win 8 x 64 , Win 8 Date 2020-07-07 Download
Description Realtek Lan driver ver:7048 OS Win 7 x 64 , Win 7 Date 2020-07-07 Download
Description Realtek Teaming driver ver:2.0.2.0 OS Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 , XP x 64 , XP Date 2020-07-07 Download
Description AMD Cool'n'Quiet driver ver:1.3.2_2007_AUG OS XP x 64 , XP Date 2020-07-07 Download
Description Realtek high definition audio driver ver:6738 OS Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 , XP x 64 , XP Date 2020-07-07 Download
Description AMD all in 1 driver ver:9.001 OS Win 8 x 64 , Win 8 Date 2020-07-07 Download
Description AMD all in 1 driver ver:9.001 OS Win 7 x 64 , Win 7 Date 2020-07-07 Download
Description AMD all in 1 driver ver:9.00 OS XP x 64 , XP Date 2020-07-07 Download
Version Update BIOS Under / How to Update Description Date Download
Version 1.10 Update BIOS Under / How to Update BIOS Description Improve SIO code. Date 2020-07-07 Download
Version 1.10 Update BIOS Under / How to Update DOS Description Improve SIO code. Date 2020-07-07 Download
Version 1.10 Update BIOS Under / How to Update Windows Description Improve SIO code. Date 2020-07-07 Download

The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.

Description Language Date Download
Description User Manual Language English Date 2020-07-07 Download
Description Jumpers and headers setting guide Language English Date 2020-07-07 Download
