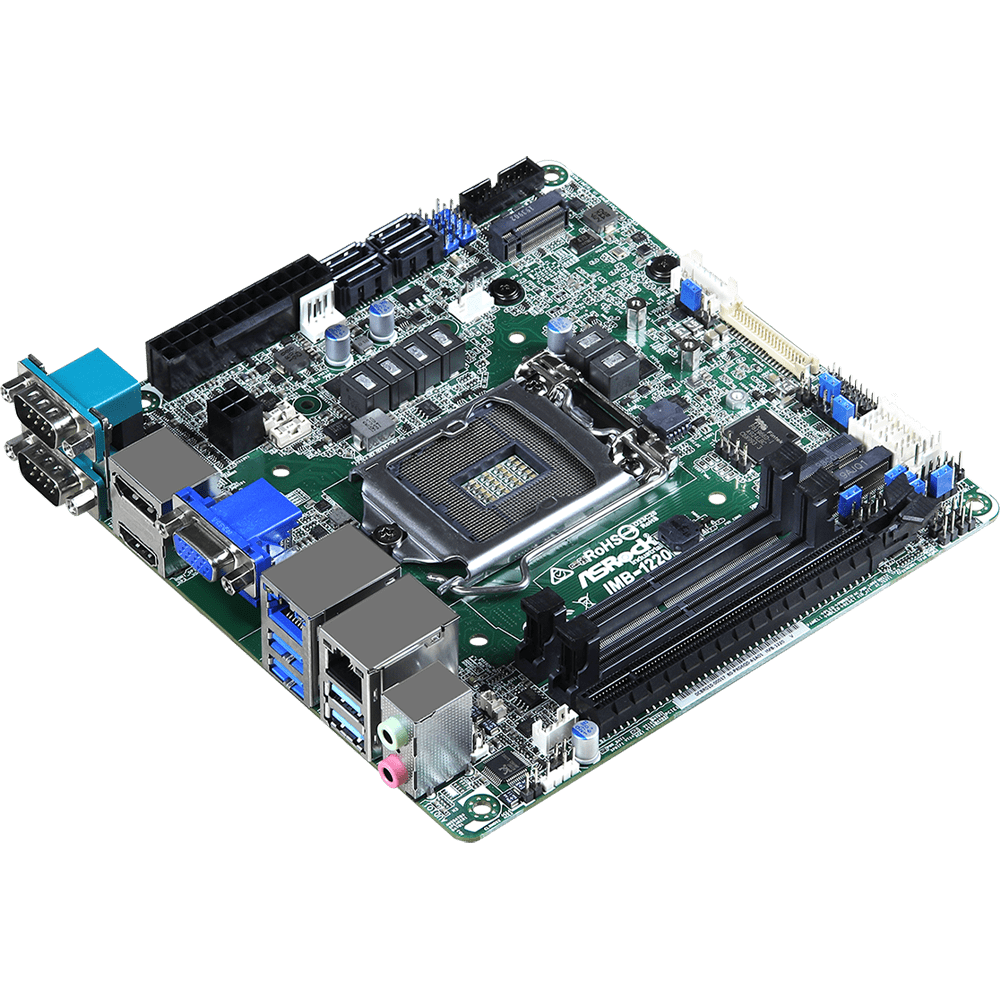

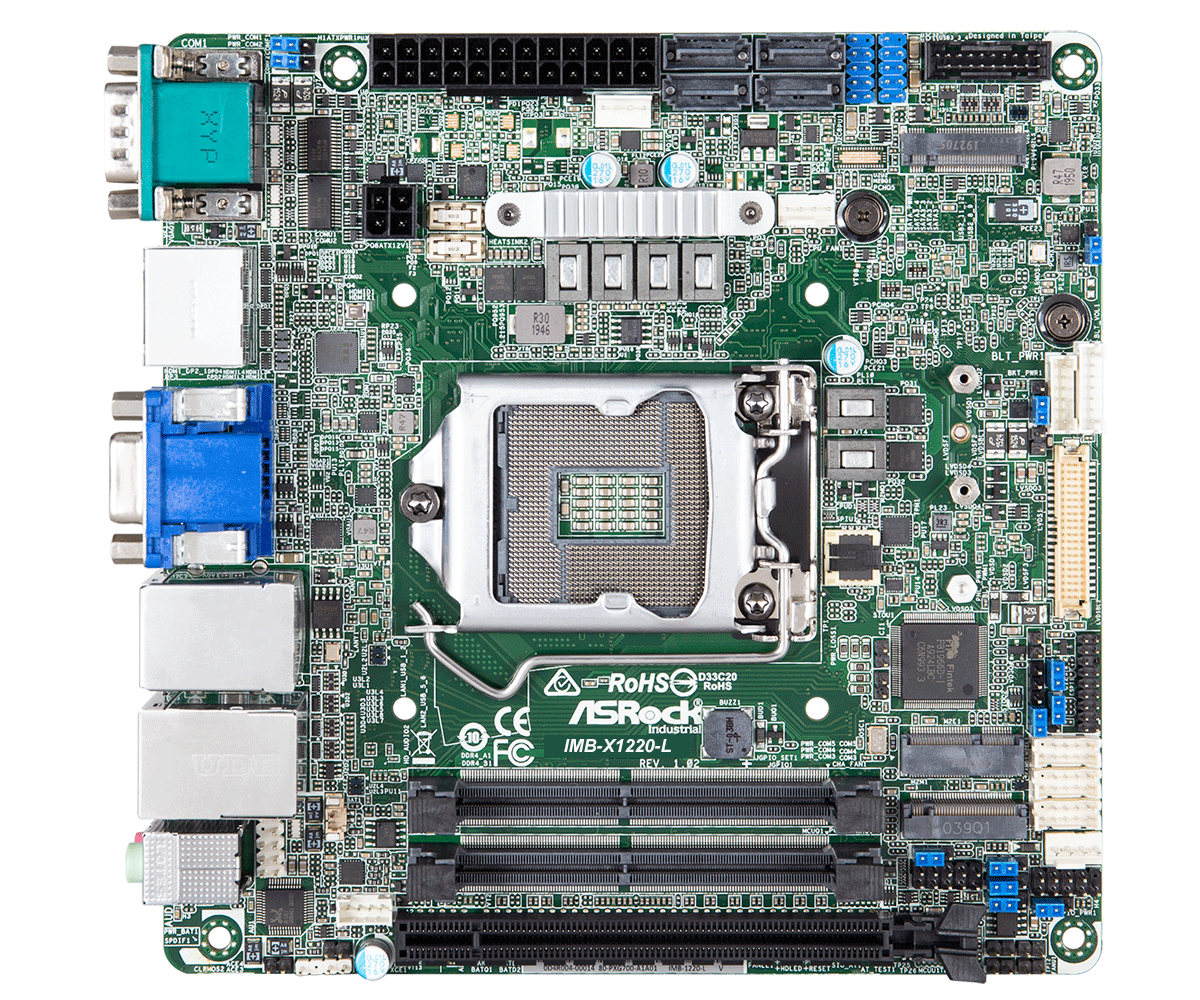

IMB-X1220-L Mini-ITX Motherboard

  • Intel® Xeon® W-1200 series & Intel® 10th Gen (Comet lake-S) Core™ Processors with W480E chipset
  • 2 x 260-pin SO-DIMM Support Dual Channel SO DIMM DDR4 2933 (i9 / i7 CPU) / 2666 (i5 / i3 CPU) / 2400 (Pentium / Celeron CPU), up to 64GB
  • Support ECC SO DIMM memory modules
  • 1 x PCIe x16 Gen3, 6 x USB 3.2 Gen1, 4 x USB 2.0
  • 1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B, 5 x COM, 4 x SATA3
  • 1 x Intel 1 Gigabit LAN, 1 x Intel 2.5 Gigabit LAN
  • Support Triple display, 1 x DP1.2, 1 x VGA, 1 x LVDS. 1 x HDMI 2.0a
  • TPM 2.0 onboard
  • Special Feature: Supports Intel® vPro, AMT, RAID 0/1/5/10
  • ATX-PWR (24+4-pin)
Datasheet
Specification

Form Factor

Dimensions Mini-ITX (6.7-in x 6.7-in x 1.5-in)

Processor System

CPU Intel® 10th Gen (Cometlake-S) Core™ Processors, up to 80W
*The performance of CPUs over 80W will be limited due to power design.
Chipset Intel® W480E
Socket LGA1200
BIOS AMI SPI 256 Mbit

Memory

Technology Dual Channel DDR4 2933 / 2666 / 2400 MHz, (ECC memory supported by CPU)
- Intel Core i9 / i7 CPUs support DDR4 up to 2933 MHz
- Intel Core i5/i3 CPUs support DDR4 up to 2666 MHz
- Intel Pentium / Celeron CPU support DDR4 up to 2400 MHz
Capacity 64GB (32 GB per DIMM)
Socket 2 x 260-pin SO-DIMM

Graphics

Controller Intel® UHD Graphics
DisplayPort DisplayPort 1.2 , DP++
Max resolution up to 4096 x 2160@60Hz
MultiDisplay Triple Display
HDMI HDMI 2.0a, Max resolution up to 4096 x 2160@60Hz
VGA Max resolution up to 1920 x 1200@60Hz
LVDS Dual channel 24 bit up to 1920 x 1200@60Hz

Expansion Slot

PCIe 1 x PCIe x16 (Gen3, Support riser card x8 / x8, x8 / x4 / x4)
M.2 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
1 x M.2 (Key B, 3042) with PCIe x1 / USB 3.2 Gen1 / USB 2.0 and SIM for 4G / 5G

SIM Socket 1 x SIM socket connected to M.2 Key B

Audio

Interface Realtek ALC887/897 HD , High Definition Audio. Line-out, Mic-in

Ethernet

Controller/ Speed LAN1: Intel® I225LM with 10/100/1000/2500 Mbps
LAN2: Intel® I219LM with 10/100/1000 Mbps, support AMT/vPro
Connector 2 x RJ-45

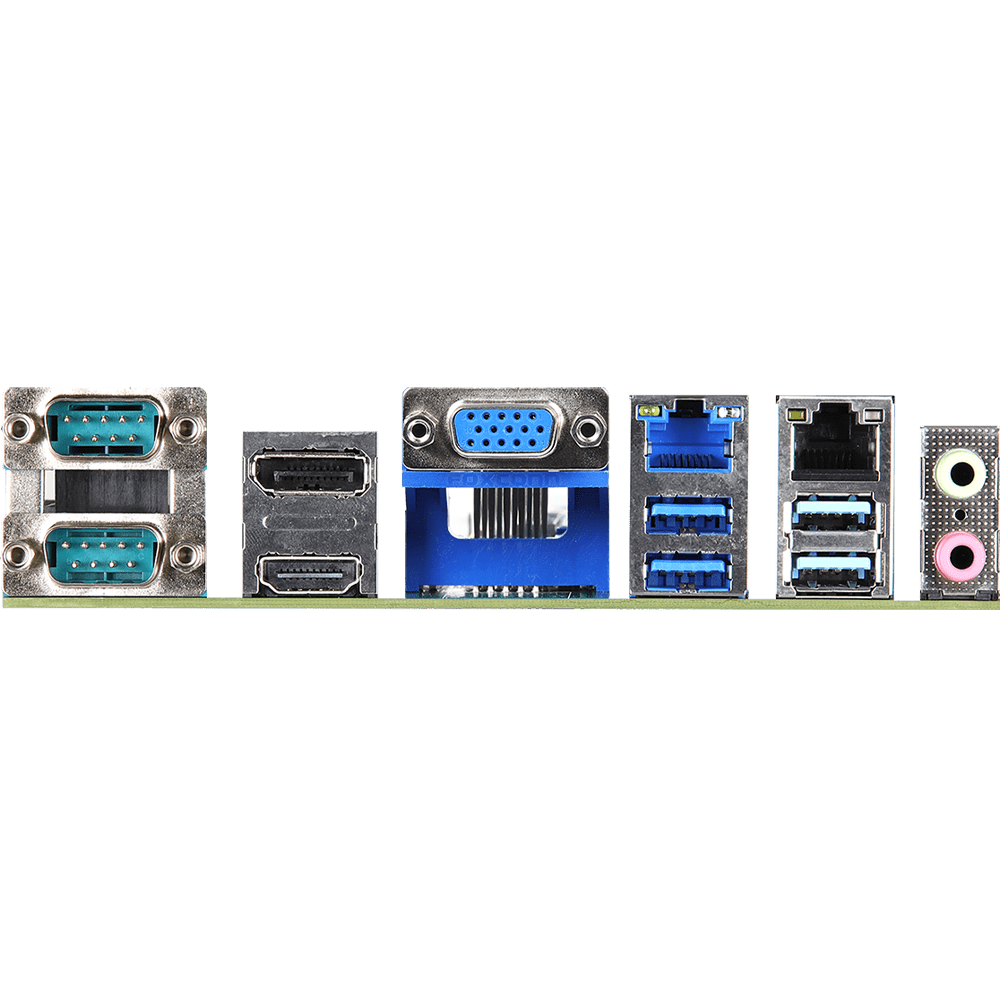

Rear I/O

DisplayPort 1 x DP 1.2
Ethernet 1 x 1 Gigabit LAN
1 x 2.5 Gigabit LAN
USB 4 x USB 3.2 (Gen1)
Audio 2 (Mic-in, Line-out)
COM 2 x COM (RS-232/422/485)
HDMI 1 x HDMI 2.0a
VGA 1

Internal Connector

USB 2 x USB 3.2 Gen1 (1 x USB 3.2 Gen1 header)
4 x USB 2.0 (2 x 2.54 pitch header)
COM 3 x COM (RS-232)
GPIO 4 x GPI, 4 x GPO
TPM TPM 2.0 onboard
LVDS 1
Speaker Header 1
SATA PWR Output 1

Storage

M.2 1 x M.2 (Key M, 2242 / 2260 / 2280) with PCIE x4 or SATA3
SATA 4 x SATA3 (6Gb/s)
RAID Intel® SATA RAID 0/1/5/10

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR ATX PWR (24+4-pin)
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

Accessories

Gift Package 3 x SCREW M2,D=5 (13G020302031AK)
1 x NUT M2 H=3.35mm (13G020271020AK)
1 x NUT M2 H=6.5mm (13G0201950B0AK)
1 x I/O Shield (13G020623000AK)
1 x COM Cable (14G000000310AK)
2 x SATA Data Cable (14G00010107DAK)
1 x SATA Power Cable (14G000100410AK)
Bulk Package 3 x SCREW M2,D=5 (13G020302031AK)
1 x NUT M2 H=3.35mm (13G020271020AK)
1 x NUT M2 H=6.5mm (13G0201950B0AK)
1 x I/O Shield (13G020624000AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

Support

OS:

Description OS Date Download
Description Rapid Storage Technology Driver and utility ver:17.8.0.1065.2_PV OS Win 10 x 64 Date 2020-08-31 Download
Description Realtek high definition audio driver ver:9057_FF00 OS Win 10 x 64 Date 2020-08-31 Download
Description Intel Lan driver ver:25.0_562413 OS Win 10 x 64 Date 2020-07-06 Download
Description SATA Floppy Image ver:17.8.0.1065.2_PV OS Win 10 x 64 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-18 Download
Description Optane Driver ver:17.8.0.1065.2_PV OS Win 10 x 64 Date 2020-05-18 Download
Description VGA Driver ver:26.20.100.7926_Q0 OS Win 10 x 64 Date 2020-05-18 Download
Description Intel Management Engine driver ver:14.0.30.1115_CORP_SW_DCH OS Win 10 x 64 Date 2020-05-18 Download
Description INF driver ver:10.1.18263.8193_Public OS Win 10 x 64 Date 2020-05-18 Download
Version Update BIOS Under / How to Update Description Date Download
Version 1.50 Update BIOS Under / How to Update BIOS Description Enhance system compatibility Date 2021-04-21 Download
Version 1.50 Update BIOS Under / How to Update DOS Description Enhance system compatibility Date 2021-04-21 Download
Version 1.50 Update BIOS Under / How to Update Windows Description Enhance system compatibility Date 2021-04-21 Download
Version 1.40 Update BIOS Under / How to Update BIOS Description Update audio codec Date 2020-12-18 Download
Version 1.40 Update BIOS Under / How to Update DOS Description Update audio codec Date 2020-12-18 Download
Version 1.40 Update BIOS Under / How to Update Windows Description Update audio codec Date 2020-12-18 Download

The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.

Description Language Date Download
Description Guide to Intel Rapid Storage Language English Date 2020-06-19 Download
Description RAID Installation Guide Language English Date 2020-06-19 Download
Description User Manual Language English Date 2020-06-19 Download
Description Jumpers and headers setting guide Language English Date 2020-06-19 Download
Description Date Download
Download CPU Support List Date 2020-08-03 Download
