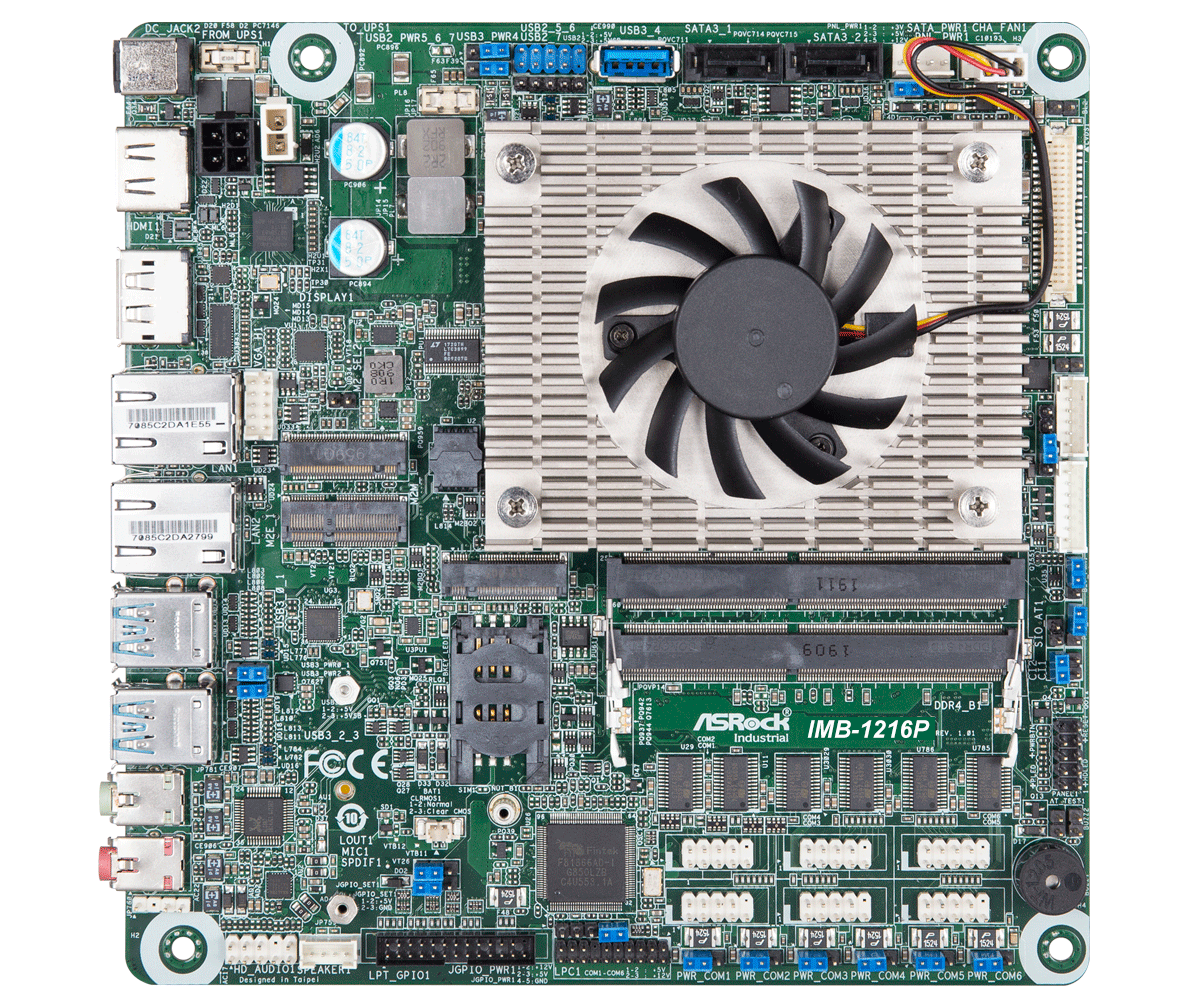

IMB-1216P Mini-ITX Motherboard

  • Intel® 8th Gen (Whiskey Lake-U) Core™ MCP Processors
  • 2 x 260-pin SO-DIMM up to 32GB DDR4 2400MHz (16GB per DIMM)
  • 5 x USB 3.2 Gen1, 3 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key B, 1 x M.2 Key M, 6 x COM, 2 x SATA3
  • 1 x Intel 1 Gigabit LAN, 1 x Realtek 1 Gigabit LAN
  • Supports triple display, 1 x HDMI 2.0a, 1 x DP 1.2 or VGA, 1 x LVDS or eDP
  • TPM 2.0 onboard IC
  • 12V~28V DC-In
Datasheet
Specification

Form Factor

Dimensions Mini-ITX (6.7-in x 6.7-in)

Processor System

CPU Intel® 8th Gen (Whiskey Lake-U) Core™ MCP Processors i7-8665UE, QC, 1.7GHz, 15W
Chipset MCP
BIOS AMI SPI 128 Mbit

Memory

Technology Dual Channel DDR4 2400 MHz
Capacity 32 GB (16 GB per DIMM)
Socket 2 x 260-pin SO-DIMM

Graphics

Controller Intel® Gen9 Graphics DX 11/12
HDMI HDMI 2.0a
Max resolution up to 4096x2160@60Hz
DisplayPort DisplayPort 1.2, DP++
Max resolution up to 4096x2304@60Hz
VGA Max resolution up to 1920x1200@60Hz
LVDS Dual channel 24 bit up to 1920x1200@60Hz
eDP eDP 1.4 Max resolution up to 4096x2304@60Hz
MultiDisplay Triple Display

Expansion Slot

M.2 1 x M.2 (Key E, 2230) with PCIe x1, USB2.0 and CNVi for Wireless
1 x M.2 (Key B, 3042) with PCIe x1, USB 3.0 and UIM for 4G
SIM Socket 1 x Socket connected to M.2 Key_B

Audio

Interface Realtek ALC887, High Definition Audio. Line-out,Mic-in

Ethernet

Controller/ Speed LAN1: Intel I219LM with 10/100/1000 Mbps, supports AMT/vPro
LAN2: Realtek RTL8111G with 10/100/1000 Mbps
Connector 2 x RJ-45

Rear I/O

HDMI 1 x HDMI 2.0a
DisplayPort 1 x DP 1.2 (shared with internal VGA, by BIOS setting)
Ethernet 2 x 1 Gigabit LAN
USB 4 x USB 3.2 (Gen1)
Audio 2 (Mic-in, Line-out)
DC Jack 1

Internal Connector

USB 1 x USB 3.2 Gen1 (Type-A vertical con)
3 x USB 2.0 (2 x 2.54 pitch header)
COM COM1, 2(RS232/422/485)
COM3, 4, 5, 6 (RS-232)
Parallel 1 (shared with GPIO)
GPIO 8 x GPI, 8 x GPO (shared with LPT header)
TPM TPM 2.0 IC onboard
LVDS 1 (shared with eDP, by BIOS setting)
eDP 1 (shared with LVDS, by BIOS setting)
VGA 1 x Header (shared with DP port, by BIOS setting)
SATA PWR Output 1
Speaker Header 1

Storage

M.2 1 x M.2 (Key M, 2242/2260/2280) with PCIe x4 and SATA3 for SSD
SATA 2 x SATA3 (6Gb/s)

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 12V~28V DC-In with 4-pin plug PWR cable or DC Jack
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

Support

OS:

Description OS Date Download
Description COM Port driver ver:160324 OS Win 10 x 64 Date 2020-05-08 Download
Description Realtek Lan driver ver:10031_10232018 OS Win 10 x 64 Date 2020-05-08 Download
Description Intel Lan driver ver:23.2_PV OS Win 10 x 64 Date 2020-05-08 Download
Description Intel Wireless Lan driver ver:20.110.0.3 OS Win 10 x 64 Date 2020-05-08 Download
Description Intel Management Engine driver ver:12.0.37.1429_Corp OS Win 10 x 64 Date 2020-05-08 Download
Description Realtek high definition audio driver ver:8569 OS Win 10 x 64 Date 2020-05-08 Download
Description Intel Rapid Storage Technology driver and utility ver:17.0.0.1072 OS Win 10 x 64 Date 2020-05-08 Download
Description INF driver ver:10.1.17765.8094_Public OS Win 10 x 64 Date 2020-05-08 Download
Description VGA driver ver:25.20.100.6519 OS Win 10 x 64 Date 2020-05-08 Download
Version Update BIOS Under / How to Update Description Date Download
Version 1.10 Update BIOS Under / How to Update BIOS Description 1.Improve system compatibility
2.Update Intel ME version
Date 2020-05-06 Download
Version 1.10 Update BIOS Under / How to Update DOS Description 1.Improve system compatibility
2.Update Intel ME version
Date 2020-05-06 Download
Version 1.10 Update BIOS Under / How to Update Windows Description 1.Improve system compatibility
2.Update Intel ME version
Date 2020-05-06 Download
Version 1.00 Update BIOS Under / How to Update BIOS Description First released. Date 2020-05-06 Download
Version 1.00 Update BIOS Under / How to Update DOS Description First released. Date 2020-05-06 Download
Version 1.00 Update BIOS Under / How to Update Windows Description First released. Date 2020-05-06 Download

The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.

Description Language Date Download
Description User Manual Language English Date 2020-05-06 Download
Description Jumpers and headers setting guide Language English Date 2020-05-06 Download
Description RAID Installation Guide Language English Date 2020-05-06 Download
