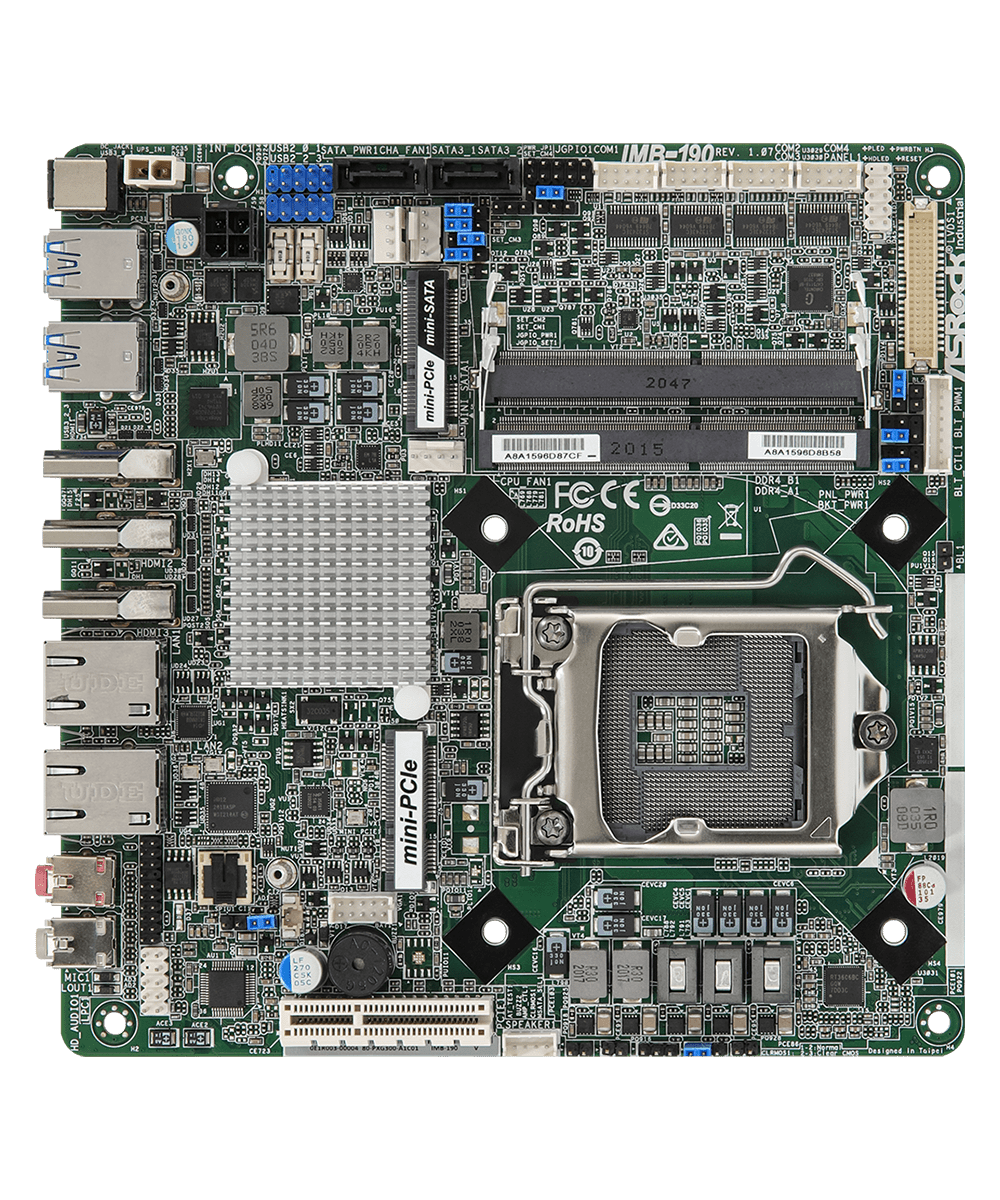

IMB-190 Mini-ITX Motherboard

  • Supports Intel® 7th / 6th Gen (Kabylake-S / Skylake-S) Core™ Processors (Socket 1151)
  • Supports Dual Channel DDR4 SO-DIMM 2133, up to 32GB
  • 3 x HDMI, 1 x LVDS
  • 4 x USB 3.0, 4 x USB 2.0, 2 x SATA3, 4 x COM
  • 2 x Mini-PCIe, 1 x PCIe x4, 1 x mSATA
  • 2 x Intel® LAN
  • 1 x TPM Header
  • Supports Intel® vPro, AMT, RAID 0/1
  • 12V / 19~24V DC-in
Datasheet
Specification

Form Factor

Dimensions Mini-ITX (6.7-in x 6.7-in)

Processor System

CPU Supports Intel® 7th / 6th Gen (Kabylake-S / Skylake-S) Core™
Processors (Socket 1151)
Chipset Intel® Q170

Memory

Technology Dual Channel DDR4 2133 MHz
Capacity 32 GB
Socket 2 x SO-DIMM

Graphics

Controller Intel® Gen9 Graphics DX 11 / 12, OGL 4.3 / 4.4
HDMI HDMI1: Supports max resolution 4096 x 2160@60Hz
HDMI2 & 3: Supports max resolution 4096 x 2160@30Hz
VGA Supports max resolution up to 1920 x 1200
LVDS Supports Dual channel 24-bit co-lay with eDP, max resolution up to 1920 x 1200@60Hz
MultiDisplay Triple Display

Expansion Slot

PCIe 1 x PCIe x4
mini-PCIe 1 x Half size with PCIe x1 and USB 2.0
mini-PCIe/mSATA 1 x Full size with PCIe x1, SATA3 and USB 2.0

Audio

Interface Realtek ALC887/897 HD, High Definition Audio. Line-out, Mic-in

Ethernet

Controller/ Speed LAN1: Intel® I219LM with 10/100/1000 Mbps
LAN2: Intel® I210 with 10/100/1000Mbps

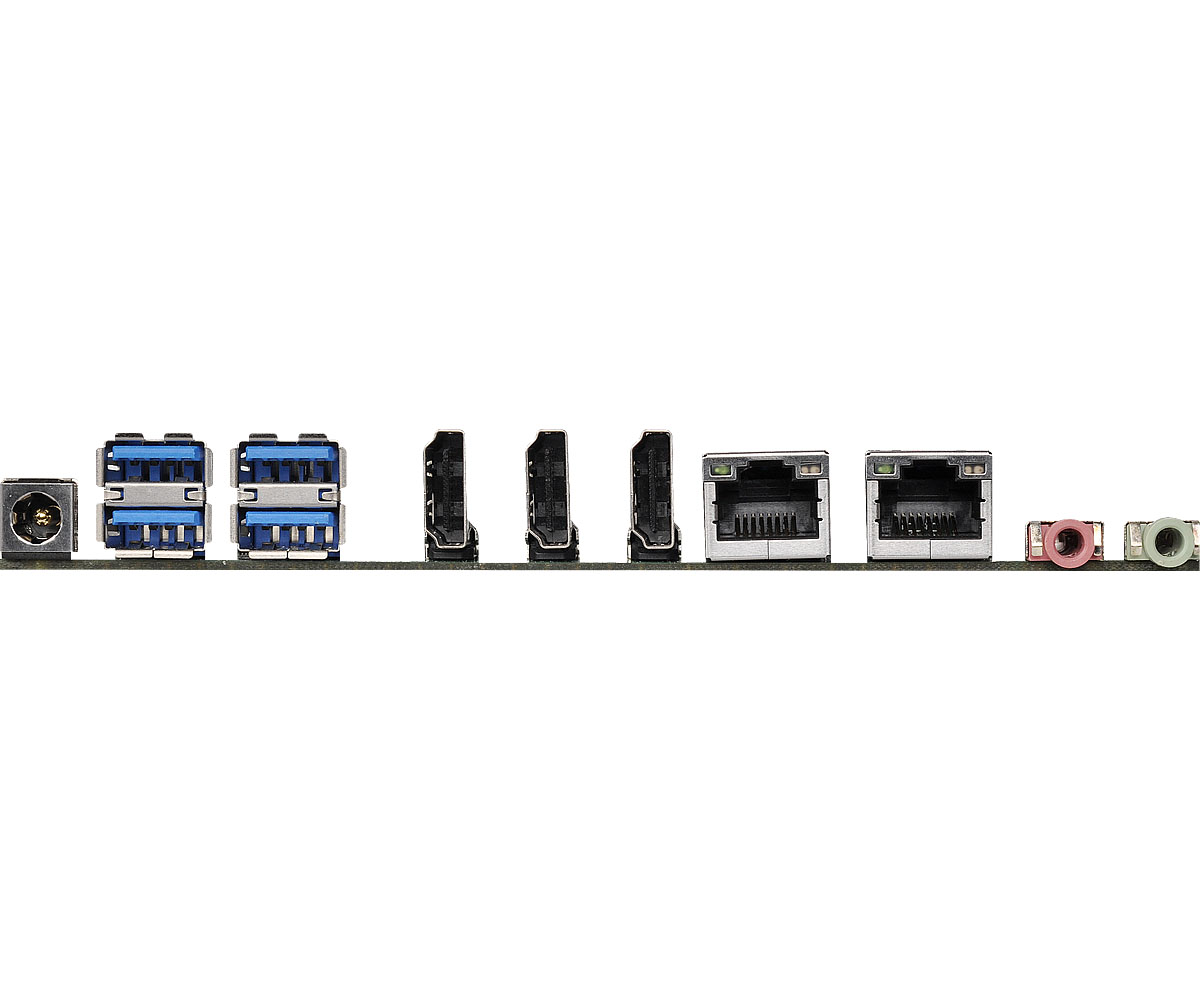

Rear I/O

HDMI 3
Ethernet 2
USB 4 x USB 3.0
Audio 2 (Mic-in, Line-out)
DC Jack 1

Internal Connector

USB 4 x USB 2.0
COM 2 x COM (RS-232), 2 x COM (RS-232/422/485)
GPIO 4 x GPI, 4 x GPO
TPM 1 x Header
LVDS 1
VGA 1
SATA PWR Output 1
Speaker Header 1

Storage

SATA 2 x SATA3 (6.0Gb/s)
RAID Intel® SATA RAID 0/1

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 12V / 19~24V DC-in (DC Jack / 4-pin ATX PWR Con)
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

Accessories

Gift Package 2 x SCREW FOR WIFI CARD (13G020305011AK)
1 x I/O Shield (13G020313000AK)
1 x I/O Shield THIN (13G020313020AK)
2 x COM Cable (14G000000310AK)
2 x SATA Data Cable (14G00010107DAK)
1 x SATA Power Cable (14G000100410AK)
Bulk Package 2 x SCREW FOR WIFI CARD (13G020305011AK)
1 x I/O Shield (13G020313000AK)
1 x I/O Shield THIN (13G020313020AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

Support

OS:

Description OS Date Download
Description VGA driver ver:21.20.16.4542 OS Win 10 x 64 , Win 8.1 x 64 , Win 7 x 64 Date 2020-05-26 Download
Description VGA driver ver:21.20.16.4541 OS Win 7 Date 2020-05-26 Download
Description Intel USB 3.0 Adaptation driver ver:1.0.1.45 OS Win 8.1 x 64 Date 2020-05-26 Download
Description Intel USB 3.0 driver ver:4.0.2.42 OS Win 7 x 64 , Win 7 Date 2020-05-26 Download
Description Intel Rapid Storage Technology driver and utility ver:14.6.0.1029 OS Win 10 x 64 , Win 8.1 x 64 , Win 7 x 64 , Win 7 Date 2020-05-26 Download
Description SATA Floppy Image ver:14.6.0.1029 OS Win 10 x 64 , Win 8.1 x 64 , Win 7 x 64 , Win 7 Date 2020-05-26 Download
Description COM Port driver ver:1.0.2011.1109 OS Win 8.1 x 64 , Win 7 x 64 , Win 7 Date 2020-05-26 Download
Description Intel Lan driver ver:20.2 OS Win 10 x 64 , Win 8.1 x 64 , Win 7 x 64 , Win 7 Date 2020-05-26 Download
Description Intel Management Engine driver ver:11.7.0.1045 OS Win 10 x 64 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-26 Download
Description Intel Management Engine driver ver:11.6.0.1126 OS Win 7 x 64 , Win 7 Date 2020-05-26 Download
Description INF driver ver:10.1.1.12 OS Win 10 x 64 , Win 8.1 x 64 , Win 7 x 64 , Win 7 Date 2020-05-26 Download
Description Realtek high definition audio driver ver:9116_FF00 OS Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2021-03-10 Download
Version Update BIOS Under / How to Update Description Date Download
Version 1.90 Update BIOS Under / How to Update BIOS Description 1. Update audio codec
2. Update Intel microcode
3. Update Intel ME version
Date 2021-03-12 Download
Version 1.90 Update BIOS Under / How to Update DOS Description 1. Update audio codec
2. Update Intel microcode
3. Update Intel ME version
Date 2021-03-12 Download
Version 1.90 Update BIOS Under / How to Update Windows Description 1. Update audio codec
2. Update Intel microcode
3. Update Intel ME version
Date 2021-03-12 Download

The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.

Description Language Date Download
Description RAID Installation Guide Language English Date 2020-05-27 Download
Description Jumpers and headers setting guide Language English Date 2020-05-27 Download
Description User Manual Language English Date 2020-05-27 Download
Description Date Download
Download CPU Support List Date 2020-06-18 Download
