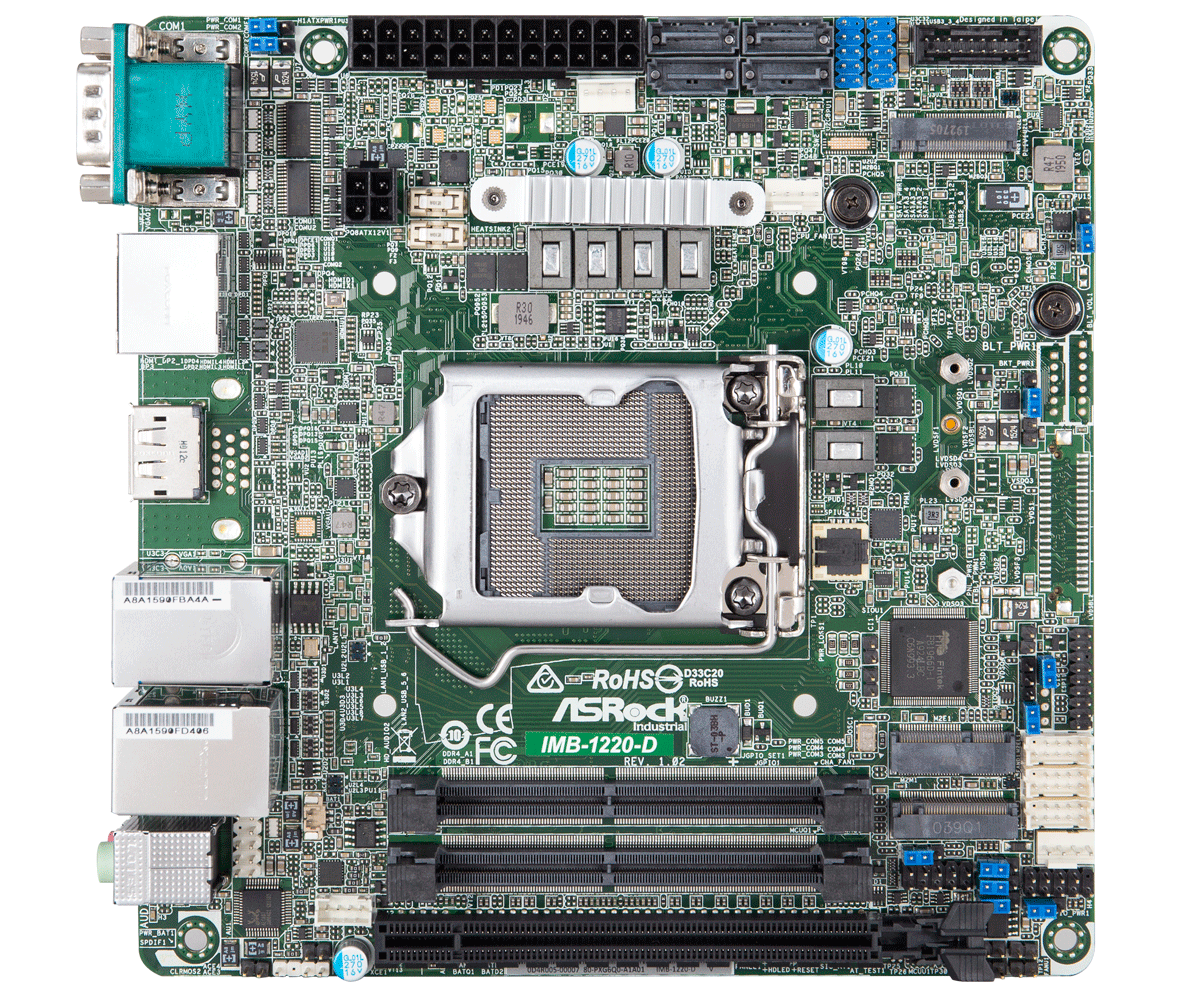

IMB-1220-D Mini-ITX Motherboard

  • Intel® 10th Gen (Comet lake-S) Core™ Processors with Q470E chipset
  • 2 x 260-pin SO-DIMM Support Dual Channel DDR4 2933 (i9 / i7 CPU) / 2666 (i5 / i3 CPU) / 2400 (Pentium / Celeron CPU), up to 64GB
  • 1 x PCIe x 16 Gen3, 6 x USB 3.2 Gen1, 4 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B, 5 x COM, 4 x SATA3
  • 1 x Intel 1 Gigabit LAN, 1 x Intel 2.5 Gigabit LAN
  • Support Triple display, 2 x DP 1.2, 1 x eDP, 1 x HDMI 2.0a
  • TPM 2.0 onboard
  • ATX-PWR (24+4-pin)
Datasheet
Specification

Form Factor

Dimensions Mini-ITX (6.7-in x 6.7-in x 1.5-in)

Processor System

CPU Intel® 10th Gen (Cometlake-S) Core™ Processors, up to 80W
*The performance of CPUs over 80W will be limited due to power design.
Chipset Intel® Q470E
Socket LGA1200
BIOS AMI SPI 256 Mbit

Memory

Technology Dual Channel DDR4 2933 / 2666 / 2400 MHz
- Intel Core i9 / i7 CPUs support DDR4 up to 2933 MHz
- Intel Core i5/i3 CPUs support DDR4 up to 2666 MHz
- Intel Pentium/Celeron CPU support DDR4 up to 2400 MHz
Capacity 64GB (32 GB per DIMM)
Socket 2 x 260-pin SO-DIMM

Graphics

Controller Intel® UHD Graphics
DisplayPort DisplayPort 1.2, DP++
Max resolution up to 4096 x 2160@60Hz
eDP eDP 1.4, Max resolution up to 4096 x 2304@60Hz
MultiDisplay Triple Display
HDMI HDMI 2.0a, Max resolution up to 4096 x 2160@60Hz

Expansion Slot

PCIe 1 x PCIe x 16 (Gen3, Support riser card x8 / x8, x8 / x4 / x4)
M.2 1 x M.2 (Key E, 2230) with PCIe x 1, USB 2.0 and CNVi for Wireless
1 x M.2 (Key B, 3042) with PCIe x 1 / USB 3.0 / USB2.0 and SIM for 4G / 5G
SIM Socket 1 x SIM socket connected to M.2 Key B

Audio

Interface Realtek ALC887 HD, High Definition Audio. Line-out, Mic-in

Ethernet

Controller/ Speed LAN1: Intel® I225LM with 10/100/1000/2500 Mbps
LAN2: Intel® I219LM with 10/100/1000 Mbps, support AMT / vPro
Connector 2 x RJ-45

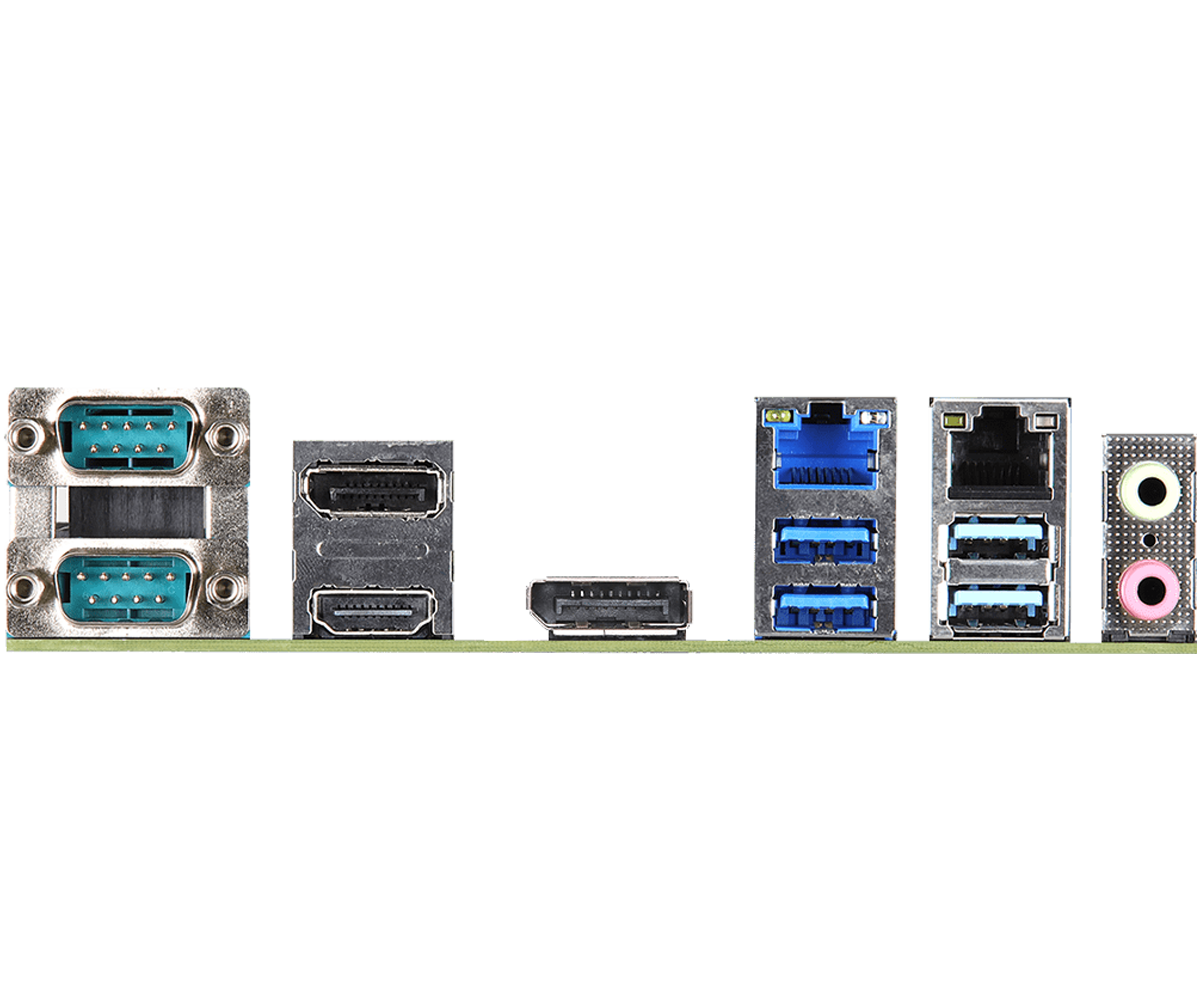

Rear I/O

DisplayPort 2 x DP 1.2
Ethernet 1 x 1 Gigabit LAN
1 x 2.5 Gigabit LAN
USB 4 x USB 3.2 (Gen1)
Audio 2 (Mic-in, Line-out)
COM 2 x COM (RS-232/422/485)
HDMI 1 x HDMI 2.0a

Internal Connector

USB 2 x USB 3.2 Gen1 (1 x USB 3.2 Gen1 header)
4 x USB 2.0 (2 x 2.54 pitch header)
COM 3 x COM (RS-232)
GPIO 4 x GPI, 4 x GPO
TPM TPM 2.0 onboard
eDP 1
Speaker Header 1
SATA PWR Output 1

Storage

M.2 1 x M.2 (Key M, 2242 / 2260 / 2280) with PCIE x 4 and SATA3 for SSD
SATA 4 x SATA3 (6Gb/s)

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR ATX PWR (24+4-pin)
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

Support

OS:

Description OS Date Download
Description Intel Management Engine driver ver:14.0.30.1115_CORP_SW_DCH OS Win 10 x 64 Date 2020-08-31 Download
Description Optane Driver ver:17.8.0.1065.2_PV OS Win 10 x 64 Date 2020-08-31 Download
Description Rapid Storage Technology Driver and utility ver:17.8.0.1065.2_PV OS Win 10 x 64 Date 2020-08-31 Download
Description SATA Floppy Image ver:17.8.0.1065.2_PV OS Win 10 x 64 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-08-31 Download
Description VGA Driver ver:26.20.100.7926_Q0 OS Win 10 x 64 Date 2020-08-31 Download
Description INF driver ver:10.1.18263.8193_Public OS Win 10 x 64 Date 2020-08-31 Download
Description Realtek high definition audio driver ver:8924_FF00 OS Win 10 x 64 Date 2020-08-31 Download
Description Intel Lan driver ver:25.0_562413 OS Win 10 x 64 Date 2020-07-06 Download
Version Update BIOS Under / How to Update Description Date Download
Version 1.40 Update BIOS Under / How to Update BIOS Description [Beta] First release Date 2020-09-18 Download
Version 1.40 Update BIOS Under / How to Update DOS Description [Beta] First release Date 2020-09-18 Download
Version 1.40 Update BIOS Under / How to Update Windows Description [Beta] First release Date 2020-09-18 Download

The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.

Description Language Date Download
Description Guide to Intel Rapid Storage Language English Date 2020-06-19 Download
Description RAID Installation Guide Language English Date 2020-06-19 Download
Description User Manual Language English Date 2020-06-19 Download
Description Jumpers and headers setting guide Language English Date 2020-06-19 Download
Description Date Download
Download CPU Support List Date 2020-09-29 Download
