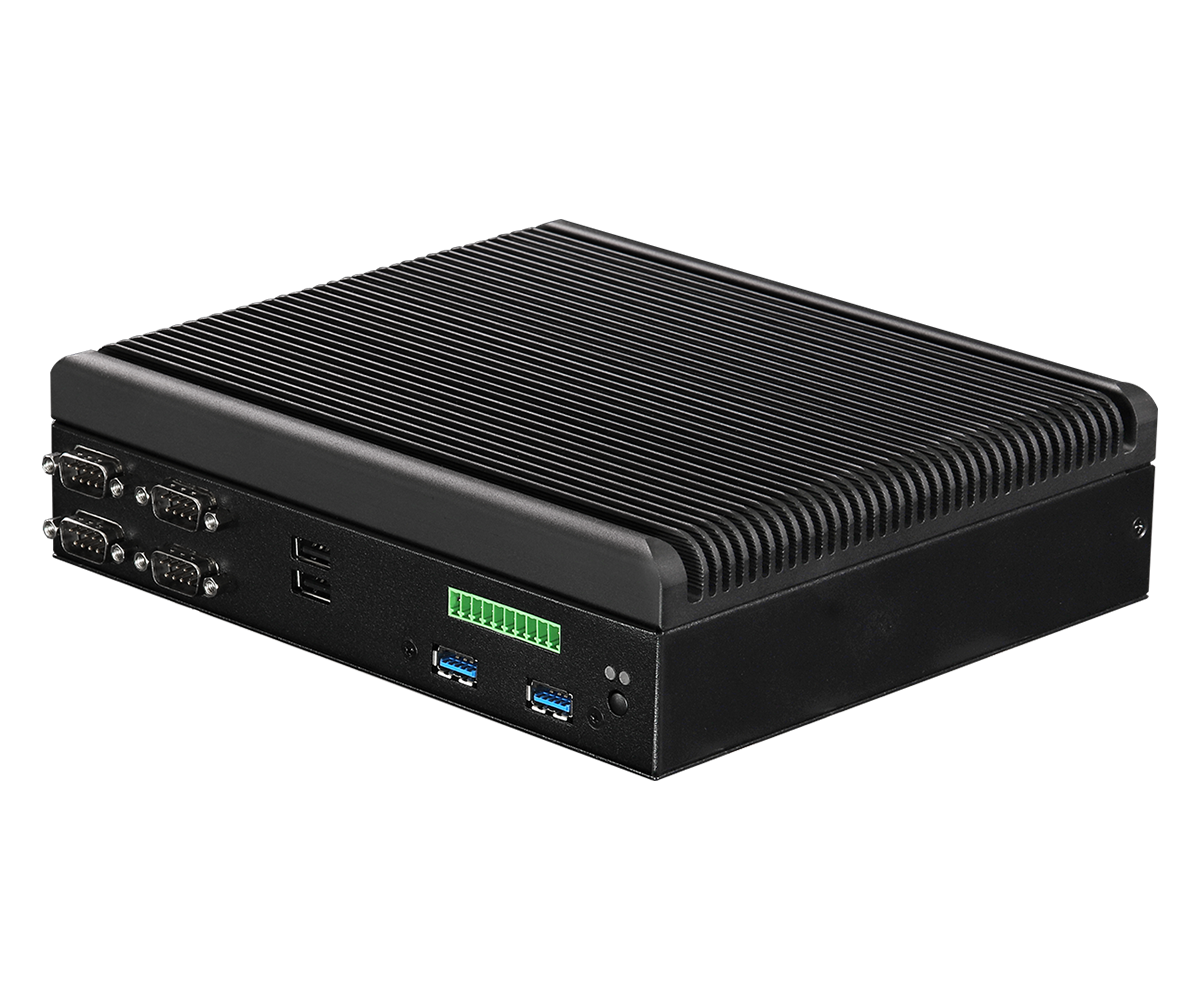

iBOX-350 Fanless Embedded BOX PC

  • Intel®8th Gen (Whiskey lake-U) Core™ MCP Processors
  • 2 x 260-pin SO-DIMM up to 32GB DDR4 2400 MHz (16GB per DIMM)
  • 4 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 2 x M.2 Key M, 1 x M.2 Key E, 4 x COM, 1 x SATA3
  • 2 x Intel 1 Gigabit LAN
  • Supports dual display, 2 x DP 1.2a
  • TPM 2.0 onboard IC (SBC-350P, SBC-350M)
  • 1 x 12V/96W AC-DC power brick adapter
  • 208 x 178.6 x 62.9mm, Fanless Barebone
產品型錄
產品規格

Form Factor

Dimensions 208 x 178.6 x 62.9mm

Processor System

CPU Intel® 8th Gen (Whiskey lake-U) Core™ MCP Processors
-iBOX-350P (i7-8665UE, QC, up to 4.40 GHz)
-iBOX-350M (i5-8365UE, QC, up to 4.10 GHz)
-iBOX-350V (i3-8145UE, DC, up to 3.90 GHz)
Chipset SoC
BIOS AMI SPI 128 Mbit

Memory

Technology Dual Channel DDR4 2400 MHz
Capacity 32 GB (16 GB per DIMM)
Socket 2 x 260-pin SO-DIMM

Graphics

Controller Intel® UHD Graphics 620
DisplayPort DisplayPort 1.2a, DP++ Max resolution up to 4096 x 2304@60Hz
MultiDisplay Dual Display

Expansion Slot

M.2 1 x Key E (2230)with PCIe x1, CNVI and USB 2.0 for Wireless

Ethernet

Controller/ Speed iBOX-350P/M
LAN1: 1 x Intel® I210 with 10/100/1000 Mbps
LAN2:1 x Intel® I219LM with 10/100/1000 Mbps, supports AMT/vPro
iBOX-350V
LAN1: 1 x Intel® I210 with 10/100/1000 Mbps
LAN2:1 x Intel® I219V with 10/100/1000 Mbps
Connector 2 x RJ-45

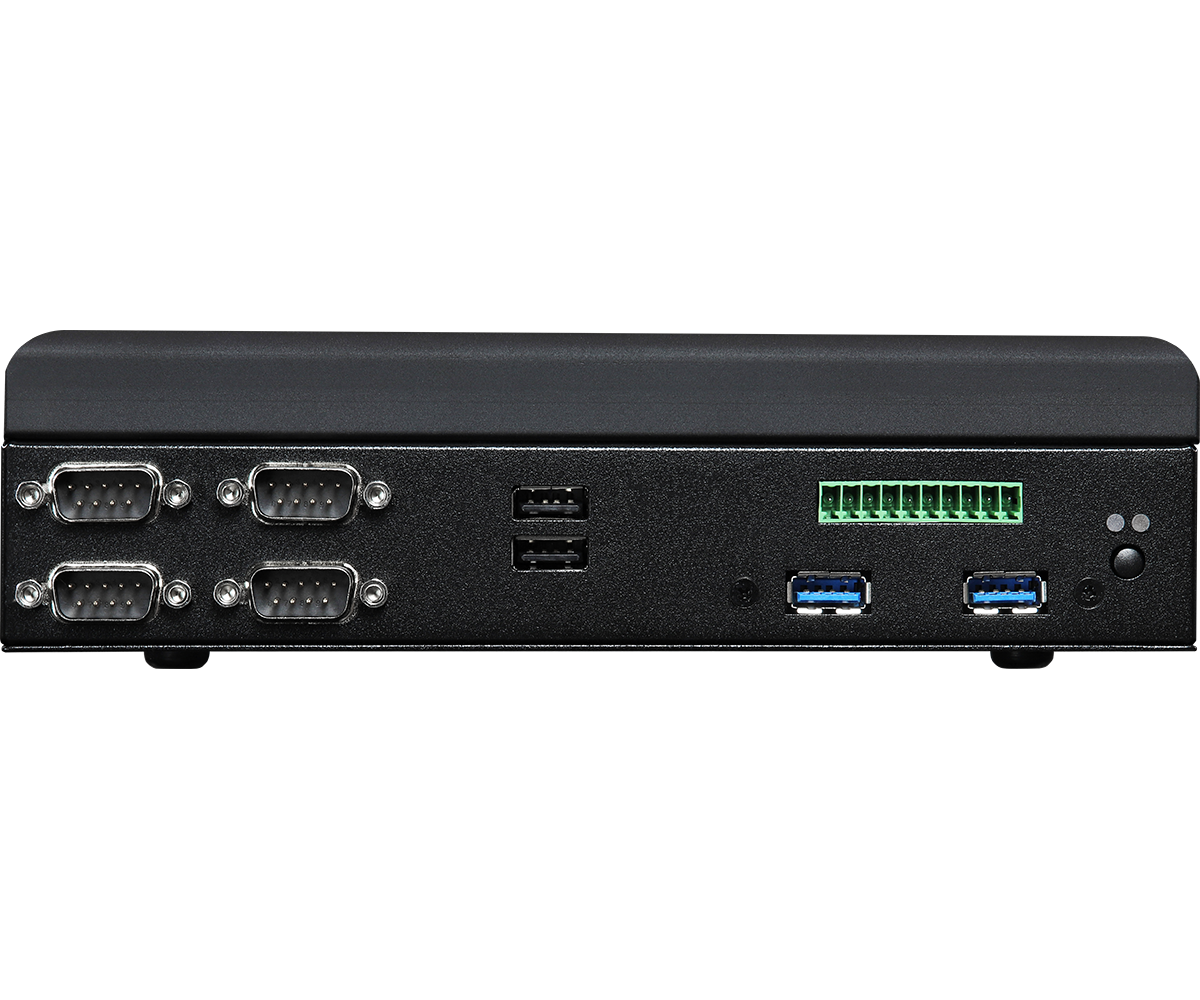

Front I/O

USB 2 x USB 3.2 (Gen1), 2 x USB 2.0
COM 1 x COM (RS232/422/485), 3 x COM (RS232)
GPIO(Phoenix) 1 (4 x GPI, 4 x GPO)

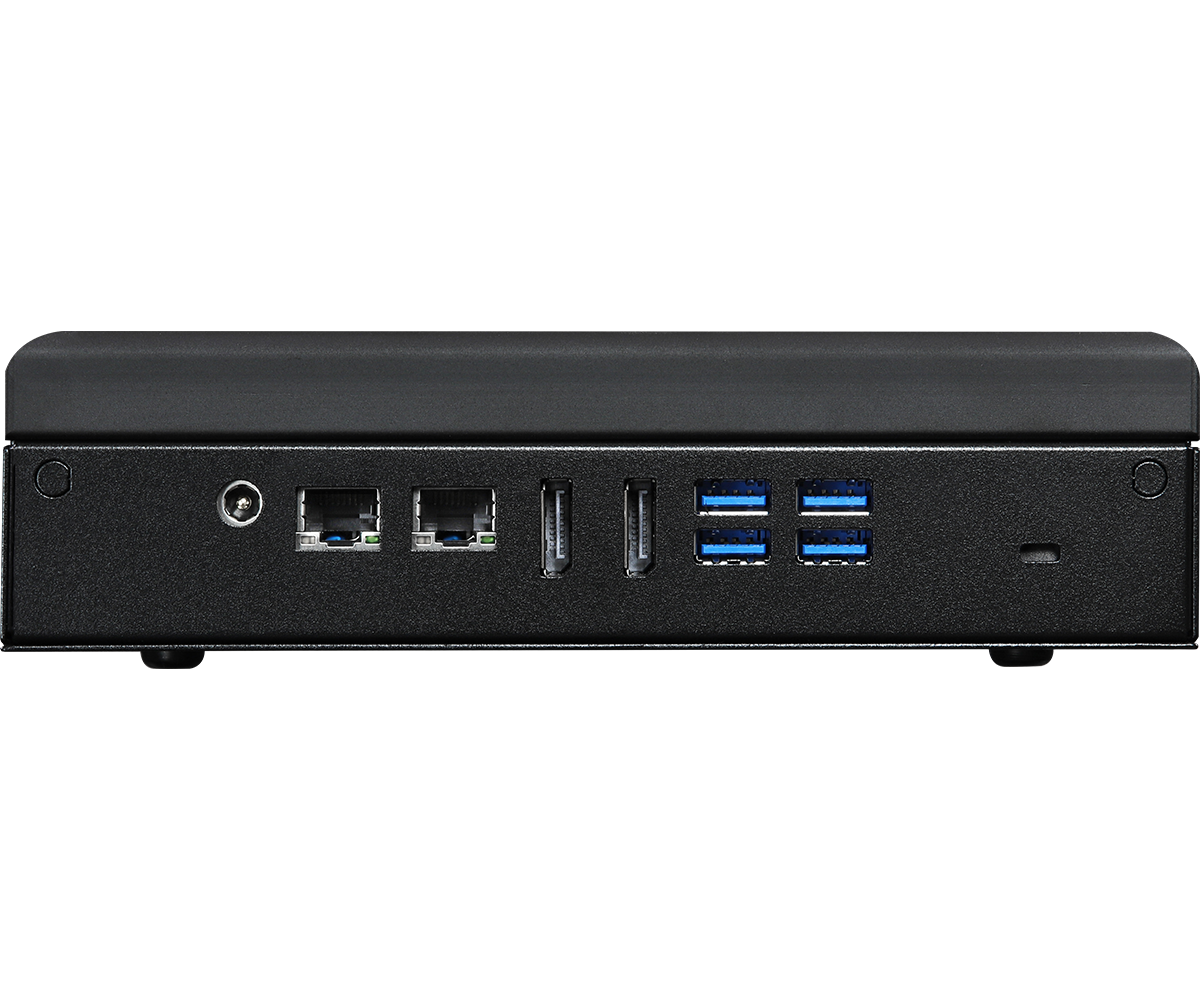

Rear I/O

DisplayPort 2 x DP 1.2a, DP++
Ethernet 2 x 1 Gigabit LAN
USB 4 x USB 3.2 (Gen2)
DC Jack 1

Storage

M.2 1 x Key M (2242/2280)with PCIex4 and SATA3 for SSD
1 x Key M (2242)with SATA3 for SSD
SATA 1 x SATA3 (6.0Gb/s)

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 1 x 12V/96W AC-DC power brick adapter
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 50ºC
Storage Temp -40° C – 85° C
Operating Humidity 10% ~ 90%
Storage Humidity 10% ~ 90%

Mechanical

Construction Aluminum housing
Mounting VESA mounting bracket
Dimensions (W x H x D) 208 x 178.6 x 62.9mm
Weight Net Weight:2.4kg

Others

OS Support Windows 10
TPM TPM 2.0 onboard IC (iBOX-350P、iBOX-350M)
Certifications CE, FCC Class A
Packing List 1 x 12V/96W Power Adapter
1 x Screw Package
1 x Product DVD
1 x VESA mounting bracket

規格更改時恕不預先通知。品牌和產品名稱歸各自公司所有。不保證任何配置與產品實物規格相同。

支援下載

作業系統:

說明 作業系統 日期 下載
說明 [Beta] Realtek high definition audio driver ver:8569 作業系統 Win 10 x 64 Date 2020-05-08 下載
說明 [Beta] Intel Wireless Lan driver ver:20.110.0.3 作業系統 Win 10 x 64 Date 2020-05-08 下載
說明 [Beta] Intel Rapid Storage Technology driver and utility ver:17.0.0.1072 作業系統 Win 10 x 64 Date 2020-05-08 下載
說明 [Beta] INF driver ver:10.1.17765.8094_Public 作業系統 Win 10 x 64 Date 2020-05-08 下載
說明 [Beta] COM Port driver ver:160324 作業系統 Win 10 x 64 Date 2020-05-08 下載
說明 [Beta] Intel Management Engine driver ver:12.0.37.1429_Corp 作業系統 Win 10 x 64 Date 2020-05-08 下載
說明 [Beta] VGA driver ver:25.20.100.6519 作業系統 Win 10 x 64 Date 2020-05-08 下載
說明 [Beta] Intel Lan driver ver:23.2_PV 作業系統 Win 10 x 64 Date 2020-05-08 下載

檔案格式為 PDF,如果您沒有安裝 Adobe Acrobat Reader,請至 Adobe下載。

說明 語言 日期 下載
說明 Jumpers and headers setting guide 語言 English 日期 2020-05-06 下載
說明 User Manual 語言 English 日期 2020-05-06 下載
