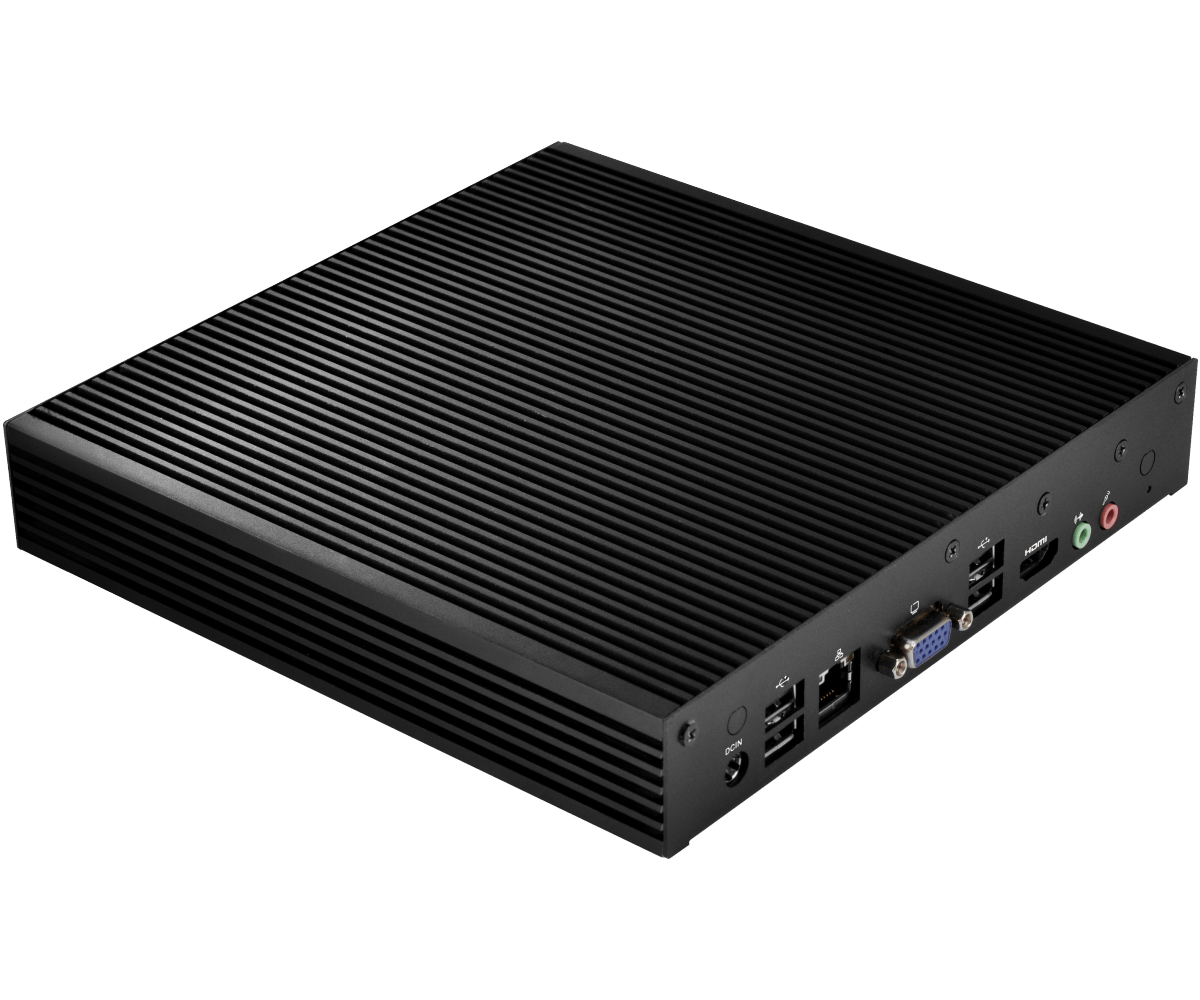

iBOX-280 Fanless Embedded BOX PC

  • 1. Intel Cedarview Atom N2800 Dual Core 1.86GHz
  • VGA / HDMI
  • Supports Embedded OS Window 7 and Linux
  • Gigabit LAN
  • Slim and Fanless Design
  • DC 9-19V power input

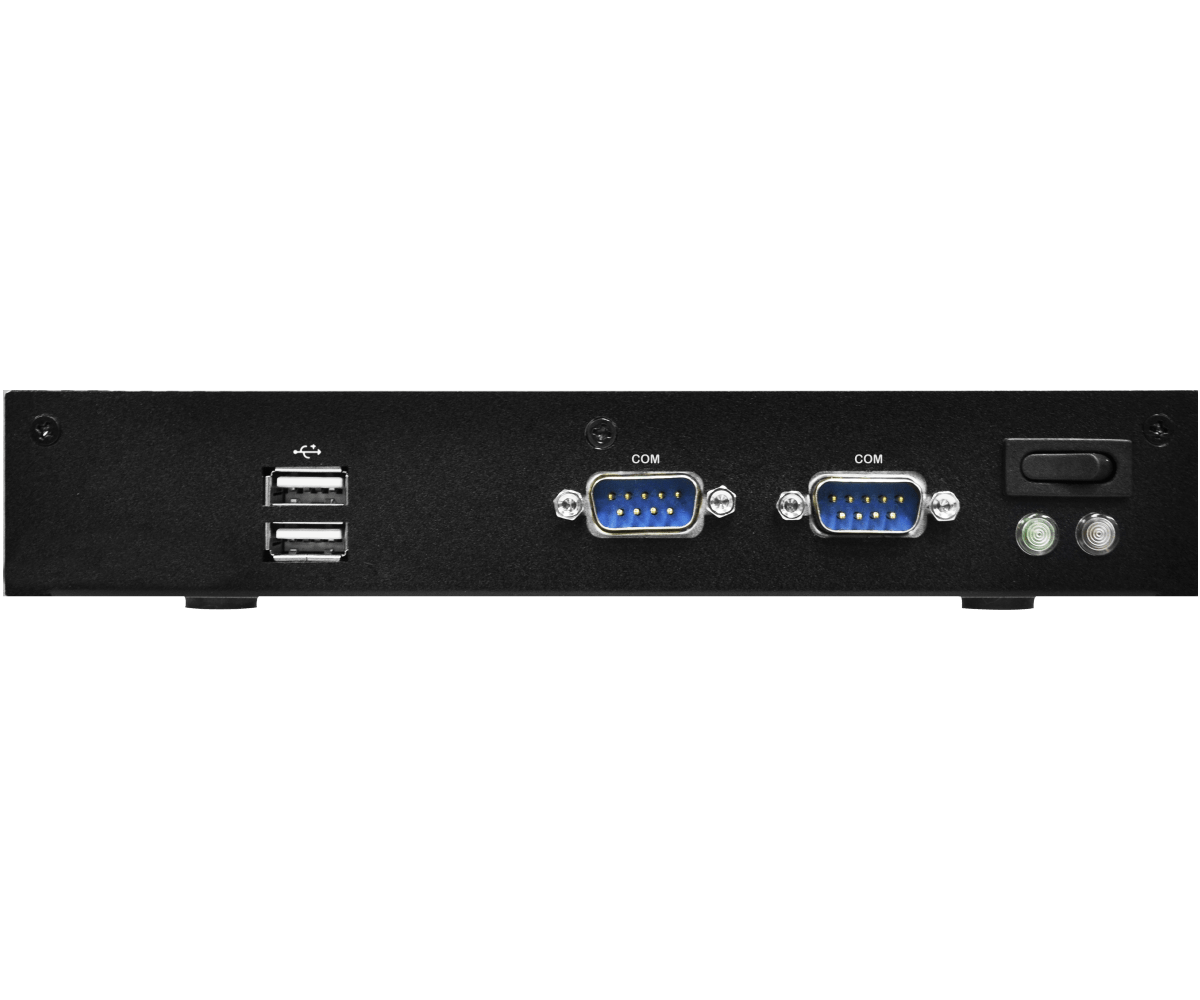

  • 2 x COM (RS-232)
產品型錄
產品規格

Form Factor

Dimensions 200 x 200 x 35mm (WxDxH)

Processor System

CPU Intel Cedarview Atom N2800 Dual core 1.86GHz TDP 6.5W
Chipset Intel NM10
BIOS AMI SPI 64 Mbit

Memory

Technology Dual Channel DDR3L 1066 MHz
Capacity 8 GB (4GB per DIMM)
Socket 2 x 204-pin SO-DIMM

Graphics

Controller Intel GMA3650

Expansion Slot

mini-PCIe 1 x Full/ Half size(Supports PCIe x1 and USB 2.0)
mini-PCIe/mSATA 1 x Full size (Supports PCIe x1 and USB 2.0, shared with m-SATA)

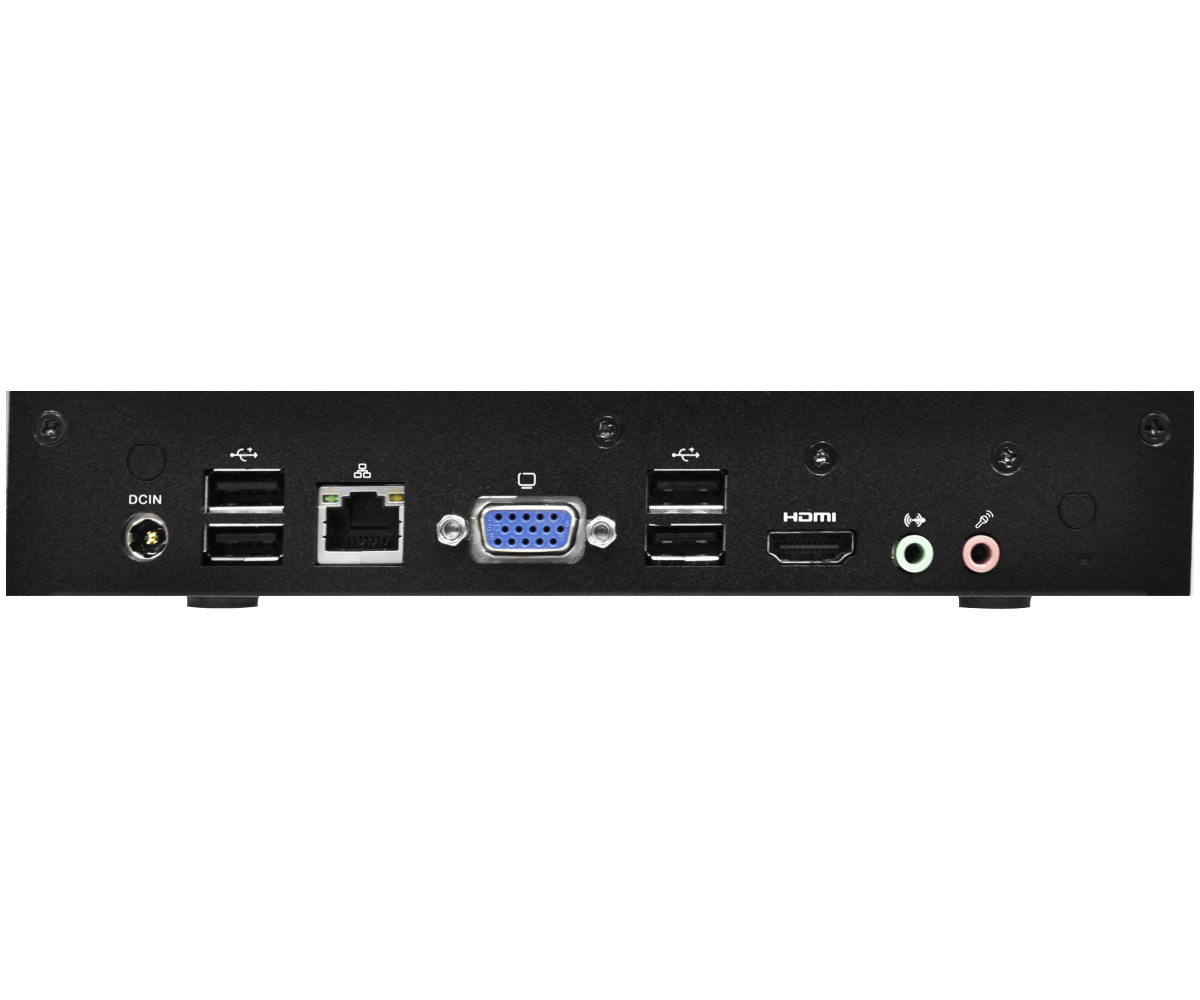

Rear I/O

VGA 1
USB 6 x USB 2.0
Audio Mic-in/ Line out
DC Jack 1
HDMI 1

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Environment

Operating Temp 0ºC ~ 50ºC
Storage Temp -40° C – 85° C
Operating Humidity 10% ~ 90%
Storage Humidity 10% ~ 90%

Mechanical

Construction Aluminum housing
Mounting VESA mounting bracket
Dimensions (W x H x D) 200 x 200 x 35mm
Weight Net Weight:1.8kg

Others

OS Support Windows 7 / Linux
Certifications CE, FCC Class A

規格更改時恕不預先通知。品牌和產品名稱歸各自公司所有。不保證任何配置與產品實物規格相同。

支援下載

作業系統:

說明 作業系統 日期 下載
說明 VGA driver ver:8.0.0.6.1082 作業系統 Win 7 Date 2020-07-01 下載
說明 Intel Rapid Storage Technology driver and utility ver:10.1.0.1008_ad 作業系統 Win 7 Date 2020-07-01 下載
說明 COM Port driver ver:1.0.2011.1109 作業系統 Win 7 Date 2020-07-01 下載
說明 Lan driver ver:17 作業系統 Win 7 Date 2020-07-01 下載
說明 INF driver ver:9.2.2.1034 作業系統 Win 7 Date 2020-07-01 下載
說明 CIR receiver driver ver:2.09.1007 作業系統 Win 7 Date 2020-07-01 下載
說明 Realtek high definition audio driver ver:6772 作業系統 Win 7 Date 2020-07-01 下載

檔案格式為 PDF,如果您沒有安裝 Adobe Acrobat Reader,請至 Adobe下載。

說明 語言 日期 下載
說明 User Manual 語言 English 日期 2020-07-01 下載
說明 Quick Installation Guide 語言 Multi-Language 日期 2020-07-01 下載
