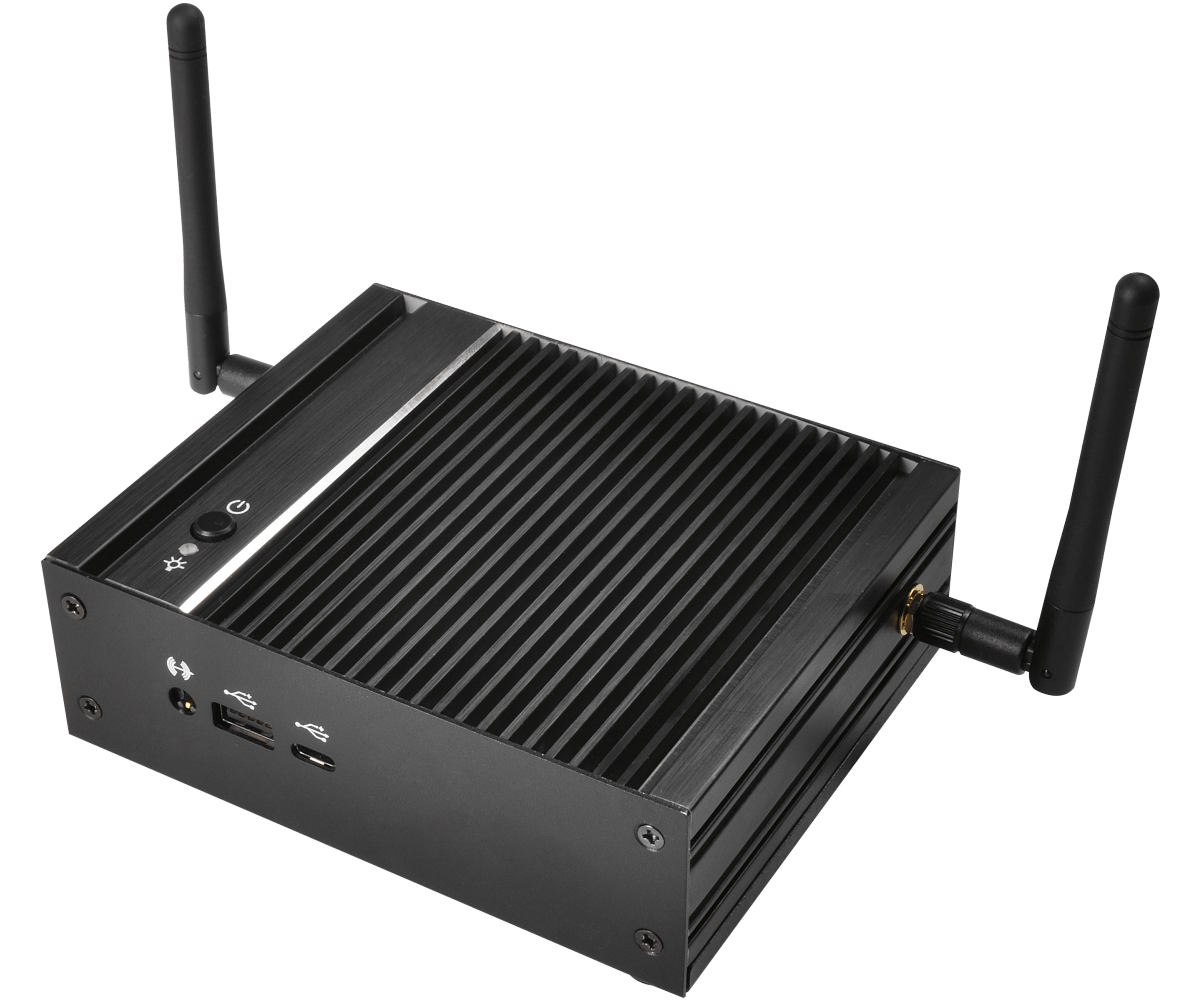

iBOX-316 Fanless Embedded BOX PC

Form Factor

Dimensions	135 x 110 x 44.5mm

Processor System

CPU	Intel® Braswell SoC Processor N3160-NUC IPC (N3160, QC, up to 2.24 GHz)
Chipset	SoC
BIOS	AMI SPI 64 Mbit

Memory

Technology	Dual Channel DDR3L 1600 MHz
Capacity	16 GB (8 GB per DIMM)
Socket	2 x 204-pin SO-DIMM

Graphics

Controller	Intel® Gen8 Intel® Graphics DX 11, OGL3.2
HDMI	HDMI 1.4a Max resolution up to 3840x2160@30Hz
DisplayPort	DisplayPort 1.1a Max resolution up to 3840x2160@30Hz
MultiDisplay	Triple Display

Expansion Slot

mini-PCIe	1 x Half mini-PCIe with PCIe x1 and shared USB 2.0

Audio

Interface	Realtek ALC233, High Definition Audio, Line-out, Mic-in

Ethernet

Controller/ Speed	1 x Realtek RTL8111G with 10/100/1000 Mbps
Connector	1 x RJ-45

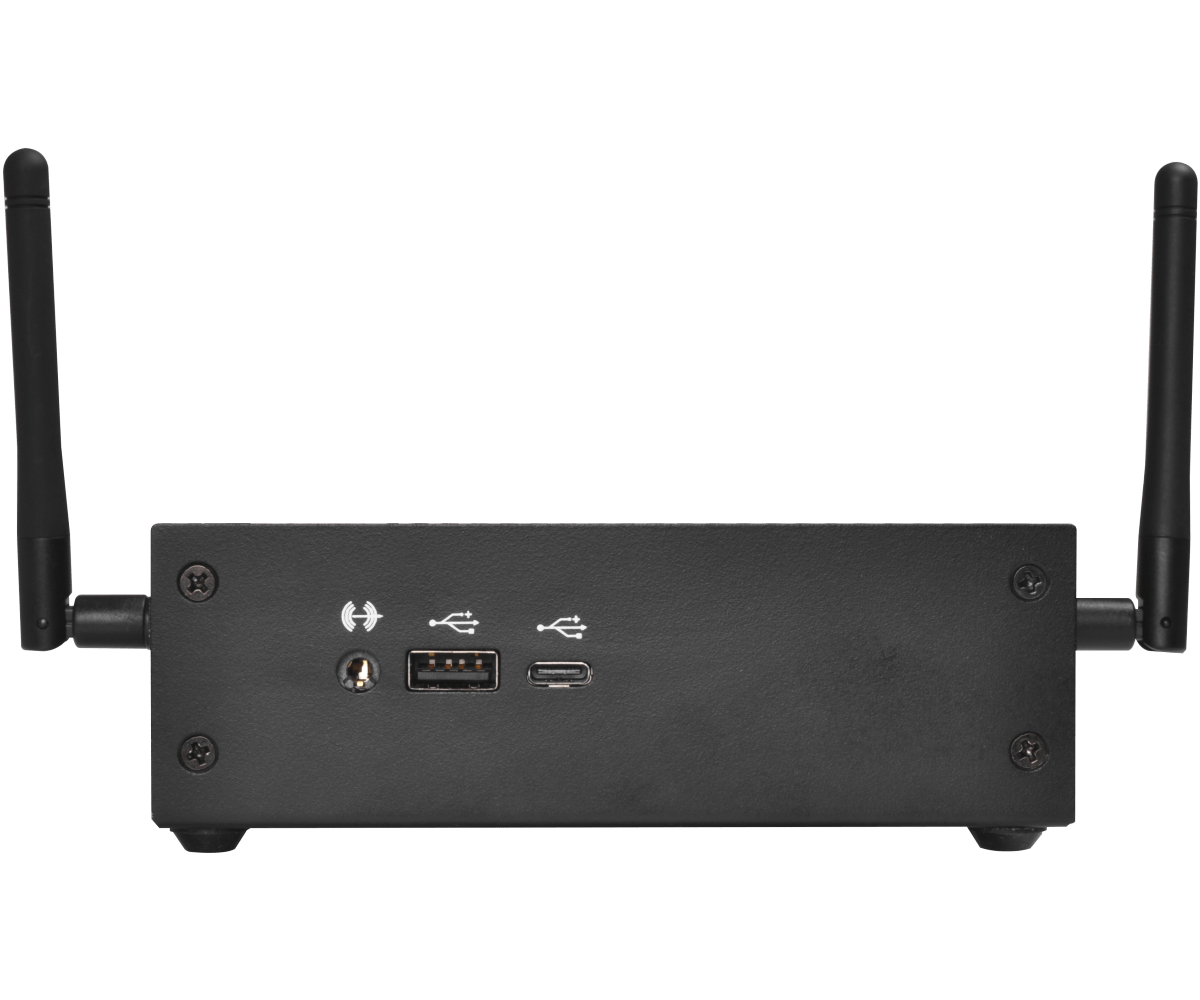

Front I/O

USB	1 x USB3.0 (TypeC) + 1 x USB3.0
Audio	1 (Mic-in or Line-out)

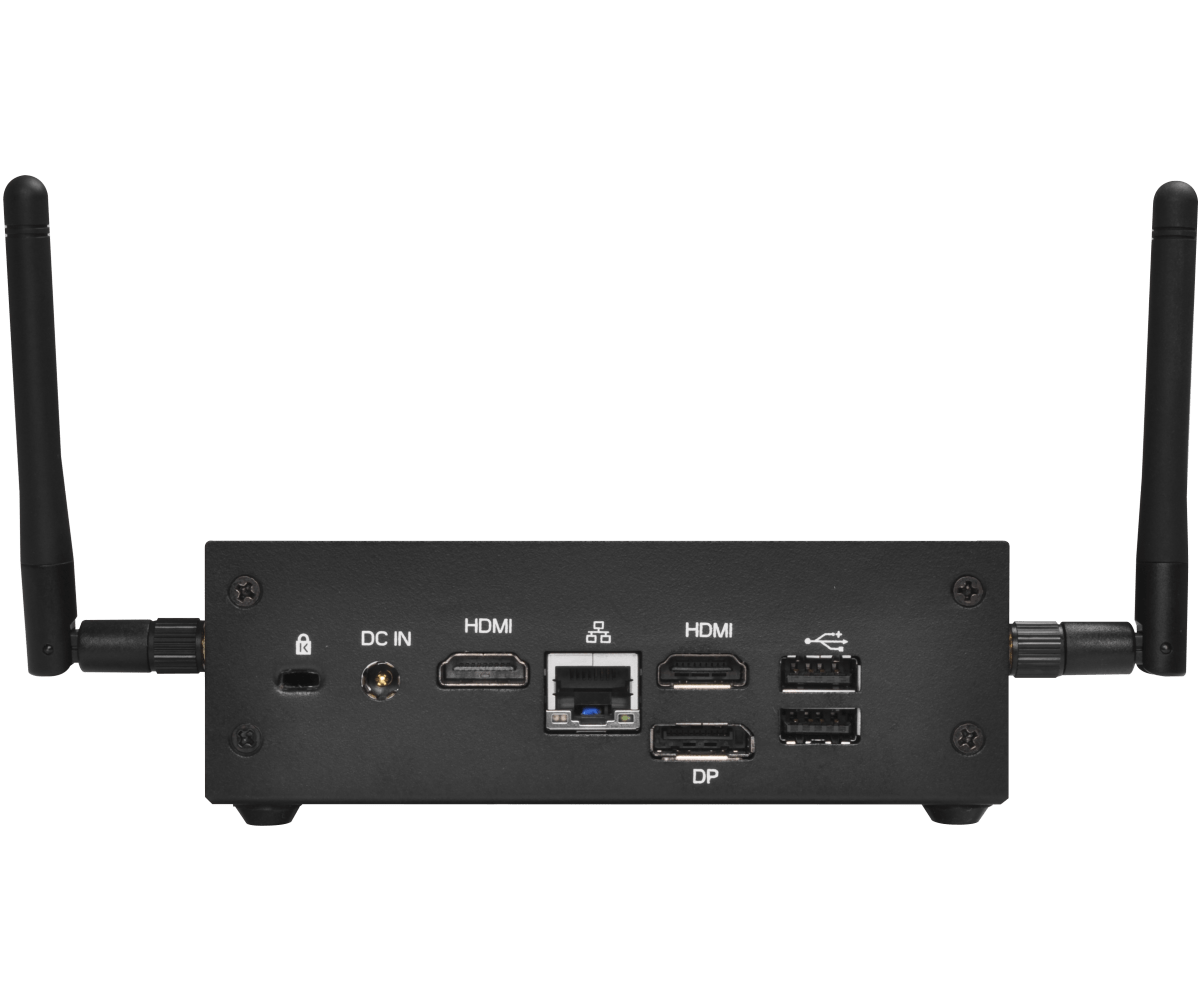

Rear I/O

HDMI	2 x HDMI 1.4
DisplayPort	1 x DP 1.2
Ethernet	1 x 1 Gigabit LAN
USB	2 x USB 3.0
DC Jack	1

Storage

mSATA	1 x Full size with SATA3
SATA	1 x SATA3 (6Gb/s)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments 0,1,2....255sec

Power Requirements

Input PWR	1 x 12V/36W AC-DC power brick adapter
Power On	AT/ATX supported -AT: Direct PWR on as power input ready -ATX:Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 50ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	10% ~ 90%
Storage Humidity	10% ~ 90%

Mechanical

Construction	Aluminum housing
Mounting	VESA mounting bracket
Dimensions (W x H x D)	135 x 110 x 44.5mm
Weight	Net Weight: 1.9kg

Others

OS Support	Windows 7, Windows 10
Certifications	CE, FCC Class A
Packing List	1 x 12V/36W Power Adapter 1 x VESA mounting bracket 1 x Screw Package 1 x Product DVD

Accessories

Bulk Package	2 x SCREW FOR WIFI CARD (13G020305010AK)

規格更改時恕不預先通知。品牌和產品名稱歸各自公司所有。不保證任何配置與產品實物規格相同。
