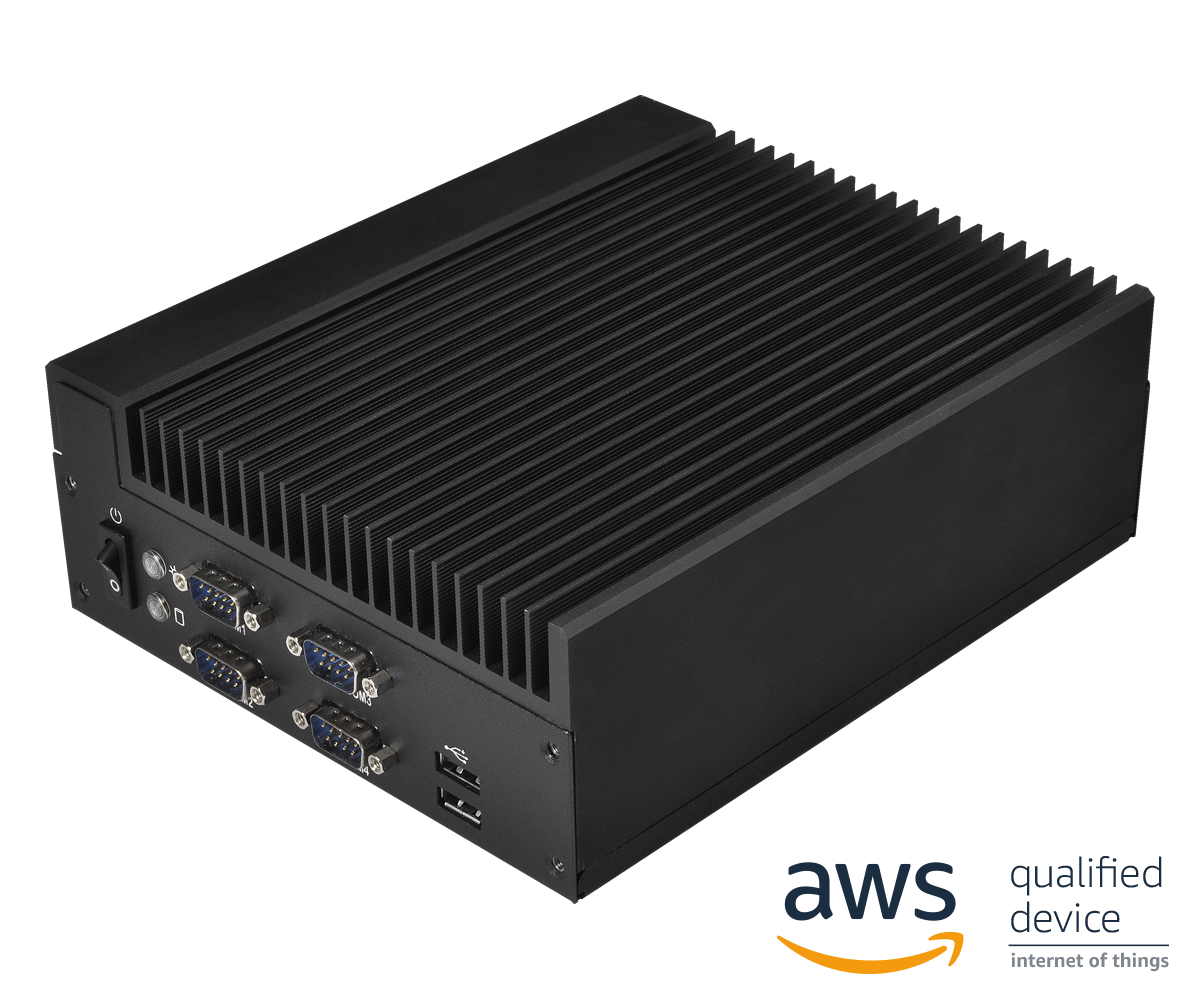

iBOX-310M Fanless Embedded BOX PC

  • Intel®4th Gen (Haswell) Core™ MCP Processors
  • 2 x 204-pin SO-DIMM up to 8GB DDR3L 1600MHz (4GB per DIMM)
  • 4 x USB 3.1 Gen1, 2 x USB 2.0, 1 x mini-PCIe/mSATA, 1 x mini-PCIe, 4 x COM, 1 x SATA3
  • 2 x Intel 1 Gigabit LAN
  • Supports dual display, 2 x HDMI 1.4a
  • 1 x 19V/65W AC-DC power brick adapter
  • 170 x 200 x 70mm, Fanless Barebone
产品型录
产品规格

Form Factor

Dimensions 170 x 200 x 70mm

Processor System

CPU Intel®4th Gen (Haswell) Core™ MCP Processors i5-4300U, QC, up to 2.90 GHz
Chipset SoC
BIOS AMI SPI 64 Mbit

Memory

Technology Dual Channel DDR3L 1600 MHz
Capacity 8 GB (4 GB per DIMM)
Socket 2 x 204-pin SO-DIMM

Graphics

Controller Intel® HD Graphics 4400
HDMI HDMI 1.4a
Max resolution up to 4096x2304@24Hz
MultiDisplay Dual Display

Expansion Slot

mini-PCIe 1 x Full/ Half size(Supports PCIe x1 and USB 2.0)
mini-PCIe/mSATA 1 x Full size (Supports PCIe x1 and USB 2.0, shared with m-SATA)

Ethernet

Controller/ Speed LAN1: 1 x Realtek RTL8111G with 10/100/1000 Mbps
LAN2: 1 x Intel® I218LM with 10/100/1000 Mbps, supports AMT/vPro
Connector 2 x RJ-45

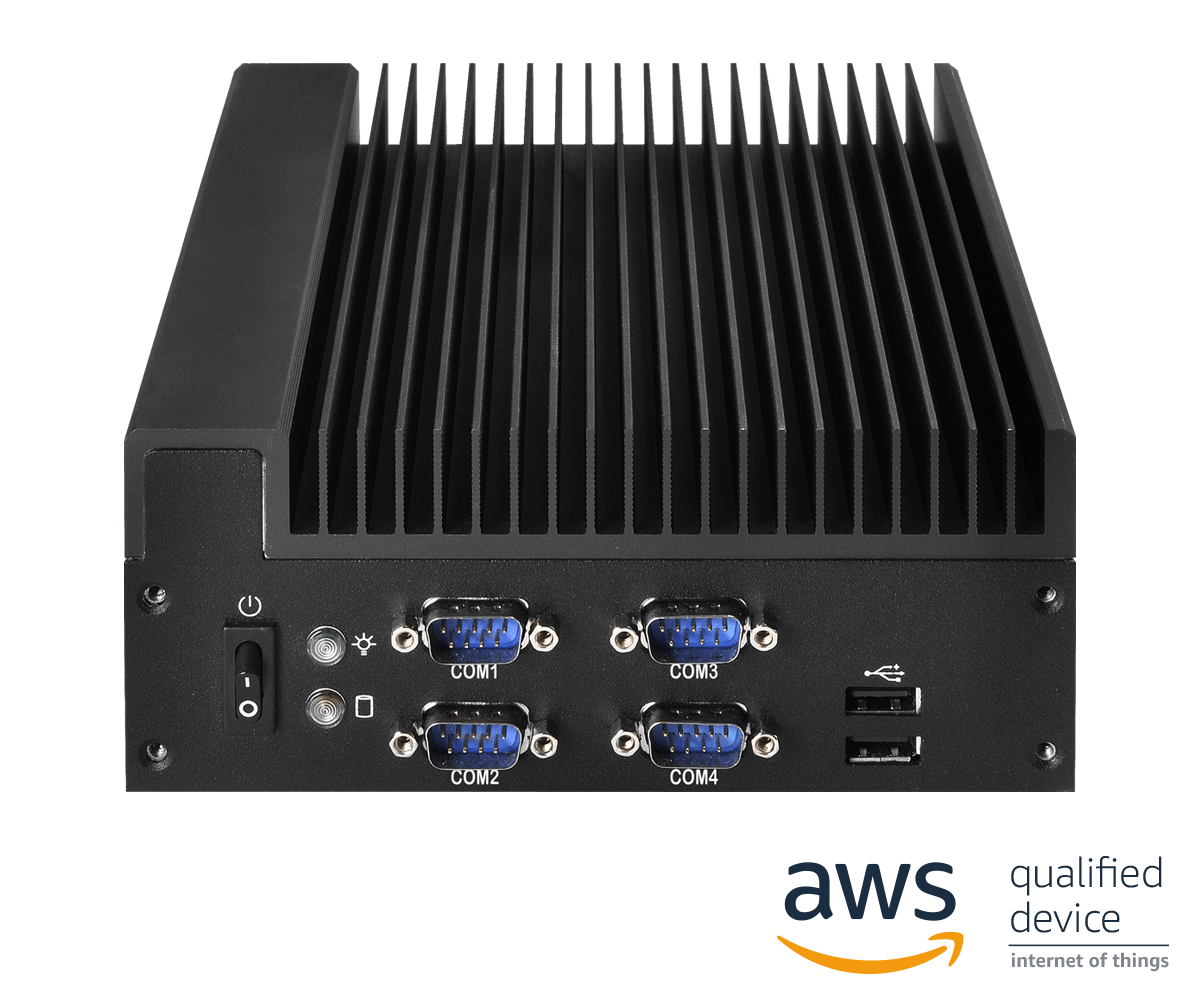

Front I/O

USB 2 x USB 2.0
COM 2 x COM (RS-233/422/485), 2 x COM (RS-232)

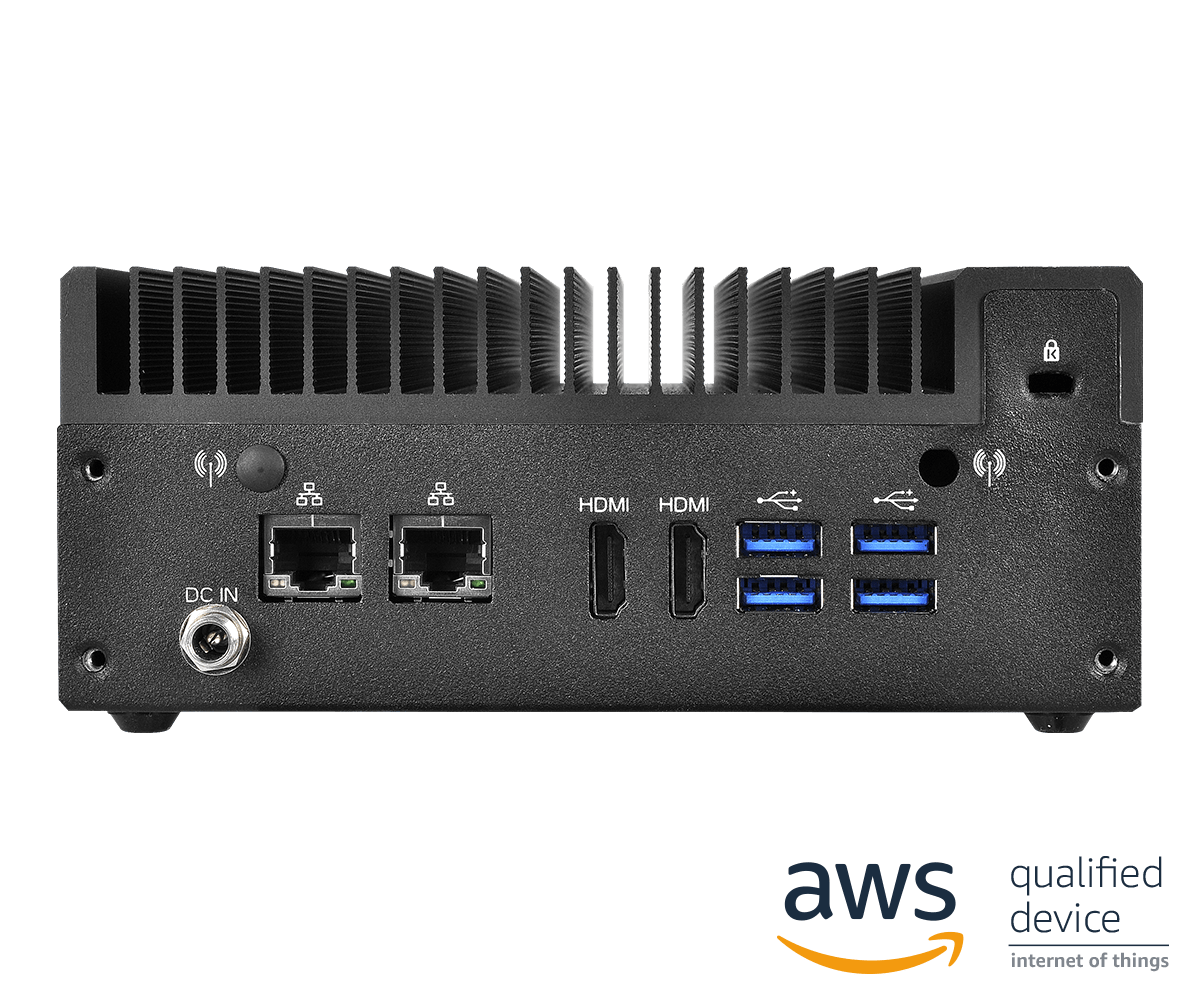

Rear I/O

HDMI 2 x HDMI 1.4a
Ethernet 2 x 1 Gigabit LAN
USB 4 x USB 3.0
DC Jack 1

Storage

mSATA 1 x Half size with USB 2.0 colay with mini-PCIe
SATA 1 x SATA3 (6Gb/s)

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments 0,1,2....255sec

Power Requirements

Input PWR 1 x 19V/65W AC-DC power brick adapter
Power On AT/ATX supported
-AT: Direct PWR on as power input ready
-ATX:Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 50ºC
Storage Temp -40° C – 85° C
Operating Humidity 10% ~ 90%
Storage Humidity 10% ~ 90%

Mechanical

Construction Aluminum housing
Mounting VESA mounting bracket
Dimensions (W x H x D) 170 x 200 x 70mm
Weight Net Weight:2.2 kg

Others

OS Support Windows 7, Windows 10
Certifications CE, FCC Class A
Packing List 1 x 19V/65W Power Adapter
1 x Screw Package
1 x Product DVD

规格更改时恕不预先通知。品牌和产品名称归各自公司所有。不保证任何配置与产品实物规格相同。

支援下载

操作系统:

说明 操作系统 日期 下载
说明 ASRock 3TB+ Unlocker utility ver:1.1.1 操作系统 Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-08 下载
说明 Intel Rapid Start utility ver:1.0.7 操作系统 Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-08 下载
说明 Intel Lan driver ver:20.7 操作系统 Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-08 下载
说明 Realtek Lan driver ver:8034 操作系统 Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 Date 2020-05-08 下载
说明 Intel USB 3.0 driver ver:2.5.3.34 操作系统 Win 7 x 64 , Win 7 Date 2020-05-08 下载
说明 VGA driver ver:15.36.2.64.3871 操作系统 Win 8.1 x 64 , Win 8 x 64 , Win 7 x 64 Date 2020-05-08 下载
说明 VGA driver ver:15.40.11.64.4312 操作系统 Win 10 x 64 Date 2020-05-08 下载
说明 Intel Management Engine driver ver:10.0.45.1022 操作系统 Win 10 x 64 Date 2020-05-08 下载
说明 SATA Floppy Image ver:13.0.0.1098 操作系统 Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-08 下载
说明 Realtek high definition audio driver ver:7560 操作系统 Win 10 x 64 Date 2020-05-08 下载
说明 Intel Rapid Start driver ver:4.0.0.1068 操作系统 Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-08 下载
说明 COM Port driver ver:1.0.2011.1109 操作系统 Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-08 下载
说明 Realtek high definition audio driver ver:7058 操作系统 Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-08 下载
说明 Realtek Lan driver ver:10012 操作系统 Win 10 x 64 Date 2020-05-08 下载
说明 INF driver ver:9.4.0.1026 操作系统 Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-08 下载
说明 INF driver ver:10.1.1.7 操作系统 Win 10 x 64 Date 2020-05-08 下载
说明 Intel Management Engine driver ver:9.5.24.1790 操作系统 Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-08 下载
说明 Realtek Lan driver ver:7089 操作系统 Win 7 x 64 , Win 7 Date 2020-05-08 下载
说明 Intel Rapid Storage Technology driver and utility ver:13.0.0.1098 操作系统 Win 10 x 64 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-08 下载
说明 Lan driver ver:20.7 操作系统 Win 10 x 64 Date 2020-05-08 下载
说明 VGA driver ver:15.36.2.3871 操作系统 Win 8.1 , Win 8 , Win 7 Date 2020-05-08 下载
说明 Intel Management Engine driver ver:10.0.45.1022 操作系统 Win 10 x 64 Date 2020-05-08 下载
版本 更新方式 / 如何更新 说明 日期 下载
版本 1.90 更新方式 / 如何更新 BIOS 说明 1. Update audio codec
2. Update Realtek Lan FW
日期 2021-06-18 下载
版本 1.90 更新方式 / 如何更新 DOS 说明 1. Update audio codec
2. Update Realtek Lan FW
日期 2021-06-18 下载
版本 1.90 更新方式 / 如何更新 Windows 说明 1. Update audio codec
2. Update Realtek Lan FW
日期 2021-06-18 下载

档案格式为 PDF,如果您没有安装 Adob​​e Acrobat Reader,请至 Adobe下载。

说明 语言 日期 下载
说明 Jumpers and headers setting guide 语言 English 日期 2020-05-06 下载
说明 User Manual 语言 English 日期 2020-05-06 下载
