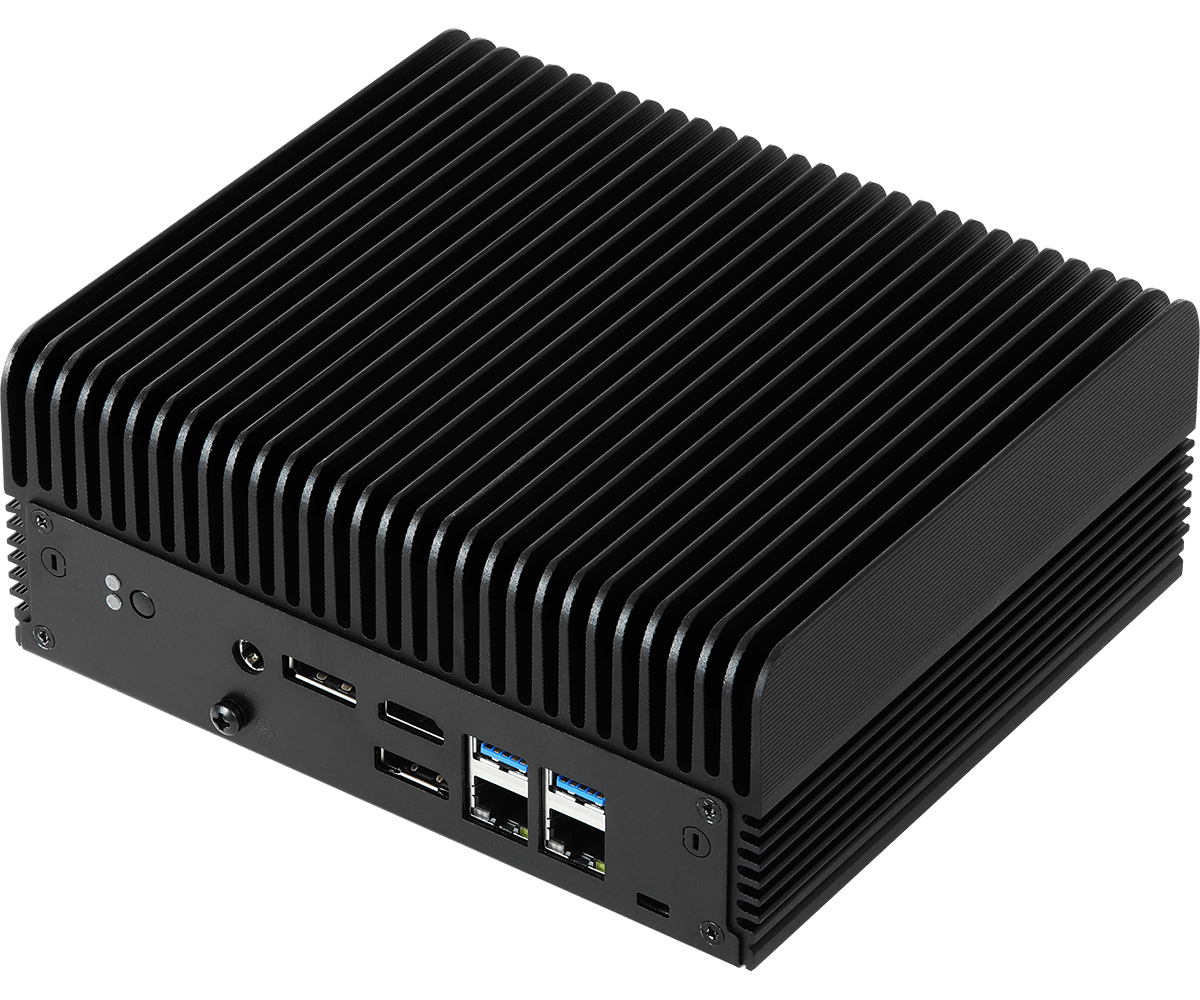

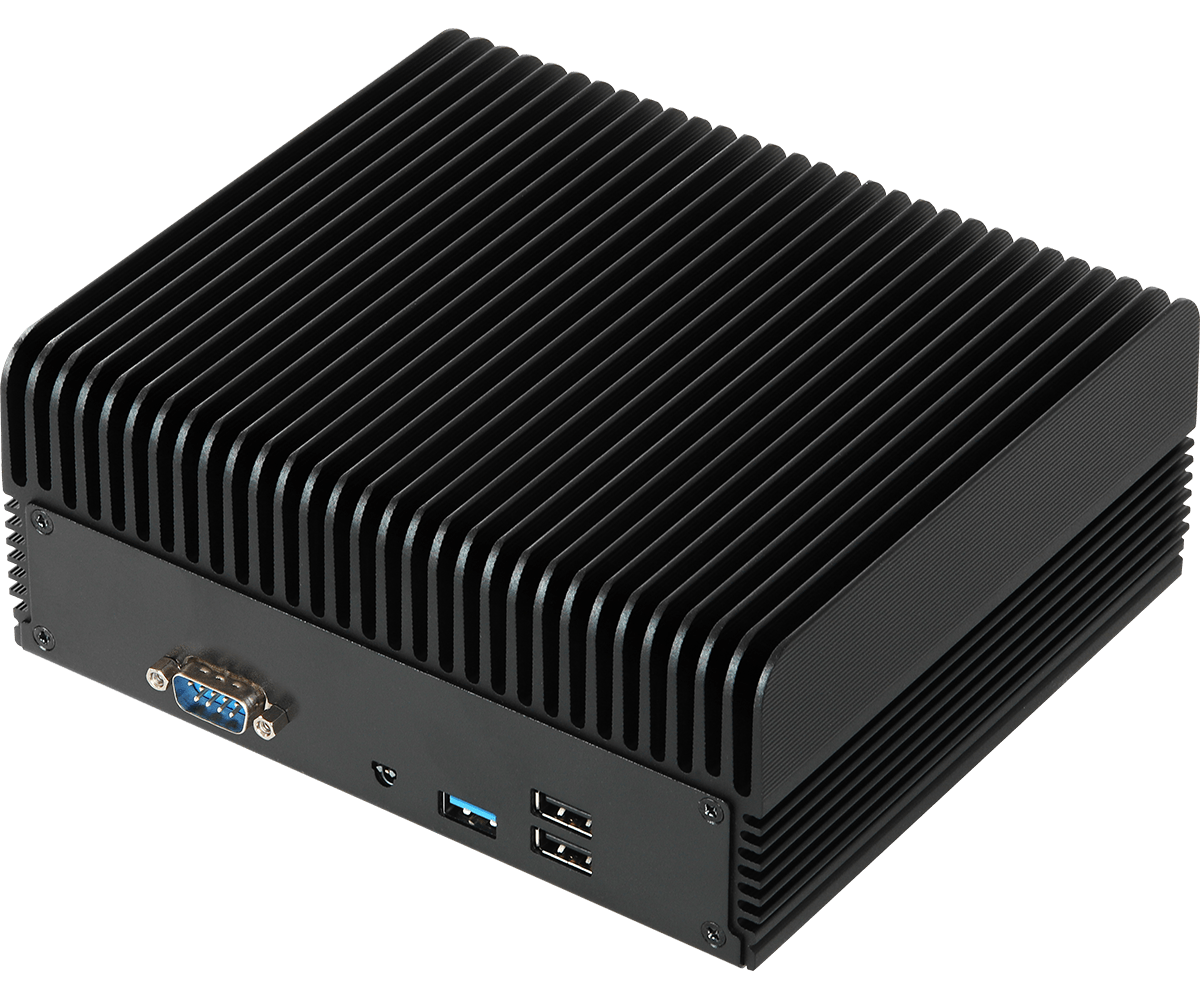

iBOX-8265U Fanless Embedded BOX PC

  • Intel® 8th Gen (Whiskey lake-U) Core™ MCP Processors
  • Supports Dual Channel DDR4 SO-DIMM 2400MHz, up to 32GB
  • 1 x HDMI, 2 x Displayport
  • Supports Triple Display
  • 3 x USB 3.1, 2 x USB 2.0
  • 1 x M.2 Key M, 1 x M.2 Key E
  • 1 x Intel LAN, 1 x Realtek LAN
  • 1 x COM (RS232/422/485)
  • 12V DC-in
产品型录
产品规格

Form Factor

Dimensions 171.8 x 150 x 71.5 mm

Processor System

CPU Intel® 8th Gen (Whiskey lake-U) Core™ MCP Processors I5-8265U QC, up to 3.90 GHz
Chipset SoC
BIOS AMI SPI 128 Mbit

Memory

Technology Dual Channel DDR4 2400 MHz
Capacity 32 GB
Socket 2 x SO-DIMM

Graphics

HDMI Supports max resolution up to 4000 x 2000@30Hz
DisplayPort Supports max resolution up to 3840 x 2160@60Hz
MultiDisplay Triple Display

Expansion Slot

M.2 1 x Key E (2230) with PCIe x1 and USB 2.0 for Wireless

Audio

Interface Realtek ALC233, High Definition Audio, Line-out, Mic-in

Ethernet

Controller/ Speed LAN1: Intel® I2109LM with 10/100/1000 Mbps, supports AMT / vPro
LAN2: Realtek RTL811H with 10/100/1000 Mbps
Connector 2 x RJ-45

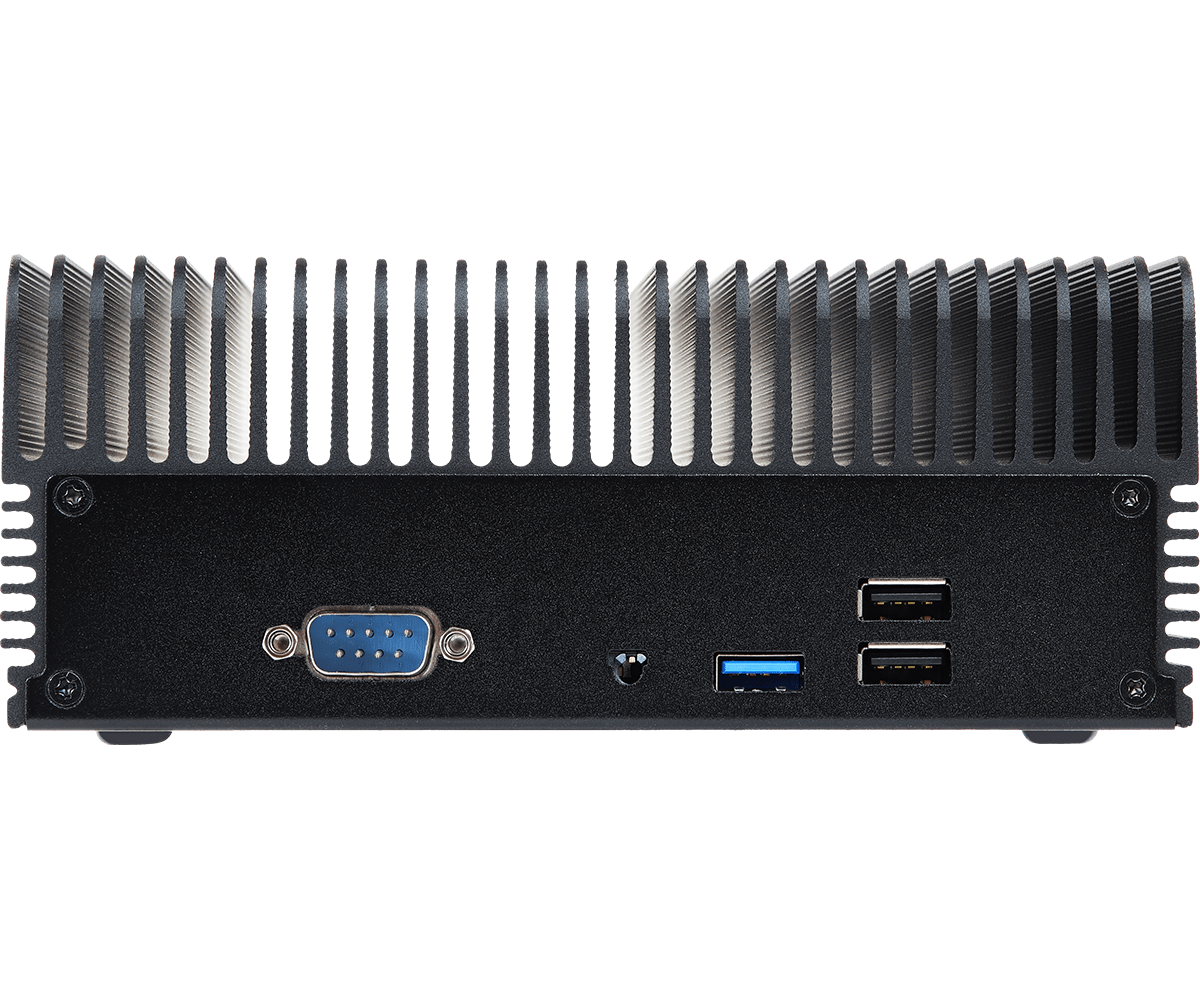

Front I/O

USB 1 x USB 3.1, 2 x USB 2.0
COM 1 x COM (RS-232)
Audio 1 (Mic-in or Line-out)

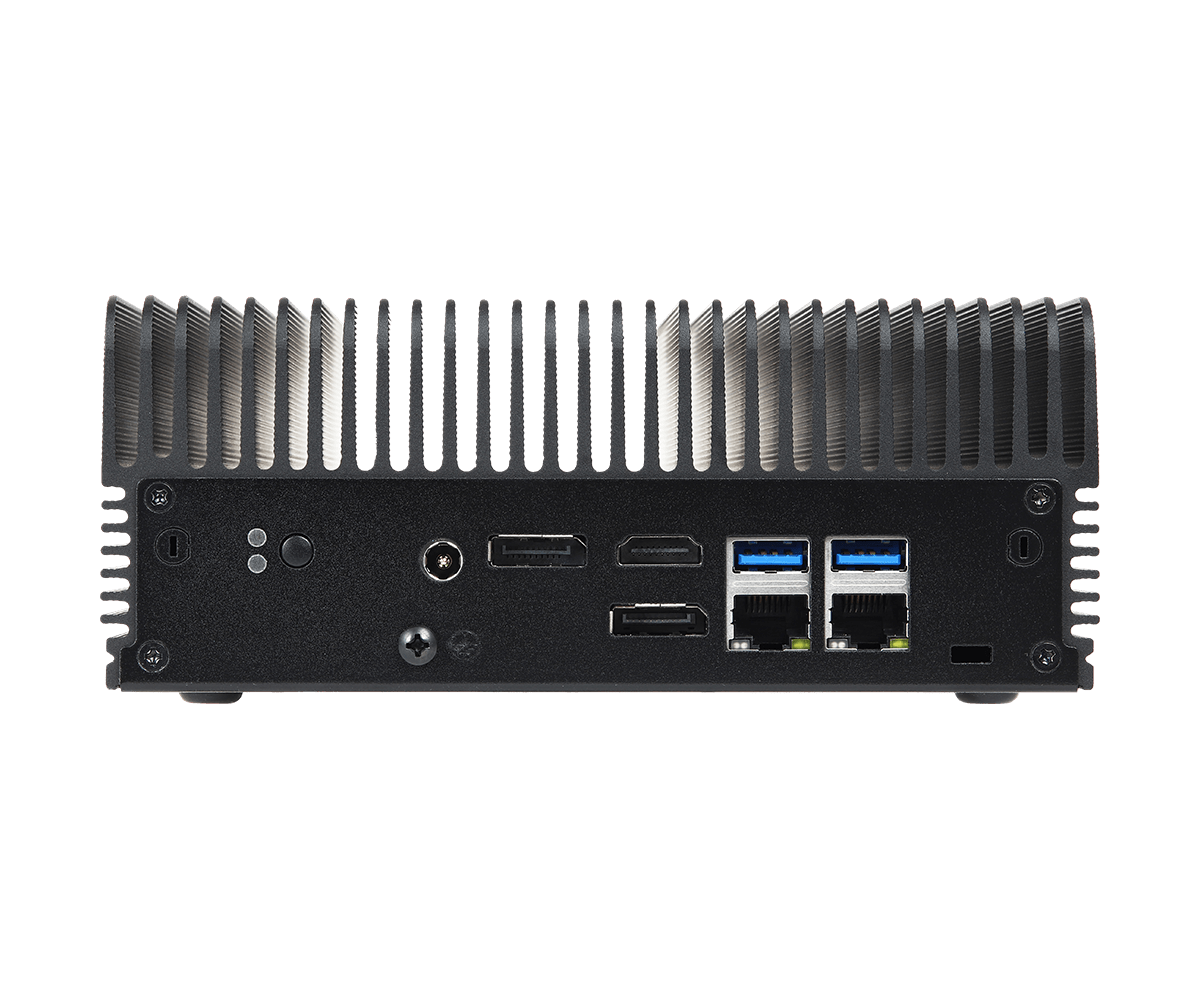

Rear I/O

HDMI 1 x HDMI 1.4
DisplayPort 2 x DP 1.2a
Ethernet 1
USB 2 x USB 3.1
DC Jack 1

Storage

M.2 1 x M.2 (Key M, 2242/2260/2280) with PCIe x4 and SATA3 for SSD
*M.2 Key M 2280(optional support, by bracket)
SATA 1 x SATA3 (6Gb/s)

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments 0,1,2....255sec

Power Requirements

Input PWR 1 x 12V/96W Power Adapter
Power On AT/ATX supported
-AT: Direct PWR on as power input ready
-ATX:Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 40ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 10% ~ 90%
Storage Humidity 10% ~ 90%

Mechanical

Construction Aluminum housing
Mounting VESA mounting bracket, Wall mounting
Dimensions (W x H x D) 171.8 x 150 x 71.5 mm
Weight Net Weight: 2.2kg

Others

OS Support Windows 10
TPM TPM 2.0 onboard IC
Certifications CE, FCC Class A
Packing List 1 x 12V/96W Power Adapter
1 x Screw Package
1 x Product DVD
1 x VESA mounting bracket
Longivity Support No

规格更改时恕不预先通知。品牌和产品名称归各自公司所有。不保证任何配置与产品实物规格相同。

支援下载

操作系统:

说明 操作系统 日期 下载
说明 Intel Wireless Lan driver ver:20.110.0.3 操作系统 Win 10 x 64 Date 2020-06-16 下载
说明 VGA driver ver:25.20.100.6519 操作系统 Win 10 x 64 Date 2020-06-16 下载
说明 Intel Rapid Storage Technology driver and utility ver:17.0.0.1072 操作系统 Win 10 x 64 Date 2020-06-16 下载
说明 COM Port driver ver:1.0.2011.1109 操作系统 Win 10 x 64 Date 2020-06-16 下载
说明 Intel Lan driver ver:23.2_PV 操作系统 Win 10 x 64 Date 2020-06-16 下载
说明 Realtek Lan driver ver:10031_10232018 操作系统 Win 10 x 64 Date 2020-06-16 下载
说明 Intel Management Engine driver ver:12.0.37.1429_Corp 操作系统 Win 10 x 64 Date 2020-06-16 下载
说明 INF driver ver:10.1.17765.8094_Public 操作系统 Win 10 x 64 Date 2020-06-16 下载
说明 Realtek high definition audio driver ver:8569 操作系统 Win 10 x 64 Date 2020-06-16 下载
版本 更新方式 / 如何更新 说明 日期 下载
版本 1.20 更新方式 / 如何更新 BIOS 说明 First released. 日期 2020-06-17 下载
版本 1.20 更新方式 / 如何更新 BIOS 说明 First released. 日期 2020-05-06 下载
版本 1.20 更新方式 / 如何更新 DOS 说明 First released. 日期 2020-06-17 下载
版本 1.20 更新方式 / 如何更新 DOS 说明 First released. 日期 2020-05-06 下载
版本 1.20 更新方式 / 如何更新 Windows 说明 First released. 日期 2020-06-17 下载
版本 1.20 更新方式 / 如何更新 Windows 说明 First released. 日期 2020-05-06 下载

档案格式为 PDF,如果您没有安装 Adob​​e Acrobat Reader,请至 Adobe下载。

说明 语言 日期 下载
说明 Quick Installation Guide 语言 English 日期 2020-06-16 下载
说明 User Manual 语言 English 日期 2020-06-16 下载
