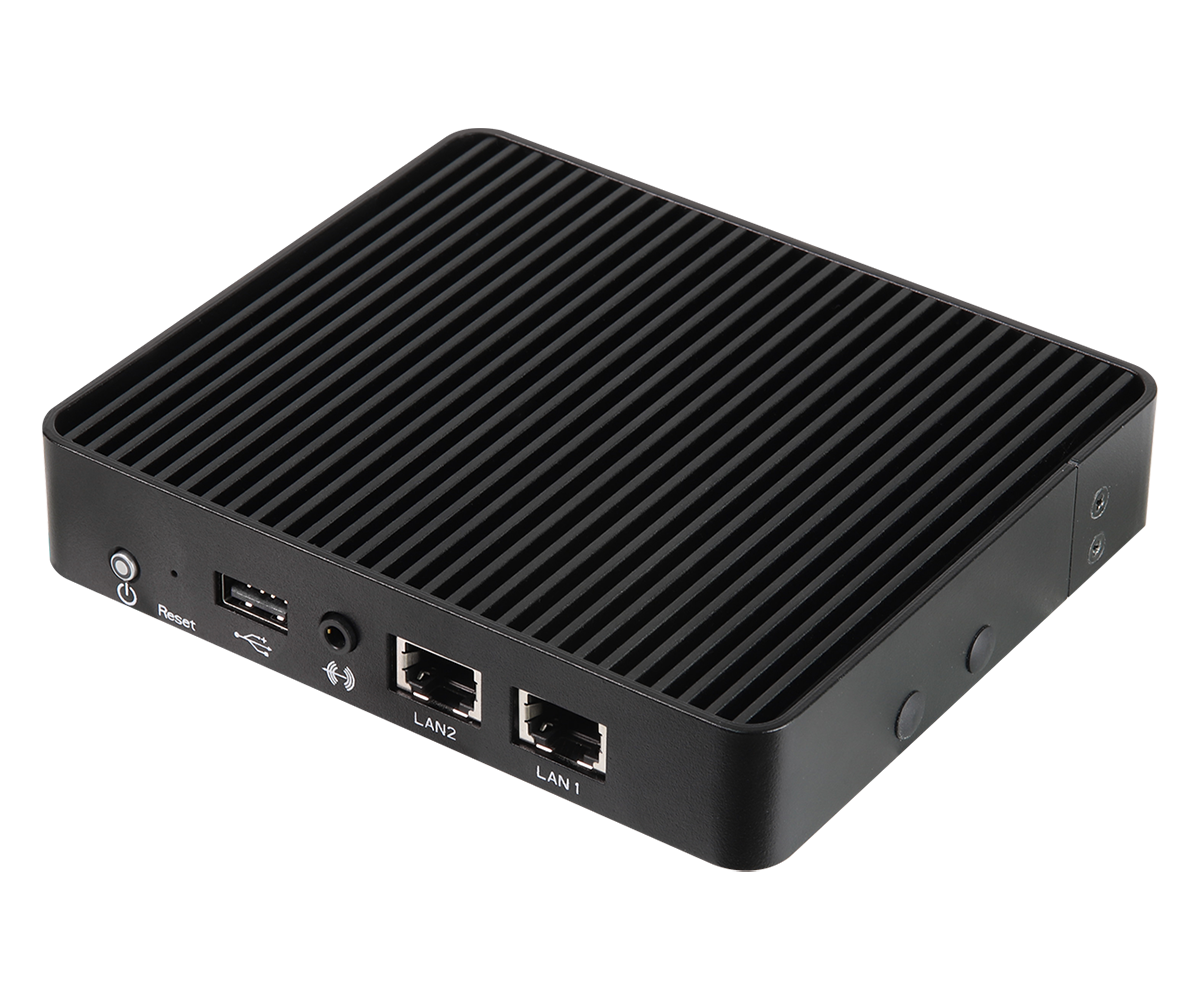

uBOX-115 Fanless Embedded BOX PC

  • Intel® Apollo Lake SoC Processor
  • 2 x 204-pin SO-DIMM up to 16GB DDR3L 1866 MHz (8GB per DIMM)
  • 2 x USB 3.1 Gen1, 1 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key B
  • 2 x Realtek 1 Gigabit LAN
  • Supports dual display, 2 x HDMI 1.4b
  • 1 x 12V/60W AC-DC power brick adapter
  • 135 x 116 x 25.4mm, Fanless Barebone
产品型录
产品规格

Form Factor

Dimensions 135 x 116 x 25.4mm

Processor System

CPU Intel®Apollo Lake SoC Processor
- uBOX-115J (J3455, QC, up to 2.30 GHz)
- uBOX-115D (N4200, QC, up to 2.50 GHz)
- uBOX-115L (N3350, DC, up to 2.40 GHz)
Chipset SoC
BIOS AMI SPI 128 Mbit

Memory

Technology Dual Channel DDR3L 1866 MHz
Capacity 16 GB (8GB per DIMM)
Socket 2 x 204-pin SO-DIMM

Graphics

Controller Intel® Gen9 Graphics DX 12
HDMI HDMI 1.4b
Max resolution up to 4096 x 2160@24Hz
MultiDisplay Dual Display

Expansion Slot

M.2 1 x M.2 (KEY E, 2230) with PCIe x1 and USB 2.0 for Wireless
SIM Socket 1 x Socket connected to M.2 Key_B

Audio

Interface Realtek ALC233, High Definition Audio,Line-out,Mic-in

Ethernet

Controller/ Speed 2 x Realtek RTL8111G with 10/100/1000 Mbps
Connector 2 x RJ-45

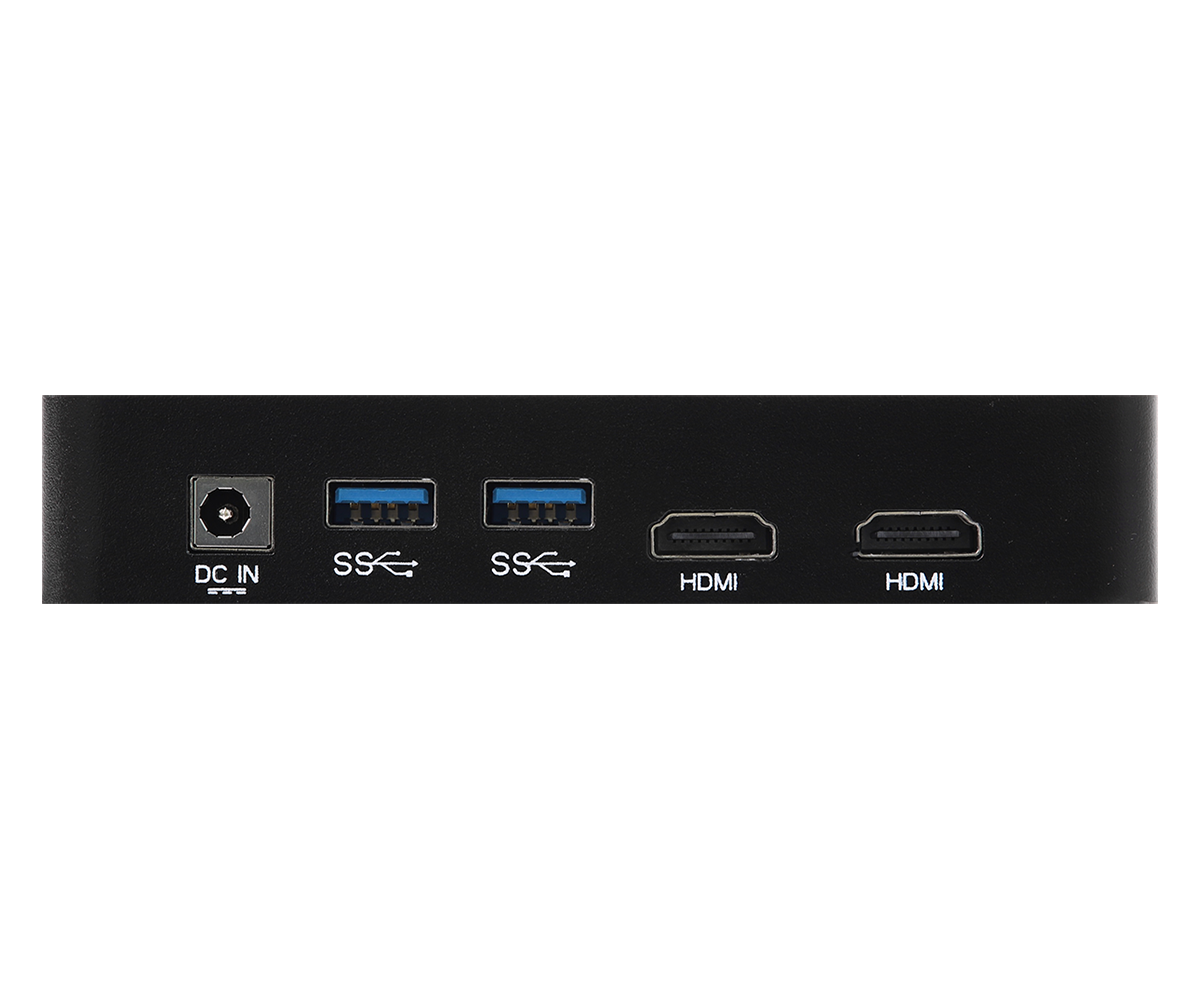

Front I/O

HDMI 2 x HDMI 1.4b
USB 2 x USB 3.1 (Gen1)
DC Jack 1
Audio 1 (Mic-in or Line-out)

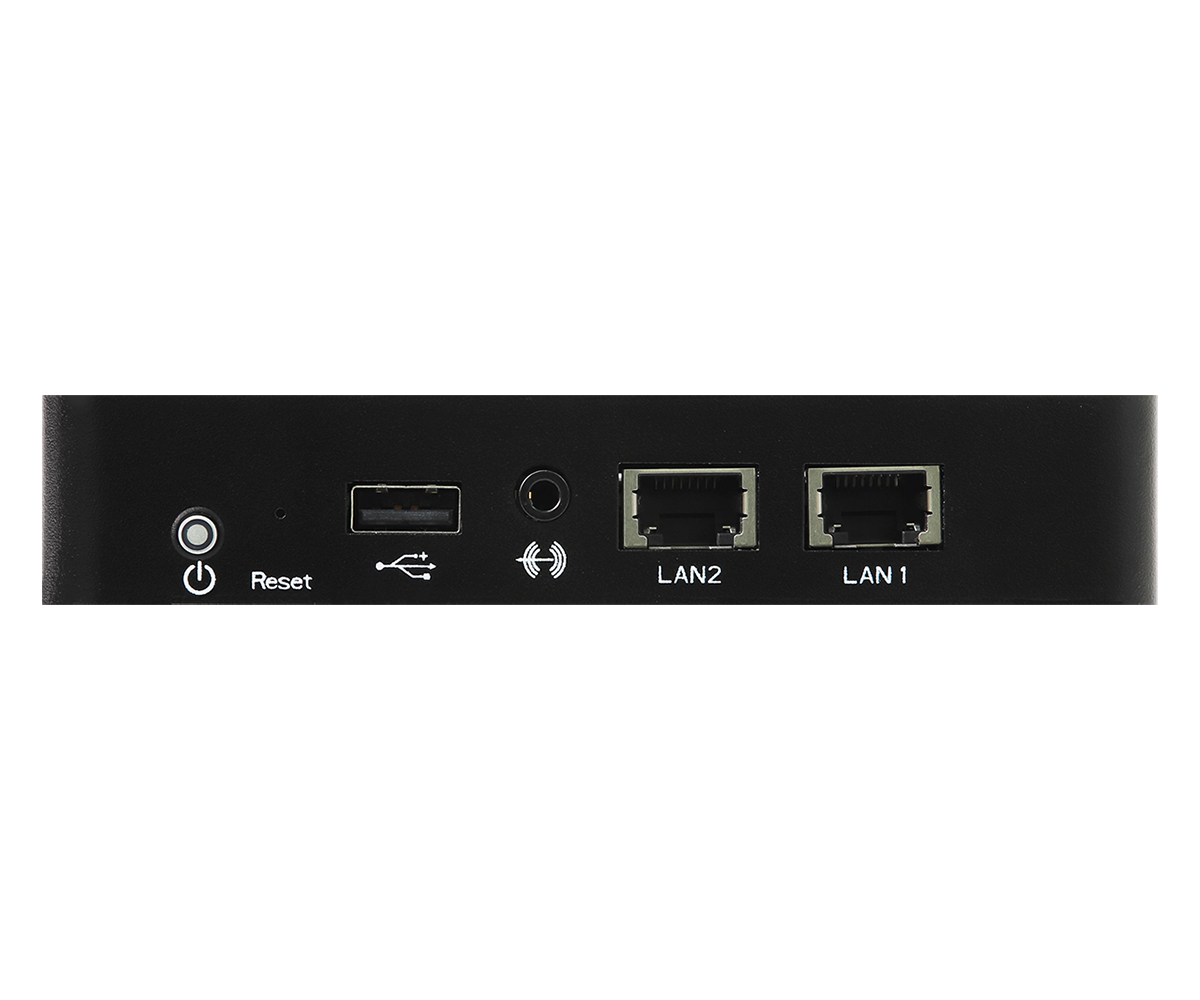

Rear I/O

Ethernet 2 x 1 Gigabit LAN
USB 1 x USB 2.0

Storage

M.2 1 x M.2 (KEY B, 3042) with USB 2.0 + SATA/PCIe x2 + SIM for 4G
eMMC 32GB/64GB

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments 0,1,2....255sec

Power Requirements

Input PWR 1 x 12V/60W Power Adapter
Power On AT/ATX supported
-AT: Direct PWR on as power input ready
-ATX:Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 50ºC
Storage Temp -40° C – 85° C
Operating Humidity 10% ~ 90%
Storage Humidity 10% ~ 90%

Mechanical

Construction Aluminum housing
Mounting N/A
Dimensions (W x H x D) 135 x 116 x 25.4mm
Weight Net Weight:0.5kg

Others

OS Support Windows 10
Certifications CE, FCC Class A
Packing List 1 x 12V/60W Power Adapter
1 x VESA mounting bracket
1 x Screw Package
1 x Product DVD

规格更改时恕不预先通知。品牌和产品名称归各自公司所有。不保证任何配置与产品实物规格相同。

支援下载

操作系统:

说明 操作系统 日期 下载
说明 Realtek Lan driver ver:10018 操作系统 Win 10 x 64 Date 2020-05-08 下载
说明 Intel Serial IO driver ver:30.100.1631.03_PV 操作系统 Win 10 x 64 Date 2020-05-08 下载
说明 VGA driver ver:24.20.100.6094 操作系统 Win 10 x 64 Date 2020-05-08 下载
说明 Realtek Teaming driver ver:2.0.3.0 操作系统 Win 10 x 64 Date 2020-05-08 下载
说明 Realtek high definition audio driver ver:8363_FF00 操作系统 Win 10 x 64 Date 2020-05-08 下载
说明 Intel iRMT ver:1.1.50.493 操作系统 Win 10 x 64 Date 2020-05-08 下载
说明 Realtek Lan driver ver:7100 操作系统 Win 10 x 64 Date 2020-05-08 下载
说明 Intel Trusted Execution Engine ver:3.1.50.2222 操作系统 Win 10 x 64 Date 2020-05-08 下载
说明 INF driver ver:10.1.1.34 操作系统 Win 10 x 64 Date 2020-05-08 下载
版本 更新方式 / 如何更新 说明 日期 下载
版本 1.00 更新方式 / 如何更新 BIOS 说明 First Release 日期 2021-05-21 下载
版本 1.00 更新方式 / 如何更新 DOS 说明 First Release 日期 2021-05-21 下载
版本 1.00 更新方式 / 如何更新 Windows 说明 First Release 日期 2021-05-21 下载
