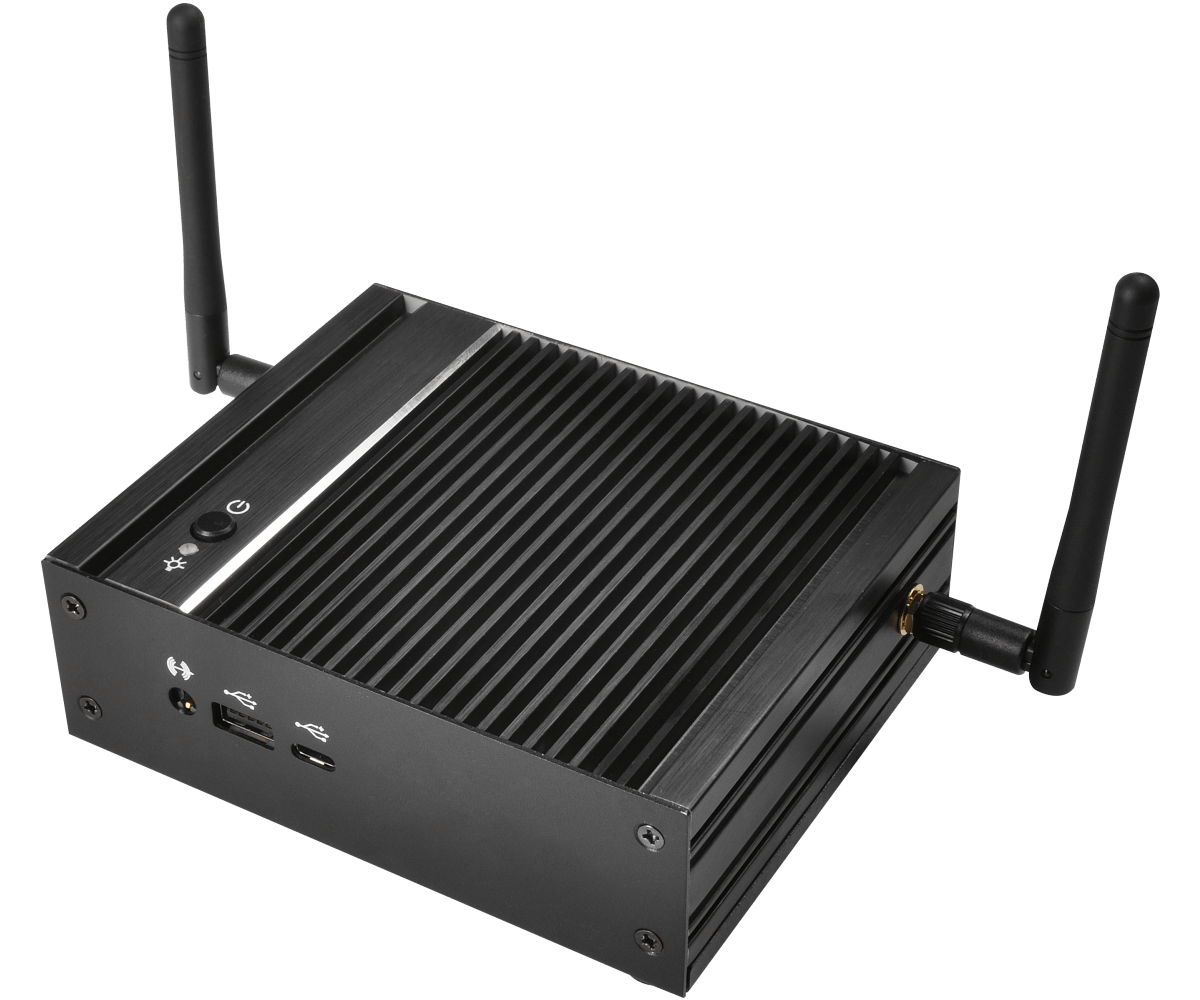

iBOX-315 Fanless Embedded BOX PC

  • Intel® Pentium®/Celeron® Braswell SoC. Default N3160 Quad Core 1.6GHz - iBOX-315 (N3160)
  • DP/2 x HDMI
  • Support Win 8.1/10 and Linux
  • Gigabit LAN
  • Slim and Fanless Design
Datasheet
Specification

Form Factor

Dimensions 135 x 110 x 44.5mm

Processor System

CPU N3160, QC, up to 2.24 GHz
Chipset SoC

Memory

Technology Dual Channel DDR3L 1333/1600 MHz
Capacity 16 GB
Socket 2 x SO-DIMM

Graphics

Controller Intel® Gen8 Intel® Graphics

Ethernet

Controller/ Speed 1 x Realtek RTL8111G with 10/100/1000 Mbps
Connector 1 x RJ-45

Front I/O

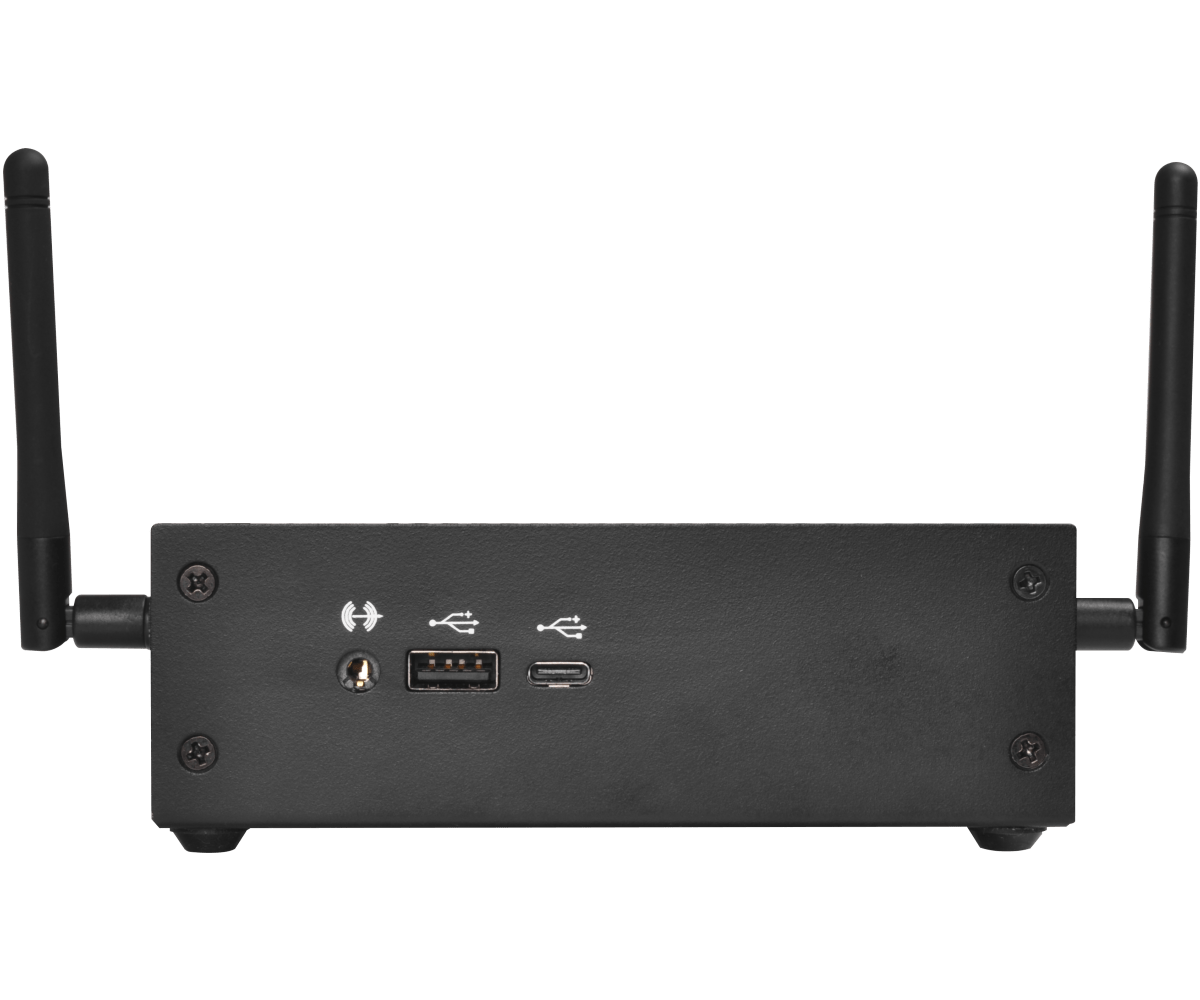

USB 2 x USB 3.0 ( 1 x Type-A, 1 x Type-C)
Audio 1 (Mic-in or Line-out)

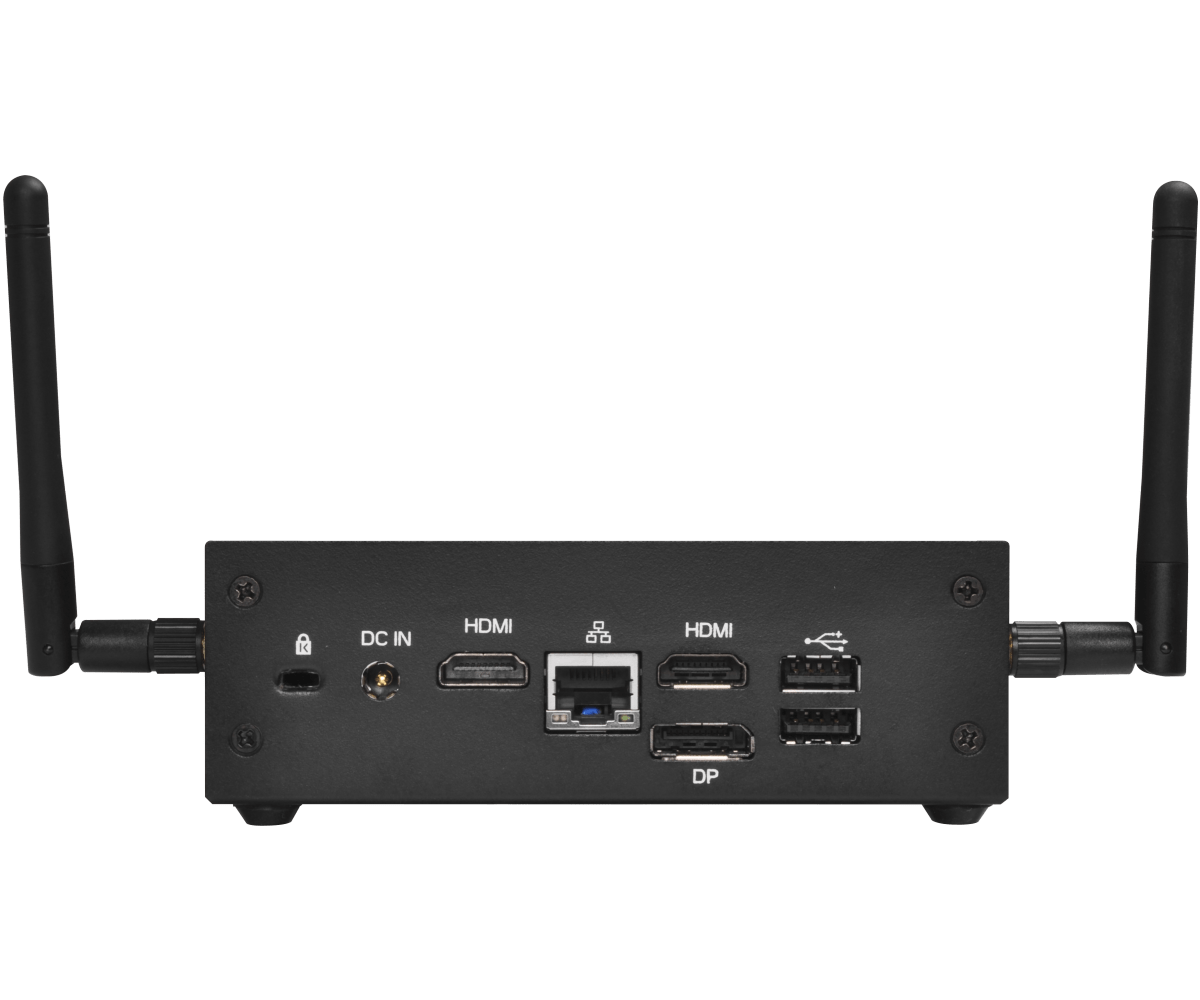

Rear I/O

HDMI 2
DisplayPort 1
Ethernet 1
USB 2 x USB 3.0
DC Jack 1

Storage

mSATA 1 x Full size with SATA3
SATA 1 x SATA3 (6Gb/s)

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments 0,1,2....255sec

Power Requirements

Input PWR 1 x 12V/36W AC-DC power brick adapter
Power On AT/ATX supported
-AT: Direct PWR on as power input ready
-ATX:Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 50ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 10% ~ 90%
Storage Humidity 10% ~ 90%

Mechanical

Construction Aluminum housing
Mounting VESA mounting bracket
Dimensions (W x H x D) 135 x 110 x 44.5mm
Weight Net Weight: 1.9kg

Others

OS Support Windows 8.1, Windows 10
Certifications CE, FCC Class A
Packing List 1 x 12V/36W Power Adapter
1 x VESA mounting bracket
1 x Screw Package
1 x Product DVD
