Processor System
| CPU |
Intel® Alder Lake-N SoC Processors
iBOX-263J (N97, QC, Max Speed Up to 3.6GHz, 12W) |
| Chipset |
SoC |
| BIOS |
AMI SPI 256 Mbit |
Memory
| Technology |
Single Channel DDR5 4800 MHz |
| Capacity |
32GB |
| Socket |
1 x 262-pin SO-DIMM |
Graphics
| Controller |
Intel® UHD Graphics |
| HDMI |
HDMI 2.0b
Max resolution up to 4096 x 2160@60Hz |
| DisplayPort |
DP 1.4a
Max resolution up to 4096 x 2160@60Hz |
| VGA |
Max resolution up to 1920x1200@60Hz |
| MultiDisplay |
Dual Display |
Expansion Slot
| M.2 |
1 x M.2 (Key E, 2230) with PCIe Gen3 x1 and USB 2.0 for Wireless
1 x M.2 (Key B, 3042/3052) with PCIe Gen3 x1/USB 3.2/USB 2.0 and SIM for 4G/5G |
| SIM Socket |
1x SIM socket connected to M.2 key B |
Audio
| Interface |
Realtek ALC256 HD, High Definition Audio |
Ethernet
| Controller/ Speed |
LAN1: Intel® I210AT with 10/100/1000 Mbps
LAN2: Intel® I210AT with 10/100/1000 Mbps |
| Connector |
2 x RJ-45 |

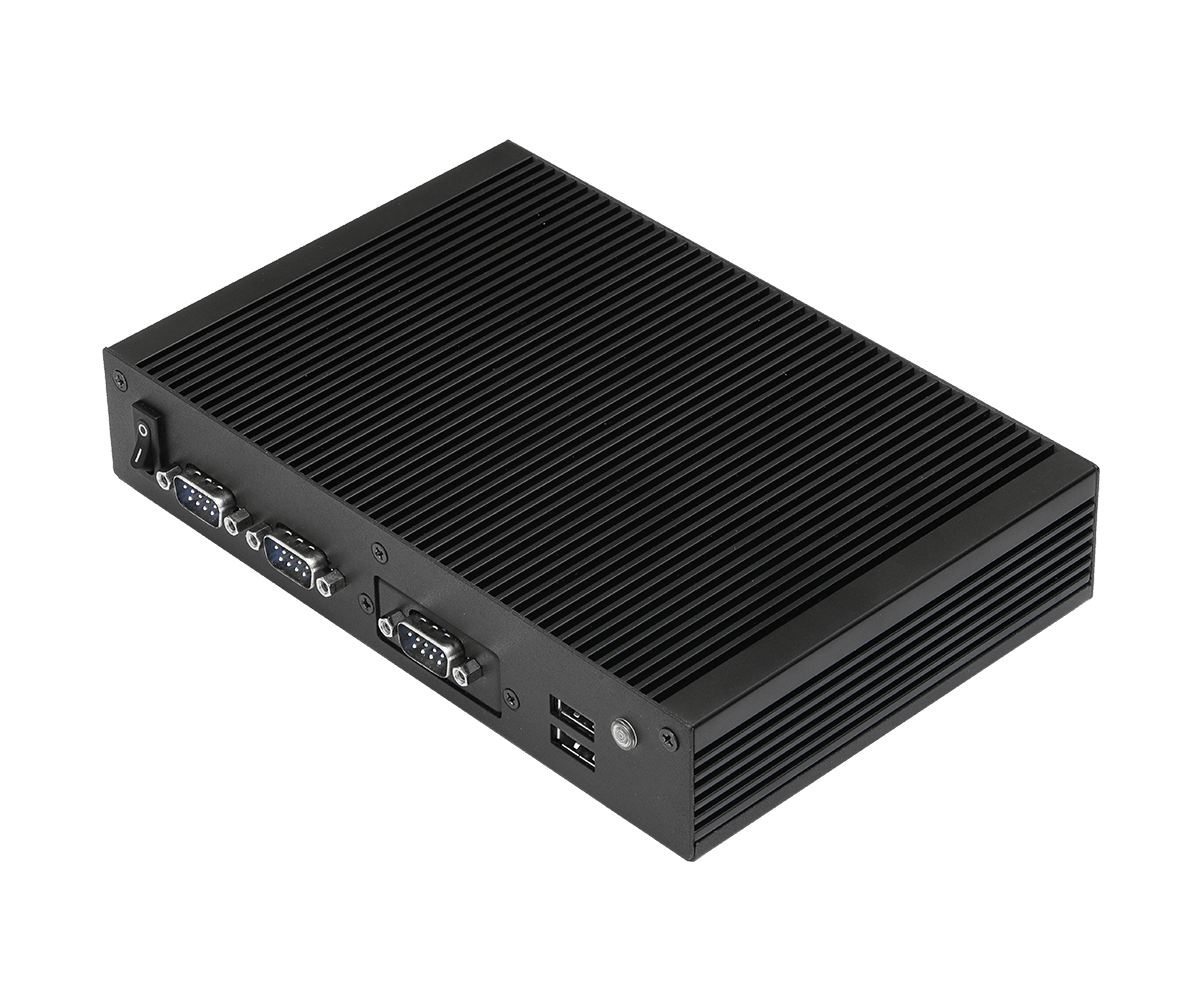

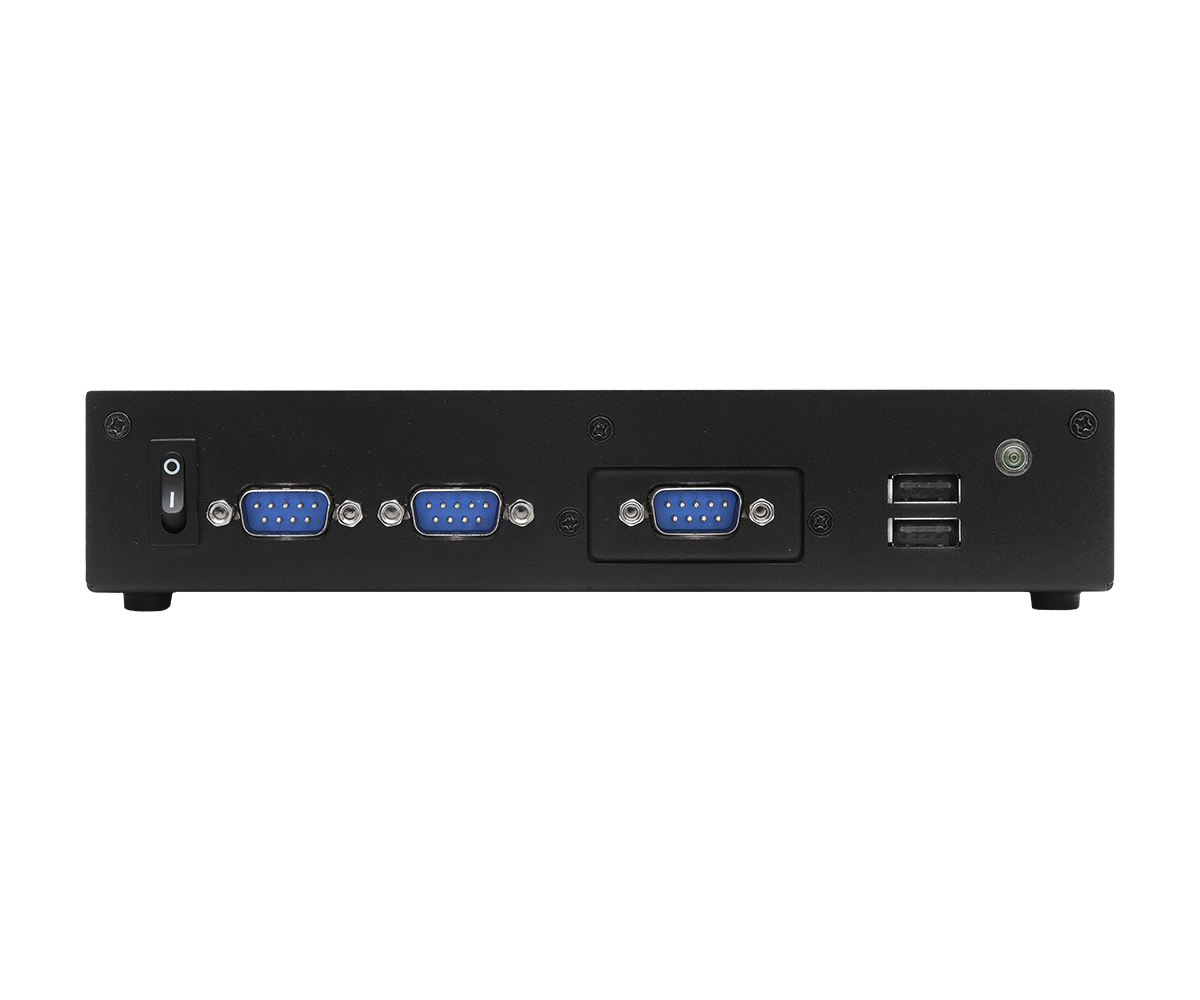

Front I/O
| USB |
2 x USB 2.0 |
| COM |
3 x COM (RS-232)
*BOM Options:
1*COM can be changed to additional 2*1G LAN Ports (iBOX-263J-4L) |

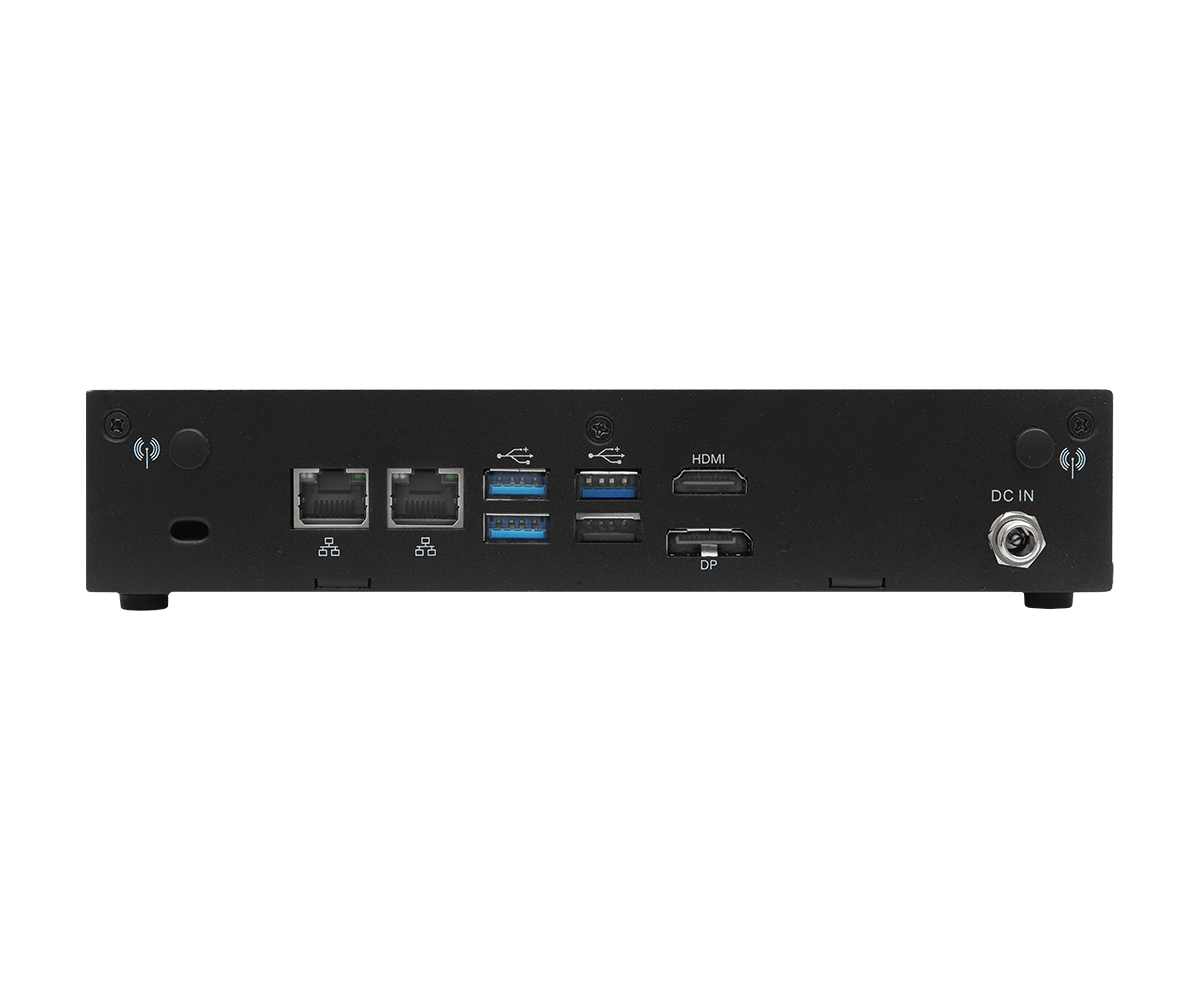

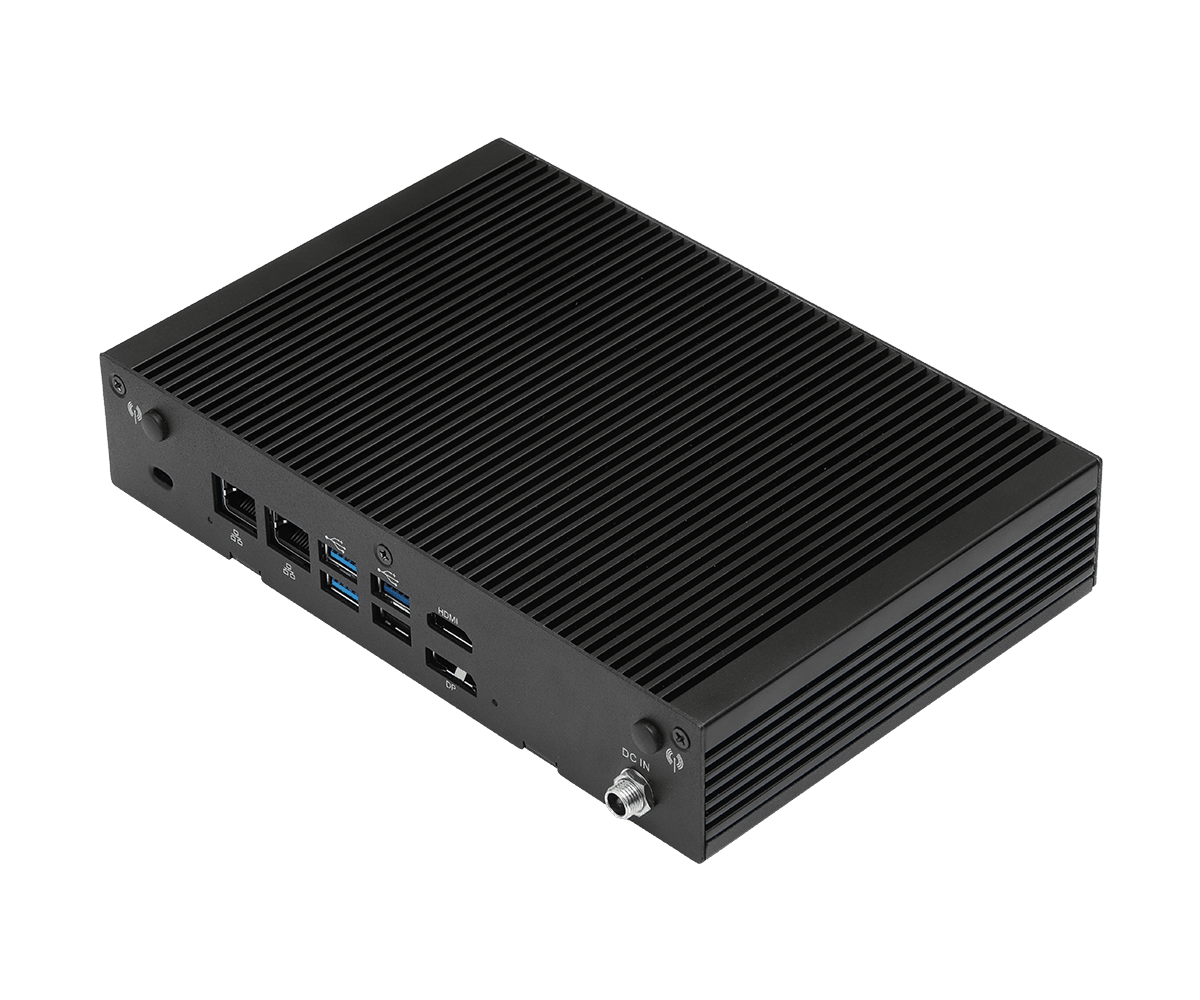

Rear I/O
| HDMI |
1 x HDMI 2.0b |
| DisplayPort |
1 x DP 1.4a |
| VGA |
1 |
| Ethernet |
2 x 1 Gigabit LAN |
| USB |
3 x USB 3.2 Gen2, 1 x USB 2.0 |
Storage
| M.2 |
1 x M.2 (Key M, 2242/2280) with PCIe Gen3 x1 and SATA3 for SSD |
| SATA |
1 x SATA3 (6Gb/s) |
Watchdog Timer
| Output |
From Super I/O to drag RESETCON# |
| Interval |
256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR |
9~36V DC-In |
| Power On |
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp |
-20ºC ~ 50ºC (With extended temp. peripherals) |
| Storage Temp |
-40° C – 85° C |
| Operating Humidity |
10% ~ 90% |
| Storage Humidity |
10% ~ 90% |
Mechanical
| Construction |
Aluminum housing |
| Mounting |
VESA mount/Wall mount/Din-rail |
| Dimensions (L x W x H) |
200 x 134.5 x 39mm (7.87" x 5.3" x 1.54") |
| Weight |
Net Weight:1.3kg |
Others
| OS Support |
Windows 10/11 |
| Certifications |
CE, FCC |
| Packing List |
1 x 19V/65W Power Adapter
1 x Wall mount kit |
| TPM |
Intel® PTT |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
