iBOX-V2000M Fanless Embedded BOX PC
- AMD Ryzen™ Embedded V2718
- 2 x 260-pin non-ECC/ECC SO-DIMM DDR4 3200 MHz , up to 64GB (32GB per DIMM)
- 4 x USB 3.2 Gen2, 4 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E, 1 x COM, 1 x SATA3
- 1 x Realtek 1 Gigabit LAN, 1 x Realtek 2.5 Gigabit LAN
- Supports Quad display, 1 x HDMI 2.0a, 3 x DP 1.2a (2 from Type C)
- TPM 2.0 onboard IC
- 19V/90W Power Adapter
- 171.8 x 109.45 x 50.05mm (6.76" x 4.31" x 1.97"), Fanless Embedded BOX PC
Overview
Specification
Processor System
| CPU | V2718, 8C, Max Speed up to 4.15GHz |
|---|---|
| Chipset | SoC |
| BIOS | AMI SPI 128 Mbit |
Memory
| Technology | Dual Channel non-ECC/ECC DDR4 3200 MHz |
|---|---|
| Capacity | 64GB (32 GB per DIMM) |
| Socket | 2 x 260-pin SO-DIMM |
Graphics
| Controller | AMD Radeon™ Graphics |
|---|---|
| HDMI | HDMI 2.0a Max resolution up to 4096x2160@60Hz |
| DisplayPort | DisplayPort 1.2a, DP++ Max resolution up to 4096x2160@60Hz |
| MultiDisplay | Quad-Display (Included 2 outputs from Type-C) |
Expansion Slot
| M.2 | 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 for Wireless |
|---|
Audio
| Interface | Realtek ALC233, High Definition Audio. |
|---|
Ethernet
| Controller/ Speed | LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps LAN2: Realtek R8111EPV (Dash) with 10/100/1000 Mbps |
|---|---|
| Connector | 2 x RJ-45 |

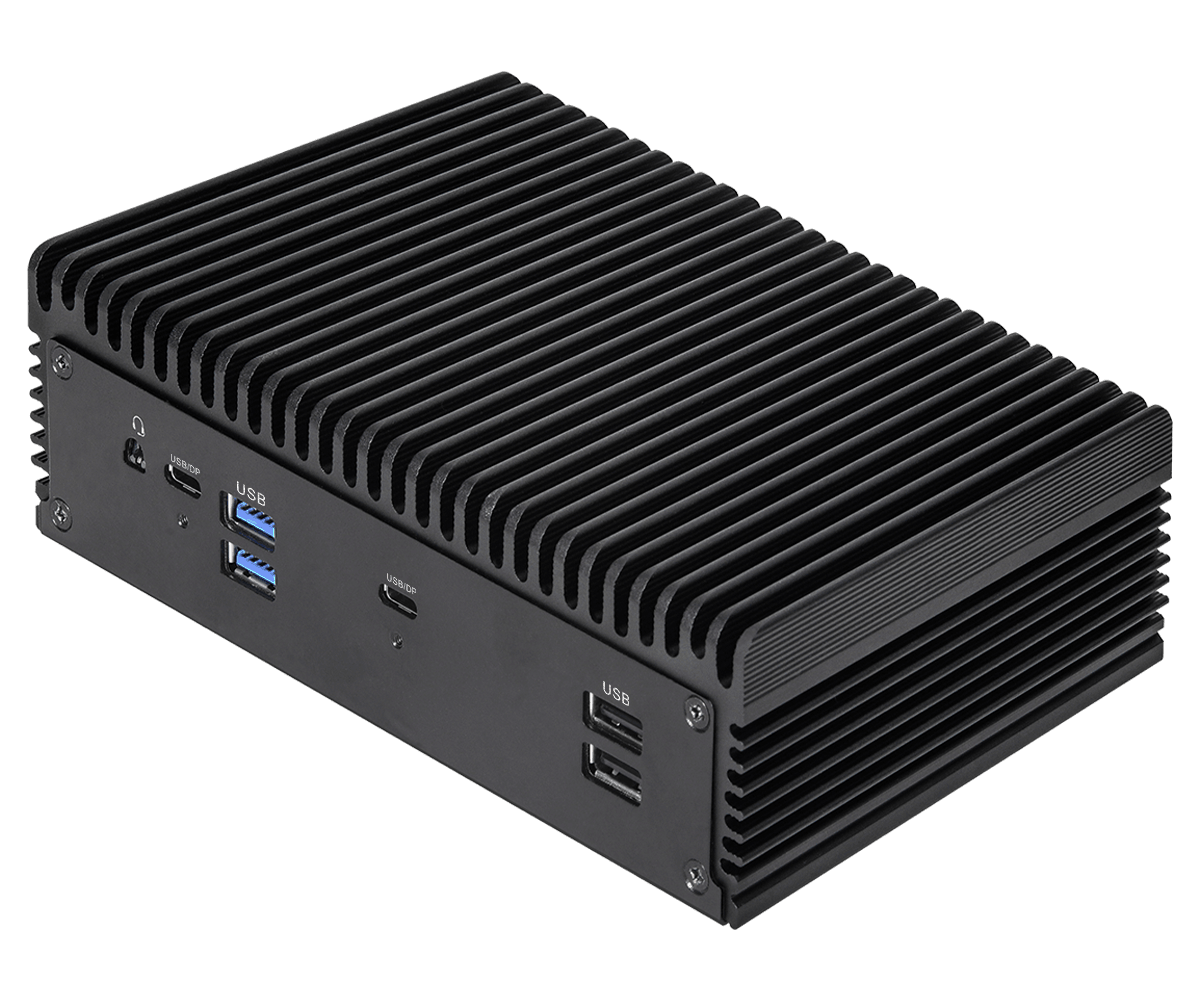

Front I/O
| USB | 2 x USB 3.2 Gen2 (Type A) 2 x USB 3.2 Gen2 (Type-C, Supports DP1.2a display output) 2 x USB 2.0 |
|---|---|
| Audio | 1 (headphone & microphone jack) |

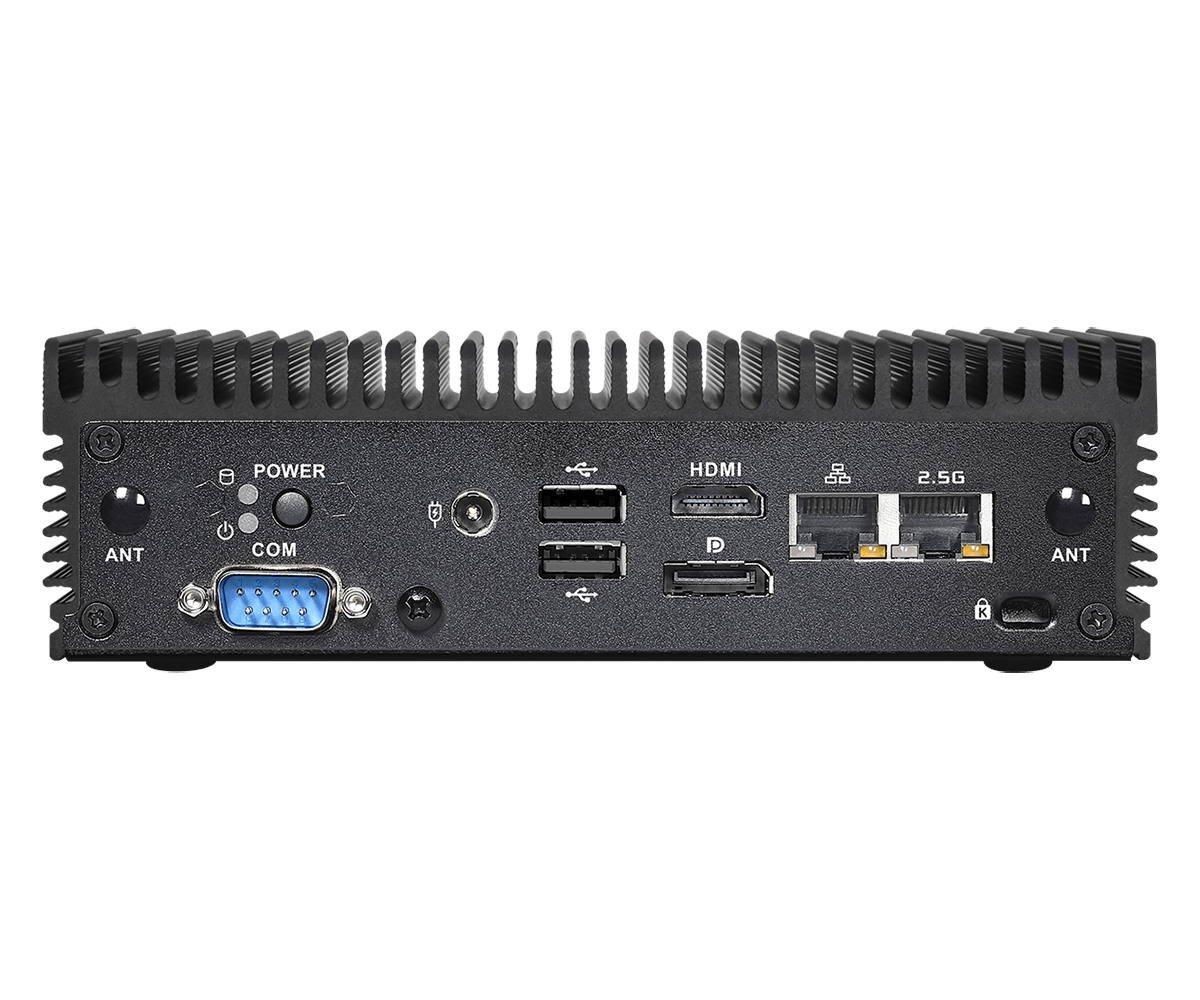

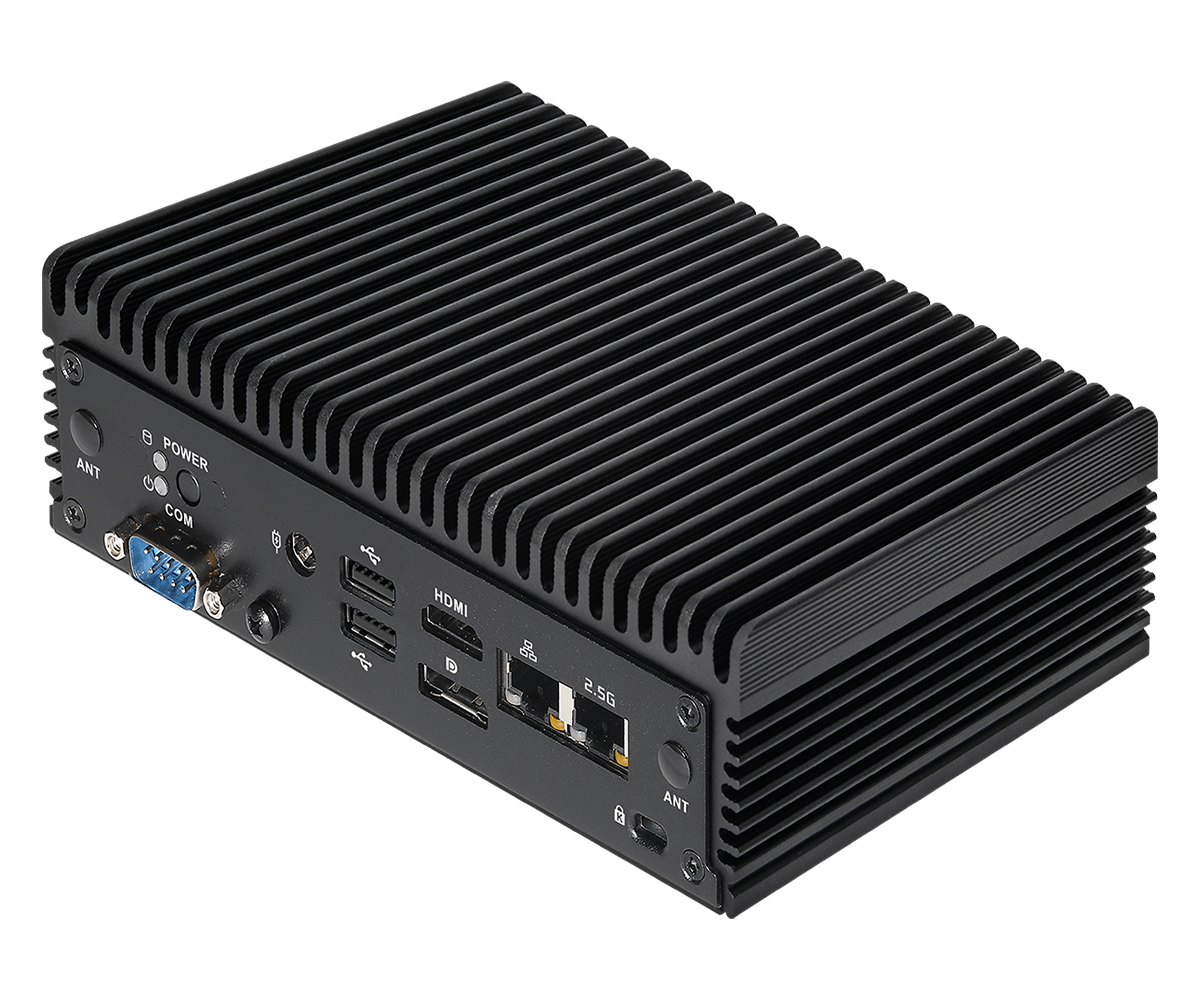

Rear I/O
| HDMI | 1 x HDMI 2.0a |
|---|---|
| DisplayPort | 1 x DP 1.2a |
| Ethernet | 1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN |
| USB | 2 x USB 2.0 |
| COM | 1 x COM(RS-232/422/485) |
| DC Jack | 1 |
Storage
| M.2 | 1 x M.2 (KEY M, 2242/2260/2280) with PCIe Gen3 x4 and SATA3 for SSD *M.2 Key M 2280(Supported by bracket) |
|---|---|
| SATA | 1 x SATA3.0 (6.0 Gb/s) |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments 0,1,2....255sec |
Power Requirements
| Input PWR | 19V/90W Power Adapter |
|---|---|
| Power On | AT/ATX supported -AT: Direct PWR on as power input ready -ATX:Press button to PWR on after power input ready |
Environment
| Operating Temp | -20ºC ~ 40ºC with air flow 0.5~0.8 m/s (with extended temp. peripherals) |
|---|---|
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Mechanical
| Construction | Aluminum housing |
|---|---|
| Mounting | VESA mount/Wall mount/Din-rail |
| Dimensions (L x W x H) | 171.8 x 109.45 x 50.05mm (6.76" x 4.31" x 1.97") |
| Weight | Net Weight:1.6Kg |
Accessories
| Bulk Package | 2 x SCREW M2*2,D=5 1 x IBOX VESA MOUNT BRKT 1 x BRACKET FOR M.2 W/2*SCREW 1 x 19V/90W Power Adapter |
|---|---|
| Option | 1 x SSD & Memory cooling kit (13G07P014000AI) *Please contact regional Sales for this inquiry |
Others
| OS Support | Windows 10 |
|---|---|
| Certifications | CE, FCC |
| Packing List | 1 x 19V/90W Power Adapter 1 x VESA mount bracket |
| TPM | TPM 2.0 onboard IC |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Support
OS:
| Description | Information | OS | Date | Download | |||||
|---|---|---|---|---|---|---|---|---|---|
| Description | [Beta] Realtek Lan driver ver:1.12.0038_WHQL_20200225 | Information | OS | Win 11 x 64 | Date | 2023-05-05 | Download | ||
| Description | [Beta] Realtek high definition audio driver ver:9159_FF00 | Information | OS | Win 11 x 64 | Date | 2023-05-05 | Download | ||
| Description | [Beta] VGA driver ver: 22.20.34.220920a | Information | OS | Win 11 x 64 | Date | 2023-05-05 | Download | ||
| Description | [Beta] Chipset Driver ver:4.10.10.2115 | Information | OS | Win 11 x 64 | Date | 2023-05-05 | Download | ||
| Description | Realtek Lan driver ver:1.12.0038_WHQL_20200225 | Information | OS | Win 10 x 64 | Date | 2022-04-13 | Download | ||
| Description | Realtek high definition audio driver ver:9057_FF00 | Information | OS | Win 10 x 64 | Date | 2022-04-13 | Download | ||
| Description | VGA driver ver:22.5.1 | Information | OS | Win 10 x 64 | Date | 2022-10-07 | Download | ||
| Description | Chipset Driver ver:2.16.12.341 | Information | OS | Win 10 x 64 | Date | 2020-11-23 | Download |
| Version | Update BIOS Under / How to Update | Description | Information | Date | Download | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Version | 1.60 | Update BIOS Under / How to Update | BIOS | Description | Support CPU Operating Mode and Fanless Mode | Information | Size: 4534 KiB SHA1: 6C6DD8CE9FBD7AAE6C7D692A1E89F32BB2EE5114 |
Date | 2024-09-20 | Download | |
| Version | 1.60 | Update BIOS Under / How to Update | Windows | Description | Support CPU Operating Mode and Fanless Mode | Information | Size: 5322 KiB SHA1: 52FB988D0EC7499500CBF24EFEA9332F63B21D5C |
Date | 2024-09-20 | Download | |
| Version | 1.50 | Update BIOS Under / How to Update | BIOS | Description | Enhance display compatibility | Information | Date | 2021-11-04 | Download | ||
| Version | 1.50 | Update BIOS Under / How to Update | Windows | Description | Enhance display compatibility | Information | Date | 2021-11-04 | Download | ||
| Version | 1.30 | Update BIOS Under / How to Update | BIOS | Description | 1. Improve system compatibility. 2. Enhance memory compatibility. |
Information | Date | 2021-05-21 | Download | ||
| Version | 1.30 | Update BIOS Under / How to Update | Windows | Description | 1. Improve system compatibility. 2. Enhance memory compatibility. |
Information | Date | 2021-05-21 | Download |
The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.
| Description | Language | Date | Download | ||||
|---|---|---|---|---|---|---|---|
| Description | User Manual | Language | English | Date | 2024-11-06 | Download | |
| Description | Quick Installation Guide | Language | English | Date | 2021-03-02 | Download |
