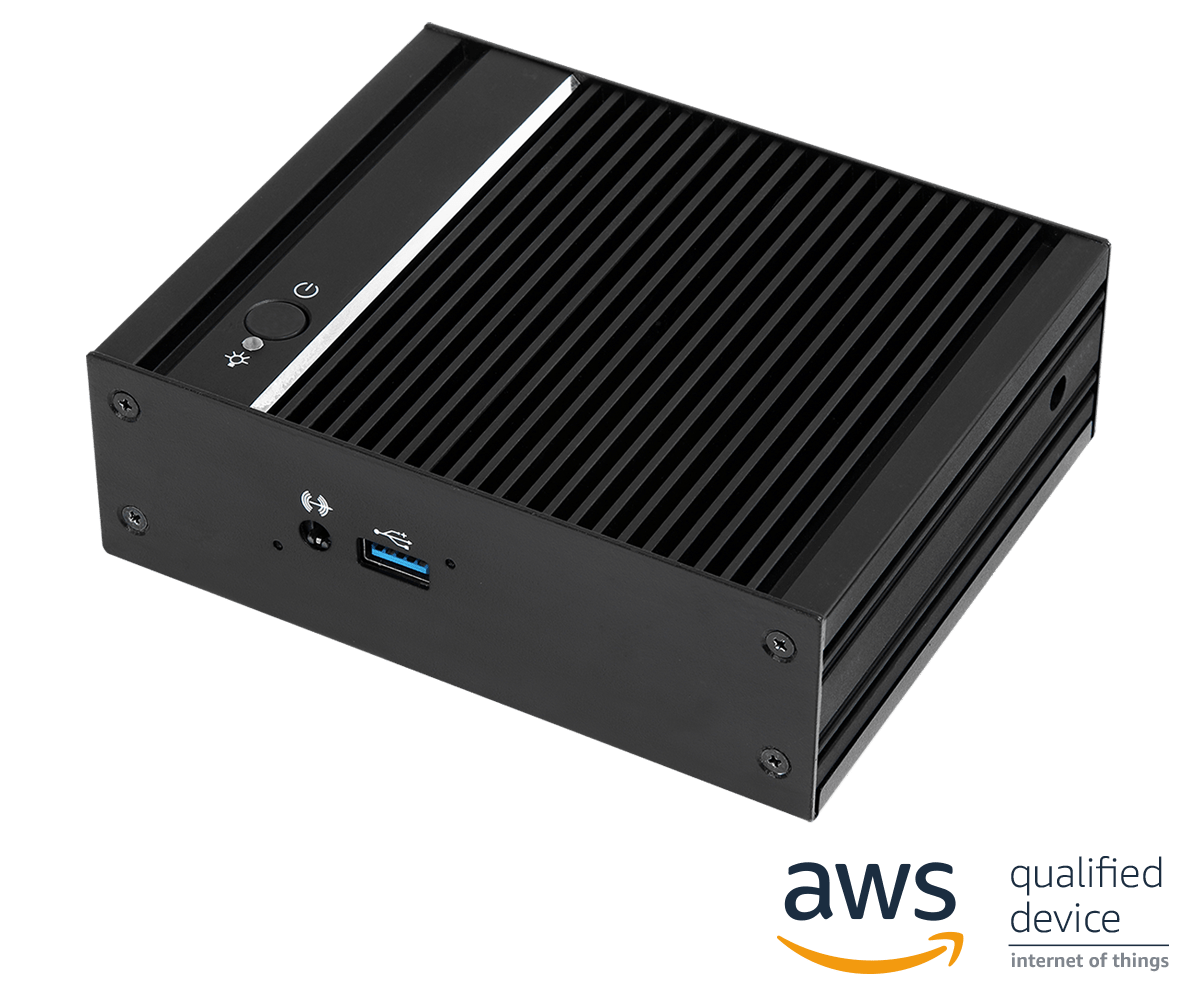

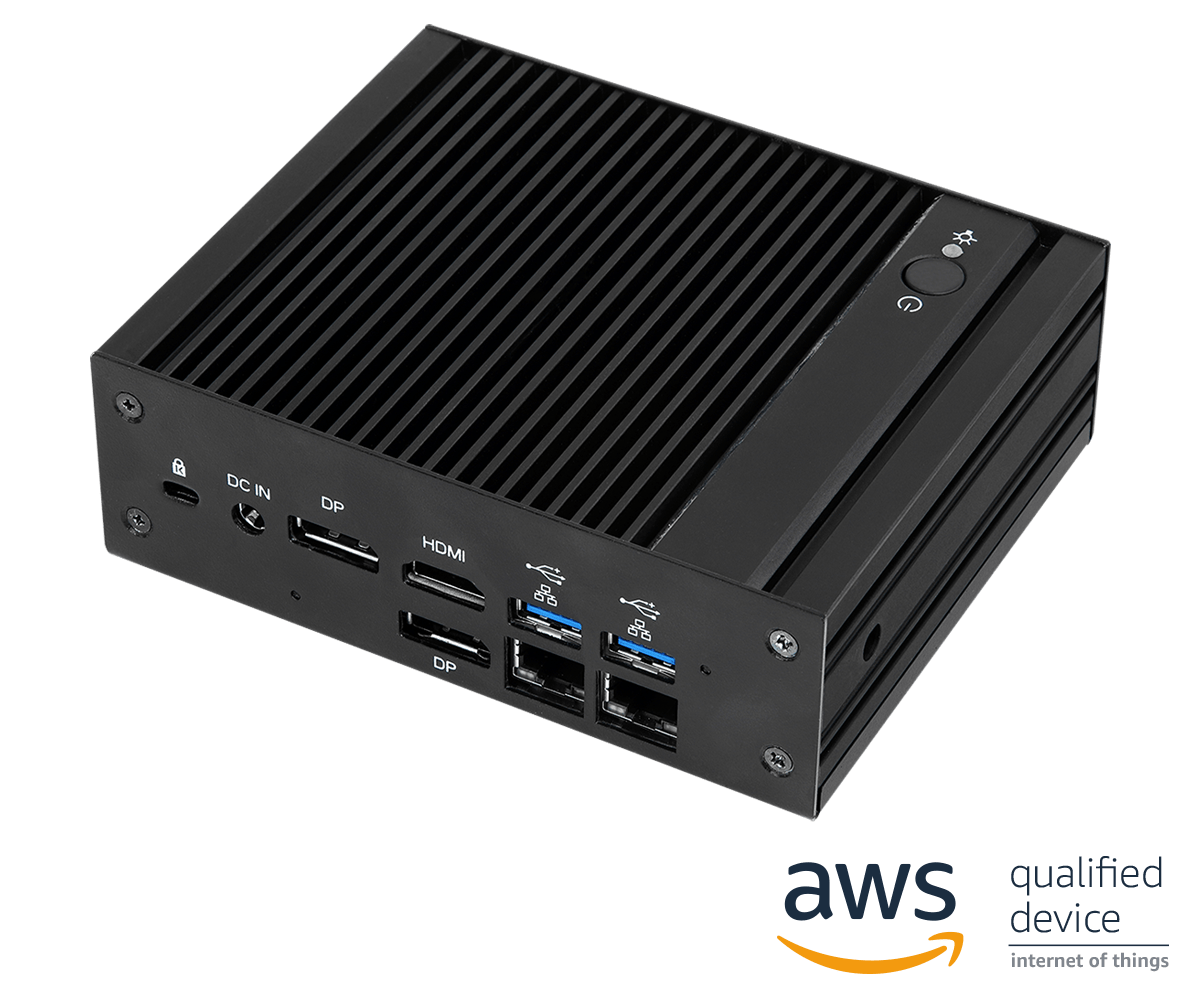

iBOX-345-DL Fanless Embedded BOX PC

  • Intel® Apollo Lake SoC Processor
  • 2 x 204-pin SO-DIMM up to 16GB DDR3L 1866 MHz ( 8GB per DIMM )
  • 3 x USB 3.1 Gen1 ,1 x M.2 Key M,1 x M.2 Key E, 1 x SATA3
  • 2 x Realtek 1 Gigabit LAN
  • Supports triple display, 1 x HDMI1.4b , 2 x DP1.2a
  • TPM 2.0 onboard IC
  • 12V DC-In
Datasheet
Specification

Form Factor

Dimensions 135 x 110 x 44.5mm

Processor System

CPU Intel®Apollo Lake Soc Processor J3455,QC,up to 2.30 GHz
Chipset SoC
BIOS AMI SPI 128 Mbit

Memory

Technology Dual Channel DDR3L 1866 MHz
Capacity 16 GB (8 GB per DIMM)
Socket 2 x 204-pin SO-DIMM

Graphics

Controller Intel® Gen9 Graphics DX 12
HDMI HDMI 1.4b
Max resolution up to 4096 x 2160@24Hz
DisplayPort DisplayPort 1.2a , DP++
Max resolution up to 4096x2160@60Hz
MultiDisplay Triple Display

Expansion Slot

M.2 1 x Key E(2230)with PCIex1 and USB2.0 for wireless

Audio

Interface Realtek ALC233, High Definition Audio, Line-out, Mic-in

Ethernet

Controller/ Speed 2 x Realtek RTL8111G with 10/100/1000 Mbps

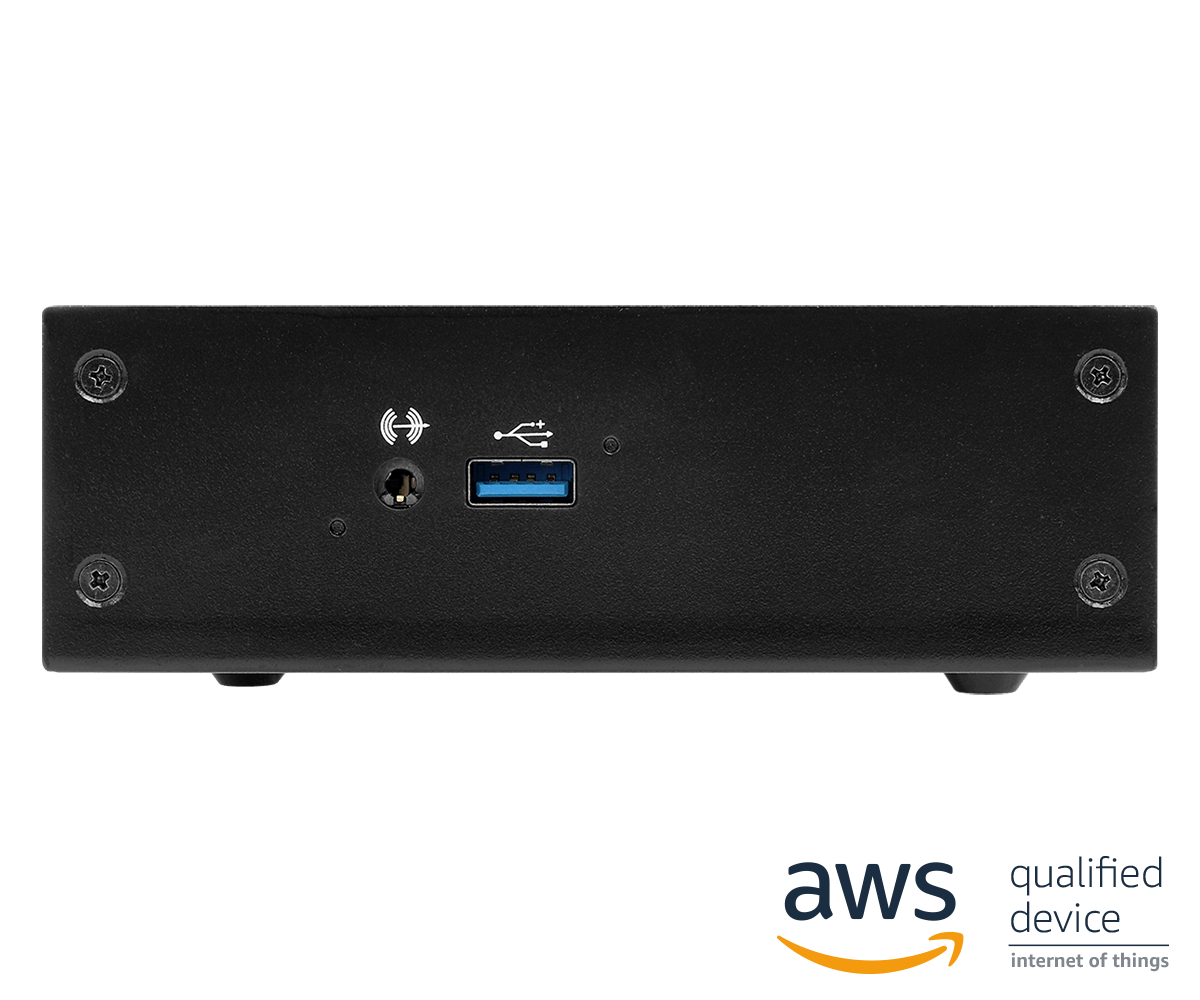

Front I/O

USB 1 x USB3.1(Gen1)
Audio 1 (Mic-in or Line-out)

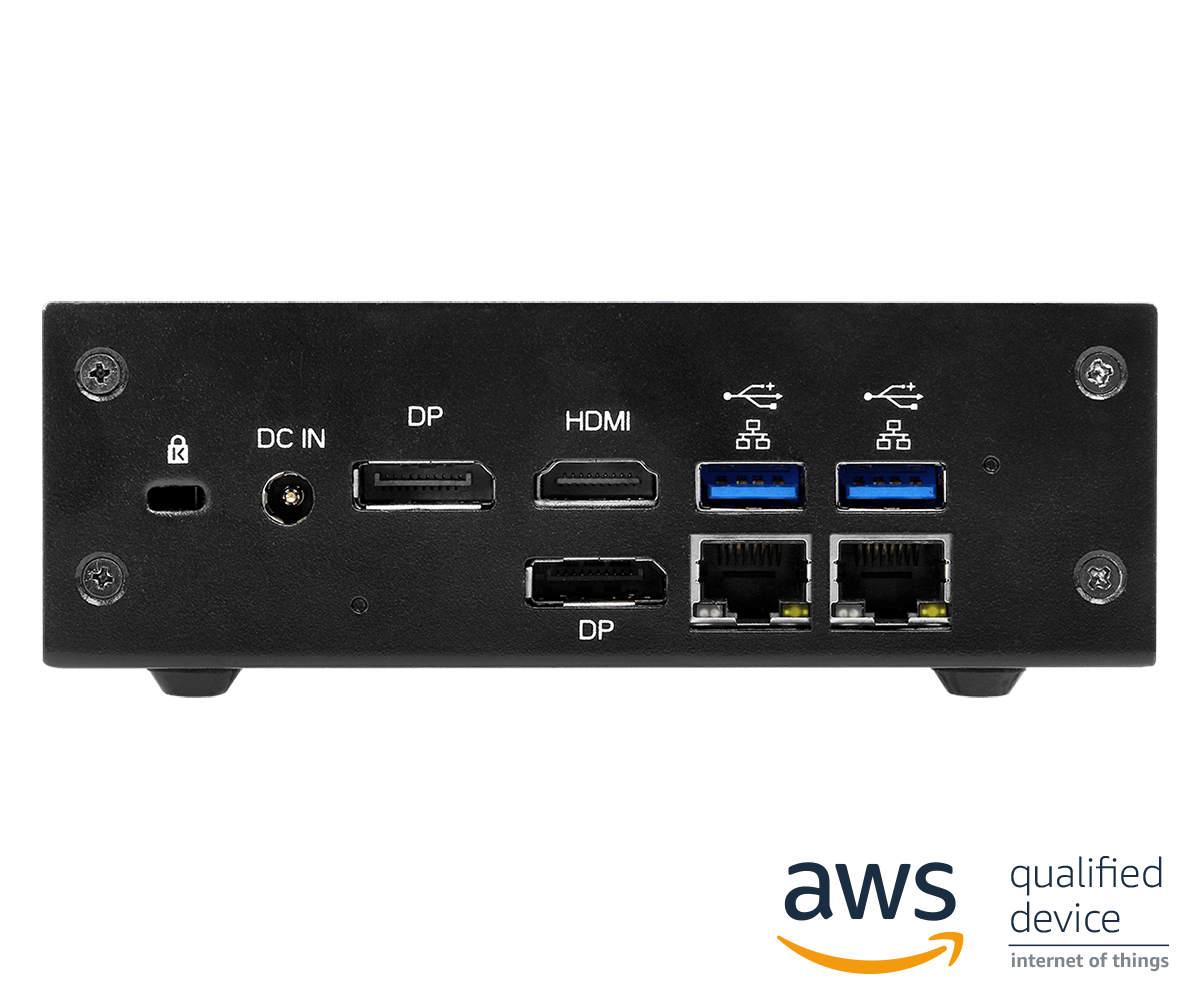

Rear I/O

HDMI 1 x HDMI 1.4b
DisplayPort 2 x DP 1.2a
Ethernet 2 x 1 Gigabit LAN
USB 2 x USB 3.1 (Gen1)
DC Jack 1

Storage

M.2 1x Key M(2242/2260) with PCIex1 and SATA3 for SSD
SATA 1 x SATA3 (6Gb/s)

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 1 x 12V/60W Power Adapter
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 50ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 10% ~ 90%
Storage Humidity 10% ~ 90%

Mechanical

Construction Aluminum housing
Mounting VESA mounting bracket
Dimensions (W x H x D) 135 x 110 x 44.5mm
Weight Net Weight: 0.7kg

Others

OS Support Windows 10
Certifications CE, FCC Class A
Packing List 1 x 12V/60W Power Adapter
1 x Screw Package
1 x Product DVD
1 x VESA mounting bracket

Accessories

Gift Package 2 x SCREW M2*2,D=5 (13G020302031AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
