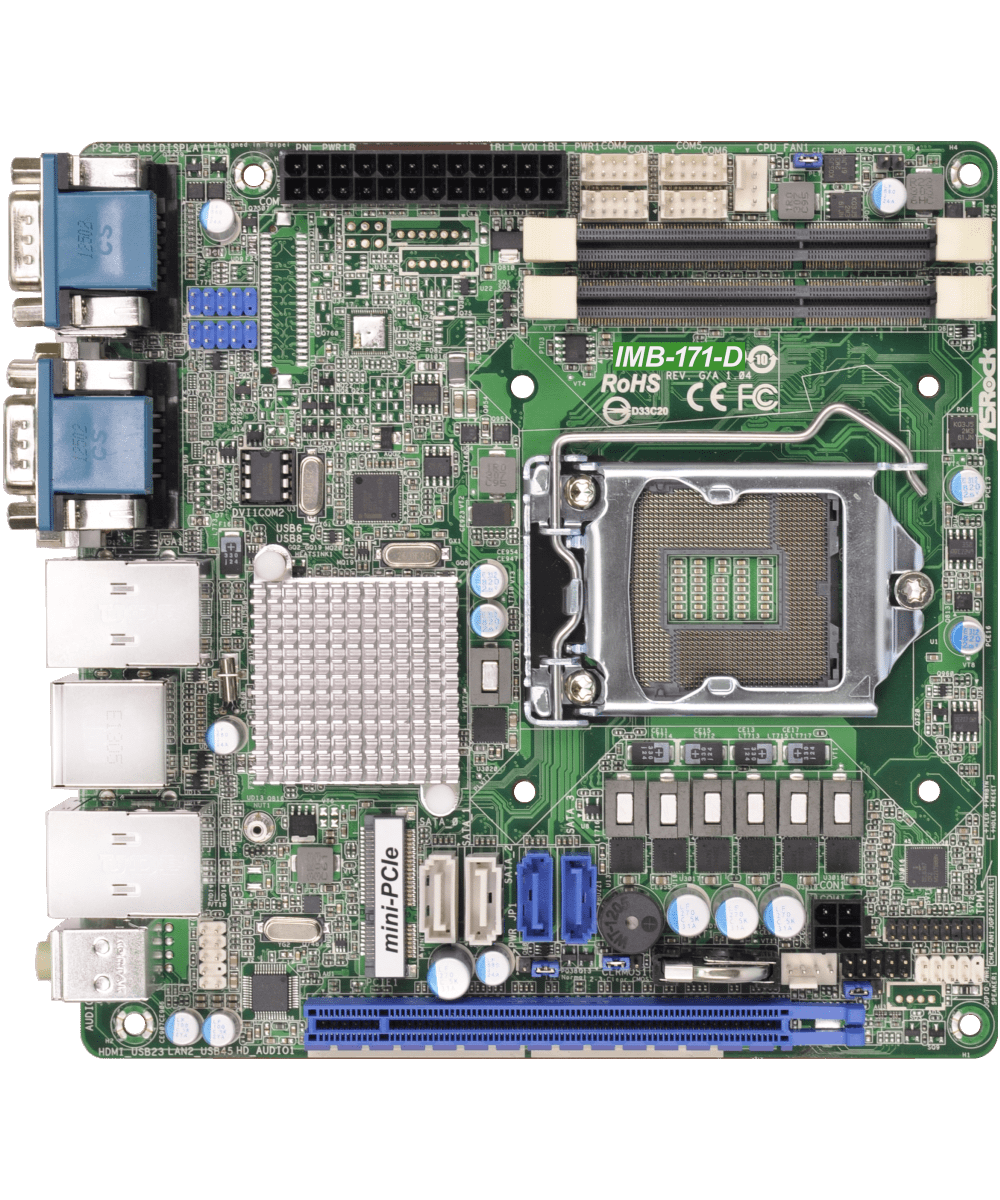

IMB-171-D Mini-ITX Motherboard

  • Socket LGA1155 for Intel® Core i7 / i5 / i3 / Celeron® (Ivy Bridge and Sandy Bridge)
  • Intel® Q77 Chipset
  • Integrated Intel® HD Graphics Built-in Visuals
  • Supports DDR3 1600MHz, 2 x SO-DIMM, up to 16GB system memory
  • 2 x COM (RS-232/422/485), 4 x COM (RS-232)
  • 1 x D-Sub, 1 x HDMI, 1 x Dual Channel 24-bit DisplayPort
  • 4 x USB 3.0, 6 x USB 2.0, 2 x SATA3, 2 x SATA2
  • 1 x PCIe x16, 1 x mini-PCIe
  • Gigabit LAN : 1 x Intel® 82579LM, 1 x Intel® 82583V
  • 1 x TPM Header
Datasheet
Specification

Form Factor

Dimensions Mini-ITX (6.7-in x 6.7-in)

Processor System

CPU Socket LGA1155 for Intel® Core i7 / i5 / i3 / Celeron® (Sandy Bridge and Ivy Bridge)
Chipset Q77
BIOS UEFI

Memory

Technology Dual Channel DDR3 1066 / 1333 / 1600 MHz SDRAM
Socket 2 x SO-DIMM
Capacity 16GB

Graphics

Controller Intel® HD Graphics (By CPU)
DVI Supports max resolution up to 1920x1200
HDMI Supports HDMI, max resolution up to 1920x1200
DisplayPort Supports max resolution up to 2560x1600
MultiDisplay Yes

Expansion Slot

mini-PCIe 1 (Half Size)
PCIe 1 (IVY Bridge: Gen3; Sandy Bridge: Gen2)

Ethernet

Controller/ Speed LAN1:Intel® 82583V with 10/100/1000 Mbps,
LAN2:Intel® 82579LM with 10/100/1000 Mbps
Connector 1 x RJ - 45

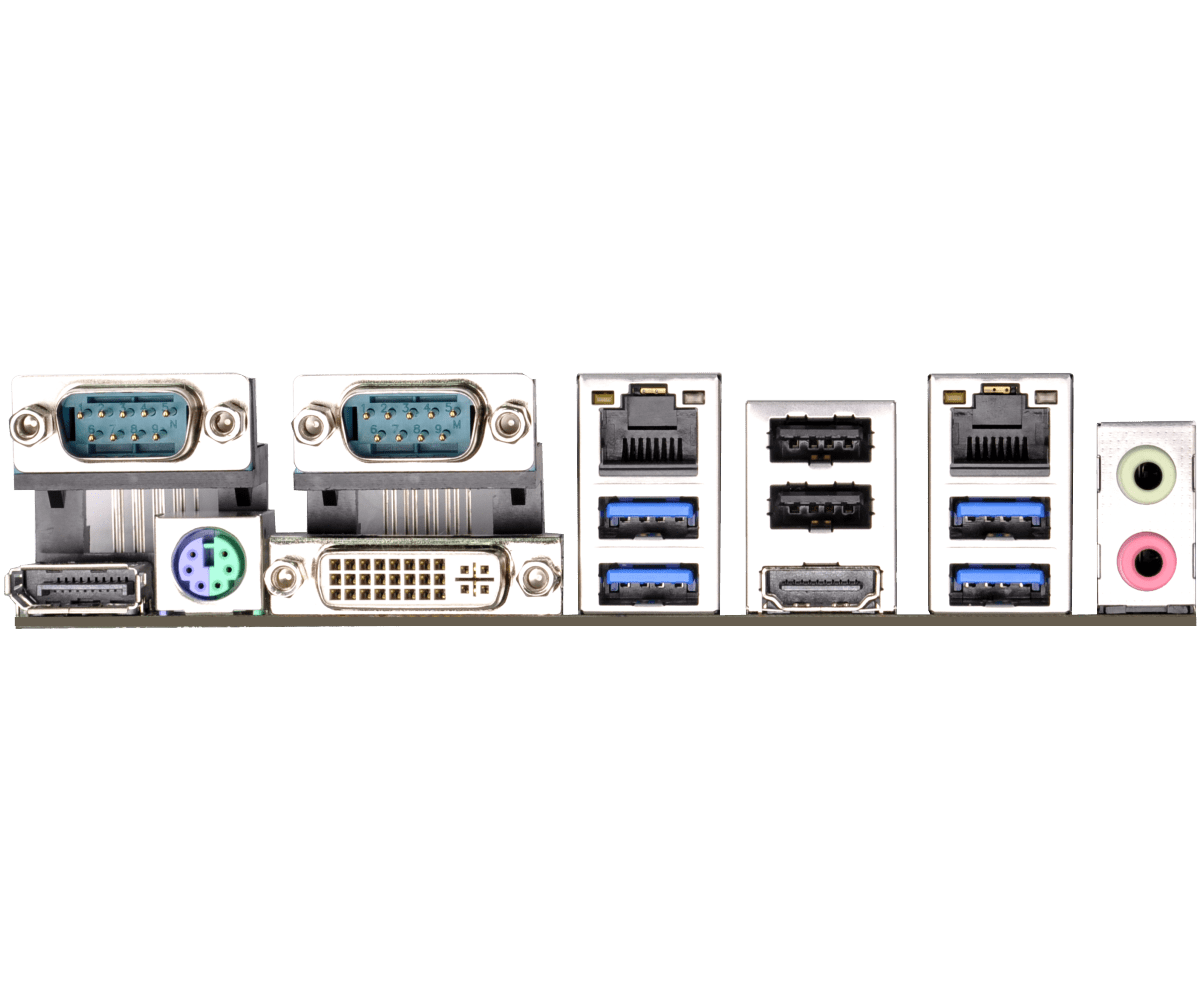

Rear I/O

DVI 1 (DVI-I)
HDMI 1
DisplayPort 1
Ethernet 2
USB 6 (4 x USB 2.0, 2 x USB 3.0)
Audio 2 (Mic-in, Line-out)
COM 2 x COM(RS-232/422/485)
PS2 1 (Combo)

Internal Connector

USB 4 (USB 2.0)
COM 4 x COM(RS-232)
GPIO 4 x GPI +4 x GPO
Speaker Header 1

Storage

SATA 2 x SATA2 (3.0Gb/s), 2 x SATA3 (6.0Gb/s), Supports RAID 0/1/5

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR ATX PWR (24+4 pin)
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

Others

Packing List 1 x Jumper setting guide
1 x Driver DVD
1 x IO shield
2 x COM cable
2 x SATA cable
2 x Screw for mini card

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

Support

OS:

Description OS Date Download
Description Intel Smart Connect utility ver:1.0.7 OS Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-07-07 Download
Description Intel Rapid Start utility ver:1.0.6 OS Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-07-07 Download
Description ASRock 3TB+ Unlocker utility ver:1.1.1 OS Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 , XP x 64 , XP Date 2020-07-07 Download
Description VGA driver ver:14.51.2.64.5404 OS XP x 64 Date 2020-07-07 Download
Description VGA driver ver:14.51.2.5404 OS XP x 64 Date 2020-07-07 Download
Description VGA driver ver:15.28.6.64.2857 OS Win 8 x 64 Date 2020-07-07 Download
Description VGA driver ver:15.28.6.2857 OS Win 8 Date 2020-07-07 Download
Description VGA driver ver:15.26.12.64.2761 OS Win 7 x 64 Date 2020-07-07 Download
Description VGA driver ver:15.26.12.2761 OS Win 7 Date 2020-07-07 Download
Description Intel USB 3.0 driver ver:1.0.4.220 OS Win 7 x 64 , Win 7 Date 2020-07-07 Download
Description Intel Rapid Storage Technology driver and utility ver:11.6.0.1030 OS Win 8 x 64 , Win 8 Date 2020-07-07 Download
Description Intel Rapid Storage Technology driver and utility ver:11.2.0.1006 OS Win 7 x 64 , Win 7 , XP x 64 , XP Date 2020-07-07 Download
Description SATA Floppy Image ver:11.6.0.1030 OS Win 8 x 64 , Win 8 Date 2020-07-07 Download
Description SATA Floppy Image ver:11.2.0.1006 OS Win 7 x 64 , Win 7 , XP x 64 , XP Date 2020-07-07 Download
Description Lan driver ver:17 OS Win 7 x 64 , Win 7 , XP x 64 , XP Date 2020-07-07 Download
Description Lan driver ver:17.2 OS Win 8 x 64 , Win 8 Date 2020-07-07 Download
Description Intel Smart Connect driver ver:3.0.41.1571 OS Win 8 x 64 , Win 8 Date 2020-07-07 Download
Description Intel Smart Connect driver ver:2.0.1083.0
[Installation Guide]
OS Win 7 x 64 , Win 7 Date 2020-07-07 Download
Description Intel Rapid Start driver ver:2.1.0.1002 OS Win 8 x 64 , Win 8 Date 2020-07-07 Download
Description Intel Rapid Start driver ver:1.0.0.1021
[Installation Guide]
OS Win 7 x 64 , Win 7 Date 2020-07-07 Download
Description Intel Management Engine driver ver:8.1.2.1318 OS Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 , XP x 64 , XP Date 2020-07-07 Download
Description INF driver ver:9.3.0.1025 OS Win 8 x 64 , Win 8 Date 2020-07-07 Download
Description INF driver ver:9.3.0.1019 OS Win 7 x 64 , Win 7 , XP x 64 , XP Date 2020-07-07 Download
Description Realtek high definition audio driver ver:6772 OS Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 , XP x 64 , XP Date 2020-07-07 Download
Version Update BIOS Under / How to Update Description Date Download
Version 1.80 Update BIOS Under / How to Update BIOS Description Update Intel Microcode Date 2020-07-07 Download
Version 1.80 Update BIOS Under / How to Update DOS Description Update Intel Microcode Date 2020-07-07 Download
Version 1.80 Update BIOS Under / How to Update Windows Description Update Intel Microcode Date 2020-07-07 Download

The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.

Description Language Date Download
Description User Manual Language English Date 2020-07-07 Download
Description Jumpers and headers setting guide Language English Date 2020-07-07 Download
Description RAID Installation Guide Language English Date 2020-07-07 Download
Description Date Download
Download CPU Support List Date 2020-08-03 Download
