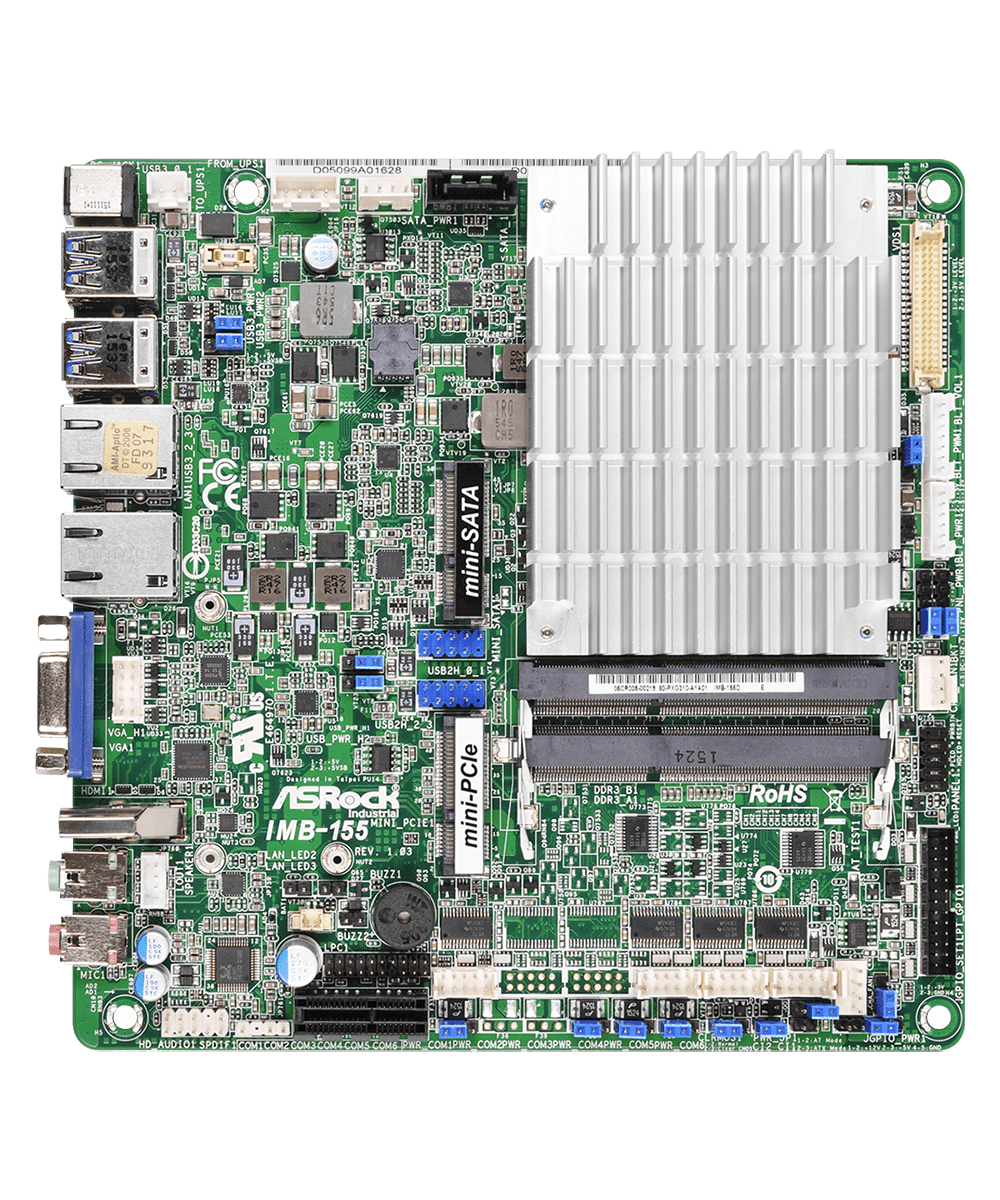

IMB-155A Mini-ITX Motherboard

Form Factor

Dimensions	Mini-ITX (6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

Processor System

CPU	Intel® Braswell SoC Processor N3710, QC, 1.60 GHz, 6 W
Chipset	SoC

Memory

Technology	Dual Channel DDR3L 1333 / 1600MHz
Capacity	8GB
Socket	2 x SO-DIMM

Graphics

Controller	Intel® Gen8 Intel Graphics DX 11*, OGL3.2
HDMI	Supports max resolution up to 1920 x 1200
VGA	Supports max resolution up to 1920 x 1200
LVDS	Supports max resolution up to 1920 x 1200@60Hz
eDP	Supports max resolution up to 4096 x 2160@60Hz
MultiDisplay	Triple Display

Expansion Slot

PCIe	1 x PCIe x1
mini-PCIe	1 x Full / Half size with PCIe x1 and USB 2.0

Ethernet

Controller/ Speed	2 x Realtek RTL8111G/RTL8111H-CG with 10/100/1000 Mbps

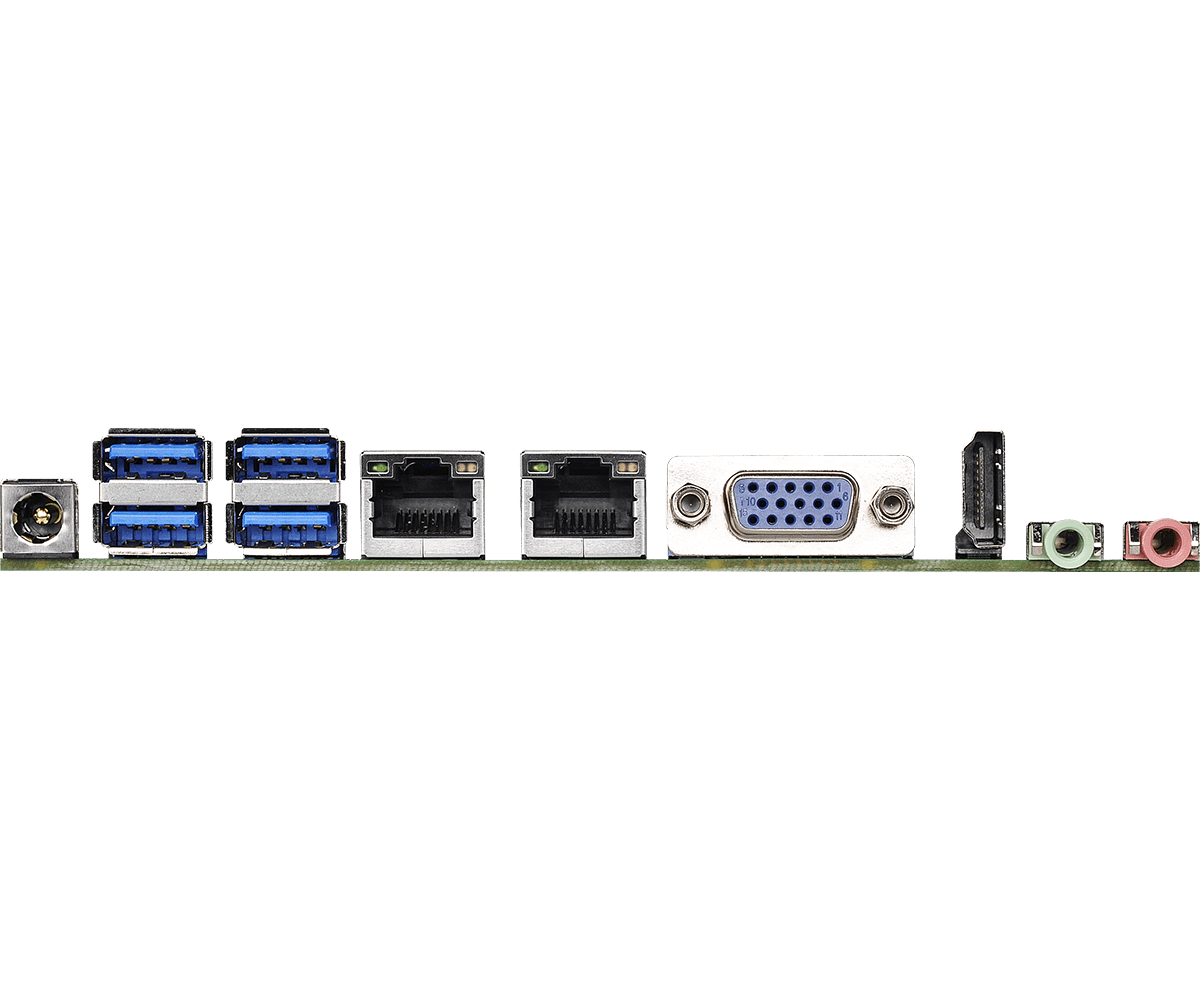

Rear I/O

HDMI	1
VGA	1
Ethernet	2
USB	4 x USB 3.0
Audio	2 (Mic-in, Line-out)
DC Jack	1

Internal Connector

USB	4 x USB 2.0
COM	4 x COM (RS-232), 2 x COM (RS-232/RS-422/485)
Parallel	1 (Co-lay with 8in / 8out DIO)
GPIO	8 x GPI, 8 x GPO (shared with LPT header)
TPM	1 x Header
LVDS	1
SATA PWR Output	1
Speaker Header	1
VGA	1

Storage

SATA	1 x SATA3 (6.0Gb/s)
mSATA	1 x Full size with SATA3

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	12V or 19~24V DC in (4-pin ATX PWR Con)
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020320000AK) 1 x I/O Shield THIN (13G020320010AK) 2 x COM Cable (14G000000310AK) 1 x SATA Data Cable (14G000107101AK) 1 x SATA Power Cable (14G000100410AK)
Bulk Package	2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020320000AK) 1 x I/O Shield THIN (13G020320010AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
