EOL

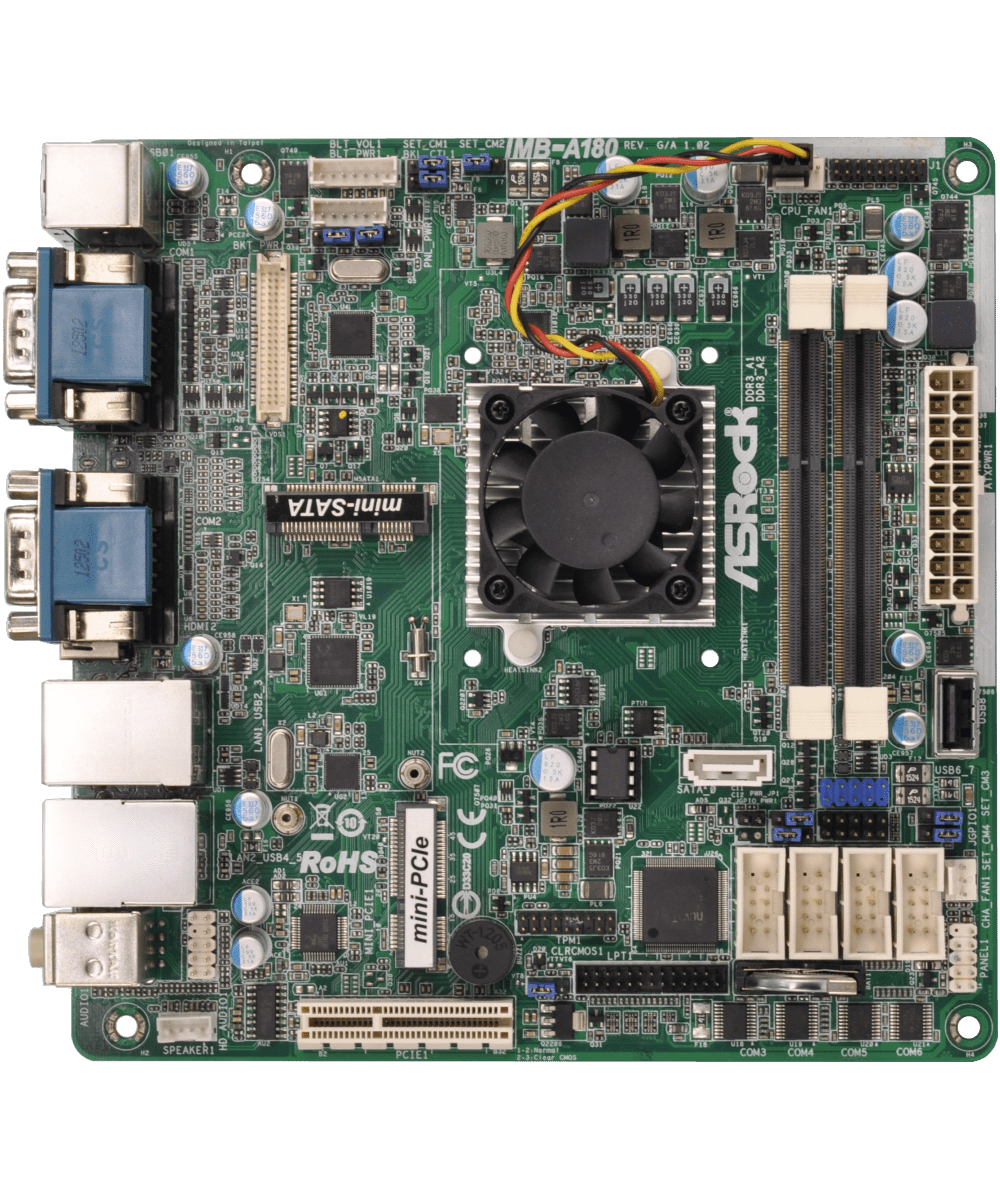

IMB-A180 Mini-ITX Motherboard
- AMD Embedded G-Series SOC processor(s)
- Supports DDR31600MHz (GX-420CA/GX-415GA), DDR3 1333MHz (GX-210HA)
- 1 x VGA, 1 x HDMI
- 24 bit dual channel LVDS
- 6 x COM ports, 6 x USB 2.0, 2 x USB 3.0
- 1 x PCIe x4, 1 x SATA 3.0, 1 x mSATA
- Dual Gbe LAN: 1 x Realtek RTL8111E, 1 x Realtek RTL8111DP to support Dash Function
- 1 x TPM header
Specification
Form Factor
| Dimensions | Mini-ITX (6.7-in x 6.7-in) |
|---|
Processor System
| CPU | AMD-- Embedded G-Series SOC processor(s) GX-420CA: 25W 4Core (2.0G Hz) GX-415GA: 15W 4Core (1.5G Hz) GX-210HA: 9W 2Core (1.0G Hz) |
|---|---|
| Chipset | SoC |
| BIOS | UEFI |
Memory
| Technology | Single Channel Up to DDR3 1600 MHz (GX-420CA / GX-415GA) Single Channel Up to DDR3 1333MHz (GX-210HA) |
|---|---|
| Capacity | 16GB |
| Socket | 2 x SO-DIMM |
Graphics
| Controller | by SoC |
|---|---|
| HDMI | 1 |
| VGA | 1 |
| LVDS | 24-bit dual channel LVDS |
| MultiDisplay | Dual display |
Expansion Slot
| PCIe | 1 (x4) Gen2 |
|---|---|
| mini-PCIe | 1 (half size) |
Ethernet
| Controller/ Speed | LAN1: 1 x Realtek RTL8111E with 10/100/1000 Mbps LAN2: 1 x Realtek RTL8111DP with 10/100/1000Mbps to support Dash Function |
|---|---|
| Connector | 2 x RJ-45 |

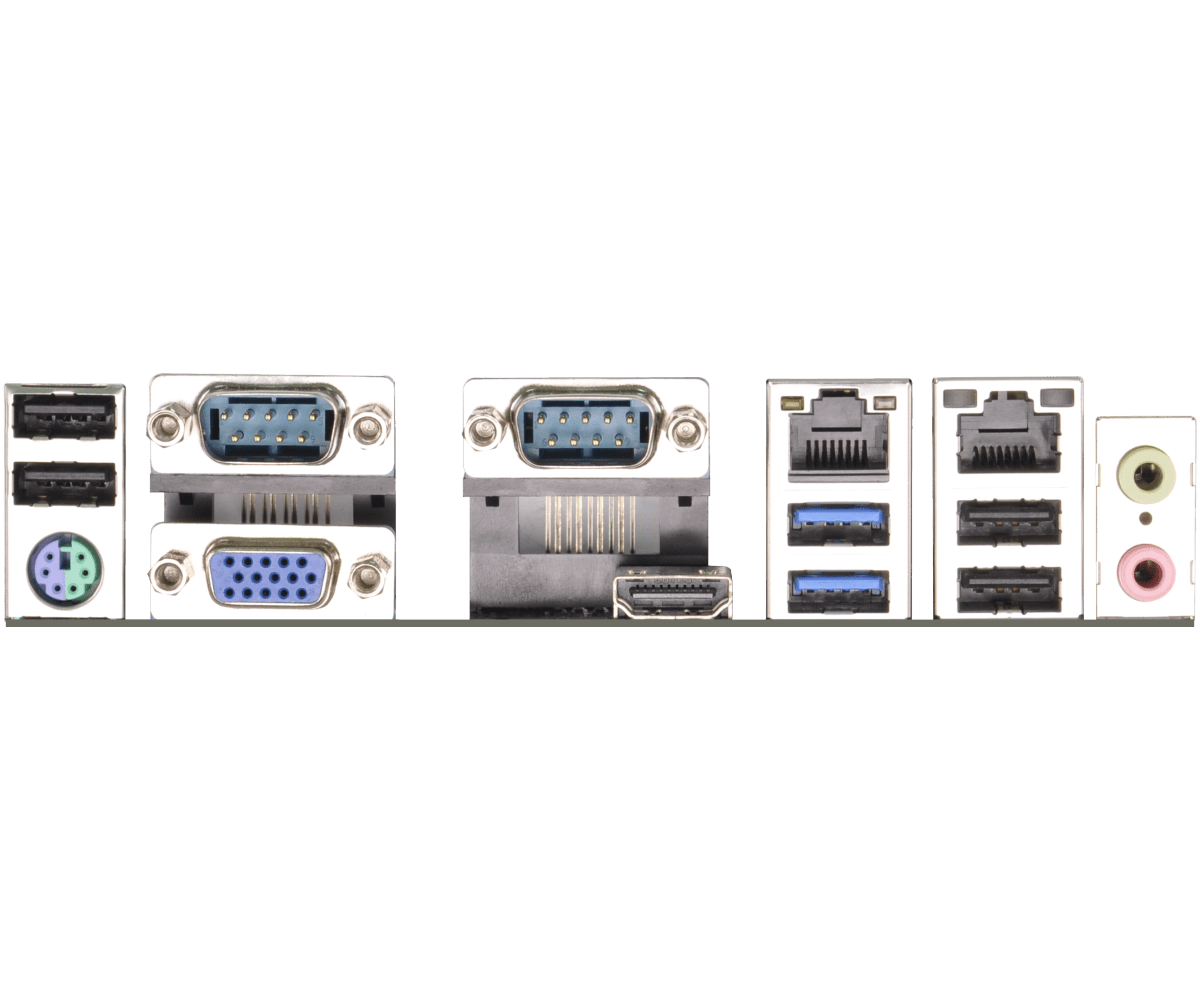

Rear I/O
| HDMI | 1 |
|---|---|
| Ethernet | 2 |
| USB | 6 (4 x USB 2.0 compliant, 2 x USB 3.0 compliant) |
| Audio | 2 (Mic-in, Line-out) |
| COM | 2 x COM (RS-232/422/485) |
| VGA | 1 |
| PS2 | 1 (Combo) |
Internal Connector
| USB | 2 x USB2.0 port (by Header), 1 x USB Type A Con |
|---|---|
| COM | 4 x COM (RS-232) and 4x (1 x3) Header to offer PWR select for 2 rear and 2 internal |
| GPIO | 4 x GPI, 4 x GPO |
| LVDS | YES (option) |
| SATA PWR Output | 1 |
| Speaker Header | 1 |
Storage
| SATA | 1 x SATA3 (6.0Gb/S) |
|---|---|
| mSATA | 1 x m-SATA |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | 20-pin ATX PWR con |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | 0ºC ~ 60ºC |
|---|---|
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Support
OS:
| Description | OS | Date | Download | ||||
|---|---|---|---|---|---|---|---|
| Description | ASRock Extreme Tuning utility ver:0.1.434 | OS | Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 , XP x 64 , XP | Date | 2020-06-29 | Download | |
| Description | VGA driver ver:9.00.300.2 | OS | XP | Date | 2020-06-29 | Download | |
| Description | Realtek Lan driver ver:1.12.0030 | OS | Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 , XP x 64 , XP | Date | 2020-06-29 | Download | |
| Description | Realtek Teaming driver ver:2.0.2.3 | OS | Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 , XP x 64 , XP | Date | 2020-06-29 | Download | |
| Description | Realtek high definition audio driver ver:6699 | OS | Win 8 x 64 , Win 8 | Date | 2020-06-29 | Download | |
| Description | Realtek high definition audio driver ver:6559 | OS | Win 7 x 64 , Win 7 , XP x 64 , XP | Date | 2020-06-29 | Download | |
| Description | AMD all in 1 driver ver:13.10 | OS | Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 | Date | 2020-06-29 | Download |
| Version | Update BIOS Under / How to Update | Description | Date | Download | |||||
|---|---|---|---|---|---|---|---|---|---|
| Version | 1.20 | Update BIOS Under / How to Update | BIOS | Description | Update USB ASL code. | Date | 2017-07-31 | Download | |
| Version | 1.20 | Update BIOS Under / How to Update | DOS | Description | Update USB ASL code. | Date | 2017-07-31 | Download | |
| Version | 1.20 | Update BIOS Under / How to Update | Windows | Description | Update USB ASL code. | Date | 2017-07-31 | Download | |
| Version | 1.10 | Update BIOS Under / How to Update | BIOS | Description | 1. Set "Console Redirection" default to [Disabled] 2. Add ASF table for DASH function. 3. Support Console Redirection function for DASH. 4. Enhance DRAM compatibility. |
Date | 2017-03-15 | Download | |
| Version | 1.10 | Update BIOS Under / How to Update | DOS | Description | 1. Set "Console Redirection" default to [Disabled] 2. Add ASF table for DASH function. 3. Support Console Redirection function for DASH. 4. Enhance DRAM compatibility. |
Date | 2017-03-15 | Download | |
| Version | 1.10 | Update BIOS Under / How to Update | Windows | Description | 1. Set "Console Redirection" default to [Disabled] 2. Add ASF table for DASH function. 3. Support Console Redirection function for DASH. 4. Enhance DRAM compatibility. |
Date | 2017-03-15 | Download | |
| Version | 1.00 | Update BIOS Under / How to Update | BIOS | Description | First released. | Date | 2013-10-16 | Download | |
| Version | 1.00 | Update BIOS Under / How to Update | DOS | Description | First released. | Date | 2013-10-16 | Download | |
| Version | 1.00 | Update BIOS Under / How to Update | Windows | Description | First released. | Date | 2013-10-16 | Download |
The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.
| Description | Language | Date | Download | ||||
|---|---|---|---|---|---|---|---|
| Description | Jumpers and headers setting guide | Language | English | Date | 2020-06-29 | Download | |
| Description | User Manual | Language | English | Date | 2020-06-29 | Download |
