EOL

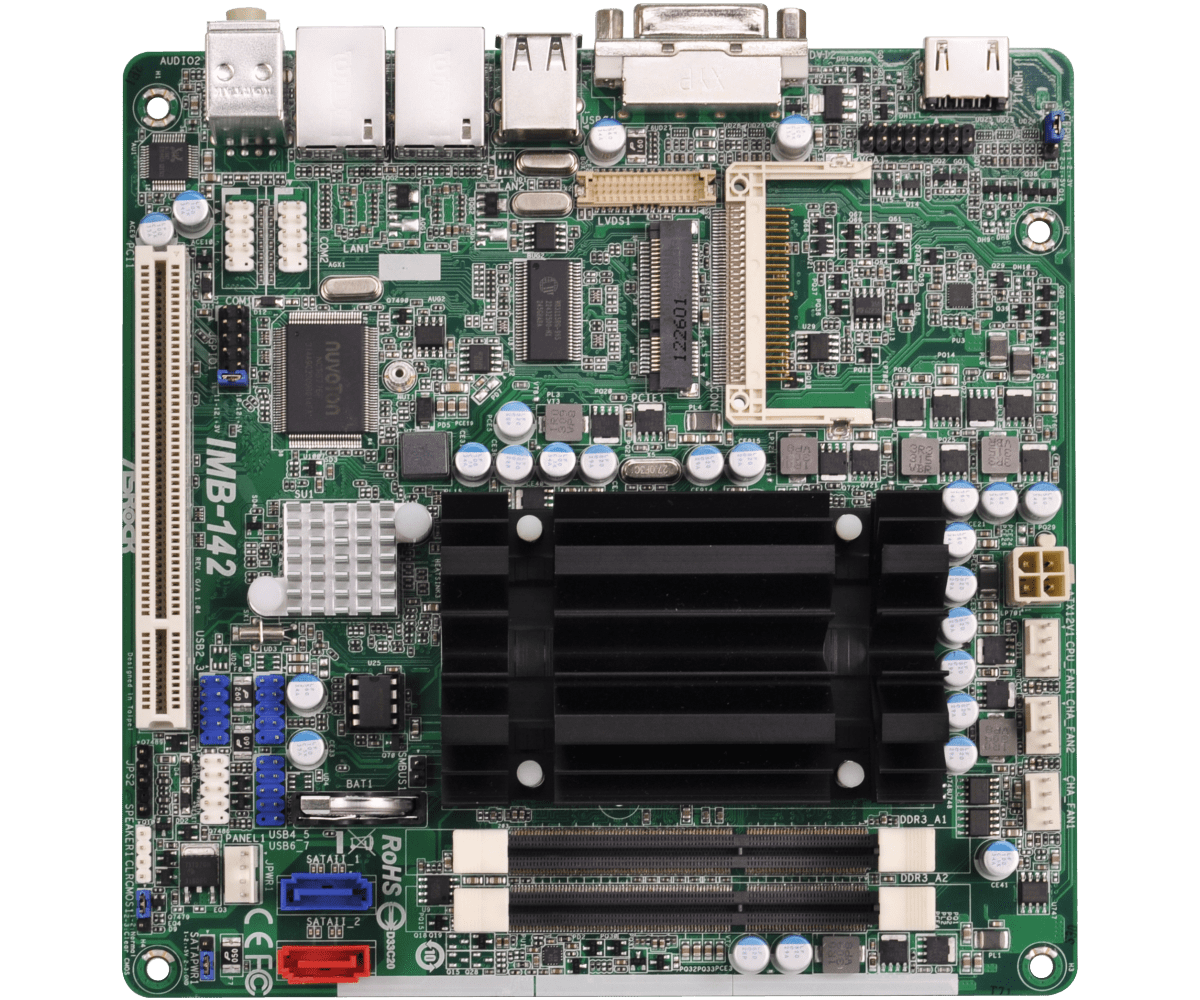

IMB-142 Series Mini-ITX Motherboard
- Intel® Dual-Core Atom™ CedarViewProcessor D2550/N2600/N2800
- Intel® NM10 Express Chipset
- Integrated Intel® PowerVR SGX545, DirectX 9.0, Pixel Shader 3.0
- Supports DDR3 1066MHz, 2 x SO-DIMM, up to 4GB system memory
- 2 x COM (RS-232)
- 1 x HDMI, 1 x DVI-D, 1 x Single Channel 18-bit LVDS
- 8 x USB 2.0, 2 x SATA2
- 1 x PCI, 1 x mini-PCIe
- Gigabit LAN : 2 x Intel® WG82574L
Specification
Processor System
| CPU | Intel® Dual-Core Atom™ CedarView Processor D2550 / N2600 / N2800 Supports Hyper-Threading Technology |
|---|---|
| Chipset | NM10 |
| BIOS | UEFI |
Form Factor
| Dimensions | Mini-ITX (6.7-in x 6.7-in) |
|---|
Memory
| Technology | Single Channel DDR3 800 / 1066 MHz SDRAM |
|---|---|
| Socket | D2550 / N2800: 2 x SO-DIMM N2600: 1 x SO-DIMM |
| Capacity | D2550 / N2800: 4GB N2600: 2GB |
Graphics
| Controller | Intel® PowerVR SGX545, Support DirectX9 compliant Pixel Shader v3.0 and OGL 3.0 |
|---|---|
| VGA | By Header, Supports max. resolution 1920x1200 |
| LVDS | Single Channel 18-bit, max resolution up to 1440x900 |
| HDMI | Supports HDMI, max resolution up to 1920x1200 |
| MultiDisplay | Yes |
| DVI | Supports max resolution up to 1920x1200 |
Expansion Slot
| PCI | 1 |
|---|---|
| mini-PCIe | 1 (Full Size) |
Ethernet
| Controller/ Speed | 2 x Intel® WG82574L with 10/100/1000 Mbps |
|---|---|
| Connector | 1 x RJ - 45 |

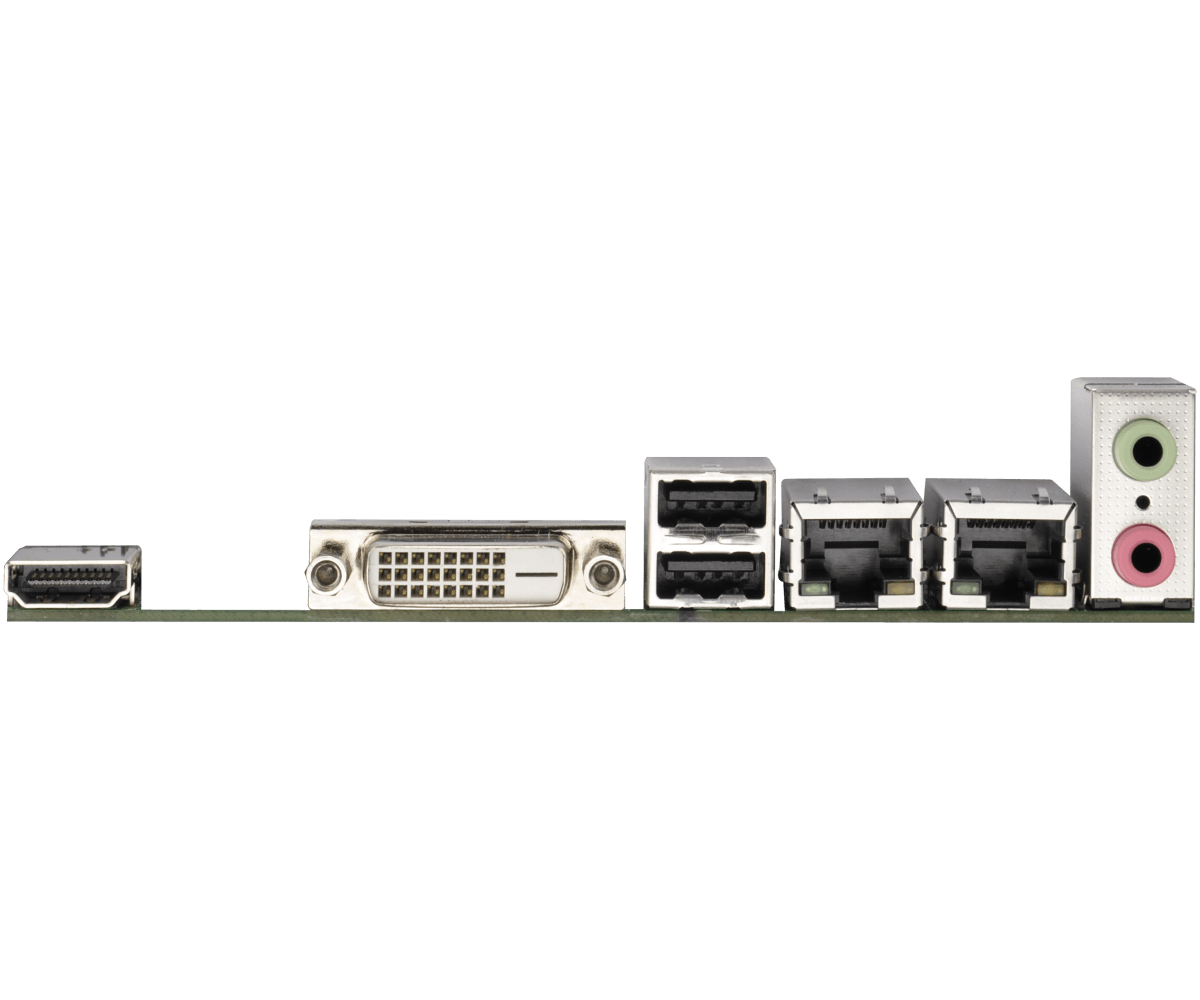

Rear I/O
| HDMI | 1 |
|---|---|
| Ethernet | 2 |
| USB | 2 x USB 2.0 |
| Audio | 2 (Mic-in, Line-out) |
| DVI | 1 (DVI-D) |
Internal Connector
| USB | 6 x USB 2.0 |
|---|---|
| LVDS | 1 |
| COM | 3 x COM(RS-232) |
| GPIO | 4 x GPI + 4 x GPO |
| SATA PWR Output | 1 |
Storage
| SATA | 2 x SATA2 (3.0Gb/s) |
|---|
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | 12V DC-In (4-pin ATX PWR Con) |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | 0ºC ~ 60ºC |
|---|---|
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Others
| Packing List | 1 x Jumper setting guide 1 x Driver DVD 1 x IO shield 2 x COM cable 2 x SATA cable 1 x SATA power cable 1 x VGA cable 2 x Screw for mini card |
|---|
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
