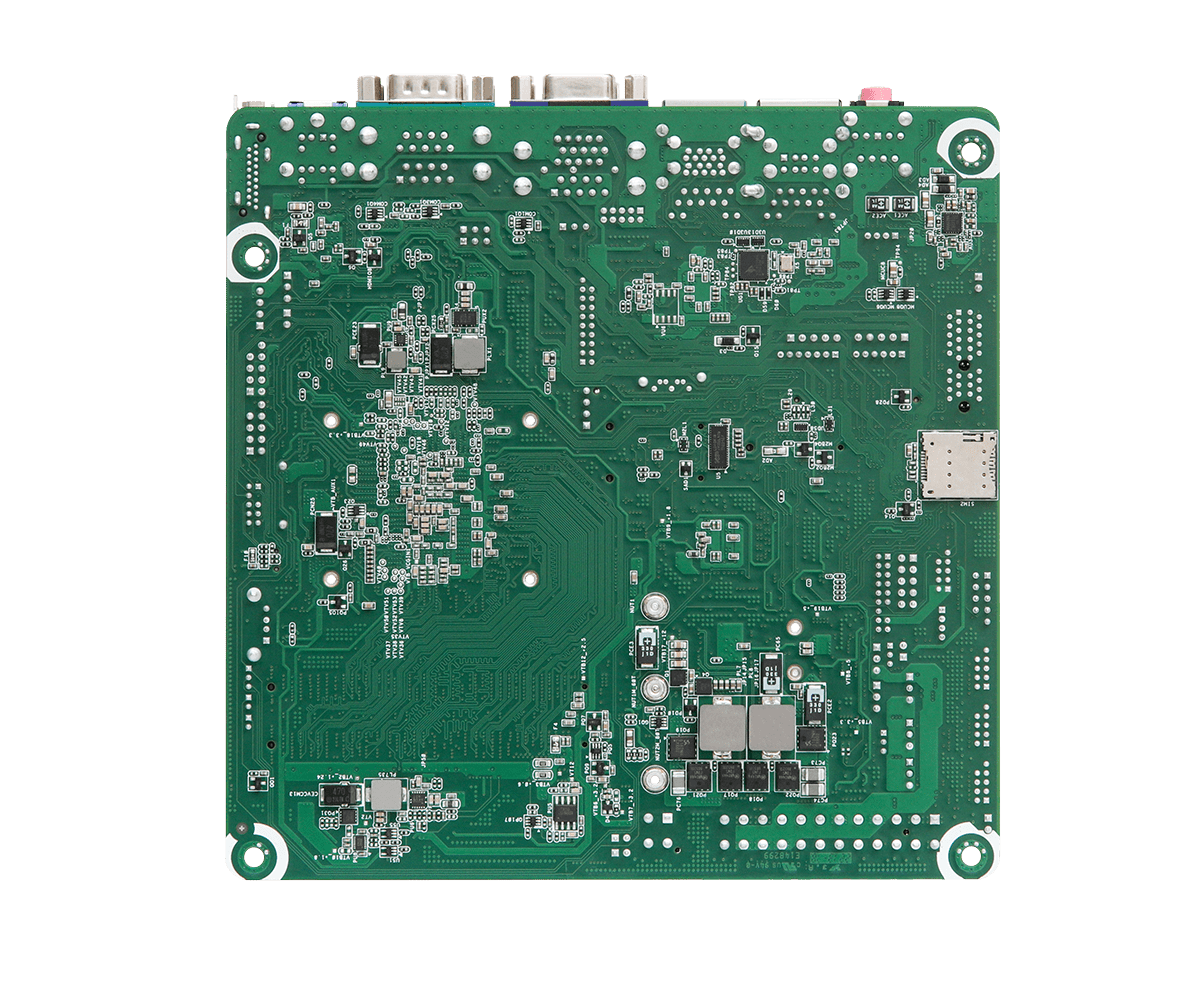

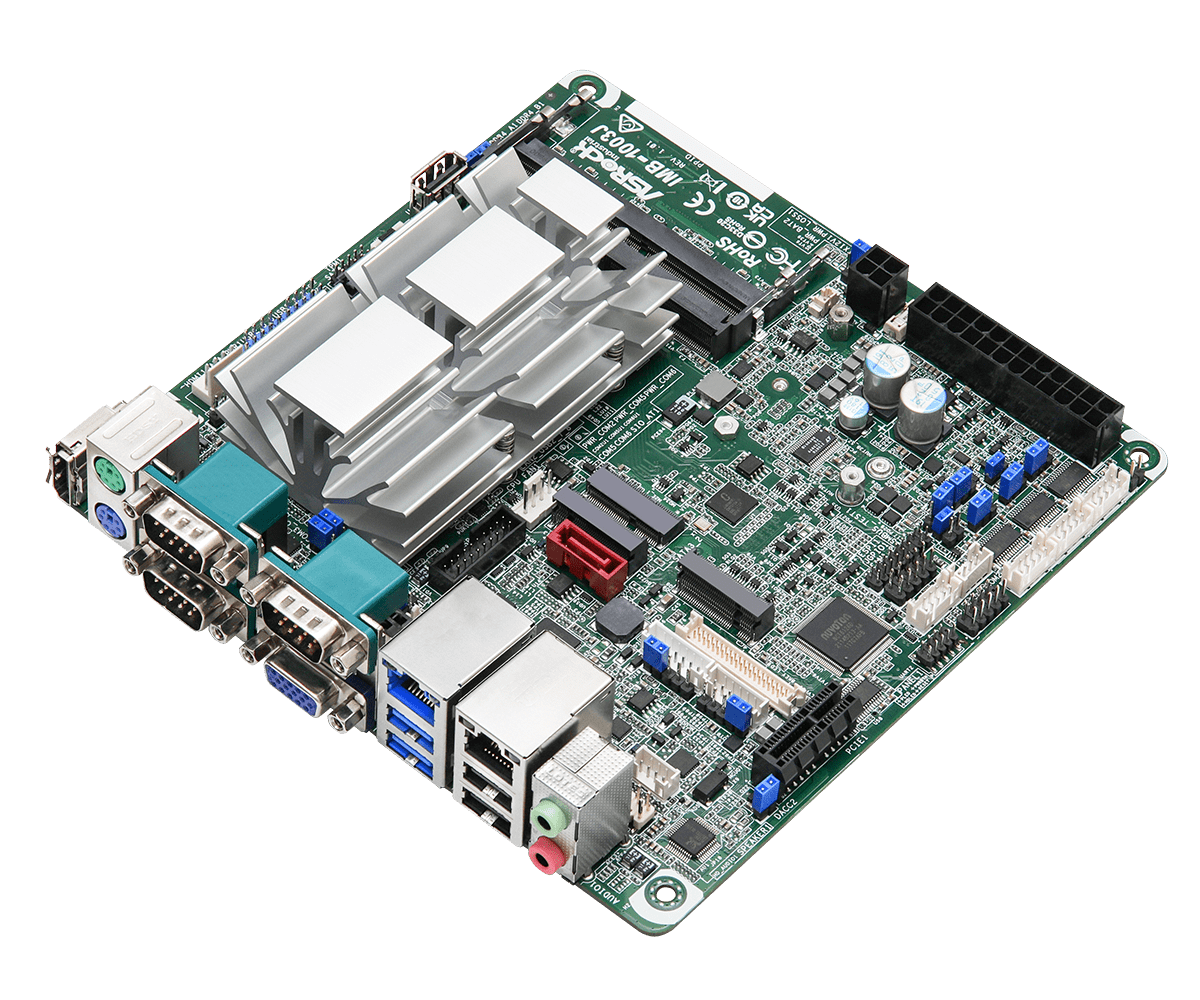

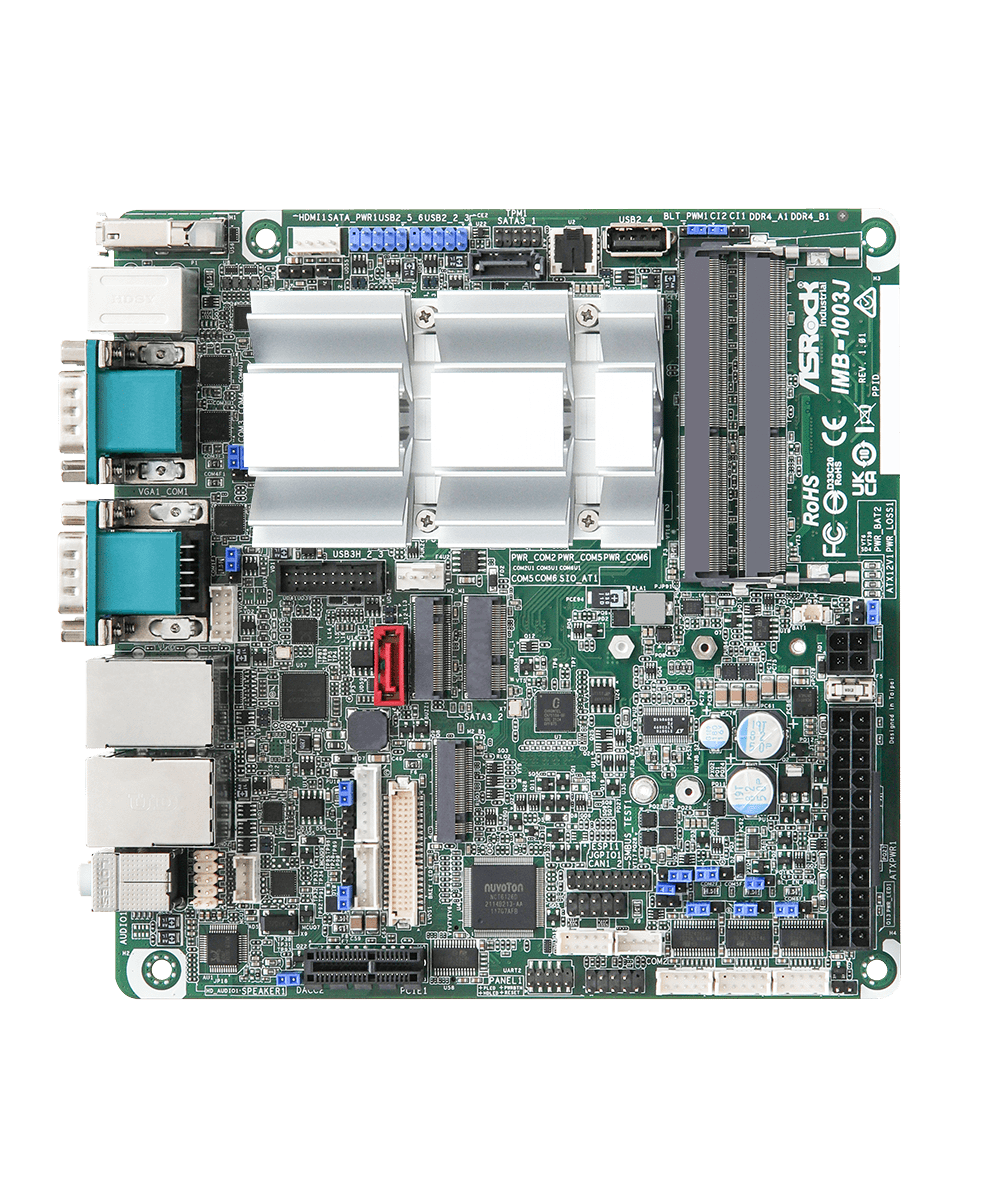

IMB-1003J Mini-ITX Motherboard

  • Intel® Elkhart Lake SoC Processors
  • 2 x 260-pin SO-DIMM DDR4 3200 MHz, up to 32GB
  • 1 x PCIE x1 Gen3, 4 x USB 3.2 Gen1, 7 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B, 6 x COM, 2 x SATA3
  • 1 x Realtek 2.5 Gigabit LAN, 1 x Realtek 1 Gigabit LAN
  • Support Triple display, 1 x LVDS or eDP, 1 x HDMI 2.0b, 1 x VGA
  • TPM Header
  • ATX-PWR (24+4-pin) and 12~28V DC-In co-design
Datasheet
Specification

Form Factor

Dimensions Mini-ITX (6.7-in x 6.7-in x 1.5-in, 17.0 cm x 17.0 cm x 4.1 cm)

Processor System

CPU Intel® Elkhart Lake SoC Processors
J6412, QC, Max Speed Up to 2.6GHz, 10W
Chipset SoC
BIOS AMI SPI 256 Mbit

Memory

Technology Dual Channel DDR4 3200 MHz
Capacity 32GB (16 GB per DIMM)
Socket 2 x 260-pin SO-DIMM

Graphics

Controller Intel® Gen 11 Graphics
HDMI HDMI 2.0b
Max resolution up to 4096 x 2160@60Hz
VGA Max resolution up to 1920 x 1200@60Hz
LVDS Dual channel 24 bit up to 1920 x 1080@60Hz
(Connector shared with eDP)
eDP Max resolution up to 1920 x 1080@60Hz
(Connector shared with LVDS)
MultiDisplay Triple display

Expansion Slot

PCIe 1 x PCIe x1 (Gen3)
M.2 1 x M.2 (Key E, 2230) with PCIe x1 ,USB 2.0
1 x M.2 (Key B, 3042/3052) with PCIe x1, USB 3.2, USB2.0 and SIM for 4G/5G
SIM Socket 1x SIM socket connected to M.2 key B

Audio

Interface Realtek ALC897 HD , High Definition Audio. Mic-In / Line-Out

Ethernet

Controller/ Speed LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps
LAN2: Realtek RTL8111H with 10/100/1000 Mbps
Connector 2 x RJ-45

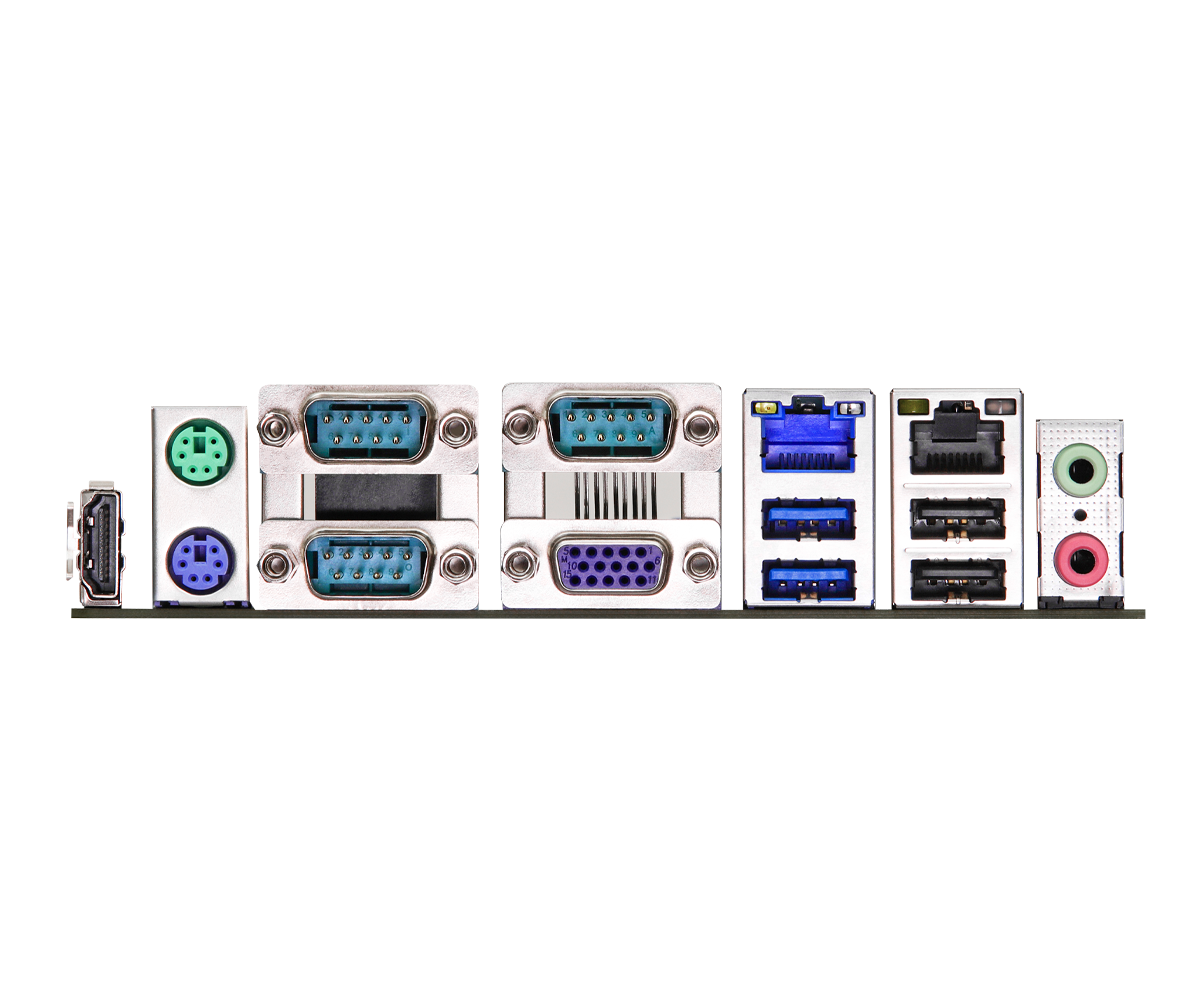

Rear I/O

HDMI 1 x HDMI2.0b
VGA 1
Ethernet 1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN
USB 2 x USB 3.2 (Gen1), 2 x USB 2.0
Audio 2 (Mic-In, Line-Out)
COM COM1, COM3, COM4 (RS-232/422/485)
PS2 1 x PS/2 combo

Internal Connector

USB 2 x USB 3.2 Gen1 (1 x USB 3.2 header )
5 x USB 2.0 (2 x 2.54 pitch header, 1 x USB 2.0 Type-A vertical con)
COM COM2, COM5, COM6 (RS-232)
GPIO 4 x GPI, 4 x GPO (support Time-Aware GPIO)
TPM TPM Header
LVDS 1 (Connector with LVDS/eDP signal, switch by BIOS)
SATA PWR Output 1
Speaker Header 1
CAN Bus 2 x CAN Bus (1 x 2.00 pitch header)

Storage

M.2 1 x M.2 (Key M, 2242/2260/2280) with SATA3 and PCIe x1 for SSD
SATA 2 x SATA3 (6Gb/s), SATA3_2 shared with M.2 Key M

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR ATX PWR (24+4-pin) and 12V~28V DC-In co-design
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

Support

OS:

Description OS Date Download
Description Intel Serial IO driver ver:5.123.1.1023 OS Win 10 x 64 Date 2022-06-06 Download
Description Realtek Lan driver ver:10047_02232021 OS Win 10 x 64 Date 2022-08-03 Download
Description VGA Driver ver:27.20.100.9079.2 OS Win 10 x 64 Date 2022-08-03 Download
Description Intel Management Engine driver ver:15.40.16.2485_CONS_SW_DCH OS Win 10 x 64 Date 2022-08-03 Download
Description Intel PSE Driver ver:5.4.1.4510 OS Win 10 x 64 Date 2022-08-03 Download
Description Intel HID Event Filter ver:2.2.1.386 OS Win 10 x 64 Date 2022-08-03 Download
Description INF driver ver:10.1.18634.8254_Public OS Win 10 x 64 Date 2022-08-03 Download
Description Realtek high definition audio driver ver:9239_FF00 OS Win 10 x 64 Date 2022-08-03 Download
Description Realtek Teaming driver ver:2.0.4.0 OS Win 10 x 64 Date 2022-08-03 Download
Version Update BIOS Under / How to Update Description Date Download
Version 1.20 Update BIOS Under / How to Update BIOS Description Enhance system compatibility Date 2022-07-15 Download
Version 1.20 Update BIOS Under / How to Update DOS Description Enhance system compatibility Date 2022-07-15 Download
Version 1.20 Update BIOS Under / How to Update Windows Description Enhance system compatibility Date 2022-07-15 Download
Version 1.00 Update BIOS Under / How to Update BIOS Description First release Date 2022-06-30 Download
Version 1.00 Update BIOS Under / How to Update DOS Description First release Date 2022-06-30 Download
Version 1.00 Update BIOS Under / How to Update Windows Description First release Date 2022-06-30 Download

The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.

Description Language Date Download
Description User Manual Language English Date 2022-06-24 Download
Description Jumpers and Headers Setting Guide Language English Date 2022-06-23 Download
