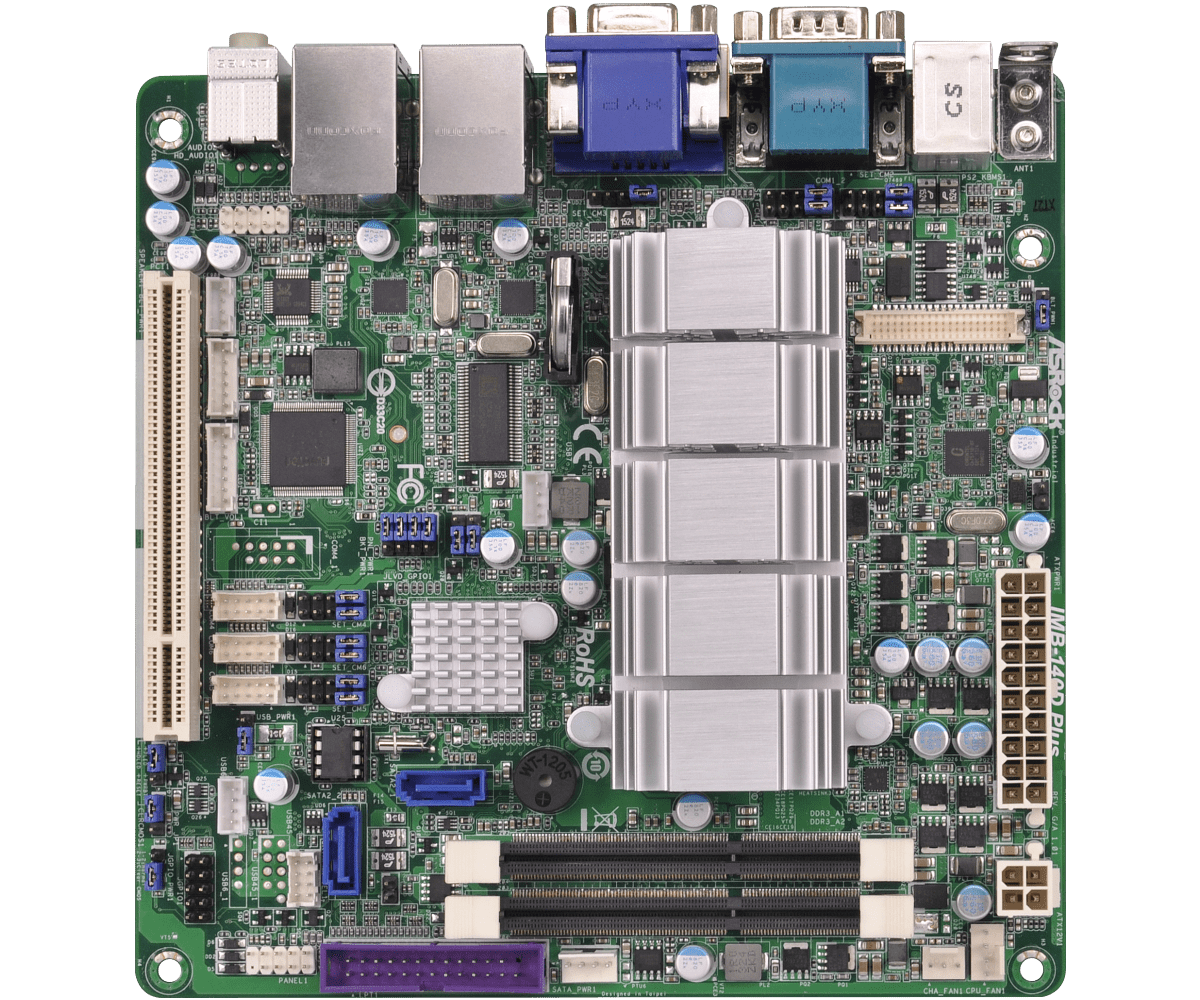

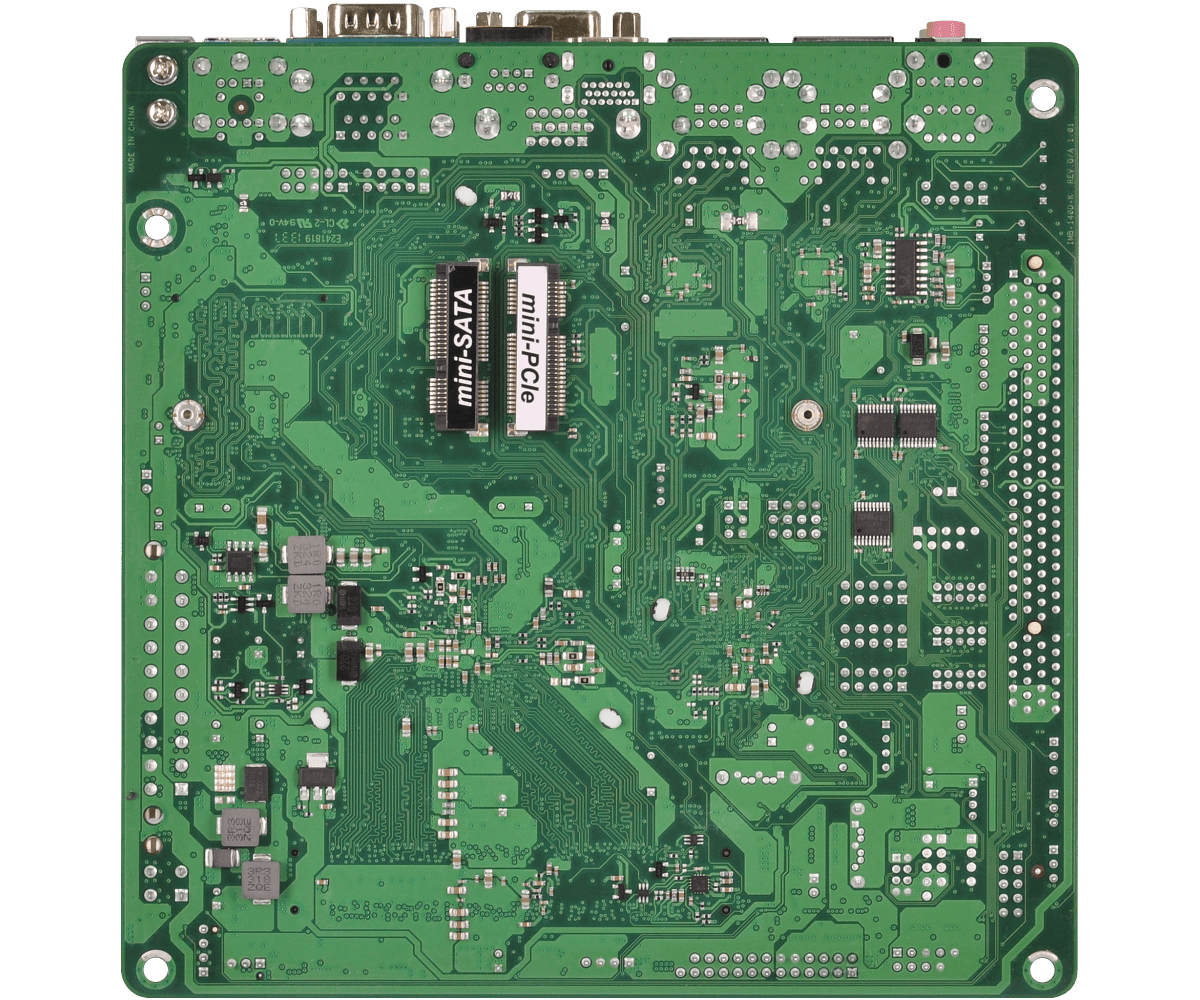

IMB-140D Plus Mini-ITX Motherboard

  • Intel® Dual-Core Atom™ CedarViewProcessor D2550/N2600/N2800
  • Intel® NM10 Express Chipset
  • Integrated Intel® PowerVR SGX545, DirectX 9.0, Pixel Shader 3.0
  • Supports DDR3 1066MHz, 2 x SO-DIMM, up to 4GB system memory
  • 1 x COM (RS-232/422/485), 4 x COM (RS-232)
  • 1 x D-Sub, 1 x HDMI, 1 x Dual Channel 24-bit LVDS
  • 7 x USB 2.0, 2 x SATA2
  • 1 x PCI, 1 x mini-PCIe
  • Gigabit LAN : 2 x Realtek RTL8111E-VL
Datasheet
Specification

Form Factor

Dimensions Mini-ITX (6.7-in x 6.7-in)

Processor System

CPU Intel® Dual-Core Atom™ CedarView Processor D2550 / N2600 / N2800
Supports Hyper-Threading Technology
Chipset NM10
BIOS UEFI

Memory

Technology Single Channel DDR3 800 / 1066 MHz SDRAM
Socket D2550 / N2800: 2 x SO-DIMM
N2600: 1 x SO-DIMM
Capacity D2550 / N2800: 4GB
N2600: 2GB

Graphics

Controller Intel® PowerVR SGX545, Support DirectX9 compliant Pixel Shader v3.0 and OGL 3.0
VGA Supports max resolution up to 1920x1200
LVDS Dual Channel 24-bit, max resolution up to 1920x1200
HDMI Supports HDMI, max resolution up to 1920x1200
MultiDisplay Yes

Expansion Slot

PCI 1
mini-PCIe 1 (Full Size)

Ethernet

Controller/ Speed 2 x Realtek RTL8111E-VL with 10/100/1000 Mbps
Connector 1 x RJ - 45

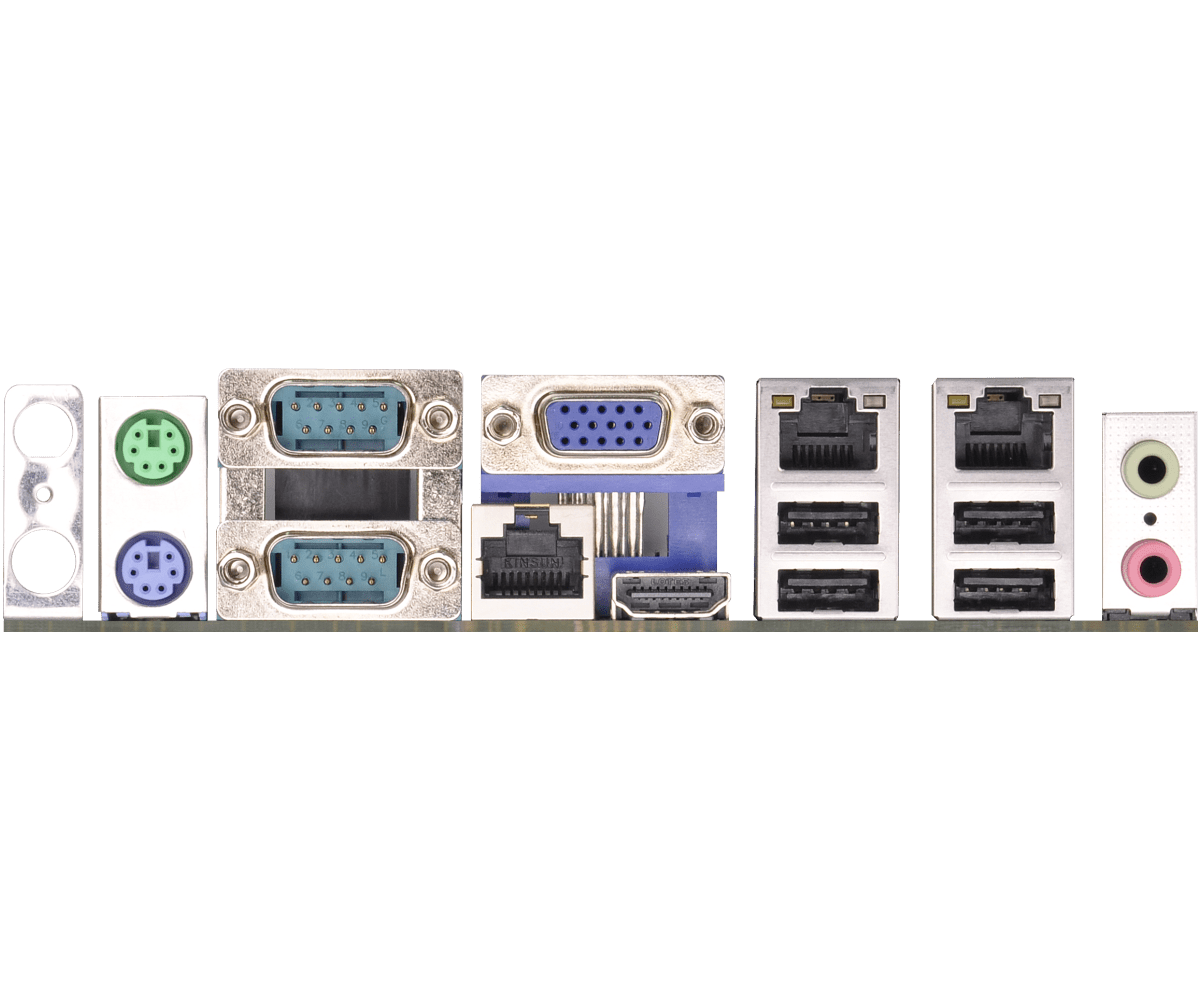

Rear I/O

VGA 1
HDMI 1
Ethernet 2
USB 4 x USB 2.0
Audio 2 (Mic-in, Line-out)
COM 1 x COM(RS-232/422/485) + 1 x COM(RS232)
PS2 2 (1 x keyboard, 1 x mouse)

Internal Connector

USB 3 x USB 2.0
LVDS 1
COM 3 x COM(RS-232)
Parallel 1
GPIO 4 x GPI + 4 x GPO
SATA PWR Output 1
Speaker Header 1

Storage

SATA 2 x SATA2 (3.0Gb/s)

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 12V DC-In (4-pin ATX PWR Con)
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

Others

Packing List 1 x Jumper setting guide
1 x Driver DVD
1 x IO shield
3 x COM cable
2 x SATA cable
1 x SATA power cable
1 x DC-IN power cable
2 x Screw for mini card

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

Support

OS:

Description OS Date Download
Description ASRock 3TB+ Unlocker utility ver:1.1.1 OS Win 7 Date 2020-07-03 Download
Description VGA driver ver:1.15 OS XP Date 2020-07-03 Download
Description VGA driver ver:8.0.0.6.1082 OS Win 7 Date 2020-07-03 Download
Description Intel Rapid Storage Technology driver and utility ver:10.1.0.1008_ad OS Win 7 Date 2020-07-03 Download
Description SATA Driver (For systems to get the drivers from USB stick during Windows installation) OS XP Date 2020-07-03 Download
Description Marvell SATA3 driver ver:1.2.0.1020 OS Win 7 Date 2020-07-03 Download
Description Marvell SATA3 Floppy Image ver:1.2.0.1014 OS Win 7 Date 2020-07-03 Download
Description Realtek Lan driver ver:5782 OS XP Date 2020-07-03 Download
Description Realtek Lan driver ver:7049 OS Win 7 Date 2020-07-03 Download
Description Realtek Teaming driver ver:2.0.2.0 OS Win 7 Date 2020-07-03 Download
Description INF driver ver:9.2.2.1034 OS Win 7 , XP Date 2020-07-03 Download
Description Realtek audio driver ver:6554 OS Win 7 , XP Date 2020-07-03 Download
Version Update BIOS Under / How to Update Description Date Download
Version 1.30 Update BIOS Under / How to Update BIOS Description 1. Change "Hard Disk S.M.A.R.T" default setting.
2. Skip halt-on message after clearing CMOS.
3. UUID based on MAC address.
Date 2020-07-03 Download
Version 1.30 Update BIOS Under / How to Update DOS Description 1. Change "Hard Disk S.M.A.R.T" default setting.
2. Skip halt-on message after clearing CMOS.
3. UUID based on MAC address.
Date 2020-07-03 Download
Version 1.30 Update BIOS Under / How to Update Windows Description 1. Change "Hard Disk S.M.A.R.T" default setting.
2. Skip halt-on message after clearing CMOS.
3. UUID based on MAC address.
Date 2020-07-03 Download
Version 1.10 Update BIOS Under / How to Update BIOS Description First released. Date 2020-07-03 Download
Version 1.10 Update BIOS Under / How to Update DOS Description First released. Date 2020-07-03 Download
Version 1.10 Update BIOS Under / How to Update Windows Description First released. Date 2020-07-03 Download

The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.

Description Language Date Download
Description User Manual Language English Date 2020-07-03 Download
Description Jumpers and headers setting guide Language English Date 2020-07-03 Download
