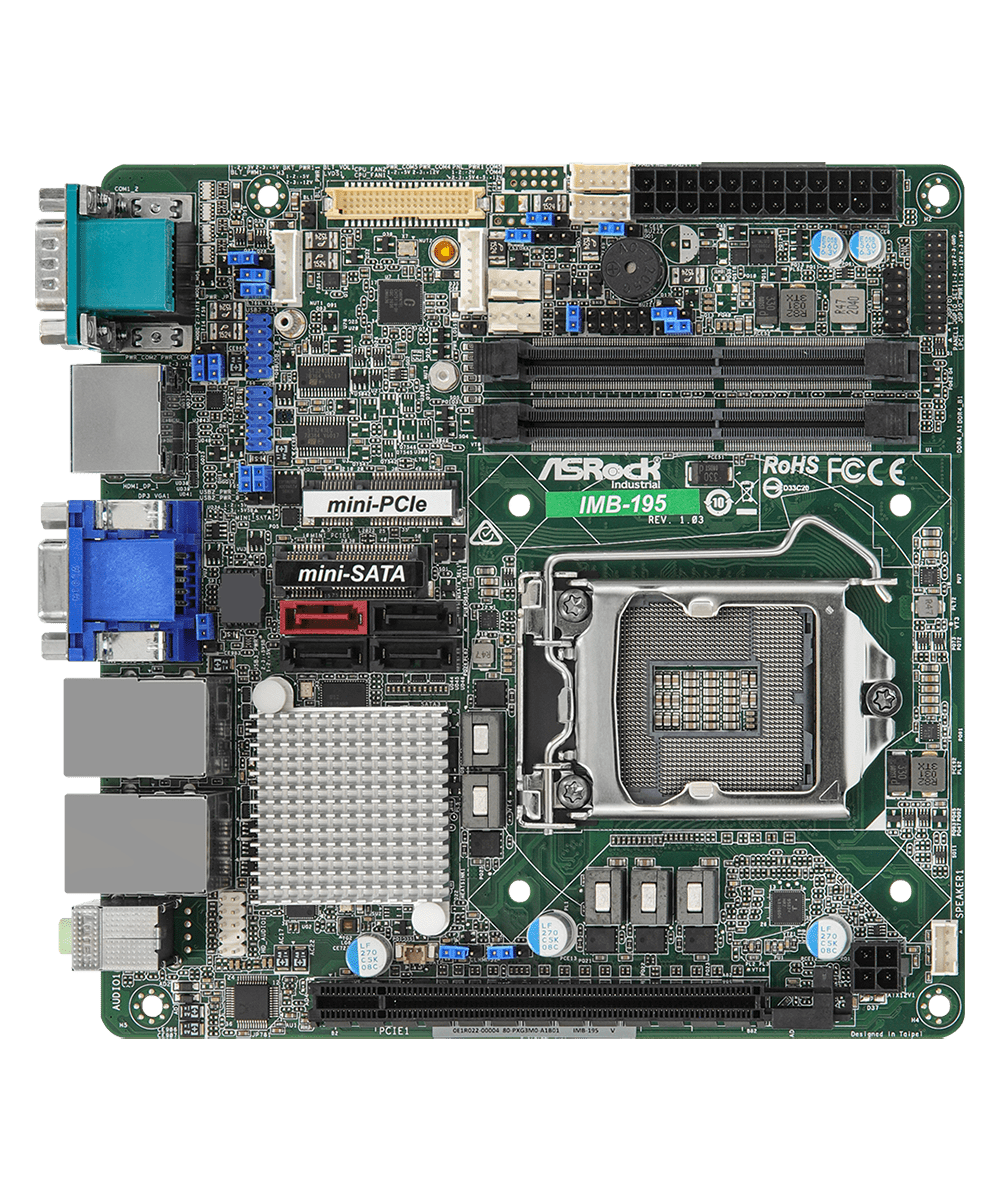

IMB-195 Mini-ITX Motherboard

  • Intel® 7th / 6th Gen (Kabylake-S / Skylake-S) Core™ Processors with H110 chipset
  • 2 x 260-pin SO-DIMM up to 32GB DDR4 2133 MHz (16GB per DIMM)
  • 1 x PCIe x 16 (Gen2), 4 x USB 3.1 Gen1, 4 x USB 2.0, 1 x mini-PCIe, 1 x mSATA, 4 x COM, 4 x SATA3
  • 2 x Intel Gigabit LAN
  • Supports dual display, 1 x HDMI 1.4b, 1 x DP 1.2a, 1 x VGA, 1 x LVDS
  • TPM Header
  • ATX PWR
Datasheet
Specification

Form Factor

Dimensions Mini-ITX (6.7-in x 6.7-in)

Processor System

CPU Intel® 7th / 6th Gen (Kabylake-S / Skylake-S) Core™ Processors
Chipset Intel® H110
Socket LGA1151
BIOS AMI SPI 128 Mbit

Memory

Technology Dual Channel DDR4 2133 MHz
Capacity 32 GB (16 GB per DIMM)
Socket 2 x 260-pin SO-DIMM

Graphics

Controller Intel® Gen9 Graphics DX 11 / 12
HDMI HDMI 1.4b
Max resolution up to 4096 x 2160@24Hz
DisplayPort DisplayPort 1.2, DP++
Max resolution up to 4096 x 2304@60Hz
VGA Max resolution up to 1920 x 1200@60Hz
LVDS Dual channel 24 bit up to 1920 x 1200@60Hz
MultiDisplay Dual Display

Expansion Slot

PCIe 1 x PCIe x16 (Gen2)
mini-PCIe 1 x Full / Half size with PCIe x1 and USB 2.0

Audio

Interface Realtek ALC887, High Definition Audio. Line-out,Mic-in

Ethernet

Controller/ Speed LAN1: Intel® I210 with 10/100/1000 Mbps
LAN2: Intel® I219V with 10/100/1000Mbps
Connector 2 x RJ-45

Rear I/O

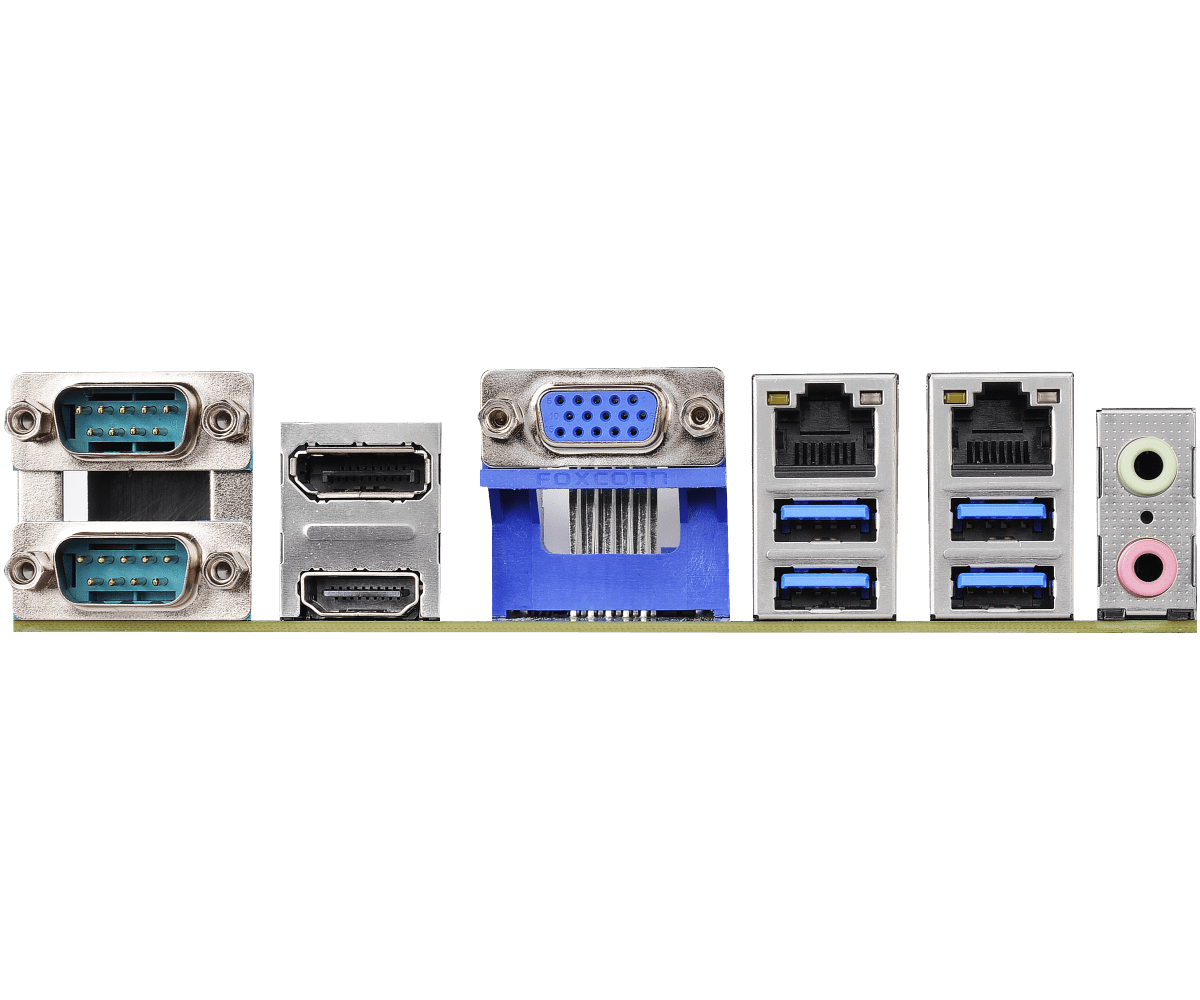

HDMI 1 x HDMI 1.4b
DisplayPort 1 x DP 1.2
VGA 1
Ethernet 2 x 1 Gigabit LAN
USB 4 x USB 3.0
Audio 2 (Mic-in, Line-out)
COM COM1 (RS-232/422/485), COM2 (RS-232)

Internal Connector

USB 4 x USB 2.0 (2 x 2.54 pitch header)
COM COM3,4 (RS-232)
GPIO 4 x GPI, 4 x GPO
TPM TPM Header
LVDS 1
Speaker Header 1

Storage

mSATA 1 x Full size with shared SATA3 and USB 2.0
SATA 4 x SATA3 (6Gb/s), SATA3_1 is shared with mSATA

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR ATX PWR (24+4-pin)
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

Support

OS:

Description OS Date Download
Description ASRock 3TB+ Unlocker utility ver:1.1.1 OS Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-08 Download
Description VGA driver ver:21.20.16.4541 OS Win 7 Date 2020-05-08 Download
Description COM Port driver ver:1.0.2011.1109 OS Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-08 Download
Description Intel Rapid Storage Technology driver and utility ver:14.6.0.1029 OS Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-08 Download
Description VGA driver ver:21.20.16.4542 OS Win 10 x 64 , Win 8.1 x 64 , Win 8 x 64 , Win 7 x 64 Date 2020-05-08 Download
Description Intel Lan driver ver:20.2 OS Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-08 Download
Description Intel USB 3.0 driver ver:4.0.2.42 OS Win 7 x 64 , Win 7 Date 2020-05-08 Download
Description SATA Floppy Image ver:14.6.0.1029 OS Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-08 Download
Description Intel Management Engine driver ver:11.7.0.1045 OS Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-08 Download
Description Realtek high definition audio driver ver:7779 OS Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-08 Download
Description Intel USB 3.0 Adaptation driver ver:1.0.1.45 OS Win 8.1 x 64 Date 2020-05-08 Download
Description INF driver ver:10.1.1.14 OS Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-08 Download
Version Update BIOS Under / How to Update Description Date Download
Version 1.90 Update BIOS Under / How to Update BIOS Description 1.Update Intel Microcode.
2.Improve system compatibility.
3.Enhance HDD compatibility.
Date 2020-05-06 Download
Version 1.90 Update BIOS Under / How to Update DOS Description 1.Update Intel Microcode.
2.Improve system compatibility.
3.Enhance HDD compatibility.
Date 2020-05-06 Download
Version 1.90 Update BIOS Under / How to Update Windows Description 1.Update Intel Microcode.
2.Improve system compatibility.
3.Enhance HDD compatibility.
Date 2020-05-06 Download
Version 1.80 Update BIOS Under / How to Update BIOS Description 1.Update Intel ME version
2.Update Intel Microcode
Date 2020-05-06 Download
Version 1.80 Update BIOS Under / How to Update DOS Description 1.Update Intel ME version
2.Update Intel Microcode
Date 2020-05-06 Download
Version 1.80 Update BIOS Under / How to Update Windows Description 1.Update Intel ME version
2.Update Intel Microcode
Date 2020-05-06 Download
Version 1.70 Update BIOS Under / How to Update BIOS Description 1.Update Skylake CPU Microcode to revision C2 and Kaby Lake CPU Microcode to revision 84. (For CPU security update)
2.Improve Kaby Lake CPU temperature detection.
Date 2020-05-06 Download
Version 1.70 Update BIOS Under / How to Update DOS Description 1.Update Skylake CPU Microcode to revision C2 and Kaby Lake CPU Microcode to revision 84. (For CPU security update)
2.Improve Kaby Lake CPU temperature detection.
Date 2020-05-06 Download
Version 1.70 Update BIOS Under / How to Update Windows Description 1.Update Skylake CPU Microcode to revision C2 and Kaby Lake CPU Microcode to revision 84. (For CPU security update)
2.Improve Kaby Lake CPU temperature detection.
Date 2020-05-06 Download
Version 1.50 Update BIOS Under / How to Update BIOS Description 1.Update Intel ME.
2.Update Intel Microcode.
3.Update TPM module.
4.Enhance COM port compatibility.
Date 2020-05-06 Download
Version 1.50 Update BIOS Under / How to Update DOS Description 1.Update Intel ME.
2.Update Intel Microcode.
3.Update TPM module.
4.Enhance COM port compatibility.
Date 2020-05-06 Download
Version 1.50 Update BIOS Under / How to Update Windows Description 1.Update Intel ME.
2.Update Intel Microcode.
3.Update TPM module.
4.Enhance COM port compatibility.
Date 2020-05-06 Download
Version 1.40 Update BIOS Under / How to Update BIOS Description Enhance COM port compatibility Date 2020-05-06 Download
Version 1.40 Update BIOS Under / How to Update DOS Description Enhance COM port compatibility Date 2020-05-06 Download
Version 1.40 Update BIOS Under / How to Update Windows Description Enhance COM port compatibility Date 2020-05-06 Download
Version 1.30 Update BIOS Under / How to Update BIOS Description 1. Support Intel's 7th generation CPU
2. Update LVDS module and TPM module
3. Enhance COM compatibility under Linux
Date 2020-05-06 Download
Version 1.30 Update BIOS Under / How to Update DOS Description 1. Support Intel's 7th generation CPU
2. Update LVDS module and TPM module
3. Enhance COM compatibility under Linux
Date 2020-05-06 Download
Version 1.30 Update BIOS Under / How to Update Windows Description 1. Support Intel's 7th generation CPU
2. Update LVDS module and TPM module
3. Enhance COM compatibility under Linux
Date 2020-05-06 Download
Version 1.20 Update BIOS Under / How to Update BIOS Description First released. Date 2020-05-06 Download
Version 1.20 Update BIOS Under / How to Update DOS Description First released. Date 2020-05-06 Download
Version 1.20 Update BIOS Under / How to Update Windows Description First released. Date 2020-05-06 Download

The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.

Description Language Date Download
Description User Manual Language English Date 2020-05-06 Download
Description Jumpers and headers setting guide Language English Date 2020-05-06 Download
Description Date Download
Download CPU Support List Date 2020-05-06 Download
