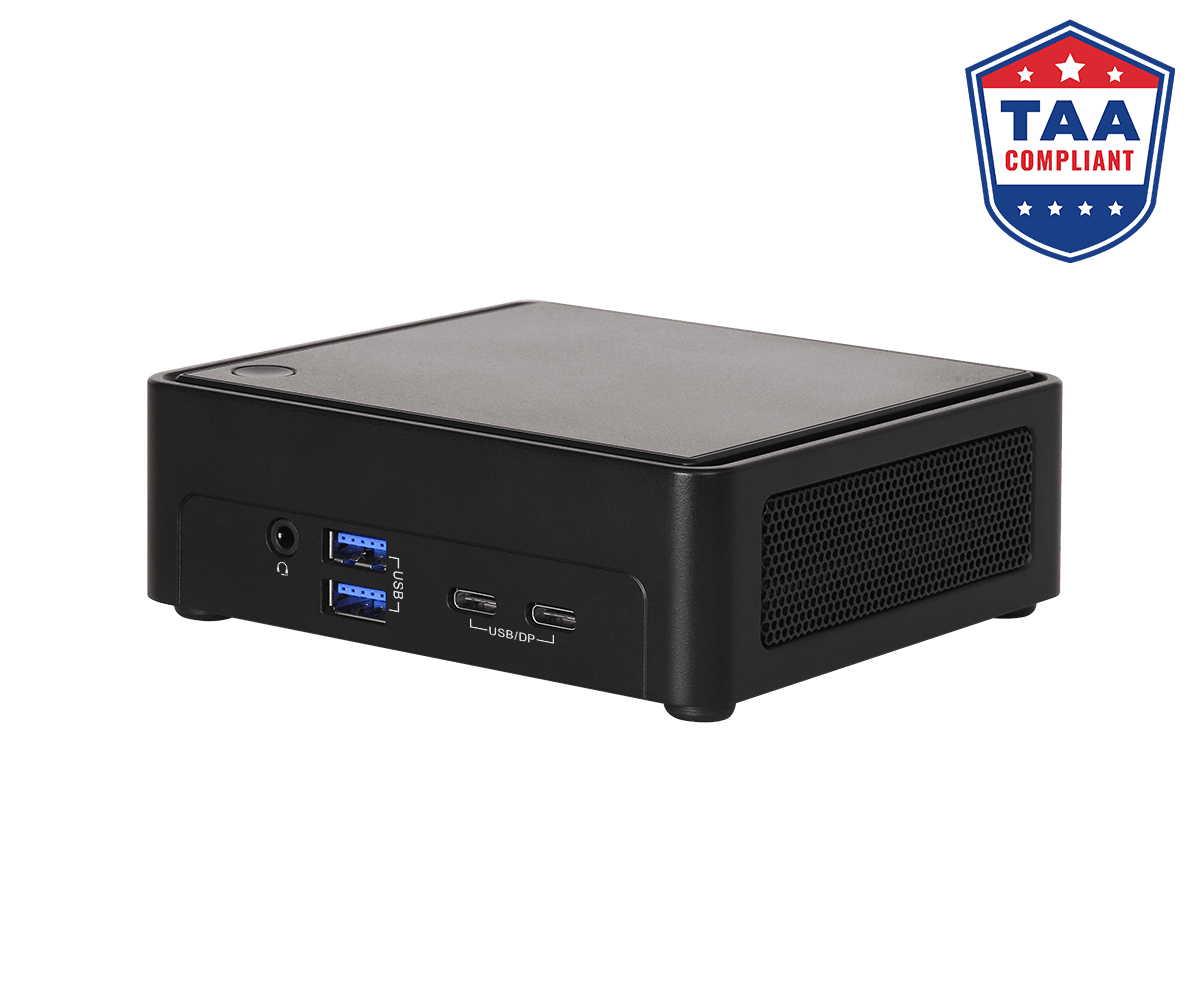

NUCS BOX-155H Fanned BOX

Intel® Core™ Ultra processors (Meteor Lake-H)
2 x 262-pin SO-DIMM DDR5 5600MHz up to 96GB (48GB per DIMM)
1 x USB4/Thunderbolt™4, 5 x USB 3.2 Gen2, 2 x M.2 Key M,
1 x M.2 Key E (WiFi-6E Module)
1 x Intel 2.5 Gigabit LAN
Supports Quad display, 2 x HDMI 2.1 TMDS, 1 x DP 2.1 (from Type-C), 1 x DP 1.4a (from Type-C)
Intel® PTT
Supports Intel® vPro, VMD RAID 0/1
19V Power Adapter
117.5 x 110.0 x 38mm(4.63" x 4.33" x 1.50"), Slim Type Fanned Barebone

产品型录

产品特色

产品规格

Processor System

CPU	Intel® Core™ Ultra processors (Meteor Lake-H) NUCS BOX-155H (6P+8E)
Chipset	MCP
BIOS	AMI SPI 256 Mbit

Memory

Technology	Dual Channel DDR5 5600 MHz
Capacity	96GB (48 GB per DIMM)
Socket	2 x 262-pin SO-DIMM

Graphics

Controller	Intel® Iris® Xe Graphics
HDMI	HDMI 2.1 TMDS Max resolution up to 4096x2160@60Hz
DisplayPort	DisplayPort 1.4a/2.1, DP++ Max resolution up to 4096x2160@60Hz
MultiDisplay	Quad-Display (Included 2 outputs from Type-C)

Expansion Slot

M.2/WLAN	1 x Wi-Fi 6E 802.11ax + BT 5.3

Audio

Interface	Realtek ALC256, High Definition Audio.

Ethernet

Controller/ Speed	Intel® I226LM with 10/100/1000/2500 Mbps
Connector	1 x RJ-45

Front I/O

USB	2 x USB 3.2 Gen2 (Type A) 1 x USB4/Thunderbolt™ 4 (Supports DP2.1 display output) 1 x USB3.2 Gen2x2 (Type-C, Supports DP1.4a display output) *For Thunderbolt support, please refer to support list.
Audio	1 (headphone & microphone jack)

Rear I/O

HDMI	2 x HDMI 2.1 TMDS
Ethernet	1 x 2.5 Gigabit LAN
USB	2 x USB 3.2 Gen2 (Type-A)
DC Jack	1

Storage

M.2	1 x M.2 (KEY M, 2280) with PCIe Gen4x4 for SSD 1 x M.2 (KEY M, 2242) with PCIe Gen4x1 for SSD
RAID	Intel® VMD RAID 0/1 *supported by identical interface (PCIe) PCIe interface: 2M.2 Key M

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	12V~24V DC-In Jack
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 40ºC
Storage Temp	-40° C – 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Mechanical

Mounting	VESA mount
Dimensions (L x W x H)	117.5 x 110.0 x 38mm(4.63" x 4.33" x 1.50")
Weight	Net Weight:1.0Kg

Others

OS Support	Windows 10/11
TPM	Intel® PTT
Certifications	CE, FCC
Packing List	1 x 19V/120W Power Adapter (Core Ultra 7) 1 x VESA mount bracket

规格更改时恕不预先通知。品牌和产品名称归各自公司所有。不保证任何配置与产品实物规格相同。

支援下载

操作系统:

说明	资讯	操作系统	日期	下载
说明	VGA driver ver: 101.5007	资讯	Size: 1440Mib Version: v101.5007 SHA1: FF6109F190C898DCE49274DDD5B11E86E324FF63 Filename: Intel_VGA(v101.5007).zip Release Note	操作系统	Win 11 x 64	Date	2024-02-01	下载	全球中国
说明	Intel I226/I225 Lan driver ver: 2.1.4.2w	资讯	Size: 627Kib Version: v2.1.4.2w SHA1: DA00BA0980E1EA9CD8822AEF411C8300BDC1266B Filename: Intel-I225-I226-Lan_driver(v2.1.4.2w).zip Release Note	操作系统	Win 11 x 64	Date	2024-02-01	下载	全球中国
说明	Intel WLAN Driver ver: 23.0.6.4_G	资讯	Size: 28Mib Version: 23.0.6.4_G SHA1: 1ADB11C3F94F7FBF07379B7CBB764C379448636E Filename: Intel_WLAN_Driver_ver(v23.0.6.4_G).zip Release Note	操作系统	Win 11 x 64	Date	2024-03-01	下载	全球中国
说明	Realtek high definition ALC 256 audio driver ver:9467	资讯	Size: 39Mib Version: 9467_UAD_2023_0110_110651 SHA1: 2ED4B16592555AFF7623D1E939C47F49897AD9EC Filename: Realtek_Audio(v9467_UAD_2023_0110_110651).zip Release Note	操作系统	Win 11 x 64	Date	2024-01-10	下载	全球中国
说明	GNA ver: 03.05.00.1574	资讯	Size: 1186Kib Version: 03.05.00.1574 SHA1: B6636A73A10ADA0F1D05D1CA3D4B58885E81D607 Filename: GNA(v03.05.00.1574).zip Release Note	操作系统	Win 11 x 64	Date	2024-03-01	下载	全球中国
说明	Intel Rapid Storage Technology driver and utility ver: 20.0.0.1035.4	资讯	Size: 50Mib Version: 20.0.0.1035.4 SHA1: 4E392712489B70E6269E22AAC309643F9527C7D9 Filename: Intel Rapid Start driver ver(v20.0.0.1035.4).zip Release Note	操作系统	Win 11 x 64	Date	2024-01-10	下载	全球中国
说明	Intel HID Event Filter ver: 2.2.2.5	资讯	Size: 1181Kib Version: 2.2.2.5 SHA1: A91AC0D0D72C7DD52327F9C8D4B3981D5C66E306 Filename: Intel_HID_Event_Filter_ver(v2.2.2.5).zip Release Note	操作系统	Win 11 x 64	Date	2024-03-01	下载	全球中国
说明	NPU driver ver: 31.0.100.1688	资讯	Size: 123Mib Version: 31.0.100.1688 SHA1: 4BD8D2BC4DB21C451C1DC35F0CAE6FCDF8217C22 Filename: npudrive(v31.0.100.1688).zip Release Note	操作系统	Win 11 x 64	Date	2024-03-01	下载	全球中国
说明	PMT ver: 3.1.2.2	资讯	Size: 1180Kib Version: 3.1.2.2 SHA1: 608BD7420AAB27718BEF8166A81695799646128E Filename: PMT(v3.1.2.2).zip Release Note	操作系统	Win 11 x 64	Date	2024-03-01	下载	全球中国
说明	Intel Serial IO driver ver: 30.100.2318.58	资讯	Size: 2623Kib Version: 30.100.2318.58 SHA1: D264D7CBC00DB1DD42B73E182801236CFDE7C2C2 Filename: Intel Serial IO driver ver(v30.100.2318.58).zip Release Note	操作系统	Win 11 x 64 , Win 10	Date	2024-01-10	下载	全球中国
说明	Intel Management Engine driver ver: 2344.5.41.0_Corporate	资讯	Size: 311Mib Version: 2344.5.41.0_Corporate SHA1: 2FCE2503C758A03FEF4958BC1D7CE749CE2ADF49 Filename: Intel Management Engine driver ver(v2344.5.41.0_Corporate).zip Release Note	操作系统	Win 11 x 64	Date	2024-01-10	下载	全球中国
说明	Bluetooth driver ver: 23.0.1.1G	资讯	Size: 46Mib Version:23.0.1.1G SHA1: E983110D48196B13AFBB2AE3A85889FD9E38266B Filename:Intel Bluetooth Driver(v23.0.1.1G).zip Release Note	操作系统	Win 11 x 64	Date	2024-01-10	下载	全球中国
说明	Chipset Driver ver: 10.1.19627.8423-Public-MUP	资讯	Size: 5172Kib Version:10.1.19627.8423-Public-MUP SHA1: 6F13EB23B92CB4E3C2244C6A98048DAF7A3D2808 Filename:Chipset(v10.1.19627.8423-Public-MUP).zip Release Note	操作系统	Win 11 x 64	Date	2024-01-10	下载	全球中国

版本	更新方式 / 如何更新	说明	资讯	日期	下载
版本	1.20	更新方式 / 如何更新	BIOS	说明	1. Update Intel RC code 2. Enhance display compatibility	资讯	Size: 10 MiB SHA1: 5782BB6EEDA4BF54692884F4B3674B4CD465193C	日期	2024-03-15	下载	全球中国
版本	1.20	更新方式 / 如何更新	Windows	说明	1. Update Intel RC code 2. Enhance display compatibility	资讯	Size: 11 MiB SHA1: FF8FC6D87C5B09D34C78EE633A65563B7DA1D611	日期	2024-03-15	下载	全球中国
版本	1.10	更新方式 / 如何更新	BIOS	说明	First release	资讯	Size: 10 MiB SHA1: DE8645088091226C49185C15EC2BA78E252FDDFE	日期	2024-02-06	下载	全球中国
版本	1.10	更新方式 / 如何更新	Windows	说明	First release	资讯	Size: 11 MiB SHA1: FF600794127506F140096555546E681AAB8EE89E	日期	2024-02-06	下载	全球中国

档案格式为 PDF，如果您没有安装 Adobe Acrobat Reader，请至 Adobe下载。

说明	语言	日期	下载
说明	User Manual	语言	English	日期	2024-03-12	下载	全球中国
说明	RAID Installation Guide	语言	English	日期	2024-03-04	下载	全球中国
说明	Quick Installation Guide	语言	English	日期	2024-01-30	下载	全球中国

说明	日期	下载
下载	Thunderbolt Support List	日期	2024-01-29	下载	全球
