NUCS BOX-155H Fanned BOX
- Intel® Core™ Ultra processors (Meteor Lake-H)
- 2 x 262-pin SO-DIMM DDR5 5600MHz up to 96GB (48GB per DIMM)
- 1 x USB4/Thunderbolt™4, 5 x USB 3.2 Gen2, 2 x M.2 Key M,
- 1 x M.2 Key E (WiFi-6E Module)
- 1 x Intel 2.5 Gigabit LAN
- Supports Quad display, 2 x HDMI 2.1 TMDS, 1 x DP 2.1 (from Type-C), 1 x DP 1.4a (from Type-C)
- Intel® PTT
- Supports Intel® vPro, VMD RAID 0/1
- 19V Power Adapter
- 117.5 x 110.0 x 38mm(4.63" x 4.33" x 1.50"), Slim Type Fanned Barebone
Overview
Specification
Processor System
| CPU | Intel® Core™ Ultra processors (Meteor Lake-H) NUCS BOX-155H (6P+8E) |
|---|---|
| Chipset | MCP |
| BIOS | AMI SPI 256 Mbit |
Memory
| Technology | Dual Channel DDR5 5600 MHz |
|---|---|
| Capacity | 96GB (48 GB per DIMM) |
| Socket | 2 x 262-pin SO-DIMM |
Graphics
| Controller | Intel® Iris® Xe Graphics |
|---|---|
| HDMI | HDMI 2.1 TMDS Max resolution up to 4096x2160@60Hz |
| DisplayPort | DisplayPort 1.4a/2.1, DP++ Max resolution up to 4096x2160@60Hz |
| MultiDisplay | Quad-Display (Included 2 outputs from Type-C) |
Expansion Slot
| M.2/WLAN | 1 x Wi-Fi 6E 802.11ax + BT 5.3 |
|---|
Audio
| Interface | Realtek ALC256, High Definition Audio. |
|---|
Ethernet
| Controller/ Speed | Intel® I226LM with 10/100/1000/2500 Mbps |
|---|---|
| Connector | 1 x RJ-45 |

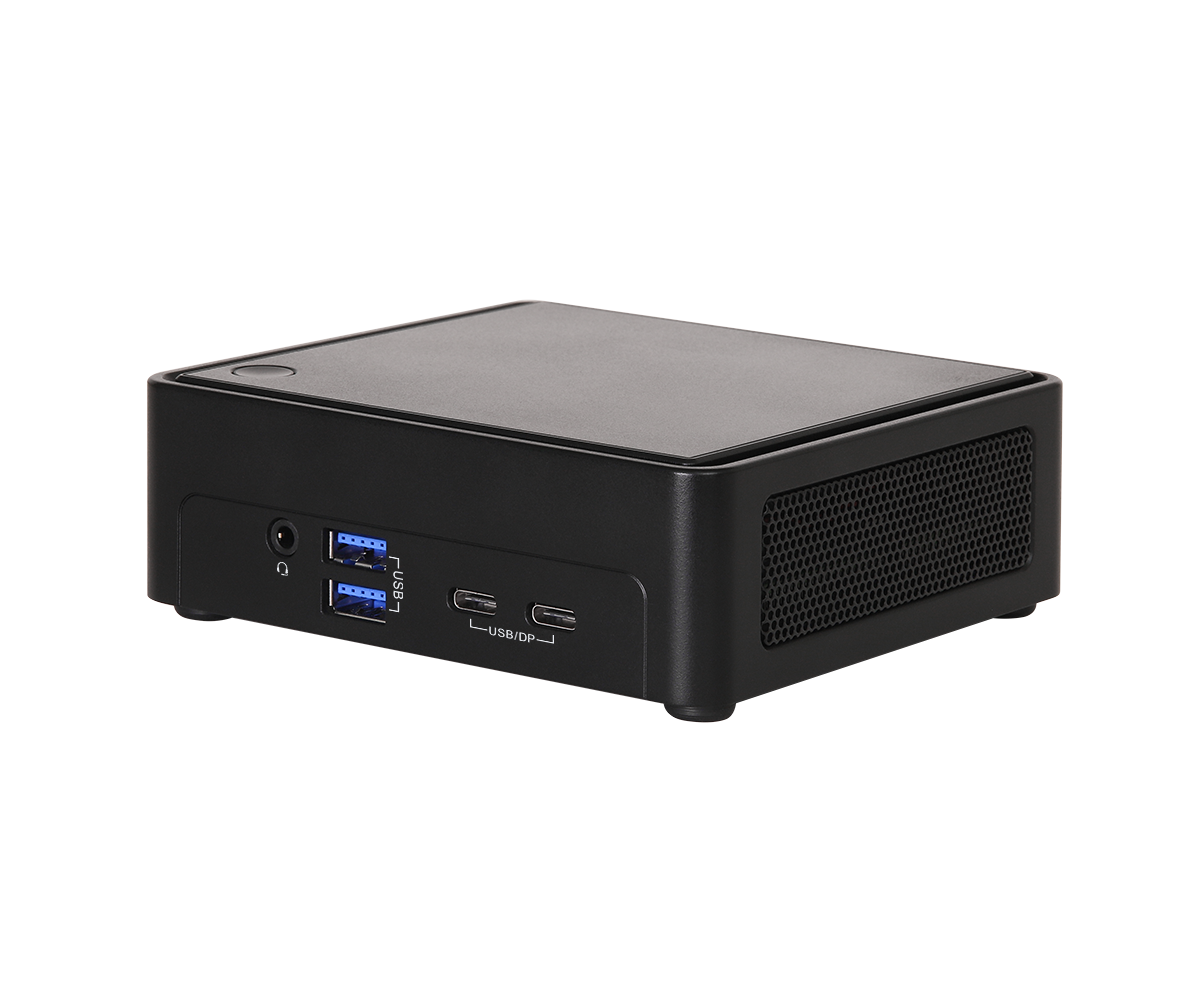

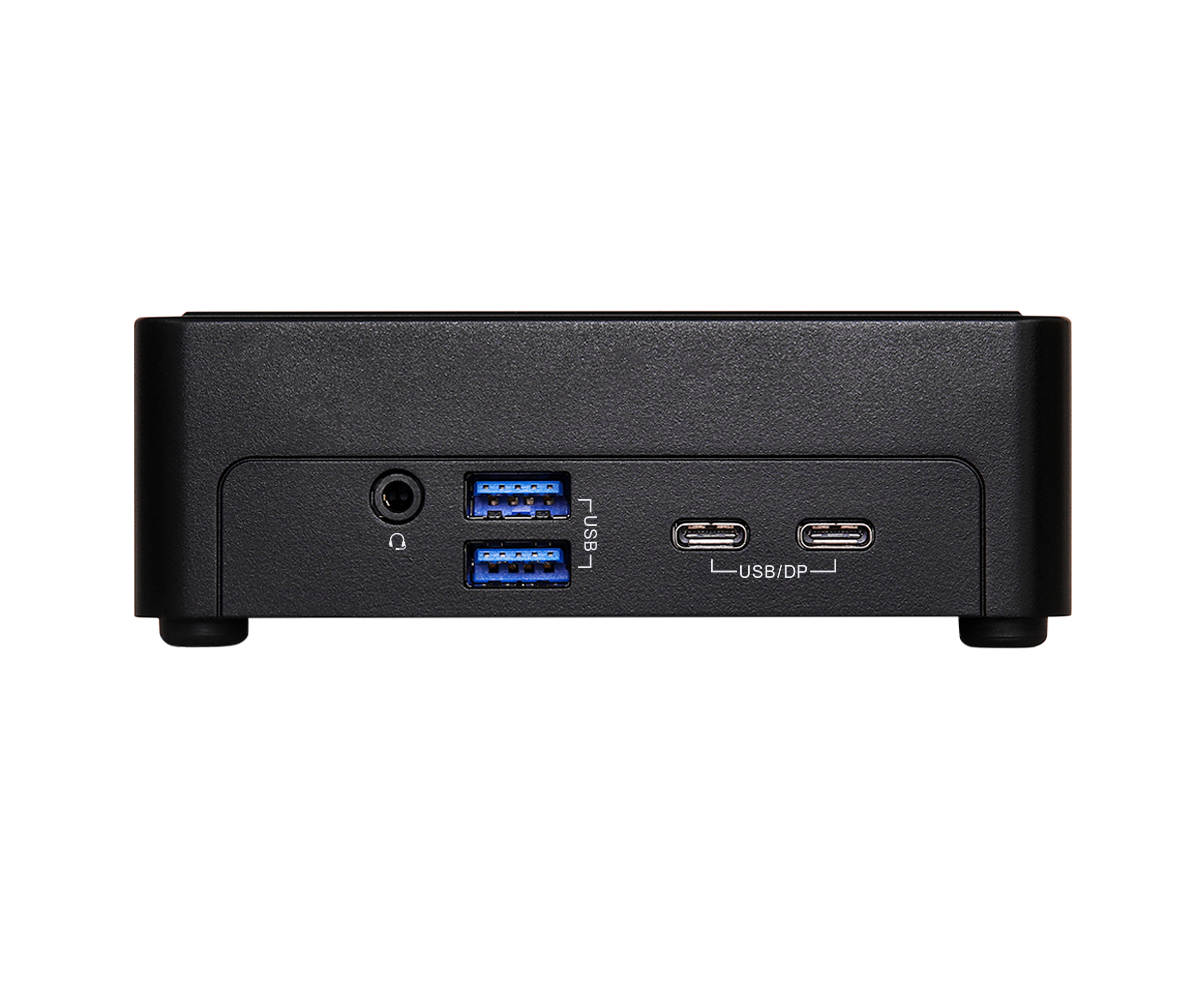

Front I/O
| USB | 2 x USB 3.2 Gen2 (Type A) 1 x USB4/Thunderbolt™ 4 (Supports DP2.1 display output) 1 x USB3.2 Gen2x2 (Type-C, Supports DP1.4a display output) *For Thunderbolt support, please refer to support list. |
|---|---|
| Audio | 1 (headphone & microphone jack) |

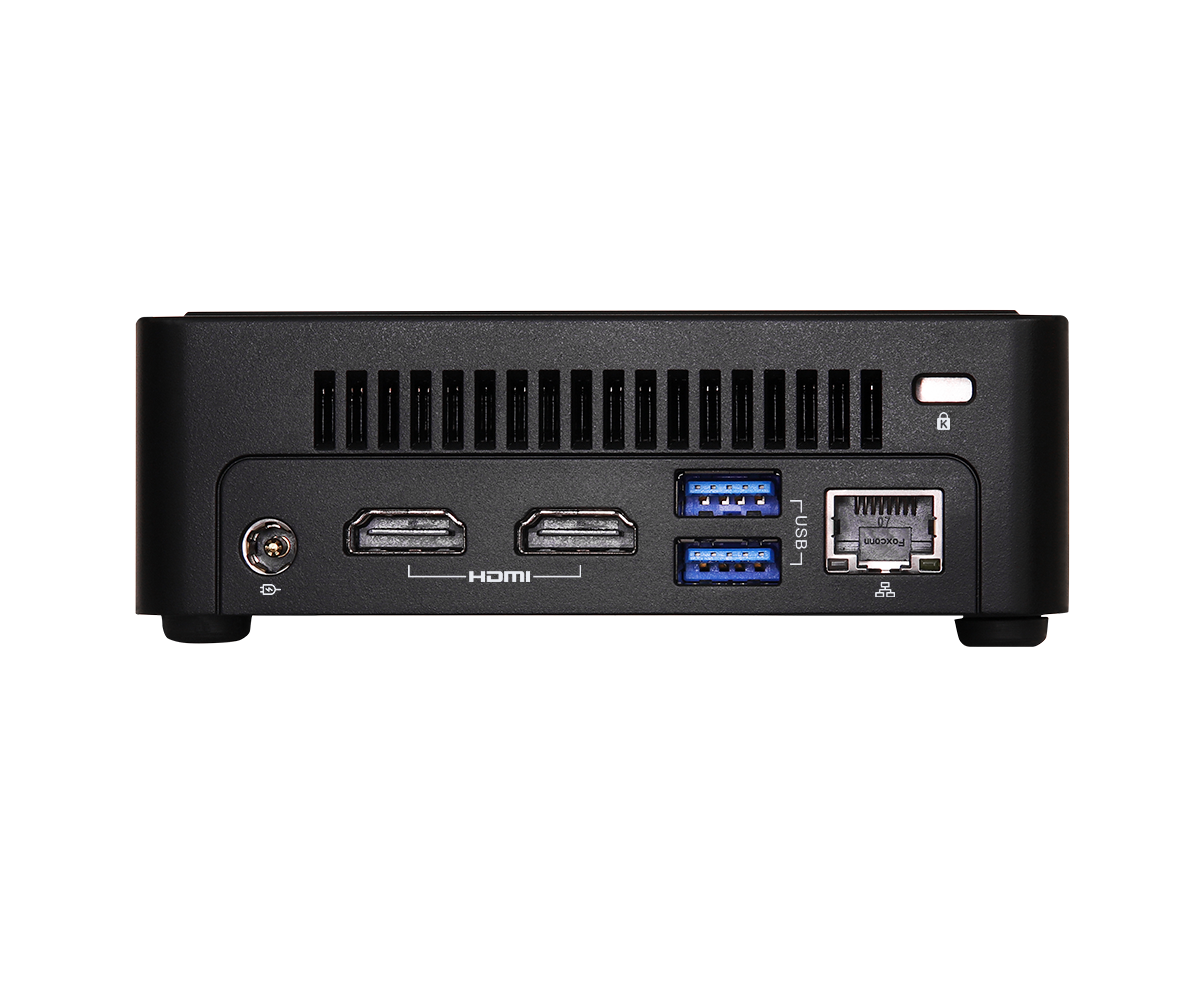

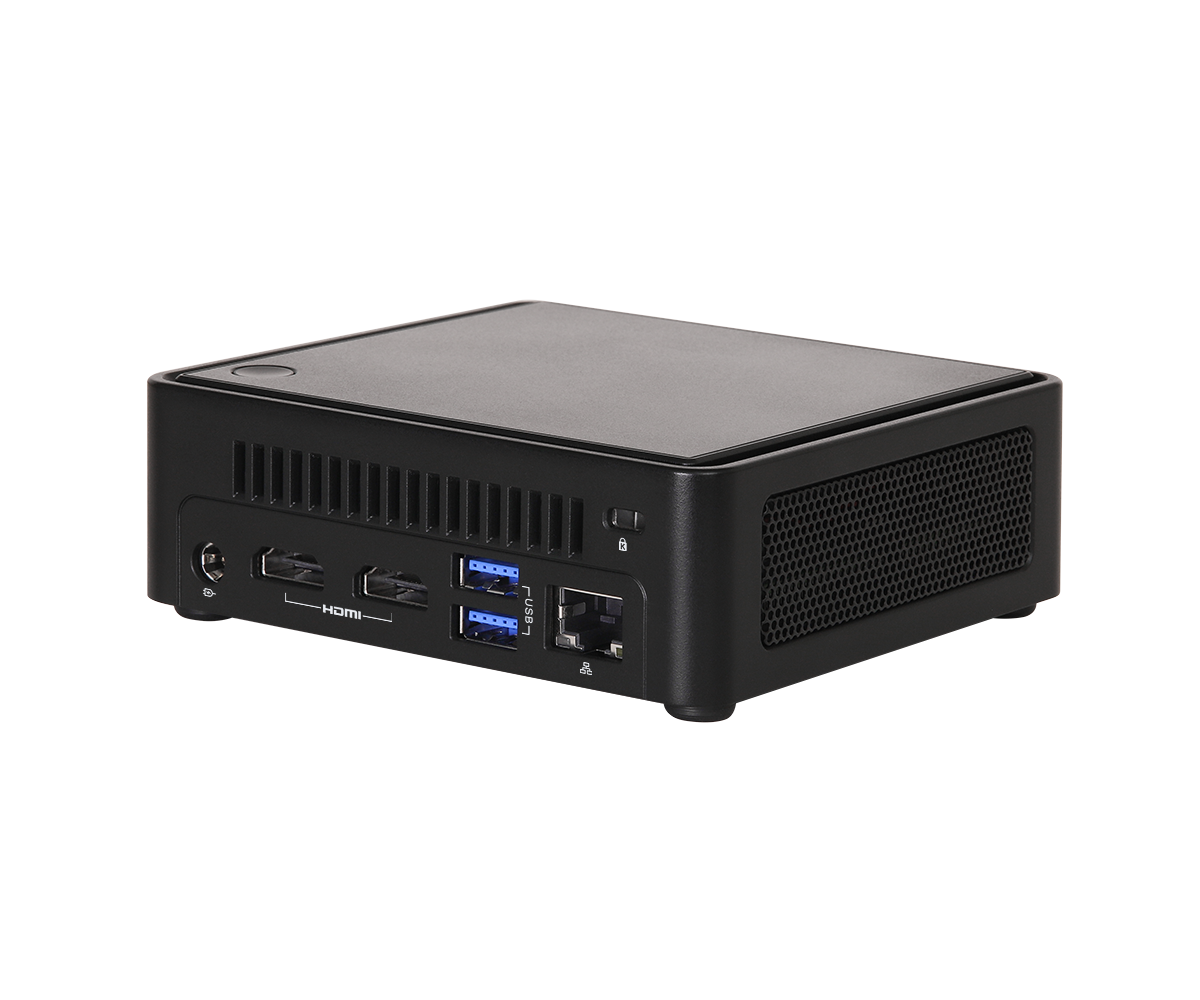

Rear I/O
| HDMI | 2 x HDMI 2.1 TMDS |
|---|---|
| Ethernet | 1 x 2.5 Gigabit LAN |
| USB | 2 x USB 3.2 Gen2 (Type-A) |
| DC Jack | 1 |
Storage
| M.2 | 1 x M.2 (KEY M, 2280) with PCIe Gen4x4 for SSD 1 x M.2 (KEY M, 2242) with PCIe Gen4x1 for SSD |
|---|---|
| RAID | Intel® VMD RAID 0/1 **supported by identical interface (PCIe) PCIe interface: 2*M.2 Key M |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | 12V~24V DC-In Jack |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | 0ºC ~ 40ºC |
|---|---|
| Storage Temp | -40° C – 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Mechanical
| Mounting | VESA mount |
|---|---|
| Dimensions (L x W x H) | 117.5 x 110.0 x 38mm(4.63" x 4.33" x 1.50") |
| Weight | Net Weight:1.0Kg |
Others
| OS Support | Windows 10/11 |
|---|---|
| TPM | Intel® PTT |
| Certifications | CE, FCC |
| Packing List | 1 x 19V/120W Power Adapter (Core Ultra 7) 1 x VESA mount bracket |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Support
OS:
| Description | Information | OS | Date | Download | |||||
|---|---|---|---|---|---|---|---|---|---|
| Description | VGA driver ver: 101.5007 | Information | Size: 1440Mib |
OS | Win 11 x 64 | Date | 2024-02-01 | Download | |
| Description | Intel I226/I225 Lan driver ver: 2.1.4.2w | Information | Size: 627Kib |
OS | Win 11 x 64 | Date | 2024-02-01 | Download | |
| Description | Intel WLAN Driver ver: 23.0.6.4_G | Information | Size: 28Mib |
OS | Win 11 x 64 | Date | 2024-03-01 | Download | |
| Description | Realtek high definition ALC 256 audio driver ver:9467 | Information | Size: 39Mib |
OS | Win 11 x 64 | Date | 2024-01-10 | Download | |
| Description | GNA ver: 03.05.00.1574 | Information | Size: 1186Kib |
OS | Win 11 x 64 | Date | 2024-03-01 | Download | |
| Description | Intel Rapid Storage Technology driver and utility ver: 20.0.0.1035.4 | Information | Size: 50Mib |
OS | Win 11 x 64 | Date | 2024-01-10 | Download | |
| Description | Intel HID Event Filter ver: 2.2.2.5 | Information | Size: 1181Kib |
OS | Win 11 x 64 | Date | 2024-03-01 | Download | |
| Description | NPU driver ver: 31.0.100.1688 | Information | Size: 123Mib |
OS | Win 11 x 64 | Date | 2024-03-01 | Download | |
| Description | PMT ver: 3.1.2.2 | Information | Size: 1180Kib |
OS | Win 11 x 64 | Date | 2024-03-01 | Download | |
| Description | Intel Serial IO driver ver: 30.100.2318.58 | Information | Size: 2623Kib |
OS | Win 11 x 64 , Win 10 | Date | 2024-01-10 | Download | |
| Description | Intel Management Engine driver ver: 2344.5.41.0_Corporate | Information | Size: 311Mib |
OS | Win 11 x 64 | Date | 2024-01-10 | Download | |
| Description | Bluetooth driver ver: 23.0.1.1G | Information | Size: 46Mib |
OS | Win 11 x 64 | Date | 2024-01-10 | Download | |
| Description | Chipset Driver ver: 10.1.19627.8423-Public-MUP | Information | Size: 5172Kib |
OS | Win 11 x 64 | Date | 2024-01-10 | Download |
| Version | Update BIOS Under / How to Update | Description | Information | Date | Download | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Version | 1.20 | Update BIOS Under / How to Update | BIOS | Description | 1. Update Intel RC code 2. Enhance display compatibility |
Information | Size: 10 MiB SHA1: 5782BB6EEDA4BF54692884F4B3674B4CD465193C |
Date | 2024-03-15 | Download | |
| Version | 1.20 | Update BIOS Under / How to Update | Windows | Description | 1. Update Intel RC code 2. Enhance display compatibility |
Information | Size: 11 MiB SHA1: FF8FC6D87C5B09D34C78EE633A65563B7DA1D611 |
Date | 2024-03-15 | Download | |
| Version | 1.10 | Update BIOS Under / How to Update | BIOS | Description | First release | Information | Size: 10 MiB SHA1: DE8645088091226C49185C15EC2BA78E252FDDFE |
Date | 2024-02-06 | Download | |
| Version | 1.10 | Update BIOS Under / How to Update | Windows | Description | First release | Information | Size: 11 MiB SHA1: FF600794127506F140096555546E681AAB8EE89E |
Date | 2024-02-06 | Download |
The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.
| Description | Language | Date | Download | ||||
|---|---|---|---|---|---|---|---|
| Description | User Manual | Language | English | Date | 2024-03-12 | Download | |
| Description | RAID Installation Guide | Language | English | Date | 2024-03-04 | Download | |
| Description | Quick Installation Guide | Language | English | Date | 2024-01-30 | Download |
| Description | Date | Download | |||
|---|---|---|---|---|---|
| Download | Thunderbolt Support List | Date | 2024-01-29 | Download |
