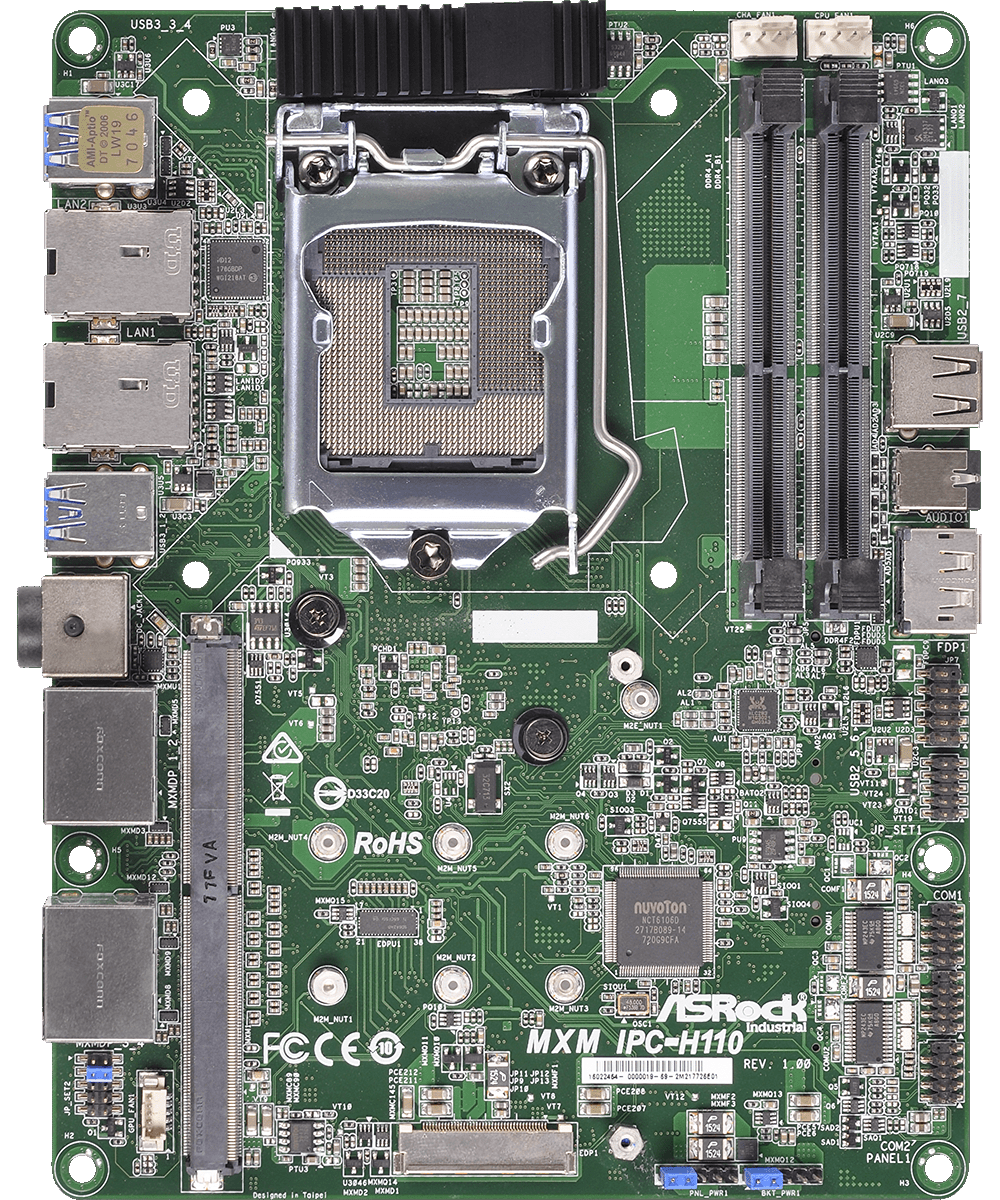

MXM IPC-H110 Micro-STX Motherboard

  • Supports 7th/6th Generation (Kabylake-S/Skylake-S) i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors (LGA1151)
  • Supports MXM Graphics Card (Type-A or Type-B , Up to 150W)
  • Supports DDR4 2400MHz, 2 x SO-DIMM, up to 32GB system memory
  • 5 x DisplayPort (1 from CPU, 4 from MXM), 1 x eDP (From CPU)
  • 4 x USB 3.0, 3 x USB 2.0, 2 x COM (RS232 only)
  • 2 x M.2 (1 x Key E, 1 x Key M)
  • 2 x Intel 1 Gigabit LAN
  • 1 x TPM Header
  • DC 19V Input (220W for GTX1060/1070, 270W for GTX1080)
产品型录
产品规格

Form Factor

Dimensions Micro-STX (5.8-in x 7.4-in, 14.7 cm x 18.8 cm)

Processor System

CPU Intel® 7th/ 6th Gen (Kabylake-S/Skylake-S) Core. Processors, up to 65W
Chipset Intel® H110
Socket LGA1151
BIOS AMI SPI 128 Mbit

Memory

Technology Dual Channel DDR4 2400 MHz
Capacity 32GB (16 GB per DIMM)
Socket 2 x 260-pin SO-DIMM

Graphics

Controller - CPU integrated graphics to support 1 x DP + 1 x eDP (Gen9 Intel® Graphics, Support for DirectX 11/12, OpenCL 2.0)
- Add on MXM Graphic Card (Type B) to support 4 x DP NVIDIA® GeForce GTX 1060/1070/1080
DisplayPort 1 x Supports max resolution up to 4K@60Hz (CPU integrated graphics)
4 x Supports max resolution up to 4K@60Hz (MXM Graphics Card)
eDP Max resolution up to 4096 x 2304@60Hz
MultiDisplay Hexa Display

Expansion Slot

M.2 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless

Audio

Interface Realtek ALC233, High Definition Audio.
Line-out,Mic-in

Ethernet

Controller/ Speed LAN1: Intel® I210 with 10/100/1000 Mbps
LAN2: Intel® I219V with 10/100/1000 Mbps
Connector 2 x RJ-45

Front I/O

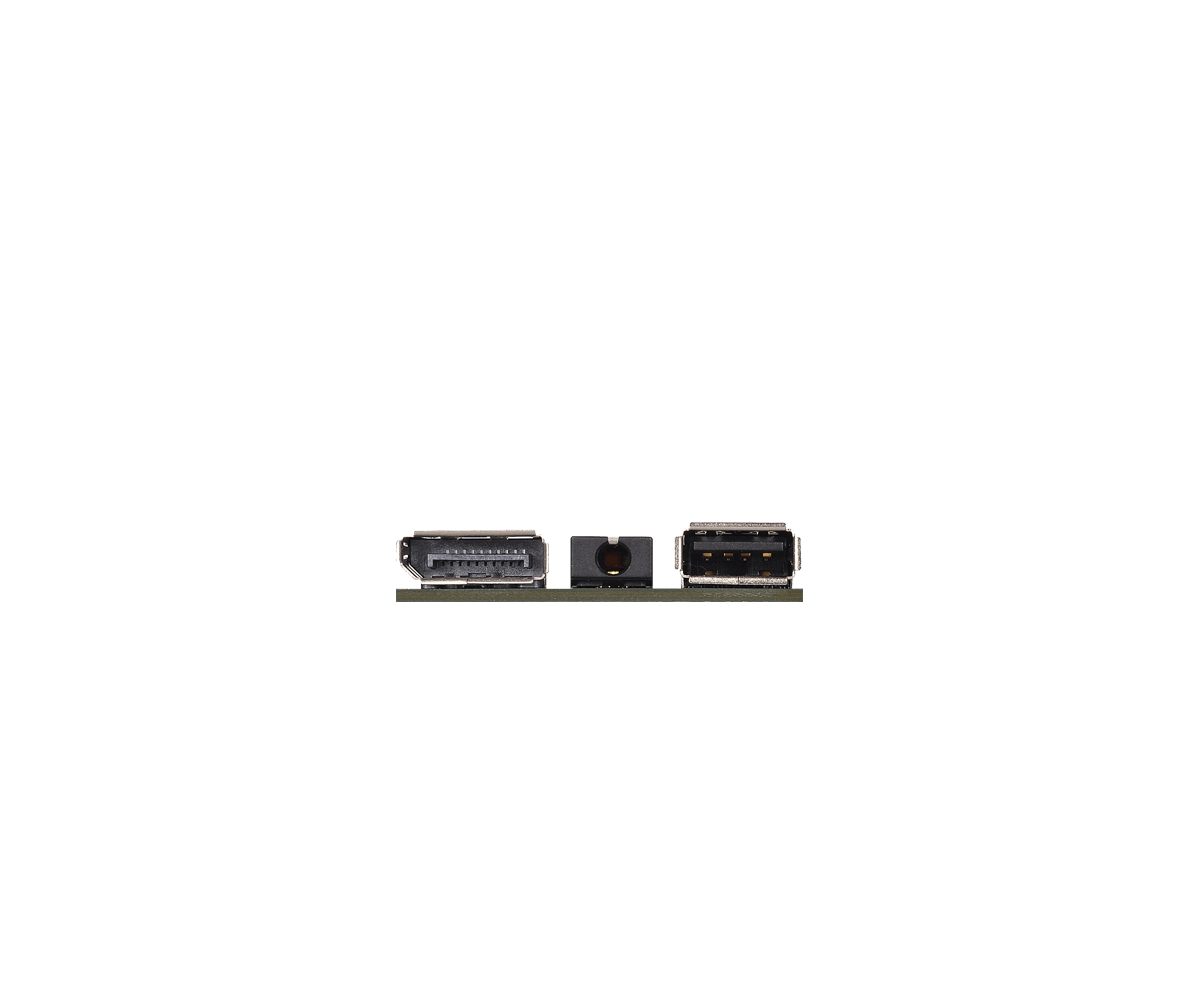

DisplayPort 1 (CPU integrated graphics)
USB 1 x USB2.0 Type-A
Audio 1 (Mic-in or Line-out)

Rear I/O

DisplayPort 4 x DP1.2 (for VGA card)
Ethernet 2 x 1 Gigabit LAN
USB 4 x USB 3.0
DC Jack 1

Internal Connector

USB 2 x USB2.0 (1 x 2.54 pitch header)
COM 2 x COM(RS-232)
TPM TPM Header
eDP 1

Storage

M.2 1 x M.2 (KEY M, 2242/2260/2280) with PCIe x4 and SATA3 for SSD
SATA 2 x SATA3.0 (6.0 Gb/s)

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 19V DC-In Jack (220W for GTX1060/1070, 270W for GTX1080)
Power On - AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40ºC – 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

Accessories

Bulk Package 2 x SCREW FOR WIFI CARD (13G020305011AK)
2 x COM Cable (14G000000340AK)
2 x SATA Data/Power Cable (14G000104502AK)
