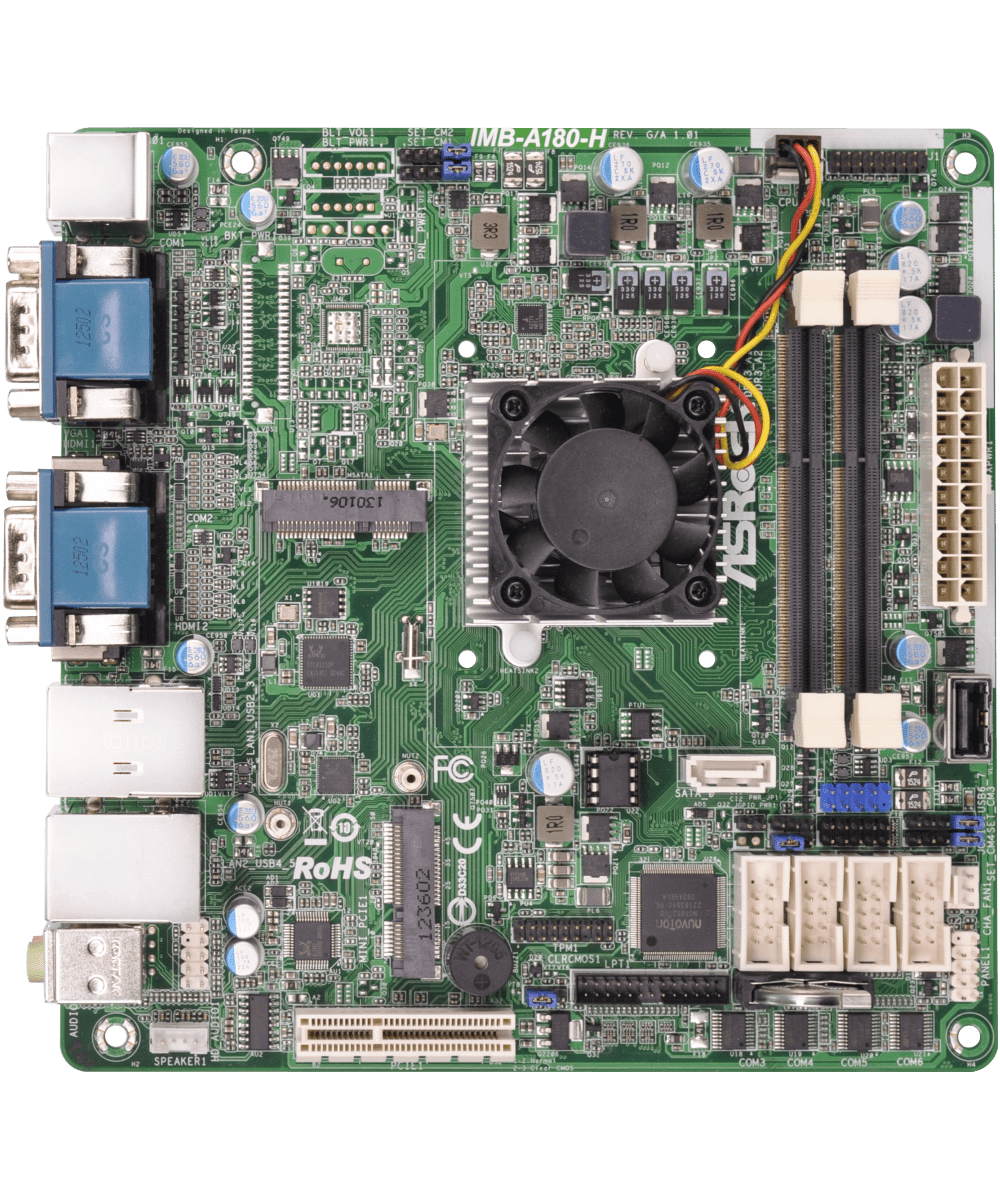

IMB-A180-H Mini-ITX Motherboard

  • AMD Embedded G-Series SOC processor(s)
  • Supports DDR31600MHz (GX-420CA/GX-415GA), DDR3 1333MHz (GX-210HA)
  • 1 x VGA, 1 x HDMI
  • 6 x COM ports, 6 x USB 2.0, 2 x USB 3.0
  • 1 x PCIex4, 1x SATA 3.0, 1 x mSATA
  • Dual Gbe LAN: 1 x Realtek RTL8111E, 1 x Realtek RTL8111DP to support Dash Function
  • 1 x TPM header
产品型录
产品规格

Form Factor

Dimensions Mini-ITX (6.7-in x 6.7-in)

Processor System

CPU AMD-- Embedded G-Series SoC processor(s)
GX-420CA: 25W 4Core (2.0G Hz)
GX-415GA: 15W 4Core (1.5G Hz)
GX-210HA: 9W 2Core (1.0G Hz)
Chipset SoC
BIOS UEFI

Memory

Technology Single Channel Up to DDR3 1600 MHz (GX-420CA / GX-415GA)
Single Channel Up to DDR3 1333MHz (GX-210HA)
Capacity 16GB
Socket 2 x SO-DIMM

Graphics

Controller by SoC
HDMI 2
VGA 1
MultiDisplay Dual display

Expansion Slot

PCIe 1 (x4) Gen2
mini-PCIe 1 ( half size)

Ethernet

Controller/ Speed LAN1: 1 x Realtek RTL8111E with 10/100/1000 Mbps
LAN2: 1 x Realtek RTL8111DP with 10/100/1000Mbps to support Dash Function
Connector 2 x RJ-45

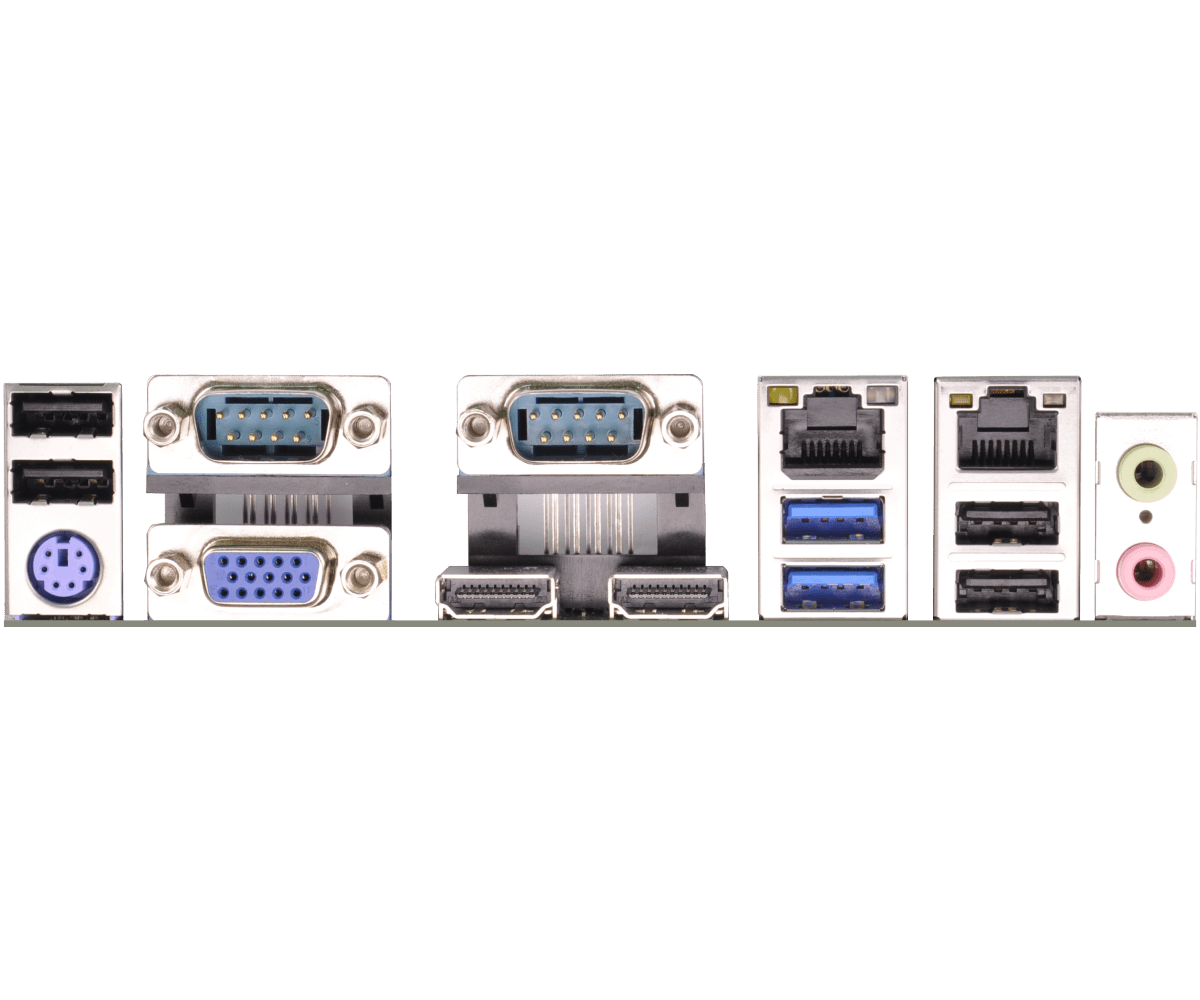

Rear I/O

HDMI 2
Ethernet 2
USB 6 (4 x USB 2.0 compliant, 2 x USB 3.0 compliant)
Audio 2 (Mic-in, Line-out)
COM 2 x COM (RS-232/422/485)
VGA 1
PS2 1 (Combo)

Internal Connector

USB 2 x USB2.0 port (by Header), 1 x USB Type A Con
COM 4 x COM (RS-232) and 4x (1 x3) Header to offer PWR select for 2 rear and 2 internal
GPIO 4 x GPI, 4 x GPO
Speaker Header 1
Parallel 1

Storage

SATA 1 x SATA3 (6.0Gb/S)
mSATA 1 x m-SATA

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 20-pin ATX PWR con
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

规格更改时恕不预先通知。品牌和产品名称归各自公司所有。不保证任何配置与产品实物规格相同。

支援下载

操作系统:

说明 操作系统 日期 下载
说明 ASRock Extreme Tuning utility ver:0.1.434 操作系统 Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 , XP x 64 , XP Date 2020-06-29 下载
说明 VGA driver ver:9.00.300.2 操作系统 XP Date 2020-06-29 下载
说明 Realtek Lan driver ver:1.12.0030 操作系统 Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 , XP x 64 , XP Date 2020-06-29 下载
说明 Realtek Teaming driver ver:2.0.2.3 操作系统 Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 , XP x 64 , XP Date 2020-06-29 下载
说明 Realtek high definition audio driver ver:6699 操作系统 Win 8 x 64 , Win 8 Date 2020-06-29 下载
说明 Realtek high definition audio driver ver:6559 操作系统 Win 7 x 64 , Win 7 , XP x 64 , XP Date 2020-06-29 下载
说明 AMD all in 1 driver ver:13.10 操作系统 Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-06-29 下载
版本 更新方式 / 如何更新 说明 日期 下载
版本 1.00 更新方式 / 如何更新 BIOS 说明 First released. 日期 2013-10-16 下载
版本 1.00 更新方式 / 如何更新 DOS 说明 First released. 日期 2013-10-15 下载
版本 1.00 更新方式 / 如何更新 Windows 说明 First released. 日期 2013-10-16 下载

档案格式为 PDF,如果您没有安装 Adob​​e Acrobat Reader,请至 Adobe下载。

说明 语言 日期 下载
说明 User Manual 语言 English 日期 2020-06-29 下载
说明 Jumpers and headers setting guide 语言 English 日期 2020-06-29 下载
