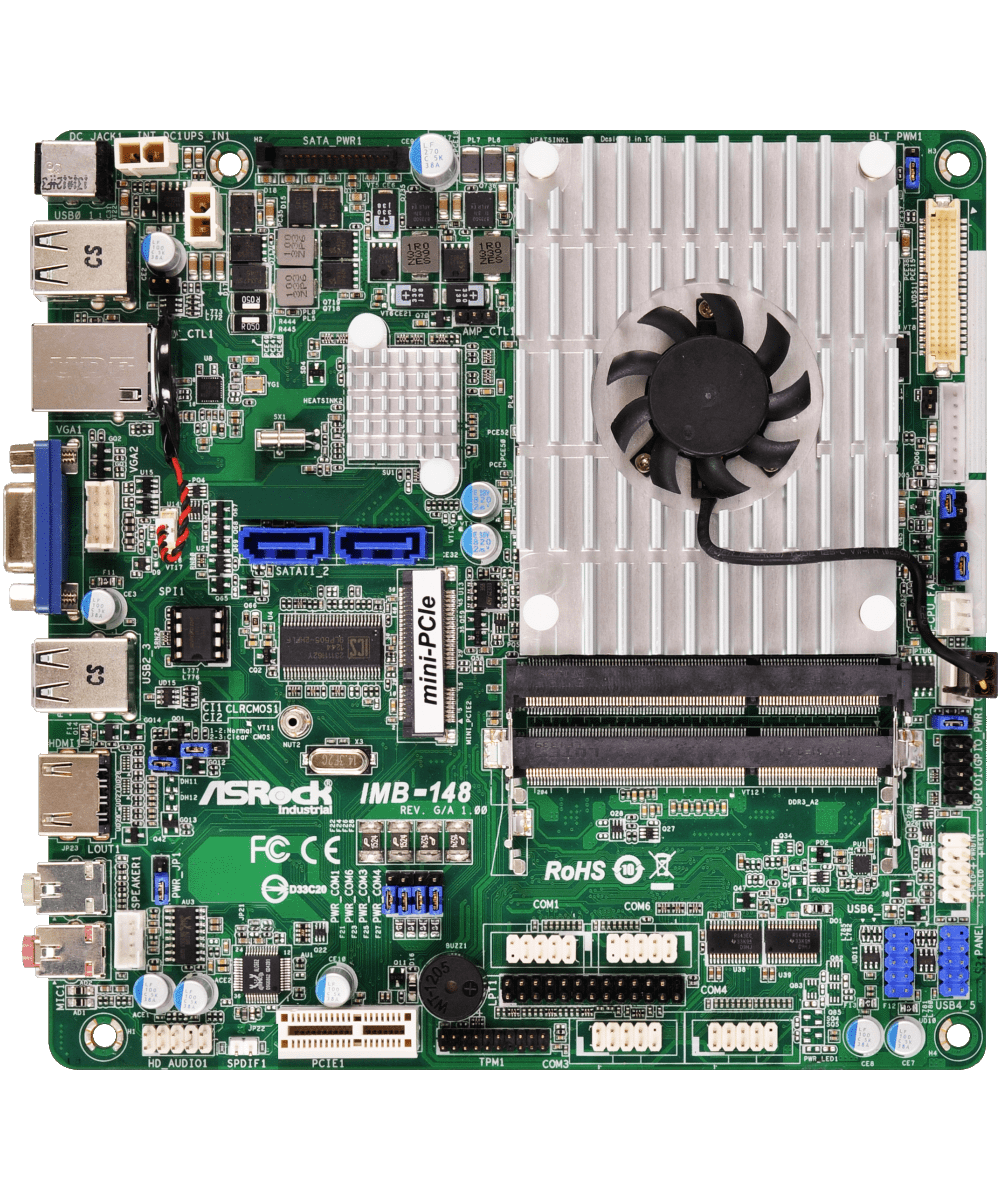

IMB-148 Mini-ITX Motherboard

  • Intel® Atom™ CedarView Processor D2550
  • Intel® NM10 Express Chipset
  • Integrated Intel® PowerVR SGX545, DirectX 9.0, PS3.0
  • Supports DDR3 1066MHz, 2 x SO-DIMM, up to 4GB system memory
  • 4 x COM (RS-232)
  • 1 x HDMI, 1 x D-Sub, 1 x Dual Channel 24-bit LVDS
  • 8 x USB 2.0, 2 x SATA2
  • 1 x mini-PCIe
  • Gigabit LAN : 1 x Realtek Lan
  • 9~19V DC-in
产品型录
产品规格

Form Factor

Dimensions Mini-ITX (6.7-in x 6.7-in)

Processor System

CPU Intel® Atom™ CedarView Processor D2550
Supports Hyper-Threading Technology
Chipset NM10
BIOS UEFI

Memory

Technology Single Channel DDR3 800 / 1066 MHz SDRAM
Socket 2 x SO-DIMM
Capacity 4GB

Graphics

Controller Intel® PowerVR SGX545, Support DirectX9 compliant Pixel Shader v3.0 and OGL 3.0
VGA Supports max resolution up to 1920x1200
LVDS Single channel 24-bit, max resolution up to 1440x900 @ 60Hz
MultiDisplay Dual Display
HDMI Yes

Expansion Slot

mini-PCIe 1 (Half Size) PCIe only
PCIe 1 (1x)

Ethernet

Controller/ Speed 1 x Realtek RTL8111E-VL with 10/100/1000 Mbps
Connector 1 x RJ - 45

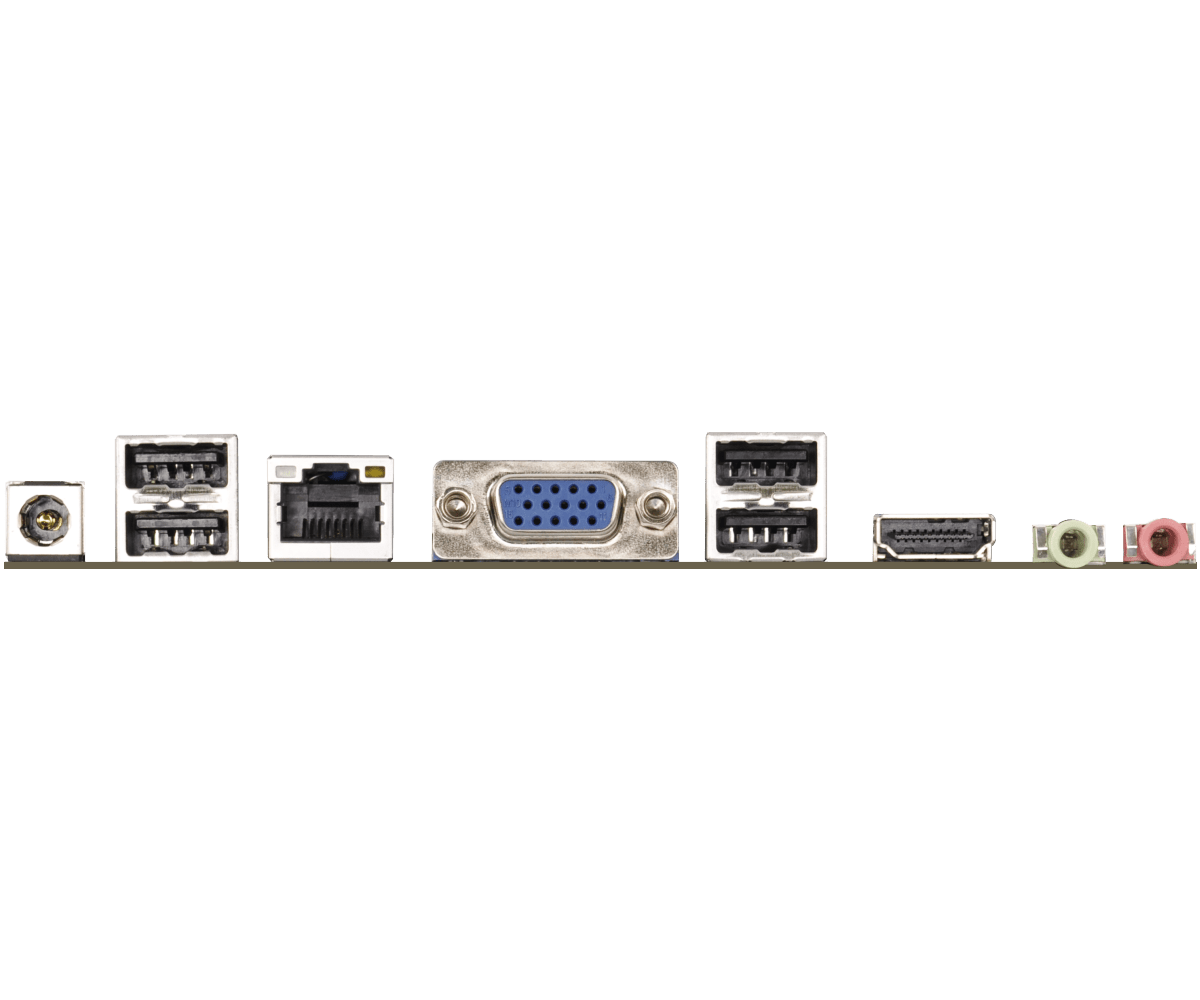

Rear I/O

Ethernet 1
USB 4 x USB 2.0
VGA 1
HDMI 1
Audio 2 (Mic-in, Line-out)

Internal Connector

USB 4 x USB 2.0
LVDS 1
COM 4 x COM(RS-232)
GPIO 4 x GPI +4 x GPO
Parallel 1
VGA 1 (shared with rear I/O VGA)
Speaker Header 1
SATA PWR Output 1

Storage

SATA 2 x SATA2 (3.0Gb/s)

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 9~19V DC-In (2-pin PWR Con)
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

Others

Packing List 1 x Jumper setting guide
1 x Driver DVD
2 x IO shield
1 x SATA cable
1 x SATA power cable
2 x Screw for mini card
