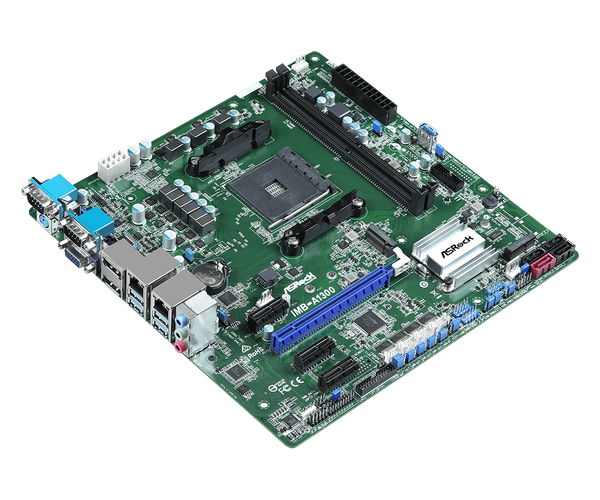

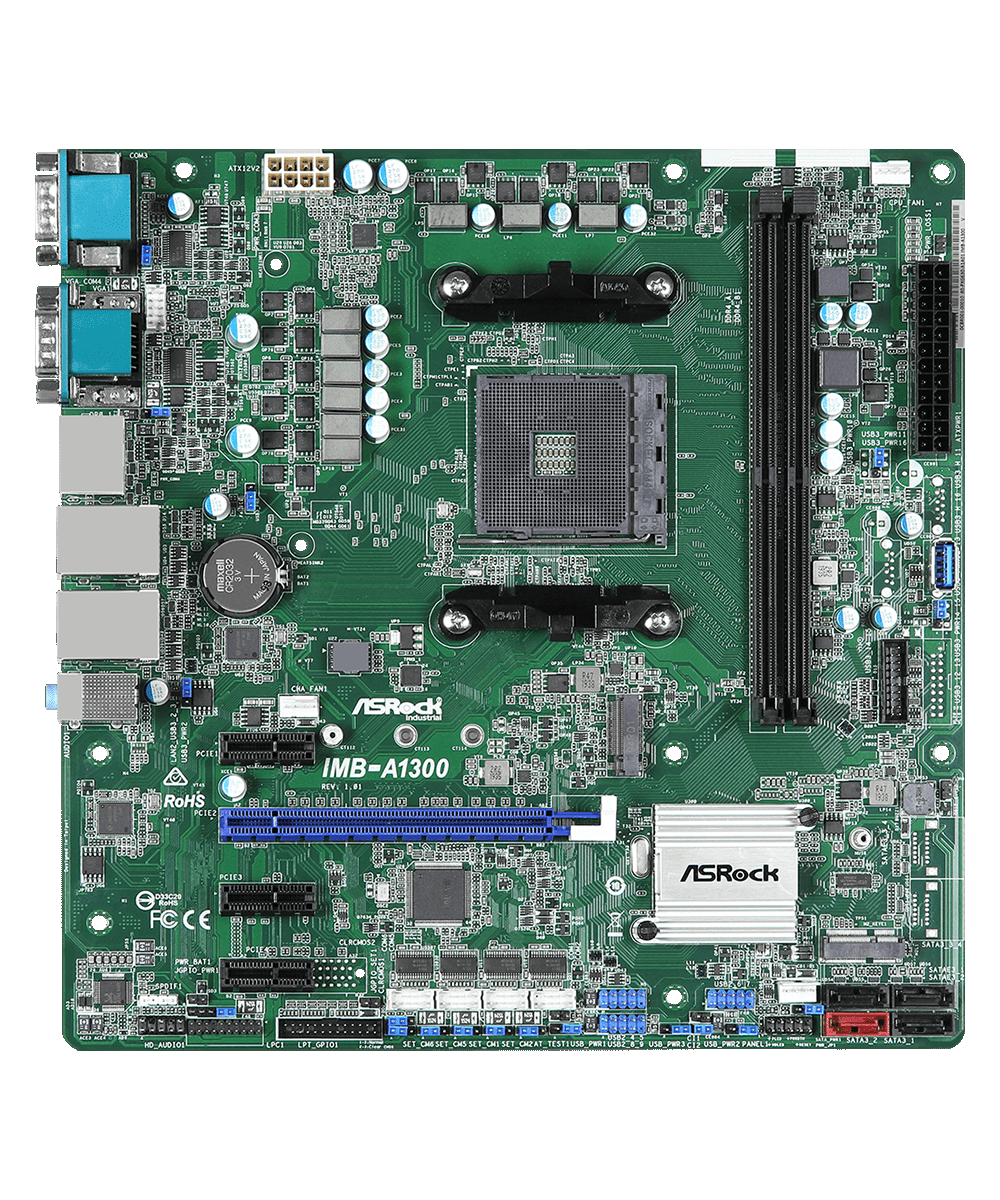

IMB-A1300 Micro ATX Motherboard

  • AMD Ryzen 7th/5th/3th Gen (Raven Ridge/Matisse) Core™ Processors with B450 chipset
  • 2 x 288-pin Long-DIMM up to 32GB DDR4 3200 MHz with Matisse CPU (16GB per DIMM)
  • 2 x 288-pin Long-DIMM up to 32GB DDR4 2933 MHz with Raven Ridge CPU (16GB per DIMM)
  • 1 x PCIe x16 (Gen3), 3 x PCIe x1 (Gen3), 4 x USB 3.1 Gen2, 3 x USB 3.1 Gen1 , 6 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E, 6 x COM, 4 x SATA3
  • 2 x Intel 1 Gigabit LAN
  • Supports triple display, 2 x DP++ 1.2, 1 x VGA
  • TPM 2.0 onboard IC
  • Support RAID 0/1/10
  • ATX PWR (24+8-pin)
产品型录
产品规格

Form Factor

Dimensions Micro-ATX (9.6-in x 9.6-in, 24.4 cm x 24.4 cm)

Processor System

CPU AMD Ryzen 7th/5th/3th Gen (Raven Ridge/Matisse) Core™ Processors
Ryzen 7th: Matisse (3700X,8cores,3.6GHz,65W)
Ryzen 5th: Raven Ridge (2400G, QC, 3.6GHz,65W); Matisse (3600,6cores,3.6GHz,65W)
Ryzen 3th: Raven Ridge (2200G, QC,3.5GHz,65W )
Chipset AMD Promontory B450
Socket AM4
BIOS AMI SPI 256 Mbit

Memory

Technology Dual Channel DDR4 3200 MHz (Matisse)
Dual Channel DDR4 2933 MHz (Raven Ridge)
Capacity 32 GB (16 GB per DIMM)
Socket 2 x 288-pin Long-DIMM

Graphics

Controller AMD Radeon™ HD Vega DirectX 12
DisplayPort DisplayPort 1.2, DP++ Max resolution up to 4096x2160@60Hz
VGA Max resolution up to 4096x2160@60Hz
MultiDisplay Triple Display

Expansion Slot

PCIe 1 x PCIe x16 (PCIe Gen3 x8 for Raven Ridge/ PCIe Gen3 x16 for Matisse)
3 x PCIe x1 (Gen3)
M.2 1 x Key E (2230)with PCIe x1 and USB 2.0 for Wireless

Audio

Interface Realtek ALC887, High Definition Audio. Line-out,Mic-in

Ethernet

Controller/ Speed 2 x Intel® I210-AT with 10/100/1000 Mbps
Connector 2 x RJ-45

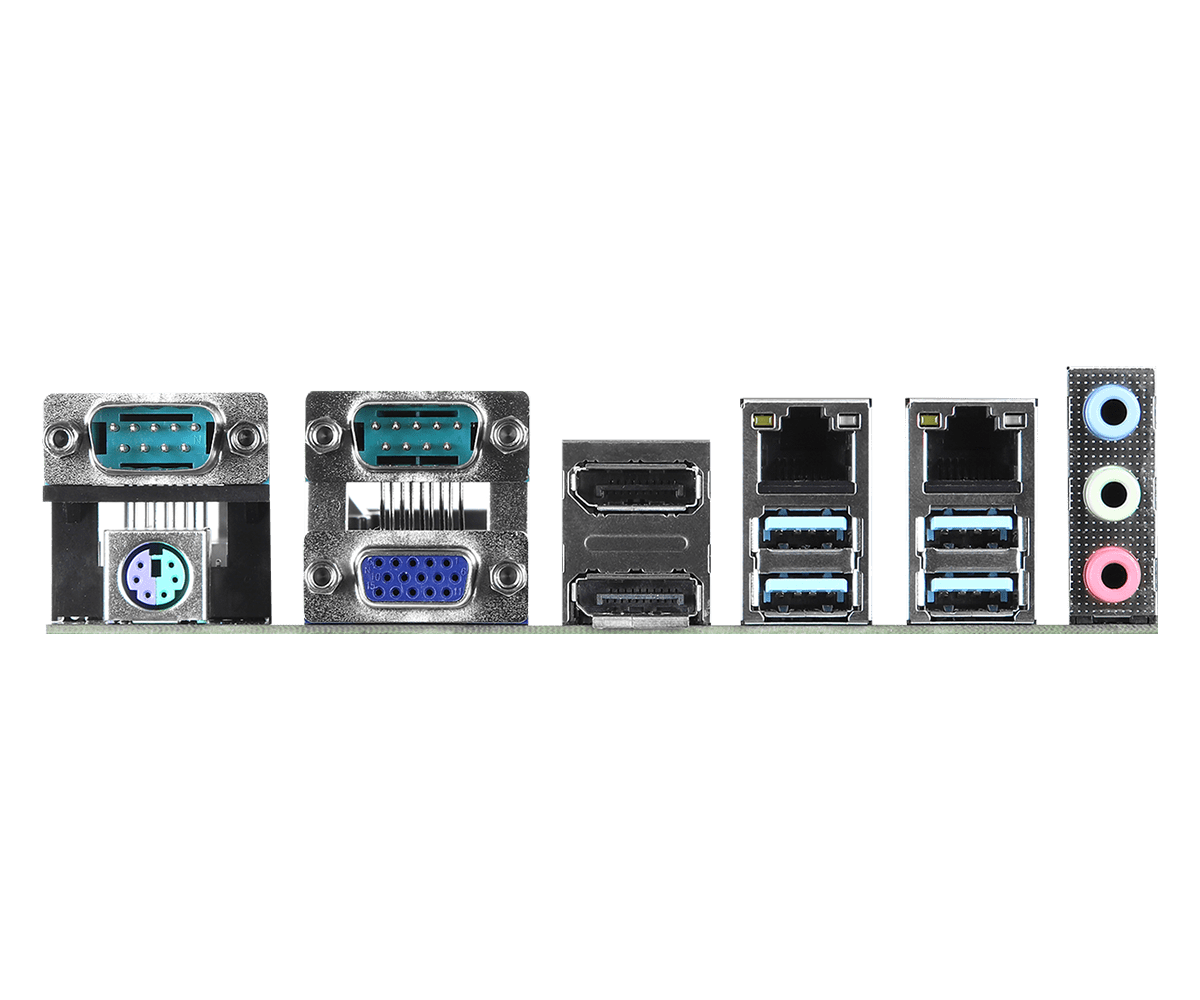

Rear I/O

DisplayPort 2 x DP 1.2++
VGA 1
Ethernet 2 x 1 Gigabit LAN
USB Matisse: 4 x USB 3.1 (Gen2)
Raven Ridge: 4 x USB 3.1 (Gen1)
Audio 3 (Mic-in, Line-in, Line-out)
COM 2 x COM(RS-232/422/485)
PS2 1 x PS/2 combo

Internal Connector

USB 3 x USB 3.1 Gen1 (1 x USB 3.1 header, 1 x Type A)
6 x USB 2.0 (3 x 2.54 pitch header)
COM 4 x COM (RS-232)
Parallel 1 (shared with GPIO)
GPIO 8 x GPI, 8 x GPO (shared with LPT header)
TPM TPM 2.0 onboard IC
LVDS N/A
SATA PWR Output 1
Speaker Header 1

Storage

M.2 1 x Key M (2242/2260/2280) with PCIe x4 and SATA3 for SSD
SATA 4 x SATA3 (6Gb/s), SATA3_1 shared with M.2_Key M
RAID Support RAID 0/1/10

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR ATX PWR (24+8-pin)
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

规格更改时恕不预先通知。品牌和产品名称归各自公司所有。不保证任何配置与产品实物规格相同。
