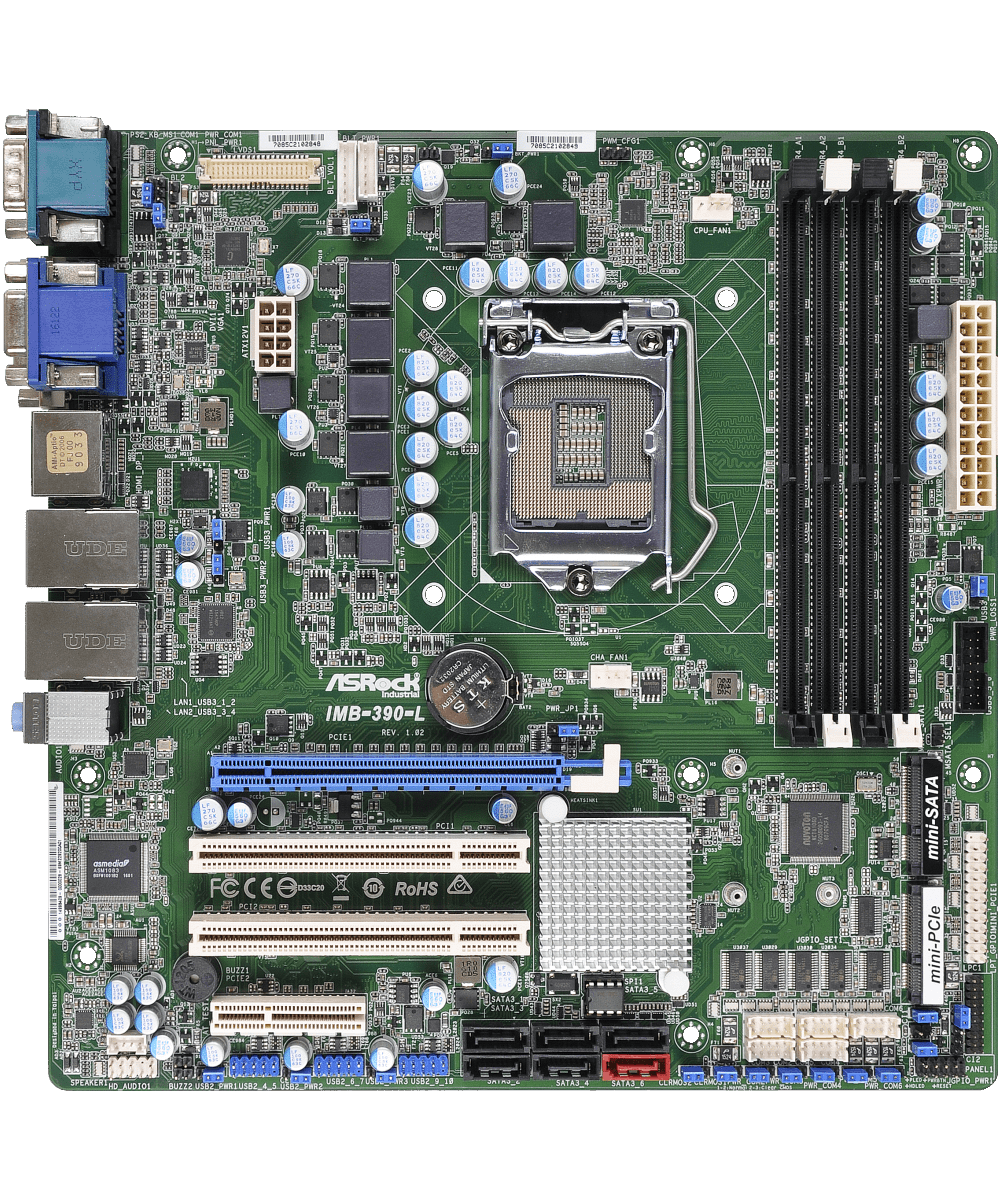

IMB-390-L Micro ATX Motherboard

Processor System

CPU	Intel® 7th/ 6th Gen (Kabylake-S/Skylake-S) Core™ Processors, up to 65W
Chipset	Intel® Q170
Socket	LGA1151
BIOS	AMI SPI 128 Mbit

Form Factor

Dimensions	Micro-ATX (9.6-in x 9.6-in, 24.4 cm x 24.4 cm)

Memory

Technology	Dual Channel DDR4 2133 MHz
Capacity	64GB (16GB per DIMM)
Socket	4 x 288-pin Long-DIMM

Graphics

Controller	Intel® Gen9 Graphics DX 11 / 12
HDMI	HDMI 2.0 Max resolution up to 4096 x 2160@60Hz
DisplayPort	DisplayPort 1.2a, DP++ Max resolution up to 4096 x 2304@60Hz
VGA	Max resolution up to 1920 x 1200@60Hz
LVDS	Dual channel 24 bit up to 1920 x 1200@60Hz
DVI-D	Max resolution up to 1920 x 1200@60Hz
MultiDisplay	Triple Display

Expansion Slot

PCIe	1 x PCIe x16 (Gen3) 1 x PCIe x4 (Gen3)
PCI	2
mini-PCIe	1 x Full / Half size with PCIe x1 and USB 2.0

Audio

Interface	Realtek ALC887/ALC897, High Definition Audio. Line-out,Mic-in,Line-in

Ethernet

Controller/ Speed	LAN1: Intel® I210 with 10/100/1000 Mbps LAN2: Intel® I219LM with 10/100/1000 Mbps, supports AMT/vPro
Connector	2 x RJ-45

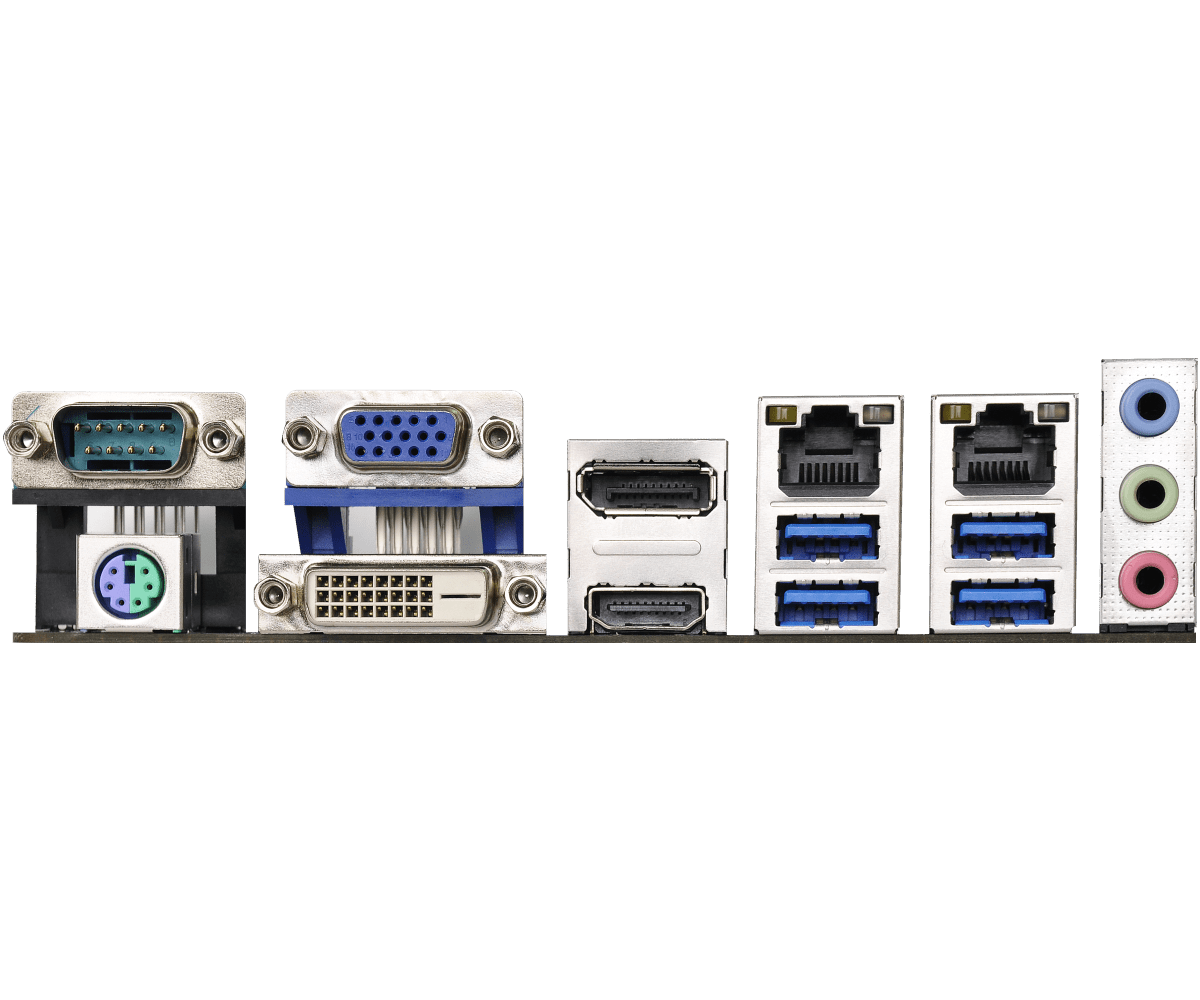

Rear I/O

HDMI	1 x HDMI 2.0
DisplayPort	1 x DP 1.2a
VGA	1
DVI	1 x DVI-D
Ethernet	2 x 1 Gigabit LAN
USB	4 x USB 3.0
Audio	3 (Mic-in, Line-in, Line-out)
COM	COM1 (RS-232/422/485)
PS2	1 x PS / 2 combo

Internal Connector

USB	2 x USB 3.0 (1 x Internal header) 6 x USB 2.0 (3 x Internal header)
COM	5 x COM (RS-232)
Parallel	1 (shared with GPIO)
GPIO	8 x GPI, 8 x GPO (shared with LPT header)
TPM	TPM 2.0 onboard IC
LVDS	1
Speaker Header	1

Storage

mSATA	1 x Full size with shared SATA3 and USB 2.0
SATA	6 x SATA3, SATA3_6 shared with mSATA
RAID	Intel® SATA RAID 0/1/5/10

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	ATX PWR (24+8-pin)
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C – 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	1 x I/O Shield (13G020401000AK) 2 x SATA Data Cable (14G00010107DAK)
Bulk Package	1 x I/O Shield (13G020401000AK)

规格更改时恕不预先通知。品牌和产品名称归各自公司所有。不保证任何配置与产品实物规格相同。
