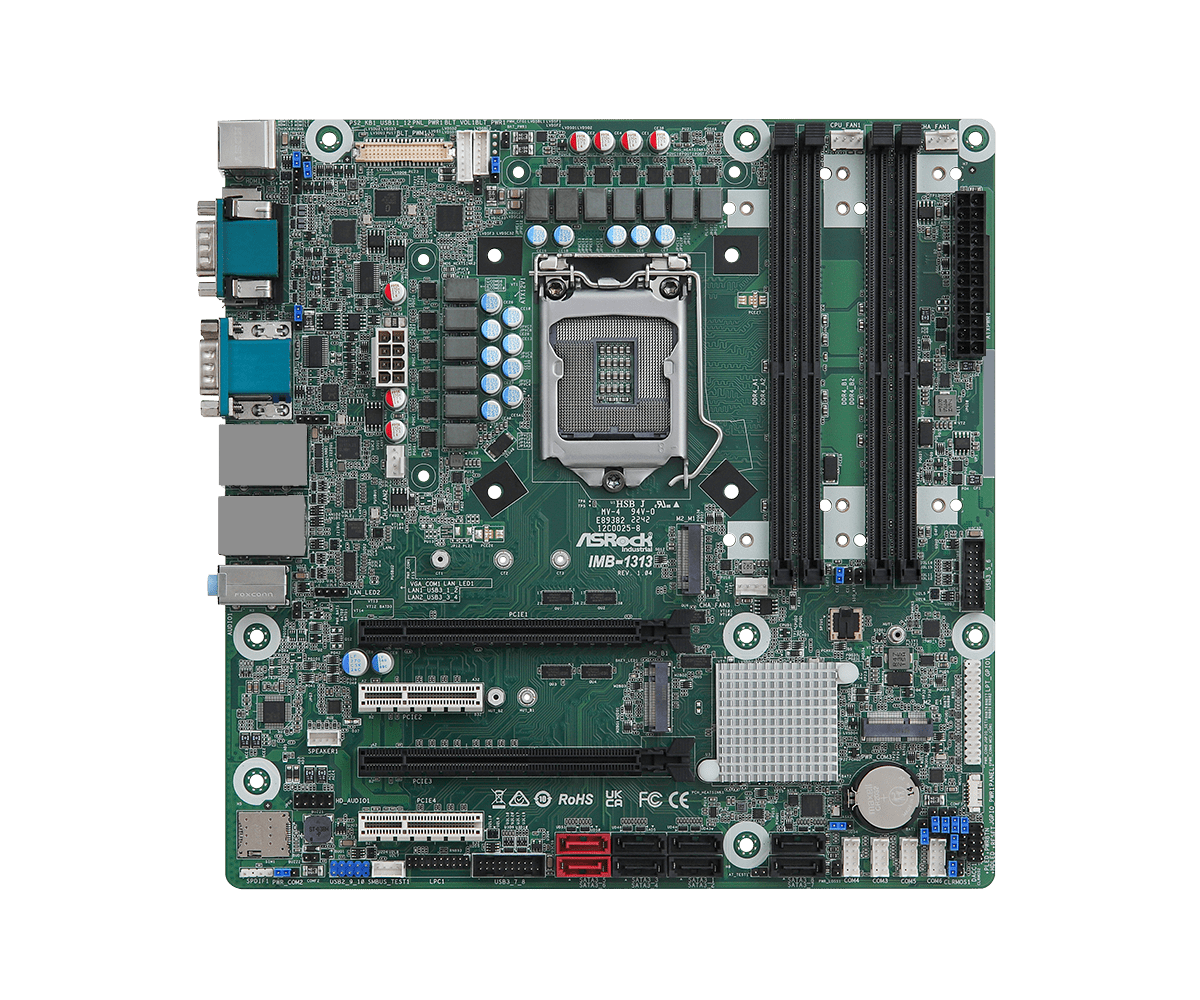

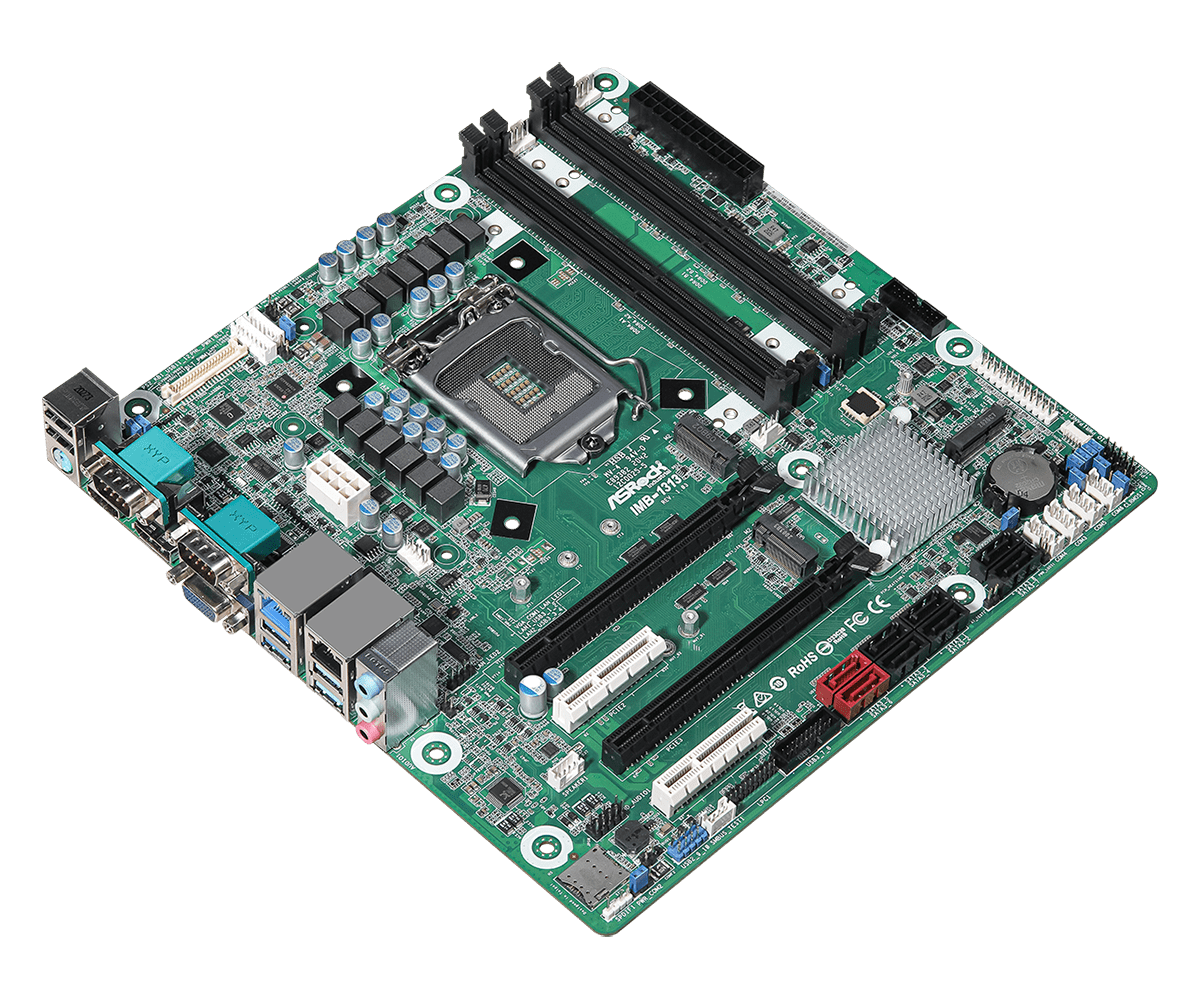

IMB-1313 Micro ATX Motherboard

  • Intel® 10th Gen (Comet lake-S) Core™ Processors with Q470E chipset
  • 4 x 288-pin Long-DIMM, Support Dual Channel DDR4 2933 (i9 / i7 CPU) / 2666 (i5 / i3 CPU) / 2400 (Pentium / Celeron CPU), up to 128GB
  • 1 x PCIe x16 Gen3, 1 x PCIe x8 Gen3, 2 x PCIe x4 Gen3
  • 4 x USB 3.2 Gen2, 4 x USB 3.2 Gen1, 4 x USB 2.0
  • 8 x SATA3, 1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B, 6 x COM
  • 1 x Intel 1 Gigabit LAN, 1 x Intel 2.5 Gigabit LAN
  • Support Triple display, 1 x DP 1.2, 1 x VGA, 1 x LVDS (eDP 1.4 optional), 1 x HDMI 2.0a
  • TPM 2.0 onboard
  • Supports Intel® vPro, AMT, RAID 0/1/5/10
  • ATX-PWR (24+8-pin)
产品型录
产品规格

Form Factor

Dimensions Micro-ATX (9.6-in x 9.6-in, 24.4 cm x 24.4 cm)

Processor System

CPU Intel® 10th Gen (Cometlake-S) Core™ Processors, up to 125 W
Chipset Intel® Q470E
Socket LGA1200
BIOS AMI SPI 256 Mbit

Memory

Technology Dual Channel DDR4 2933 / 2666 / 2400 MHz
- Intel Core i9 / i7 CPUs support DDR4 up to 2933 MHz
- Intel Core i5 / i3 CPUs support DDR4 up to 2666 MHz
- Intel Pentium / Celeron CPU support DDR4 up to 2400 MHz
Capacity 128GB
Socket 4 x 288-pin Long-DIMM

Graphics

Controller Intel® UHD Graphics
HDMI HDMI 2.0a, Max resolution up to 4096 x 2160 @60Hz
DisplayPort DisplayPort 1.2 , DP++
Max resolution up to 4096 x 2160@60Hz
VGA Max resolution up to 1920 x 1200@60Hz
LVDS Dual channel 24 bit up to 1920 x 1200@60Hz
MultiDisplay Triple Display
eDP eDP 1.4, Max resolution up to 4096 x 2304@60Hz

Expansion Slot

PCIe 2 x PCIe Gen3 Slots (PCIE1 / PCIE3: single at x16 (PCIE1); dual at x8 (PCIE1)/ x8 (PCIE3))
(PCIE1: Support riser card x8 / x8, x8 / x4 / x4)
2 x PCIe x4 Gen3
M.2 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
1 x M.2 (Key B, 3042 / 3052) with PCIe x1 / USB 3.2 Gen1 / USB 2.0 and SIM for 4G / 5G
SIM Socket 1 x SIM socket connected to M.2 Key B

Audio

Interface Realtek ALC887/ALC897 HD, High Definition Audio. Line-In / Line-Out / Mic-In

Ethernet

Controller/ Speed LAN1: Intel® I225LM with 10/100/1000/2500 Mbps
LAN2: Intel® I219LM with 10/100/1000 Mbps, support AMT / vPro
Connector 2 x RJ-45

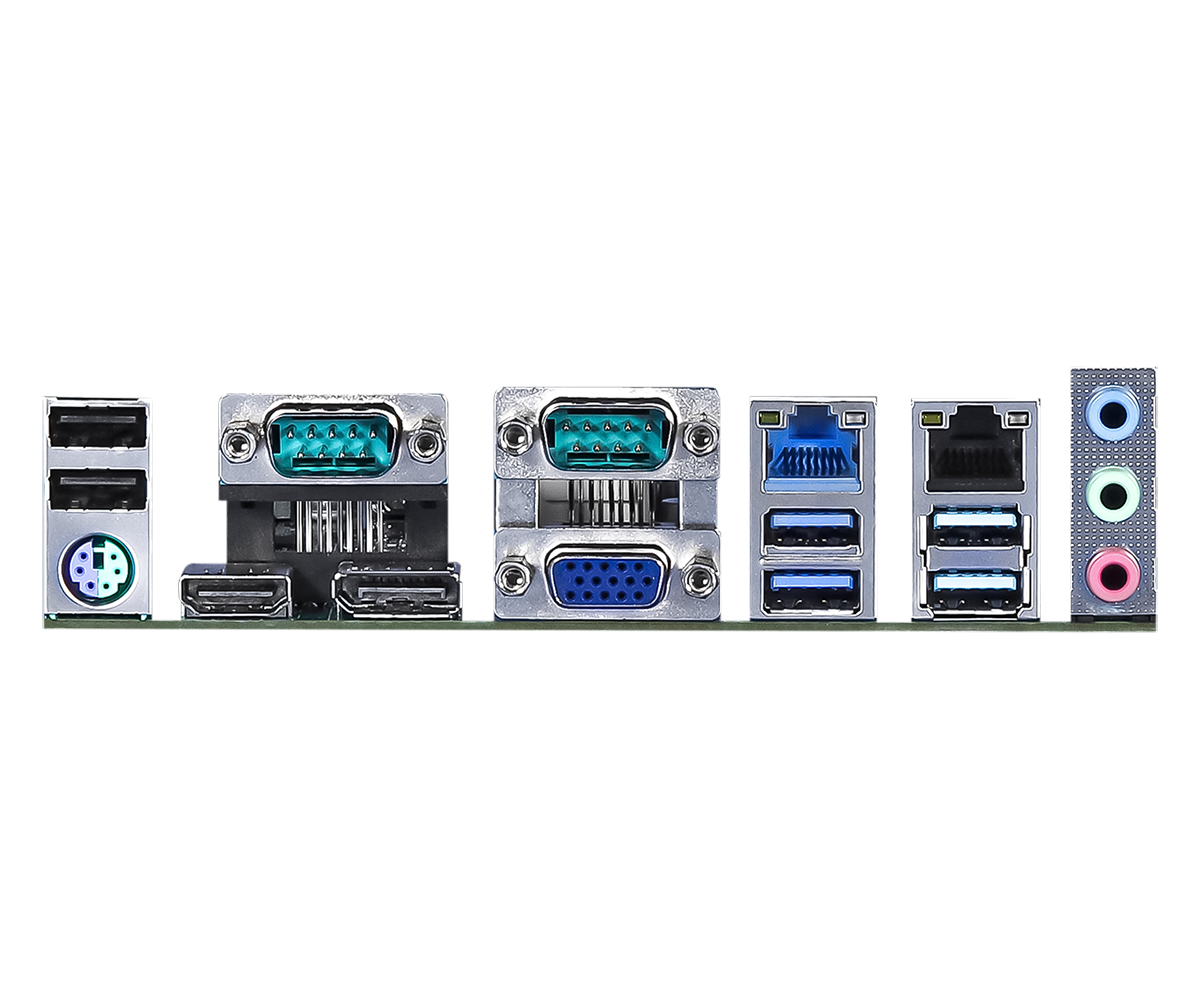

Rear I/O

HDMI 1 x HDMI 2.0a
DisplayPort 1 x DP 1.2
VGA 1
Ethernet 1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN
USB 4 x USB 3.2 Gen2, 2 x USB2.0
Audio 3 ( Line-In, Line-Out, Mic-In )
COM 2 x COM (RS-232/422/485)
PS2 1

Internal Connector

USB 4 x USB 3.2 Gen1 (2 x USB 3.2 Gen1 header)
6 x USB 2.0 (3 x 2.54 pitch header)
COM 4 x COM (RS-232)
Parallel 1 (shared with GPIO)
GPIO 8 x GPI, 8 x GPO (shared with LPT header)
TPM TPM 2.0 onboard
LVDS 1
Speaker Header 1
eDP 1 (BOM Option support)

Storage

M.2 1 x M.2 (Key M, 2242 / 2260 / 2280) with SATA and PCIe x4 for SSD
* Shared with SATA3_5 / SATA3_6 Ports
- When using M.2 PCIe x4 SSD, both SATA3_5 and SATA_6 Ports are disabled
- When using M.2 SATA SSD, only SATA3_5 Port is disabled, and SATA3_6 Port is available
SATA 8 x SATA3 (6Gb/s)
*Only SATA3_1 ~ SATA3_6 Ports support RAID function
RAID Intel® SATA RAID 0/1/5/10

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR ATX PWR (24+8-pin)
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

Accessories

Gift Package 3 x SCREW M2,D=5 (13G020302031AK)
1 x I/O Shield (13G020643000AK)
2 x SATA Data Cable (14G00010107DAK)
Bulk Package 3 x SCREW M2,D=5 (13G020302031AK)
1 x I/O Shield (13G020643000AK)

规格更改时恕不预先通知。品牌和产品名称归各自公司所有。不保证任何配置与产品实物规格相同。

支援下载

操作系统:

说明 操作系统 日期 下载
说明 [Beta] Intel Management Engine driver ver:14.0.39.1339 操作系统 Win 10 x 64 Date 2022-03-09 下载
说明 Realtek high definition audio driver ver:9065_FF00 操作系统 Win 10 x 64 Date 2020-12-01 下载
说明 Optane Driver ver:17.8.0.1065.2_PV 操作系统 Win 10 x 64 Date 2020-07-08 下载
说明 Intel Management Engine driver ver:14.0.30.1115_CORP_SW_DCH 操作系统 Win 10 x 64 Date 2020-07-08 下载
说明 Intel Lan driver ver:27.4 操作系统 Win 10 x 64 Date 2020-07-08 下载
说明 INF driver ver:10.1.18263.8193_Public 操作系统 Win 10 x 64 Date 2020-07-08 下载
说明 VGA driver ver:26.20.100.7926_Q0 操作系统 Win 10 x 64 Date 2020-07-06 下载
说明 SATA Floppy Image ver:17.8.0.1065.2_PV 操作系统 Win 10 x 64 Date 2020-07-06 下载
说明 Rapid Storage Technology Driver and utility ver:17.8.0.1065.2_PV 操作系统 Win 10 x 64 Date 2020-05-18 下载
版本 更新方式 / 如何更新 说明 日期 下载
版本 1.20 更新方式 / 如何更新 BIOS 说明 1. Enhance system compatibility
2. Update Intel LAN driver
日期 2022-01-17 下载
版本 1.20 更新方式 / 如何更新 DOS 说明 1. Enhance system compatibility
2. Update Intel LAN driver
日期 2022-01-17 下载
版本 1.20 更新方式 / 如何更新 Windows 说明 1. Enhance system compatibility
2. Update Intel LAN driver
日期 2022-01-17 下载
版本 1.10 更新方式 / 如何更新 BIOS 说明 First release 日期 2020-12-07 下载
版本 1.10 更新方式 / 如何更新 DOS 说明 First release 日期 2020-12-07 下载
版本 1.10 更新方式 / 如何更新 Windows 说明 First release 日期 2020-12-07 下载

档案格式为 PDF,如果您没有安装 Adob​​e Acrobat Reader,请至 Adobe下载。

说明 语言 日期 下载
说明 RAID Installation Guide 语言 English 日期 2020-11-02 下载
说明 User Manual 语言 English 日期 2020-08-06 下载
说明 Jumpers and headers setting guide 语言 English 日期 2020-06-23 下载
说明 日期 下载
下载 CPU Support List 日期 2020-09-29 下载
