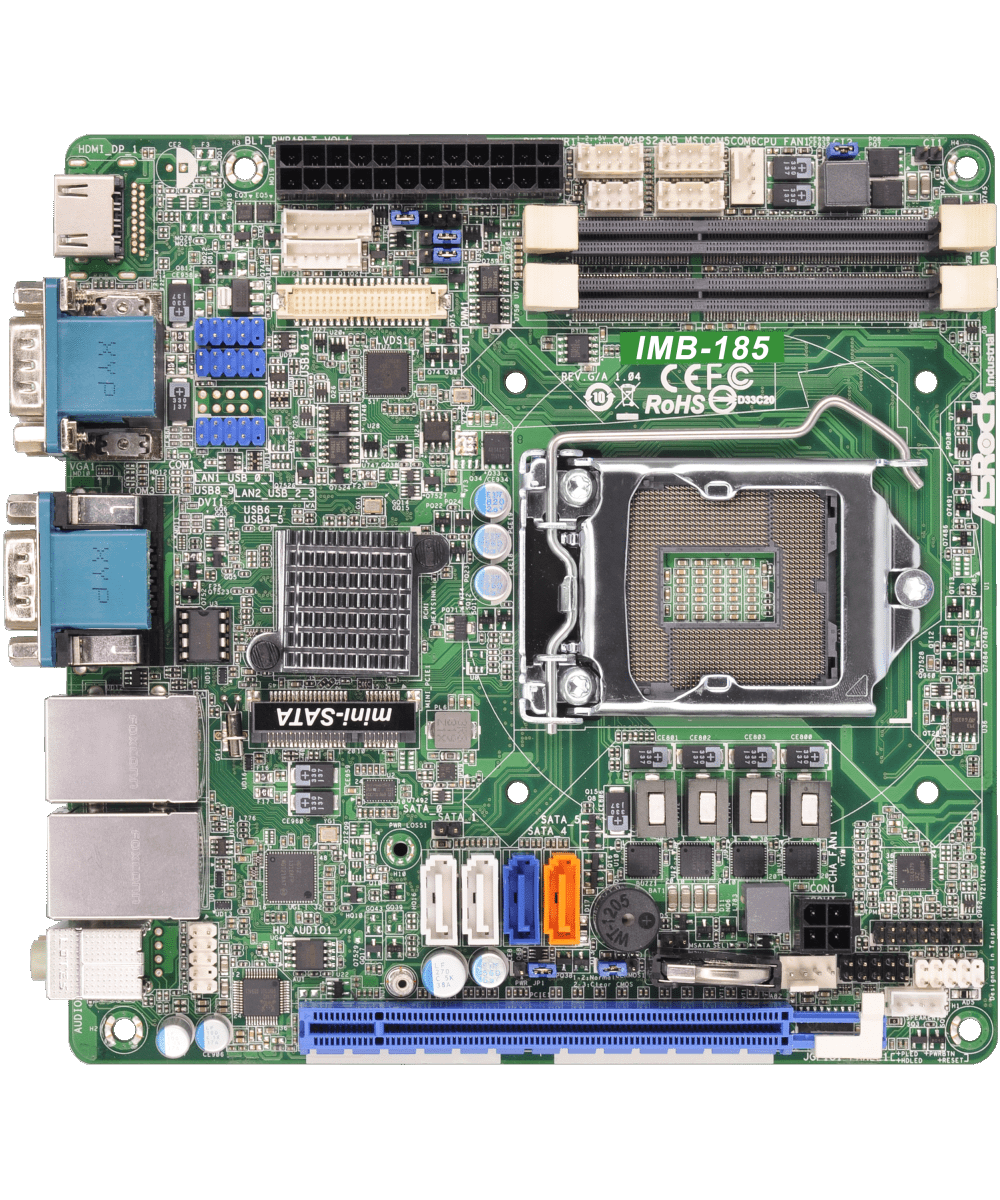

IMB-185 Mini-ITX Motherboard

  • Supports Intel® 4th Gen (Haswell-S) Core™ Processors (Socket 1150)
  • Supports Dual Channel DDR3 SO-DIMM 1333 / 1600, up to 16GB
  • 1 x HDMI, 1 x VGA, 1 x LVDS
  • 2 x USB 3.0, 8 x USB 2.0, 2 x SATA3, 2 x SATA2, 6 x COM
  • 1 x PCIe x16, 1 x mSATA
  • 2 x Intel® LAN
  • 1 x TPM Header
  • ATX PWR (4 + 24)
产品型录
产品规格

Form Factor

Dimensions Mini-ITX (6.7-in x 6.7-in)

Processor System

CPU Supports Intel® 4th Gen (Haswell-S) Core™ Processors
Chipset Intel® H81

Memory

Technology Dual Channel DDR3L 1333 / 1600MHz
Capacity 16GB
Socket 2 x SO-DIMM

Graphics

Controller Intel HD Graphics (By CPU)
HDMI Supports max resolution up to 4096 x 2304
VGA Supports max resolution 1920 x 1200
LVDS 1
MultiDisplay Dual Display

Expansion Slot

PCIe 1 x PCIe x16

Audio

Interface Realtek ALC888S, High Definition Audio. Mic-in / Line-out

Ethernet

Controller/ Speed LAN1: Intel® I217V with 10/100/1000 Mbps
LAN2: Intel® I210 with 10/100/1000Mbps

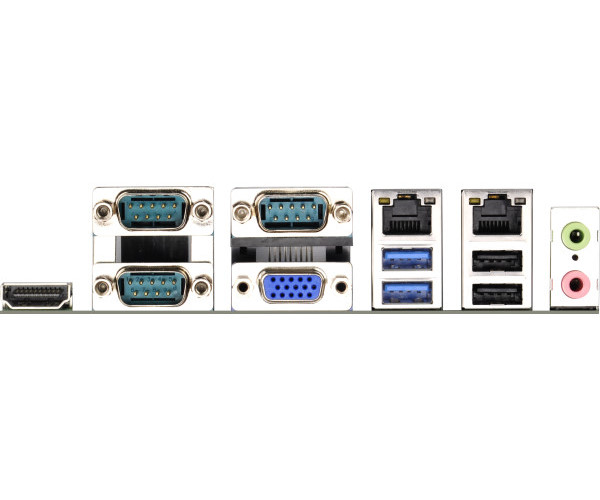

Rear I/O

HDMI 1
Ethernet 2
USB 2 x USB 3.0, 2 x USB 2.0
Audio 2 (Mic-in, Line-out)
COM 3 x COM (RS-232/422/485)
VGA 1

Internal Connector

USB 6 x USB 2.0
COM 4 x COM (RS-232), 2 x COM (RS-232/422/485)
GPIO 4 x GPI, 4 x GPO
TPM 1 x Header
LVDS 1
VGA 1
Speaker Header 1

Storage

SATA 2 x SATA3, 2 x SATA2
mSATA 1 x Full size with SATA2

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR ATX PWR (4 + 24)
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

Accessories

Gift Package 2 x SCREW FOR WIFI CARD (13G020305011AK)
1 x I/O Shield (13G020183000AK)
2 x SATA Data Cable (14G00010107DAK)
Bulk Package 2 x SCREW FOR WIFI CARD (13G020305011AK)
1 x I/O Shield (13G020183000AK)

规格更改时恕不预先通知。品牌和产品名称归各自公司所有。不保证任何配置与产品实物规格相同。

支援下载

操作系统:

说明 操作系统 日期 下载
说明 VGA driver ver:15.40.4.64.4256_win10 操作系统 Win 10 x 64 Date 2021-02-05 下载
说明 VGA driver ver:15.40.9.4285 操作系统 Win 10 Date 2021-02-05 下载
说明 Microsoft .NET Framework 4.5 操作系统 Win 7 x 64 , Win 7 Date 2021-02-04 下载
说明 Microsoft .NET Framework 4.5 操作系统 Win 7 x 64 , Win 7 Date 2021-02-04 下载
说明 Intel USB 3.0 driver ver:2.0.0.102 操作系统 Win 7 x 64 , Win 7 Date 2020-06-01 下载
说明 COM Port driver ver:1.0.2011.1109 操作系统 Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-06-01 下载
说明 Lan driver ver:18.5_PV 操作系统 Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-06-01 下载
说明 Intel Smart Connect driver ver:4.2.41.2633 操作系统 Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-06-01 下载
说明 Intel Management Engine driver ver:9.5.14.1724_1.5M 操作系统 Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-06-01 下载
说明 INF driver ver:9.4.0.1026 操作系统 Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-06-01 下载
说明 INF driver ver:10.1.1.8 操作系统 Win 10 x 64 , Win 10 Date 2020-06-01 下载
说明 Realtek high definition audio driver ver:7560 操作系统 Win 10 x 64 , Win 10 Date 2020-06-01 下载
说明 Realtek high definition audio driver ver:7058 操作系统 Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-06-01 下载
说明 VGA driver ver:15.31.12.3204 操作系统 Win 8 , Win 7 Date 2020-05-27 下载
说明 Intel Rapid Storage Technology driver and utility ver:14.5.0.1081 操作系统 Win 10 x 64 , Win 10 Date 2020-05-27 下载
说明 Intel Rapid Storage Technology driver and utility ver:12.8.0.1016 操作系统 Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-27 下载
说明 SATA Floppy Image ver:12.8.0.1016 操作系统 Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-27 下载
说明 Intel Lan driver ver:20.2 操作系统 Win 10 x 64 , Win 10 Date 2020-05-27 下载
说明 Intel Management Engine driver ver:11.0.0.1158_1.5M 操作系统 Win 10 x 64 , Win 10 Date 2020-05-27 下载
说明 INF driver ver:10.1.1.8 操作系统 Win 10 x 64 , Win 10 Date 2020-05-27 下载
说明 Realtek high definition audio driver ver:9088_FF00 操作系统 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2021-01-29 下载
版本 更新方式 / 如何更新 说明 日期 下载
版本 2.00 更新方式 / 如何更新 BIOS 说明 1. Update audio codec
2. Update Intel microcode
3. Update TPM2.0 module
4. Improve HDD compatibility
日期 2021-01-29 下载
版本 2.00 更新方式 / 如何更新 DOS 说明 1. Update audio codec
2. Update Intel microcode
3. Update TPM2.0 module
4. Improve HDD compatibility
日期 2021-01-29 下载
版本 2.00 更新方式 / 如何更新 Windows 说明 1. Update audio codec
2. Update Intel microcode
3. Update TPM2.0 module
4. Improve HDD compatibility
日期 2021-01-29 下载

档案格式为 PDF,如果您没有安装 Adob​​e Acrobat Reader,请至 Adobe下载。

说明 语言 日期 下载
说明 Jumpers and headers setting guide 语言 English 日期 2020-05-27 下载
说明 User Manual 语言 English 日期 2020-05-27 下载
说明 日期 下载
下载 CPU Support List 日期 2020-06-18 下载
