iBOX-V1000M Fanless Embedded BOX PC
- AMD Ryzen™ Embedded V-Series V1605B
- 2 x 260-pin SO-DIMM up to 32GB DDR4 2400 MHz with ECC support (16GB per DIMM)
- 3 x USB 3.2 Gen2, 2 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E, 1 x COM, 1 x SATA3
- 2 x Realtek 1 Gigabit LAN
- Supports triple display, 1 x HDMI 2.0, 2 x DP 1.2a
- TPM Header
- 12V DC-In
- 171.8 x 150 x 71.5 mm, Fanless Barebone
Specification
Processor System
| CPU | AMD Ryzen™ Embedded V-Series (V1605B, QC, up to 3.6GHz) |
|---|---|
| Chipset | SoC |
| BIOS | AMI SPI 64 Mbit |
Memory
| Technology | Dual Channel DDR4 2400 MHz |
|---|---|
| Capacity | 32 GB (16 GB per DIMM) |
| Socket | 2 x 260-pin SO-DIMM |
Graphics
| Controller | AMD Radeon™ Vega 8 Graphics |
|---|---|
| HDMI | HDMI 2.0 Max resolution up to 4096x2160@60Hz |
| DisplayPort | DisplayPort 1.2a Max resolution up to 4096x2160@60Hz |
| MultiDisplay | Triple Display |
Expansion Slot
| M.2 | 1 x Key E(2230) with PCIex1 and USB2.0 for Wireless |
|---|
Audio
| Interface | Realtek ALC233, High Definition Audio, Line-out, Mic-in |
|---|
Ethernet
| Controller/ Speed | 2 x Realtek RTL8111G with 10/100/1000 Mbps |
|---|---|
| Connector | 2 x RJ-45 |
Front I/O

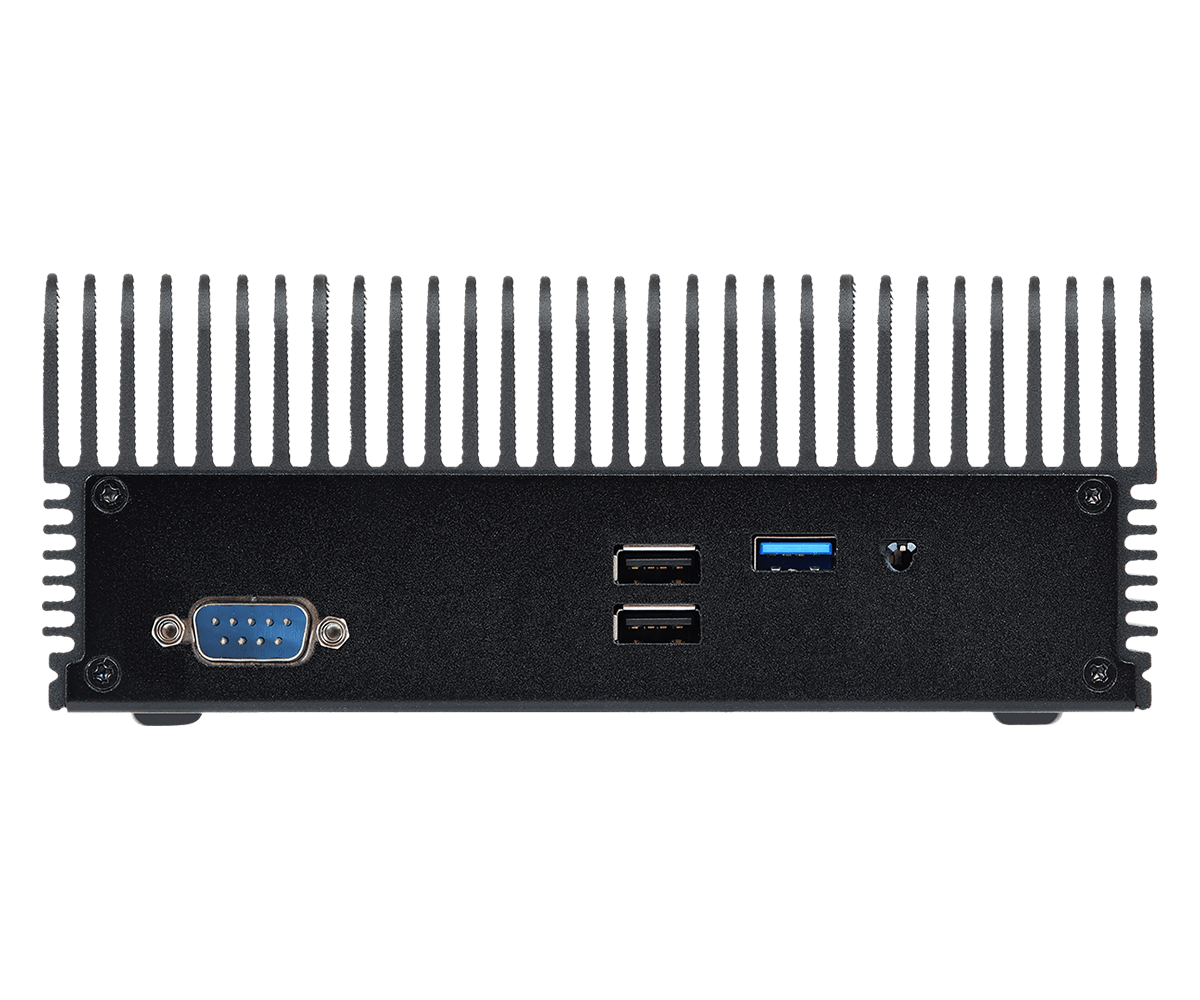

| USB | 1 x USB 3.2 (Gen1) + 2 x USB 2.0 |
|---|---|
| COM | 1 x COM(RS-232/422/485) |
| Audio | 1 x Mic-In & Line-Out Combo Jack |
Rear I/O

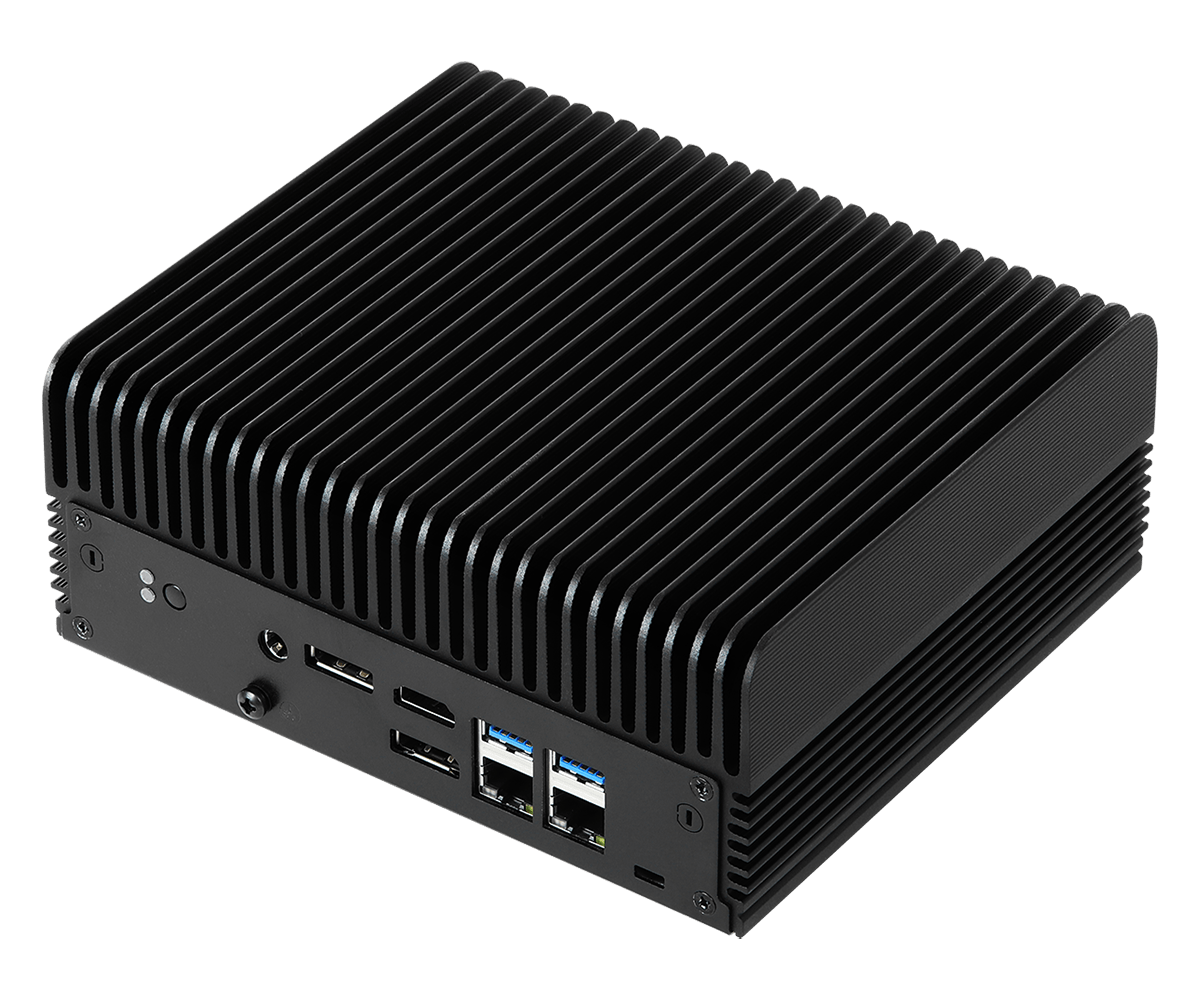

| HDMI | 1 x HDMI 2.0 |
|---|---|
| DisplayPort | 2 x DP 1.2a |
| Ethernet | 2 x 1 Gigabit LAN |
| USB | 2 x USB 3.2(Gen2) |
| DC Jack | 1 |
Storage
| M.2 | 1 x M.2 (Key M, 2242/2260/2280) with PCIex4 and SATA3 for SSD *M.2 Key M 2280(optional support, by bracket) |
|---|---|
| SATA | 1 x SATA3 (6Gb/s), SATA3_1 shared with M.2_Key M |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments 0,1,2....255sec |
Power Requirements
| Input PWR | 1 x 12V/96W Power Adapter |
|---|---|
| Power On | AT/ATX supported -AT: Direct PWR on as power input ready -ATX:Press button to PWR on after power input ready |
Environment
| Operating Temp | -20ºC ~ 40ºC (With extended temp. peripherals) |
|---|---|
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 10% ~ 90% |
| Storage Humidity | 10% ~ 90% |
Mechanical
| Construction | Aluminum housing |
|---|---|
| Mounting | VESA mounting bracket, Wall mounting |
| Dimensions (L x W x H) | 171.8 x 150 x 71.5 mm |
| Weight | Net Weight: 2.2kg |
Accessories
| Bulk Package | 2 x SCREW M2,D=5 (13G020302031AK) |
|---|---|
| Option | 1 x SSD & Memory cooling kit (13G07P014000AI) *Please contact regional Sales for this inquiry |
Others
| OS Support | Windows 10 |
|---|---|
| Certifications | CE, FCC Class A |
| Packing List | 1 x 12V/96W Power Adapter 1 x Screw Package 1 x Product DVD 1 x VESA mounting bracket |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Support
OS:
| Description | Information | OS | Date | Download | |||||
|---|---|---|---|---|---|---|---|---|---|
| Description | VGA driver ver:21.20.16.210706a-369919c | Information | OS | Win 10 x 64 | Date | 2021-11-17 | Download | ||
| Description | Realtek Teaming driver ver:2.0.3.0 | Information | OS | Win 10 x 64 | Date | 2020-05-08 | Download | ||
| Description | Realtek Lan driver ver:10031_10232018 | Information | OS | Win 10 x 64 | Date | 2020-05-08 | Download | ||
| Description | Realtek high definition audio driver ver:8492_FF00 | Information | OS | Win 10 x 64 | Date | 2020-05-08 | Download | ||
| Description | VGA driver ver:18.50.33.01.190522a | Information | OS | Win 10 x 64 | Date | 2020-05-08 | Download |
| Version | Update BIOS Under / How to Update | Description | Information | Date | Download | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Version | 1.60 | Update BIOS Under / How to Update | BIOS | Description | Enhance memory compatibility | Information | Date | 2021-12-02 | Download | ||
| Version | 1.60 | Update BIOS Under / How to Update | Windows | Description | Enhance memory compatibility | Information | Date | 2021-12-02 | Download | ||
| Version | 1.50 | Update BIOS Under / How to Update | BIOS | Description | 1. Improve system compatibility 2. Update Realtek Lan FW |
Information | Date | 2021-06-17 | Download | ||
| Version | 1.50 | Update BIOS Under / How to Update | Windows | Description | 1. Improve system compatibility 2. Update Realtek Lan FW |
Information | Date | 2021-06-17 | Download | ||
| Version | 1.40 | Update BIOS Under / How to Update | BIOS | Description | 1. Optimize fan curve setting 2. Improve SMI protocol |
Information | Date | 2020-06-09 | Download | ||
| Version | 1.40 | Update BIOS Under / How to Update | Windows | Description | 1. Optimize fan curve setting 2. Improve SMI protocol |
Information | Date | 2020-06-09 | Download | ||
| Version | 1.10 | Update BIOS Under / How to Update | Windows | Description | First released. | Information | Date | 2020-05-06 | Download |
The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.
| Description | Language | Date | Download | ||||
|---|---|---|---|---|---|---|---|
| Description | User Manual | Language | English | Date | 2024-11-06 | Download | |
| Description | Quick Installation Guide | Language | English | Date | 2020-05-06 | Download |
