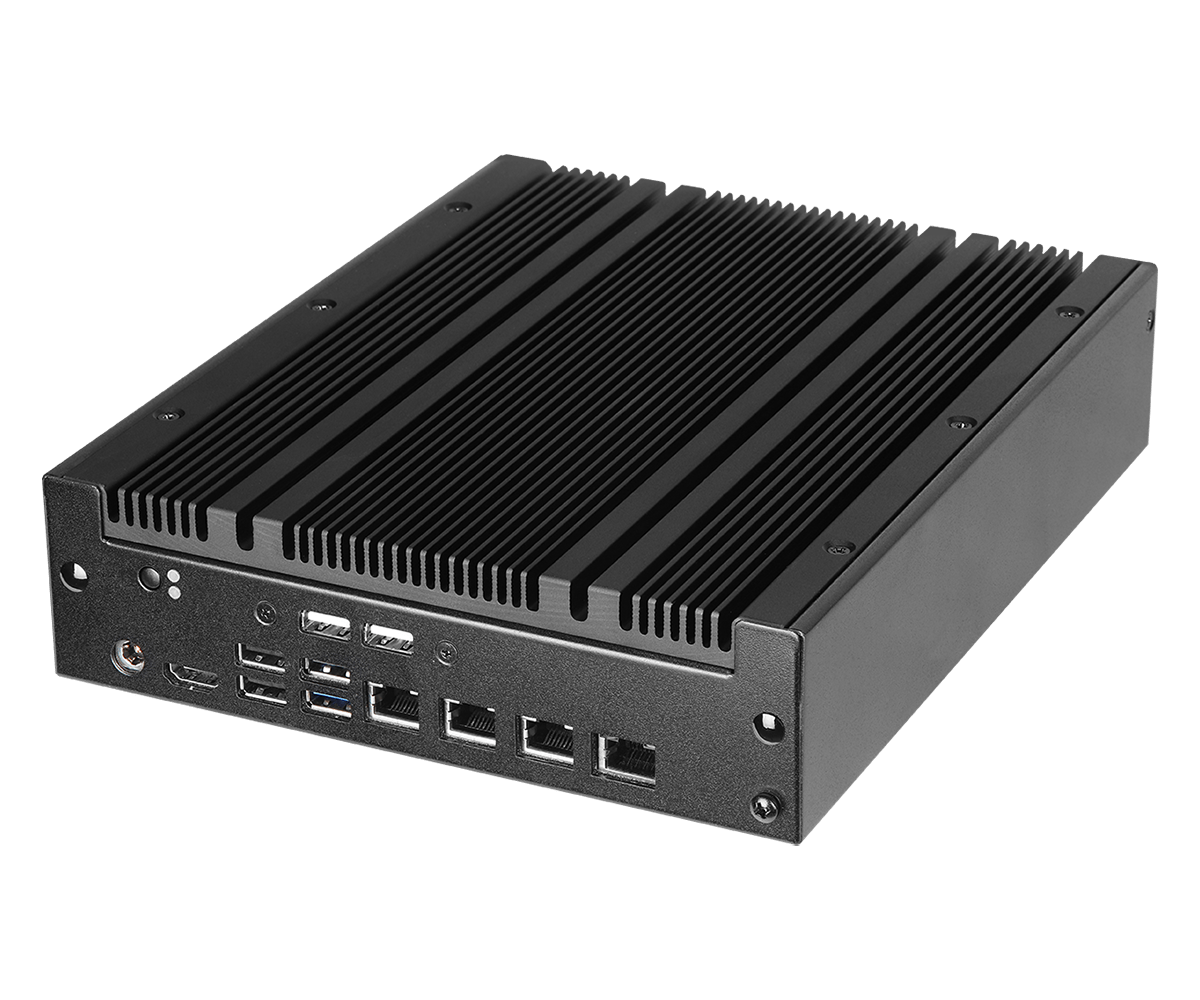

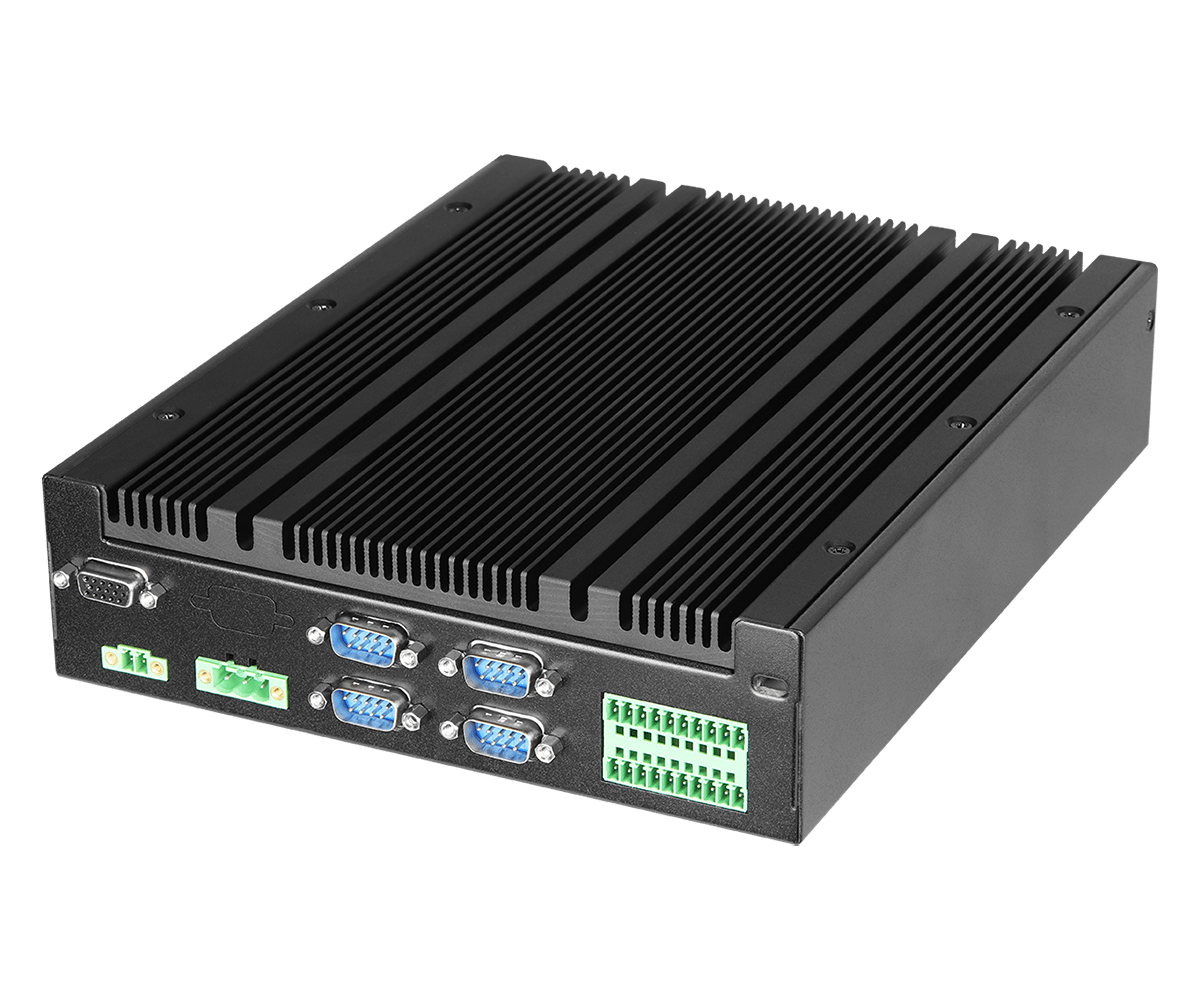

iBOX-1000D R2 Fanless Embedded BOX PC

  • Intel® Celeron® Processor J1900
  • 2 x 204-pin SO-DIMM up to 16GB DDR3L 1333 MHz (8GB per DIMM)
  • 1 x USB 3.1 Gen 1, 5 x USB 2.0, 2 x M.2 Key M, 4 x COM, 1 x SATA2, 8 x GPI, 8 x GPO
  • 2 x Intel 1 Gigabit LAN, 2 x Realtek 1 Gigabit LAN
  • Supports dual display, 1 x HDMI 1.4a, 1 x VGA
  • 1 x 12V/60W AC-DC power brick adapter
  • 200 x 244 x 55.1mm, Fanless Barebone
Datasheet
Specification

Form Factor

Dimensions 200 x 244 x 55.1mm (WxDxH)

Processor System

CPU Intel® Celeron® Processor J1900, QC, up to 2.42 GHz
Chipset SoC
BIOS AMI SPI 64 Mbit

Memory

Technology Dual Channel DDR3L 1333 MHz
Capacity 16GB (8GB per DIMM)
Socket 2 x 204-pin SO-DIMM

Graphics

Controller Intel® Gen7 Graphic DX 11
HDMI HDMI 1.4a
Max resolution up to 1920 x 1200@24Hz
VGA Max resolution up to 1920x1200@60Hz
MultiDisplay Dual Display

Expansion Slot

mini-PCIe 1 x Full/Half mini-PCIe with PCIe x1 and shared USB 2.0
M.2 1 x M.2 (Key M, 2260) with PCIe x1 (Optional for VPU)

Ethernet

Controller/ Speed LAN1: 1 x Realtek RT81119I with 10/100/1000 Mbps
LAN2: 1 x Realtek RT81119I with 10/100/1000 Mbps
LAN3: 1 x Intel® I210IT with 10/100/1000 Mbps
LAN4: 1 x Intel® I210IT with 10/100/1000 Mbps
(Optional: LAN4 supports POE function by ASRI PSE module)
Connector 4 x RJ-45

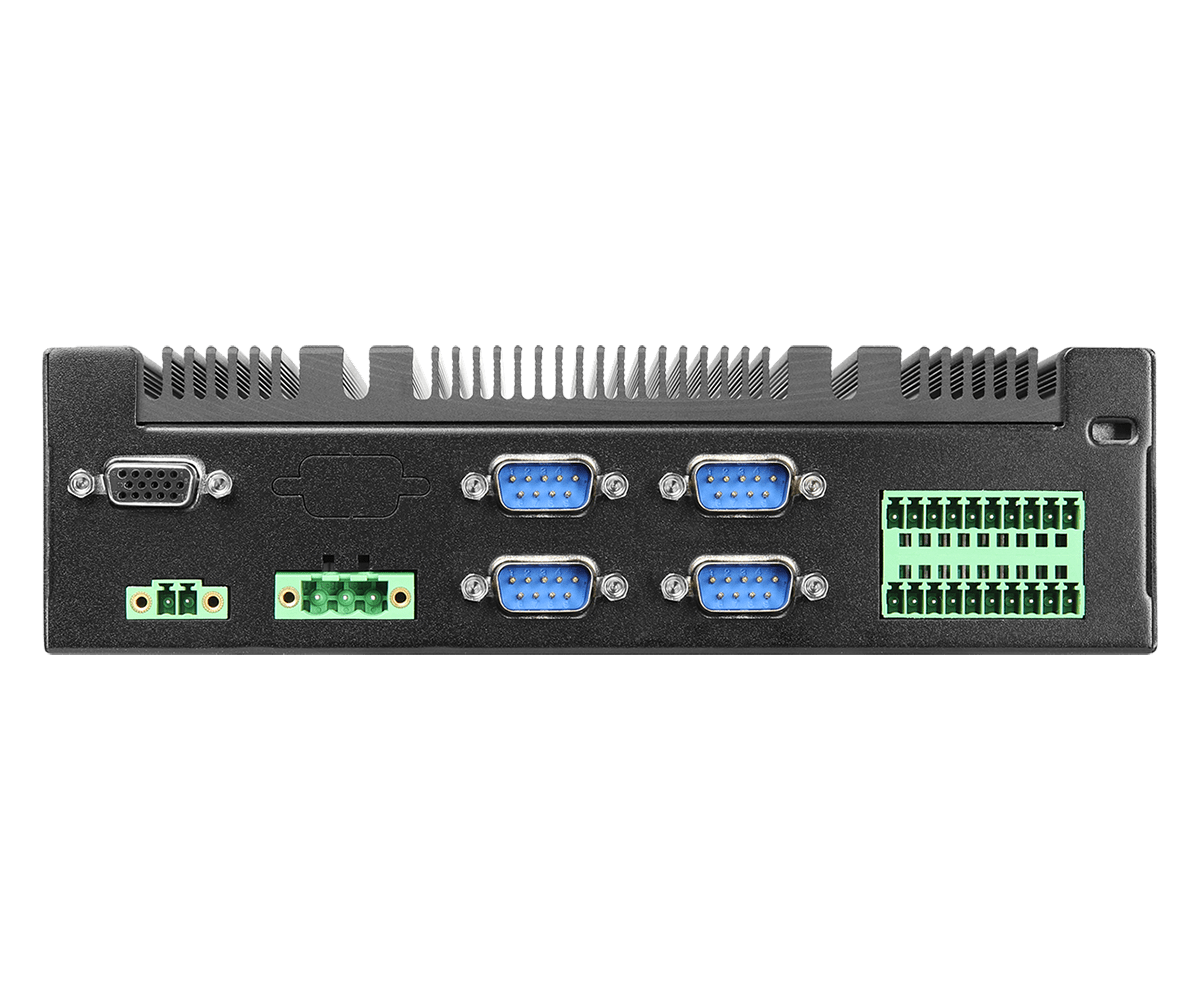

Front I/O

VGA 1
COM 2 x COM (RS-233/422/485), 2 x COM (RS-232)
GPIO(Phoenix) 8 x GPI, 8 x GPO
Power input (Phoenix) 3pin
Reset (Phoenix) 2pin

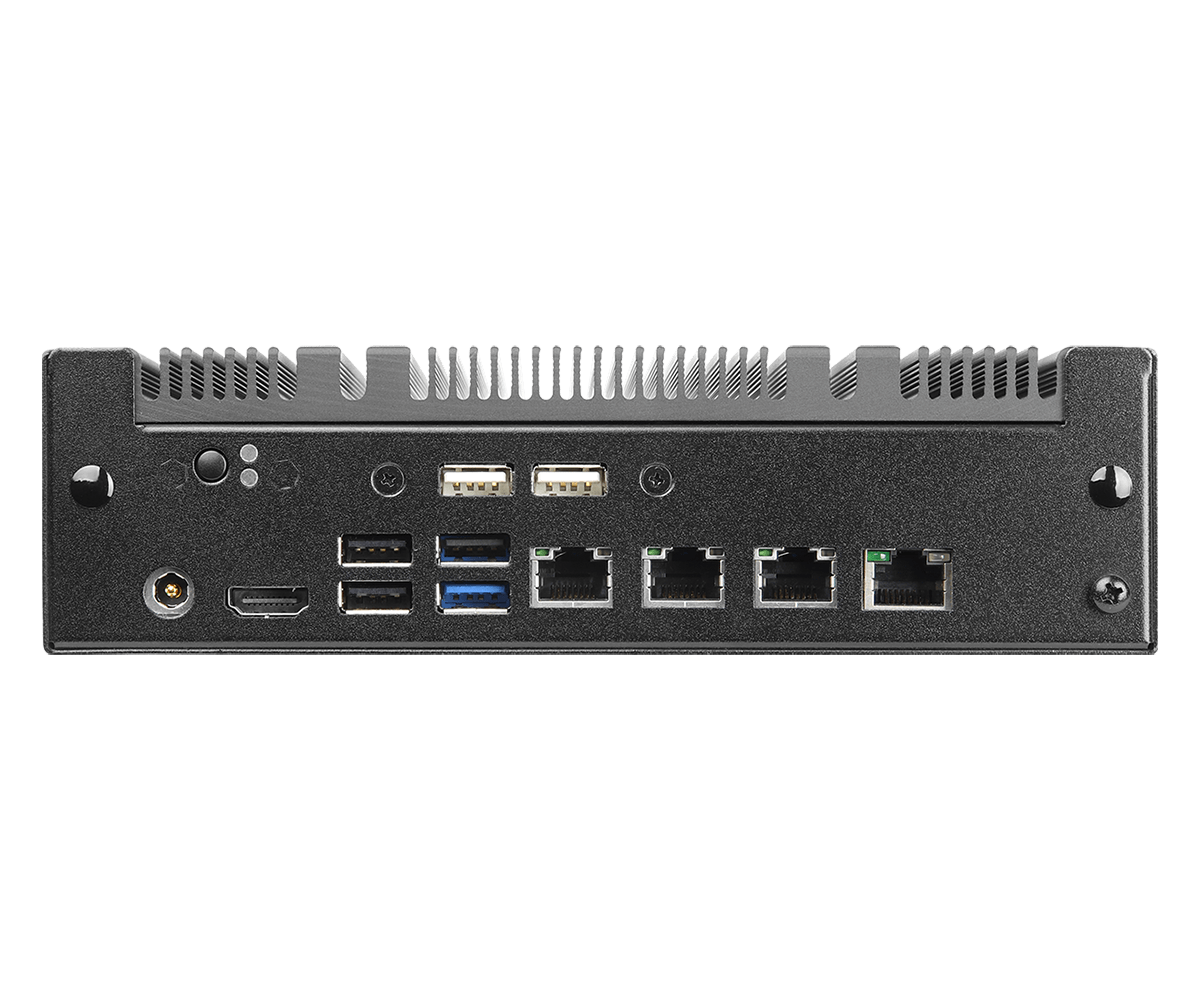

Rear I/O

HDMI 1 x HDMI 1.4a
Ethernet 4 x 1 Gigabit LAN
USB 1 x USB 3.1 (Gen1), 5 x USB 2.0

Storage

M.2 1 x M.2 (Key M, 2242/2260/2280) with SATA2 for SSD
SATA 1 x SATA2 (3Gb/s)

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 1 x 12V/60W AC-DC power brick adapter
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 50ºC
Storage Temp -40° C – 85° C
Operating Humidity 10% ~ 90%
Storage Humidity 10% ~ 90%

Mechanical

Construction Aluminum cover + Metal chassis
Mounting VESA mounting, Wall mounting
Dimensions (W x H x D) 200 x 244 x 55.1mm
Weight Net Weight:1.7kg

Others

OS Support Windows 7
Certifications CE, FCC Class A
Packing List 1 x 12V/60W Power Adapter
1 x Screw Package
1 x Product DVD
1 x VESA mounting bracket

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

Support

OS:

Description OS Date Download
Description [Beta] VGA driver ver:15.33.37.64.4242_PV OS Win 10 Date 2020-07-02 Download
Description [Beta] Intel Trusted Execution Engine ver:1.1.4.1145 OS Win 10 Date 2020-07-02 Download
Description [Beta] Realtek Lan driver ver:10006 OS Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 Date 2020-05-08 Download
Description [Beta] Intel USB 3.0 driver ver:3.0.0.19 OS Win 8 Date 2020-05-08 Download
Description [Beta] Realtek high definition audio driver ver:7560 OS Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 Date 2020-05-08 Download
Description [Beta] VGA driver ver:15.33.13.3408 OS Win 8.1 x 64 , Win 8 x 64 Date 2020-05-08 Download
Description [Beta] Lan driver ver:20.7 OS Win 8.1 x 64 , Win 8 x 64 , Win 7 x 64 Date 2020-05-08 Download
Description [Beta] COM Port driver ver:170721 OS Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 Date 2020-05-08 Download
Description [Beta] Intel Sideband Fabric Device ver:1.70.305.16316 OS Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 Date 2020-05-08 Download
Description [Beta] VGA driver ver:36.15.0.1091 OS Win 7 x 64 Date 2020-05-08 Download
Description [Beta] Realtek Teaming driver ver:2.0.4.0 OS Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 Date 2020-05-08 Download
Description [Beta] Realtek Lan driver ver:7121 OS Win 8 , Win 7 x 64 Date 2020-05-08 Download
Description [Beta] Intel Trusted Execution Engine ver:1.1.0.1089 OS Win 7 x 64 Date 2020-05-08 Download
Description [Beta] VGA driver ver:10.18.10.5059 OS Win 8.1 , Win 8 Date 2020-05-08 Download
Description [Beta] INF driver ver:10.1.1.8 OS Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 Date 2020-05-08 Download
Description ASRock 3TB+ Unlocker utility ver:1.1.1 OS Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 Date 2020-05-08 Download
Version Update BIOS Under / How to Update Description Date Download
Version 1.20 Update BIOS Under / How to Update BIOS Description Improve system compatibility Date 2020-05-06 Download
Version 1.20 Update BIOS Under / How to Update DOS Description Improve system compatibility Date 2020-05-06 Download
Version 1.20 Update BIOS Under / How to Update Windows Description Improve system compatibility Date 2020-05-06 Download
Version 1.10 Update BIOS Under / How to Update BIOS Description Enhance system compatibiltiy Date 2020-05-06 Download
Version 1.10 Update BIOS Under / How to Update DOS Description Enhance system compatibiltiy Date 2020-05-06 Download
Version 1.10 Update BIOS Under / How to Update Windows Description Enhance system compatibiltiy Date 2020-05-06 Download
Version 1.00 Update BIOS Under / How to Update BIOS Description First released. Date 2020-05-06 Download
Version 1.00 Update BIOS Under / How to Update DOS Description First released. Date 2020-05-06 Download
Version 1.00 Update BIOS Under / How to Update Windows Description First released. Date 2020-05-06 Download

The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.

Description Language Date Download
Description Jumpers and headers setting guide Language English Date 2020-05-06 Download
Description User Manual Language English Date 2020-05-06 Download
