athena A2 Kit

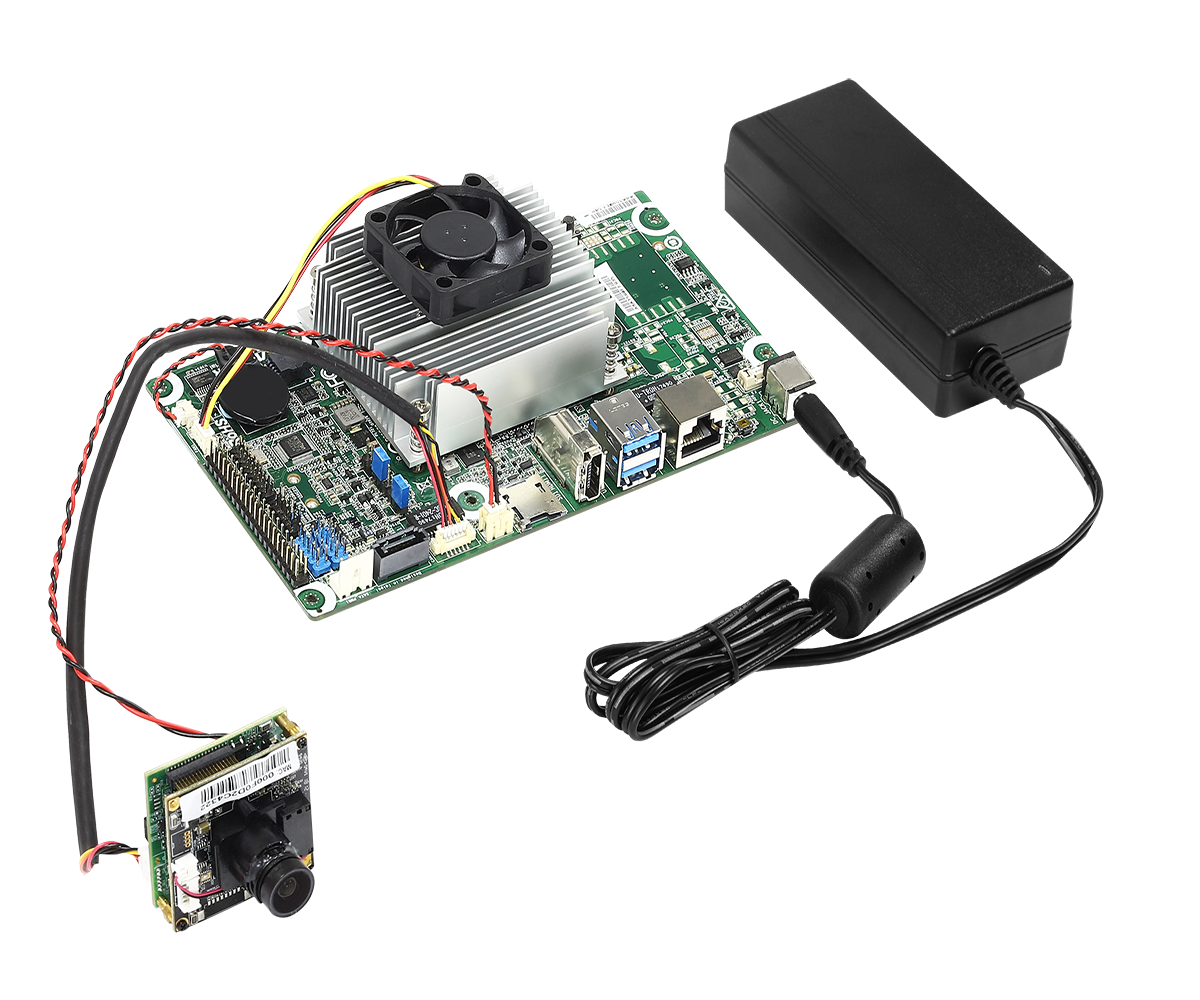

athena A2 Kit AIoT Kit

  • Intel® Apollo Lake J3455 Processor
  • 1 x IP camera (2MP, 1080P@30fps, H.264)
  • 1 x Movidius Myriad X (Supports OpenVINO™) (Optional)
  • Supports LPDDR4 2400MHz 4GB, up to 8GB
  • 2 x USB 3.2 Gen1, 1 x M.2 Key B, 1 x M.2 Key M, 1 x M.2 Key E
  • 2 x Realtek Gigabit LAN
  • 1 x HDMI 1.4b
  • 1 x micro SD card slot
  • 1 x 32GB eMMC
  • 1 x micro SIM socket
  • TPM 2.0 onboard IC
  • 12V DC-In/ PoE (PD) with 25.5W (Optional)
Datasheet
Specification

Form Factor

Dimensions 6.5-in x 3.8-in

Processor System

CPU Intel® Atom Apollo Lake J3455 processor
Chipset SoC
BIOS AMI SPI 128 Mbit

Memory

Technology Onboard LPDDR4 2400 MHz
Capacity 4 GB, up to 8GB

Graphics

Controller SoC integrated graphics
HDMI HDMI 1.4b
Max resolution up to 3840x2160@30Hz

Expansion Slot

M.2 1 x M.2 (Key E, 2230) with PCIe x1 and USB 2.0 for Wireless
SIM Socket 1 x micro SIM Socket connected to M.2 Key B 3042/3052

Ethernet

Controller/ Speed LAN: 1 x Realtek RTL8111G/RTL8111H-CG with 10/100/1000 Mbps (PoE (PD) with 25.5W)
LAN: 2 x Realtek RTL8111G/RTL8111H-CG with 10/100/1000 Mbps (IP Camera Header)
Connector 1 x RJ-45

Rear I/O

HDMI 1 x HDMI 1.4b
Ethernet 1 x 1 Gigabit LAN, PoE (PD) with 25.5W (Optional)
USB 2 x USB 3.2 (Gen1)
DC Jack 1
others 1 x Micro SD connector

Internal Connector

USB 2 x USB 2.0 header
TPM TPM 2.0 onboard IC
IP CAM interface LAN signal 1x6 header
Power 1x2 header
SATA PWR Output 1 x 4-pin SATA Power
40-pin GP-bus 40 pin General Purpose bus

Storage

M.2 1 x M.2 (Key B, 3042/3052) with PCIe x1 and USB 3.2 Gen1, USB 2.0
1 x M.2 (Key M, 2280) with PCIe x2
SATA 1 x SATA3 (6Gb/s)
eMMC Onboard eMMC 32GB

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 12V DC-In (DC Jack)
PoE (PD) with 25.5W (LAN Port) (Optional)
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 50ºC
Storage Temp -40° C – 85° C
Operating Humidity 10% ~ 90%
Storage Humidity 10% ~ 90%

Others

IP camera 2MP, 1080P @30fps, H.264
Movidius 1 x M.2 (Key M, 2280) Myriad X (Supports OpenVINO™) (Optional)
Adapter 1 x AC-in 100~240V, DC-out 12V
OS Support Linux Ubuntu 16.04
Accessories 1 x IP Camera Signal Cable
1 x IP Camera Power Cable
1 x SATA Data Cable
1 x SATA Power Cable
1 x Heatsink Fan
8 x Standoffs

Accessories

Gift Package 3 x SCREW M2,D=5 (13G020302031AK)
1 x IPC SINK 71*64*25.8 (13G070454000AK)
1 x SYSTEM FAN 12V7000R (13G070486000AI)
1 x PH 1.25 1*6P;L=300mm (14G000021110AI)
1 x PH 2.0 1*2P;L=300mm (14G000021210AI)
1 x SATA Data Cable (14G00010107DAK)
1 x SATA Power Cable (14G000100410AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

Support

OS:

Description OS Date Download
Description [Beta] Realtek Lan driver ver:10047_02232021 OS Win 10 x 64 Date 2021-04-08 Download
Description VGA driver ver:24.20.100.6094 OS Win 10 x 64 Date 2020-05-08 Download
Description Intel iRMT ver:1.1.50.493 OS Win 10 x 64 Date 2020-05-08 Download
Description Intel Trusted Execution Engine ver:3.1.50.2222 OS Win 10 x 64 Date 2020-05-08 Download
Description Intel Serial IO driver ver:30.100.1631.03_PV OS Win 10 x 64 Date 2020-05-08 Download
Description INF driver ver:10.1.1.34 OS Win 10 x 64 Date 2020-05-08 Download
Description Realtek Lan driver ver:10018 OS Win 10 x 64 Date 2020-05-08 Download

The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.

Description Language Date Download
Description User Manual Language English Date 2020-09-04 Download
Description Quick Installation Guide Language English Date 2020-09-04 Download
