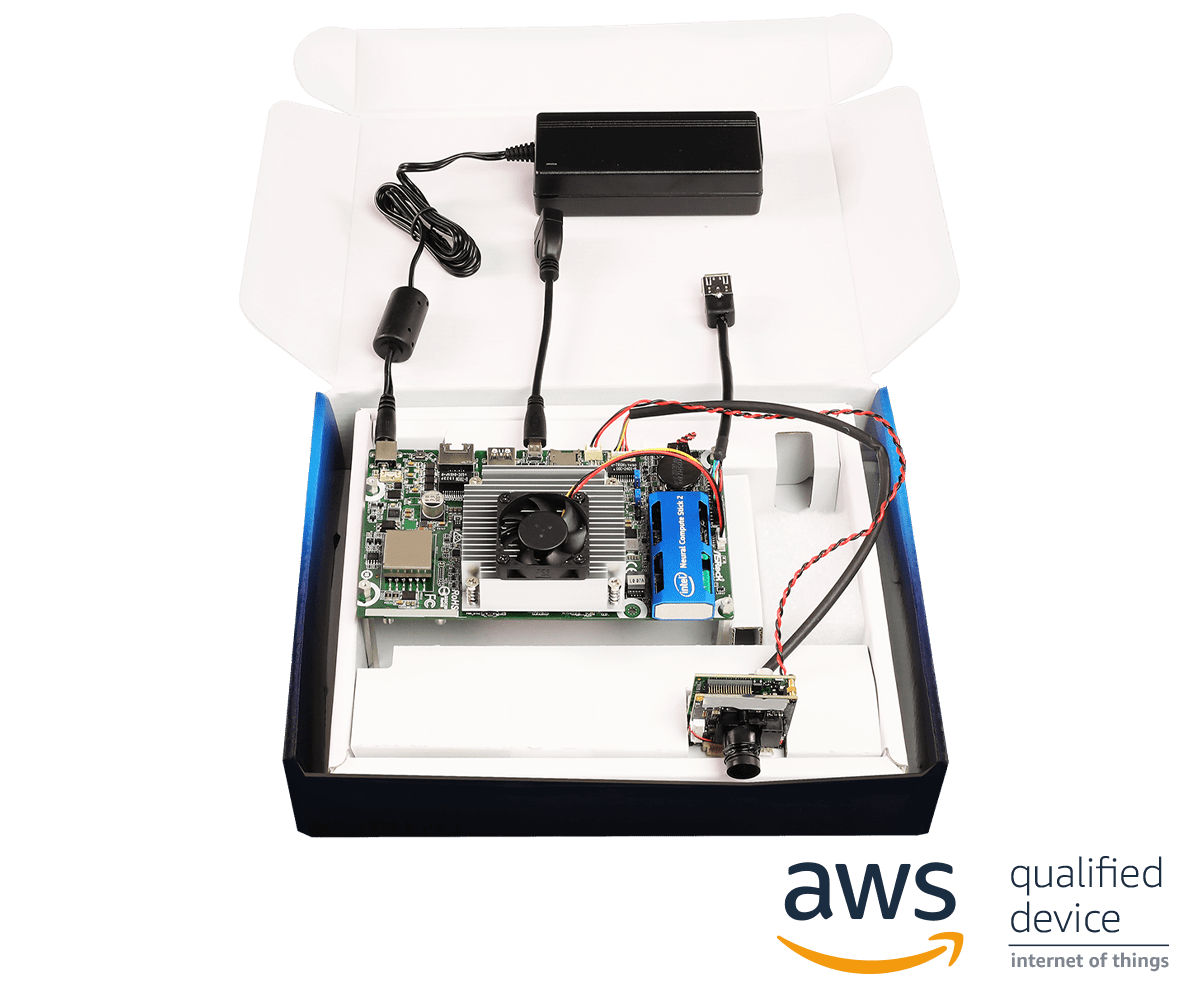

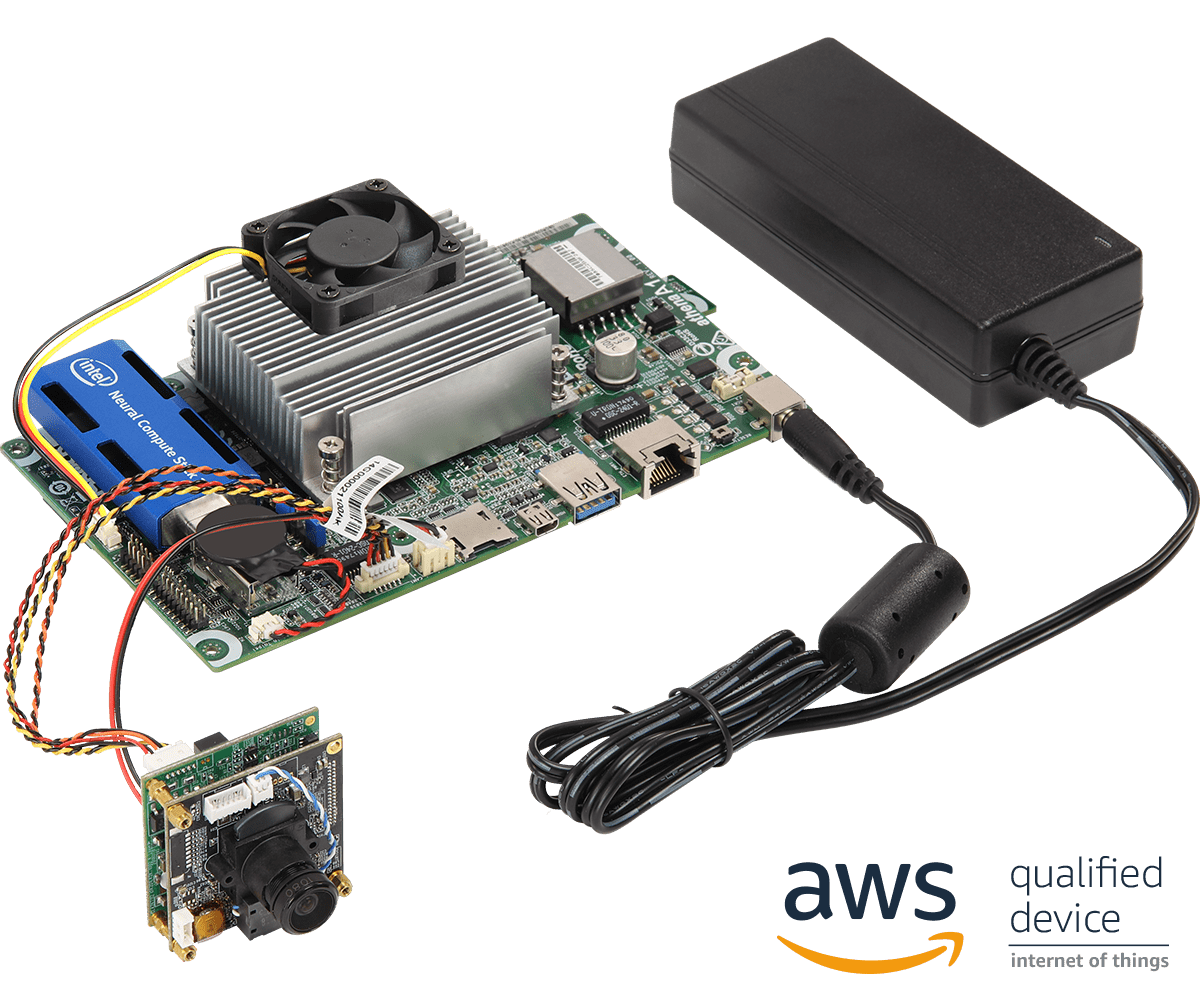

athena A1 Kit AIoT Kit

  • Intel® Apollo Lake J3455 Processor
  • 1 x IP camera (2MP, 1080P@30fps, H.264)
  • 1 x Movidius Myriad X (Optional)
  • Supports LPDDR4 2400MHz 4GB, up to 8GB
  • 2 x USB 3.1 Gen1, 1 x M.2 Key B, 1 x M.2 Key E
  • 1 x Realtek 1 Gigabit LAN
  • 1 x micro-HDMI 1.4b
  • 1 x micro SD card slot
  • 1 x 32GB EMMC
  • 1 x SIM socket
  • 1 x DMIC (Optional)
  • TPM 2.0 onboard IC
  • 12V DC-In / PoE (PD) with 25.5W
Datasheet
Overview

Build your first AI Edge Computer in 10 minutes or less







Specification

Form Factor

Dimensions 6.5-in x 3.8-in

Processor System

CPU Intel® Atom Apollo Lake J3455 processor
Chipset SoC
BIOS AMI SPI 128 Mbit

Memory

Technology Onboard LPDDR4 2400 MHz
Capacity 4 GB, up to 8GB

Graphics

Controller SoC integrated graphics
HDMI micro-HDMI 1.4b
Max resolution up to 3840x2160@30Hz

Expansion Slot

M.2 1 x M.2 (Key E, 2230) with PCIe x1 and USB 2.0 for Wireless
SIM Socket 1 x micro SIM Socket connected to M.2 Key B 3042

Audio

Interface N/A

Ethernet

Controller/ Speed LAN: 1 x Realtek® RTL8111G with 10/100/1000 Mbps
(PoE (PD) with 25.5W)
Connector 1 x RJ-45

Rear I/O

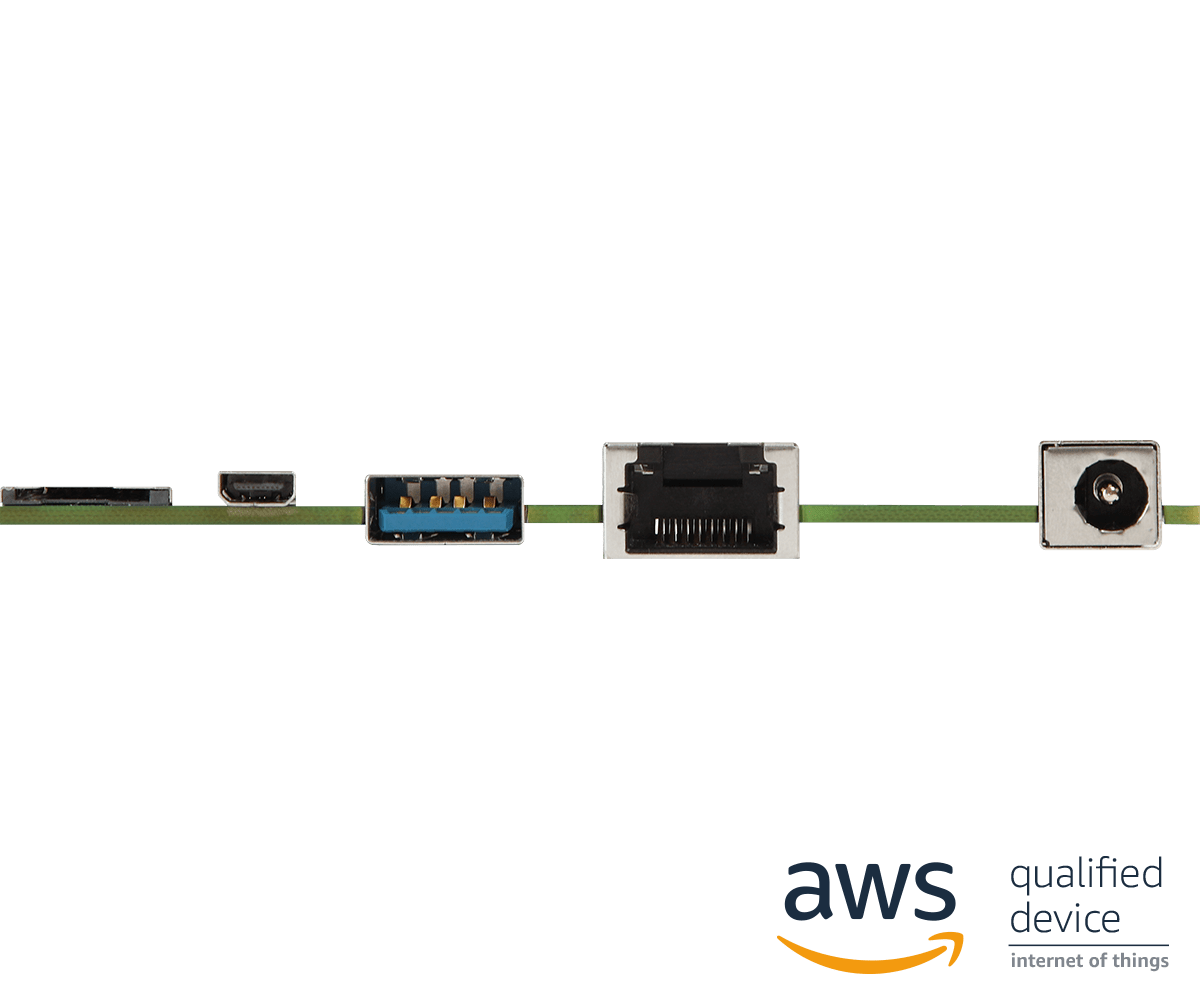

HDMI 1 x micro-HDMI 1.4b
Ethernet 1 x 1 Gigabit LAN, PoE (PD) with 25.5W
USB 1 x USB 3.0
DC Jack 1
others 1 x Micro SD connector

Internal Connector

USB 1 x USB 2.0 header
1 x USB 3.1 (Gen 1) Connector for Movidius module
TPM TPM 2.0 onboard IC
LVDS N/A
IP CAM interface LAN signal 1x6 header
Power 1x2 header

Storage

M.2 1 x M.2 (Key B, 3042) with PCIe x1 and shared SATA3 for SSD, and USB 3.0, USB 2.0
SATA N/A
eMMC Onboard eMMC 32GB

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 12V DC-In (DC Jack)
PoE (PD) with 25.5W (LAN Port)
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 50ºC
Storage Temp -40° C – 85° C
Operating Humidity 10% ~ 90%
Storage Humidity 10% ~ 90%

Others

OS Support Linux Ubuntu 16.04
TPM TPM 2.0 onboard IC
IP camera 2MP, 1080P @30fps, H.264
Movidius 1 x USB Type A Myriad X (Optional)
Mic-in 1 x DMIC (Optional)

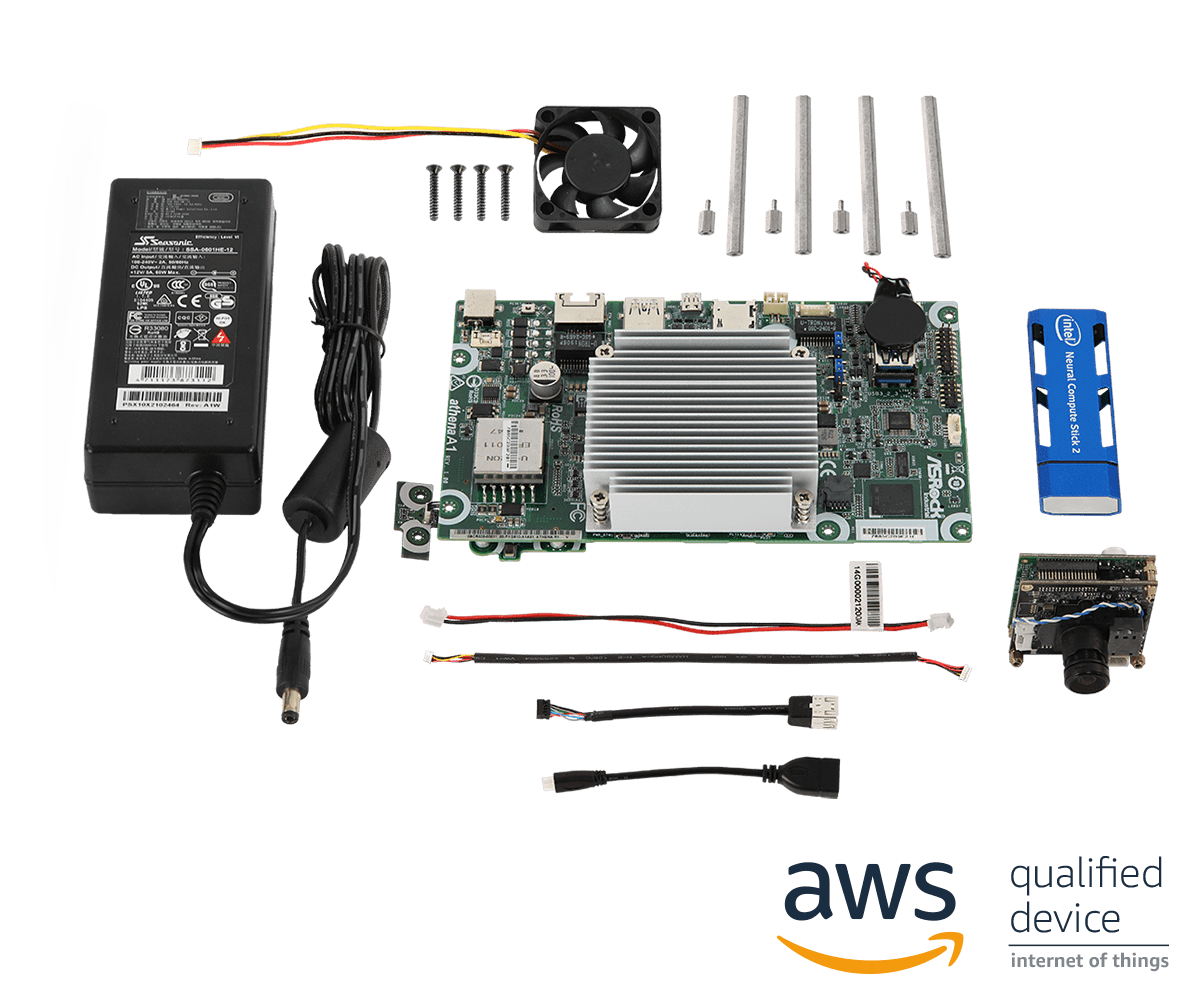

Adapter 1 x AC-in 100~240V, DC-out 12V
Accessories 1 x USB 2.0 Extension Cable
1 x micro-HDMI Converter Cable
1 x Heatsink Fan
8 x Standoffs
