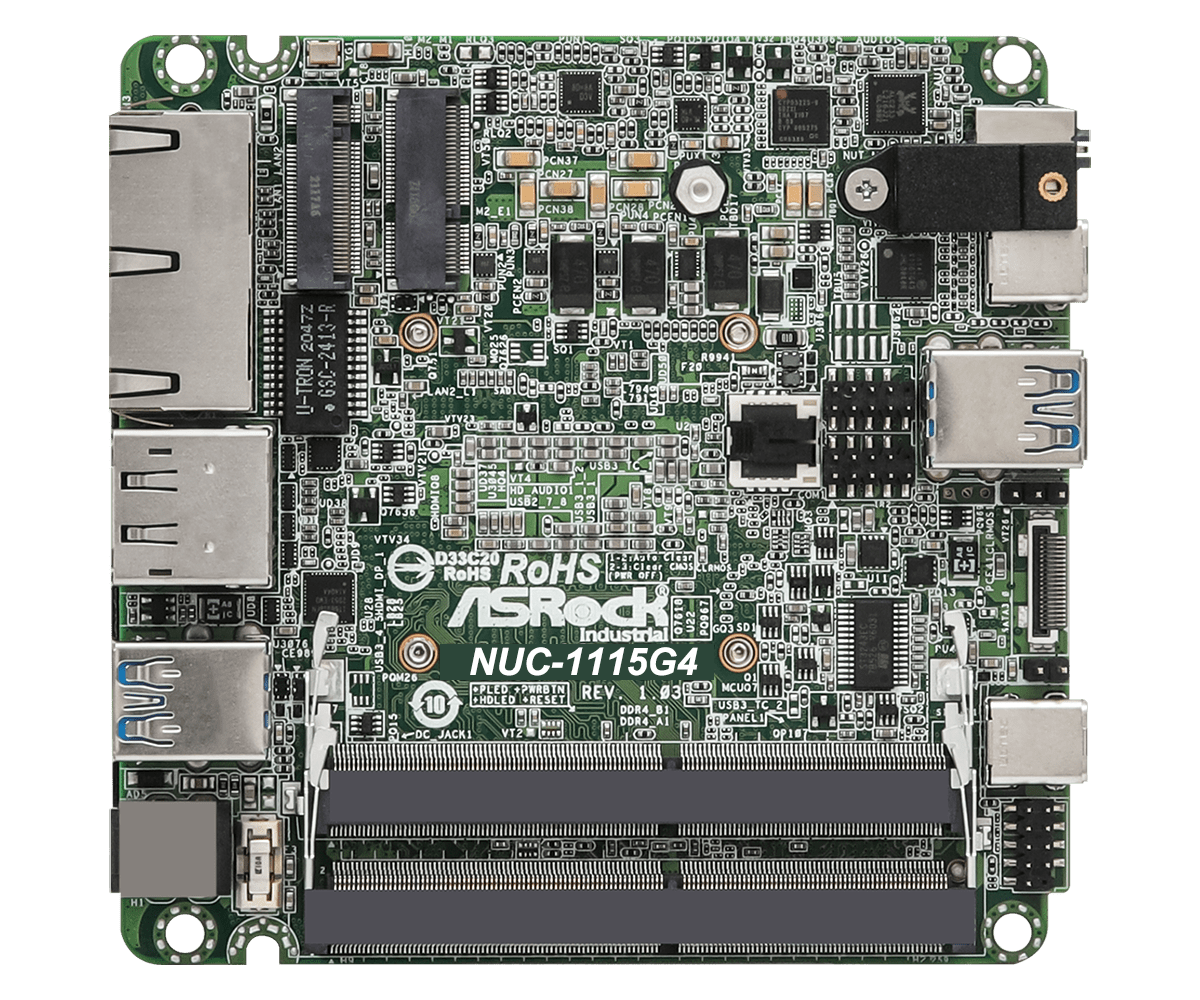

NUC-1115G4 NUC Motherboard

  • Intel® 11th Gen (Tiger Lake-UP3) Core™ Processors
  • 2 x 260-pin SO-DIMM DDR4 3200 MHz, up to 64GB
  • 6 x USB 3.2 Gen2, 2 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E,1 x COM, 1 x SATA3
  • 1 x Intel 1 Gigabit LAN, 1 x Intel 2.5 Gigabit LAN
  • Supports Quad display, 1 x HDMI 2.0a, 3 x DP 1.4 (2 from Type-C)
  • TPM 2.0 onboard IC
  • 12V~19V DC-In
Datasheet
Overview





Specification

Form Factor

Dimensions NUC (4.09-in x 4.02-in)

Processor System

CPU Intel® 11th Gen (Tiger Lake-UP3) Core™ Processors
I3-1115G4, DC, Max Speed up to 4.1GHz
Chipset MCP
BIOS AMI SPI 256 Mbit

Memory

Technology Dual Channel DDR4 3200 MHz
Capacity 64GB (32 GB per DIMM)
Socket 2 x 260-pin SO-DIMM

Graphics

Controller Intel® UHD Graphics
HDMI HDMI 2.0a
Max resolution up to 4096x2160@60Hz
DisplayPort DisplayPort 1.4, DP++
Max resolution up to 4096x2160@60Hz
MultiDisplay Max 4 display (Included 2 outputs from Type-C)

Expansion Slot

M.2 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless

Audio

Interface Realtek ALC233, High Definition Audio.

Ethernet

Controller/ Speed LAN1: Intel® I219V with 10/100/1000 Mbps
LAN2: Intel® I225LM with 10/100/1000/2500 Mbps
Connector 2 x RJ-45

Front I/O

USB 2 x USB 3.2 Gen2 (Type-A)
2 x USB 3.2 Gen2 (Type-C, Supports DP1.4 display output)
* USB4™ Compliance Test is pending for certification
* For Thunderbolt support, please refer to support list.
Audio 1 (headphone & microphone jack)

Rear I/O

HDMI 1 x HDMI 2.0a
DisplayPort 1 x DP 1.4
Ethernet 1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN
USB 2 x USB 3.2 Gen2 (Type A)
DC Jack 1

Internal Connector

USB 2 x USB 2.0 (1 x 2.00 pitch header)
COM 1 x COM(RS-232)
TPM Infinion SLB9670VQ2.0

Storage

M.2 1 x M.2 (KEY M, 2242/2260/2280) with PCIe Gen4 x4 and SATA3 for SSD
*M.2 Key M 2280(Supported by bracket)
SATA 1 x SATA3.0 (6.0 Gb/s)

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 12V~19V DC-In Jack
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

Others

Longivity Support No

Accessories

Bulk Package 2 x SCREW M2*2,D=5 (13G020302031AK)
1 x NUT M2 H=5.5mm (13G020195070AK)
1 x NUT M2 H=6.5mm (13G0201950B0AK)
1 x NUT M2 H=3.35mm (13G020271020AK)
1 x COM Cable (14G000000340AK)
1 x SATA HDD CABLE (14G000104503AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

Support

OS:

Description OS Date Download
Description Thunderbolt(TM) Controller software ver:rev79 OS Win 10 x 64 Date 2021-04-16 Download
Description Intel Dynamic Platform and Thermal Framework (Intel DPTF) driver ver:8.7.10400.15556 OS Win 10 x 64 Date 2020-09-24 Download
Description VGA driver ver:27.20.100.8935 OS Win 10 x 64 Date 2020-09-24 Download
Description Intel Management Engine driver ver:15.0.0.1320_CORP_SW_DCH OS Win 10 x 64 Date 2020-09-24 Download
Description INF driver ver:10.1.18460.8229 OS Win 10 x 64 Date 2020-09-24 Download
Description Intel Lan driver ver:25.5_592050 OS Win 10 x 64 Date 2020-09-24 Download
Description Realtek audio driver ver:9057_FF00 OS Win 10 x 64 Date 2020-09-24 Download
Version Update BIOS Under / How to Update Description Date Download
Version 1.20 Update BIOS Under / How to Update BIOS Description 1. Enhance memory compatibility
2. Enhance system compatibility
Date 2021-03-18 Download
Version 1.20 Update BIOS Under / How to Update DOS Description 1. Enhance memory compatibility
2. Enhance system compatibility
Date 2021-03-18 Download
Version 1.20 Update BIOS Under / How to Update Windows Description 1. Enhance memory compatibility
2. Enhance system compatibility
Date 2021-03-18 Download
Version 1.10 Update BIOS Under / How to Update BIOS Description First Released Date 2020-12-29 Download
Version 1.10 Update BIOS Under / How to Update DOS Description First Released Date 2020-12-29 Download
Version 1.10 Update BIOS Under / How to Update Windows Description First Released Date 2020-12-29 Download

The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.

Description Language Date Download
Description User Manual Language English Date 2021-02-17 Download
Description Jumpers and Headers Setting Guide Language English Date 2021-01-06 Download
Description Date Download
Download Thunderbolt Support List Date 2021-03-02 Download
