Processor System
| CPU |
Intel® Core™ Ultra Series 3 Processors (Panther Lake-H)

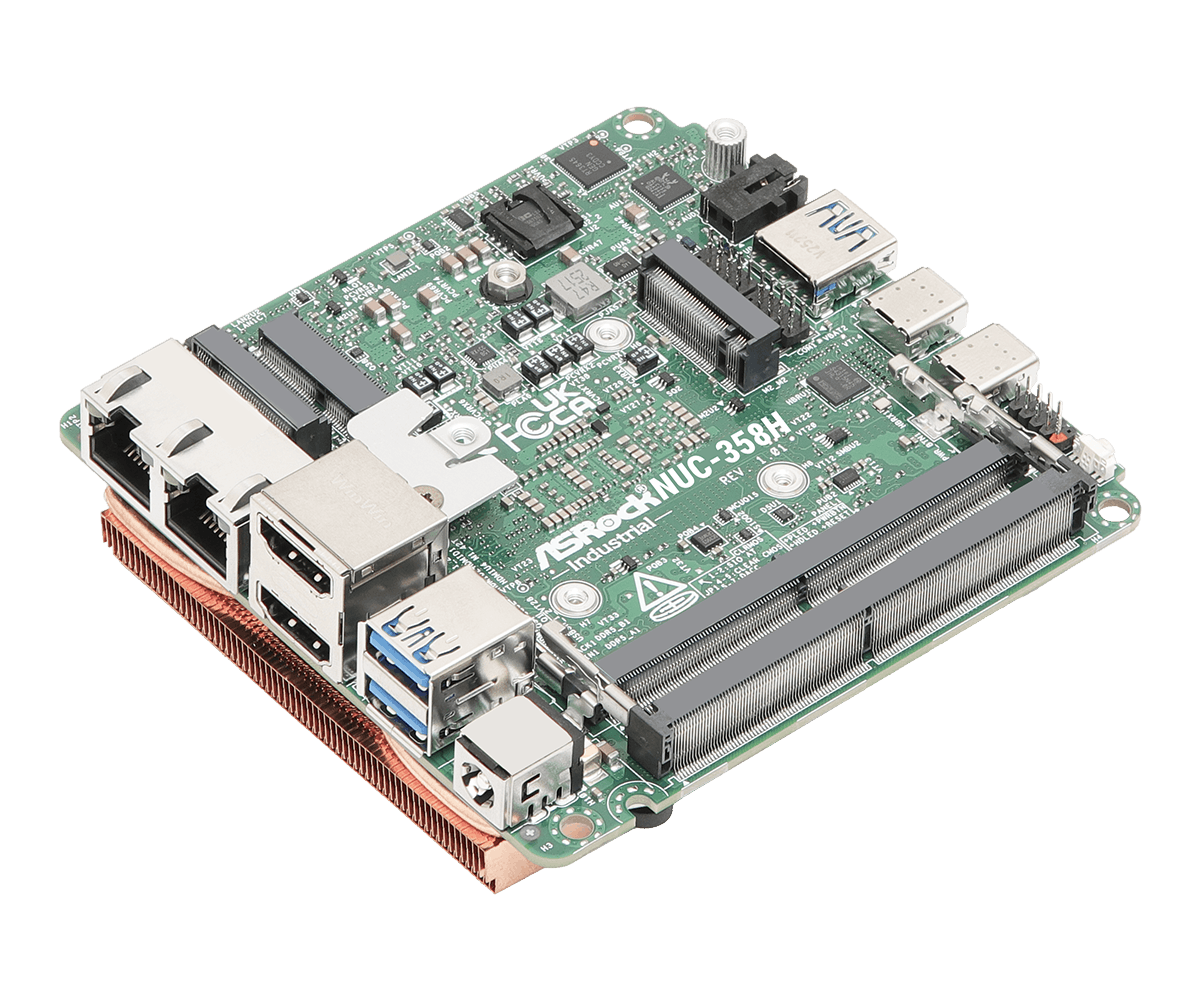

NUC-358H (Ultra X7 358H, 4P+8E+4LPE) |
| Chipset |
MCP |
| BIOS |
AMI SPI 256 Mbit |
Form Factor
| Dimensions |
NUC (4.09-in x 4.02-in x 1.5-in, 10.4 cm x 10.2 cm x 3.8 cm) |
Memory
| Technology |
Dual Channel DDR5 7200 MHz (Ultra X7 358H) |
| Capacity |
128GB (64 GB per DIMM) |
| Socket |
2 x 262-pin SO-DIMM |
Graphics
| Controller |
Intel® Graphics |
| HDMI |
HDMI 2.1
Max resolution up to 7680x4320@60Hz |
| DisplayPort |
DisplayPort 2.1/ 1.4a, DP++
Max resolution up to 4096x2160@60Hz |
| MultiDisplay |
Max 4 display (Included 2 outputs from Type-C) |
Expansion Slot
| M.2 |
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless |
Audio
| Interface |
Realtek ALC256, High Definition Audio. |
Ethernet
| Controller/ Speed |
LAN1: Intel® I226LM with 10/100/1000/2500 Mbps, supports vPro
LAN2: Intel® I226V with 10/100/1000/2500 Mbps |
| Connector |
2 x RJ-45 |

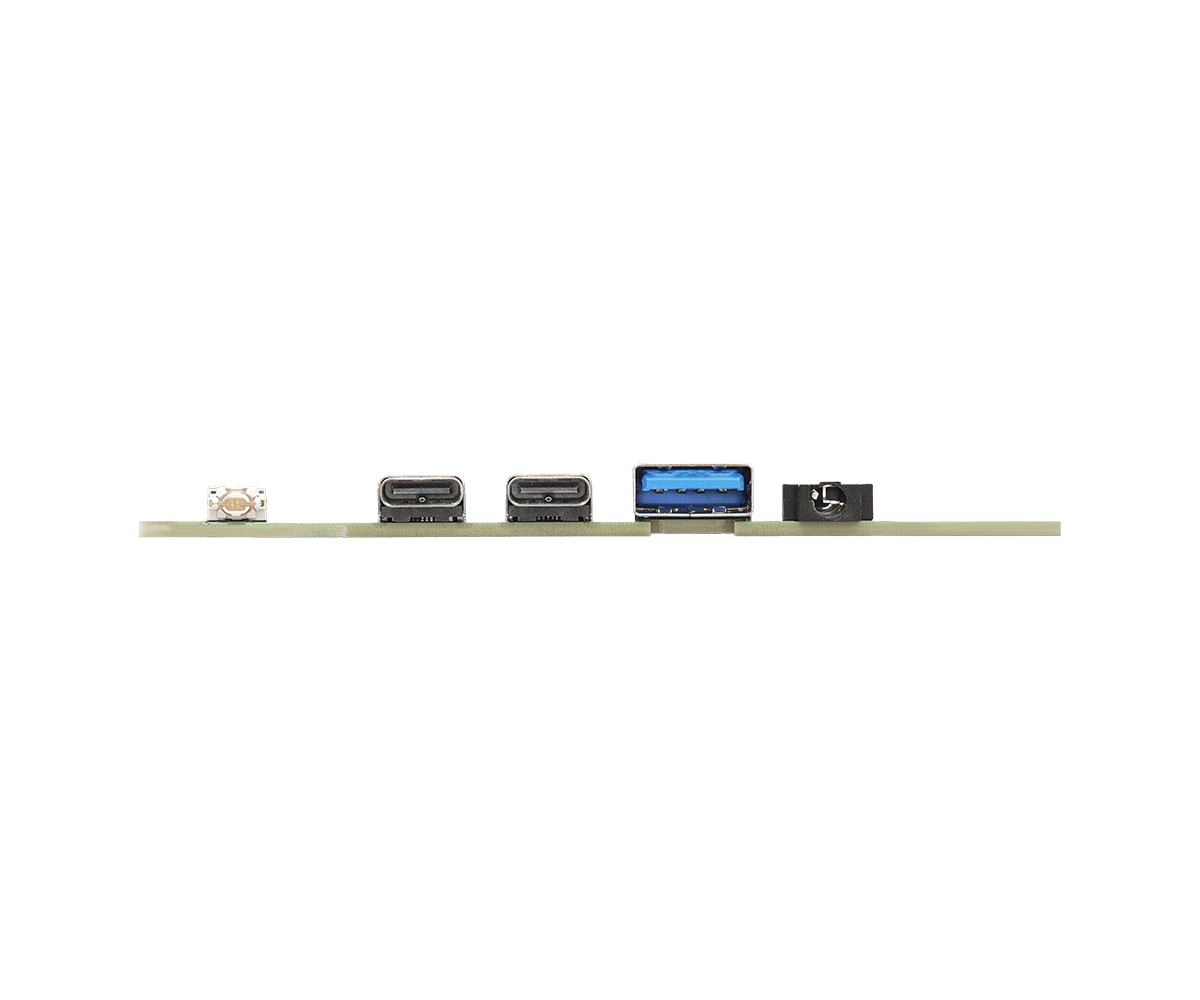

Front I/O
| USB |
1 x USB 3.2 Gen2 (Type-A)
1 x USB4/Thunderbolt™ 4 (5V/3A, Supports DP 2.1 display output)
1 x USB3.2 Gen2 x2 (Type-C, 5V/3A, Supports DP1.4a display output)
*For Thunderbolt support, please refer to support list. |
| Audio |
1 (headphone & microphone jack) |

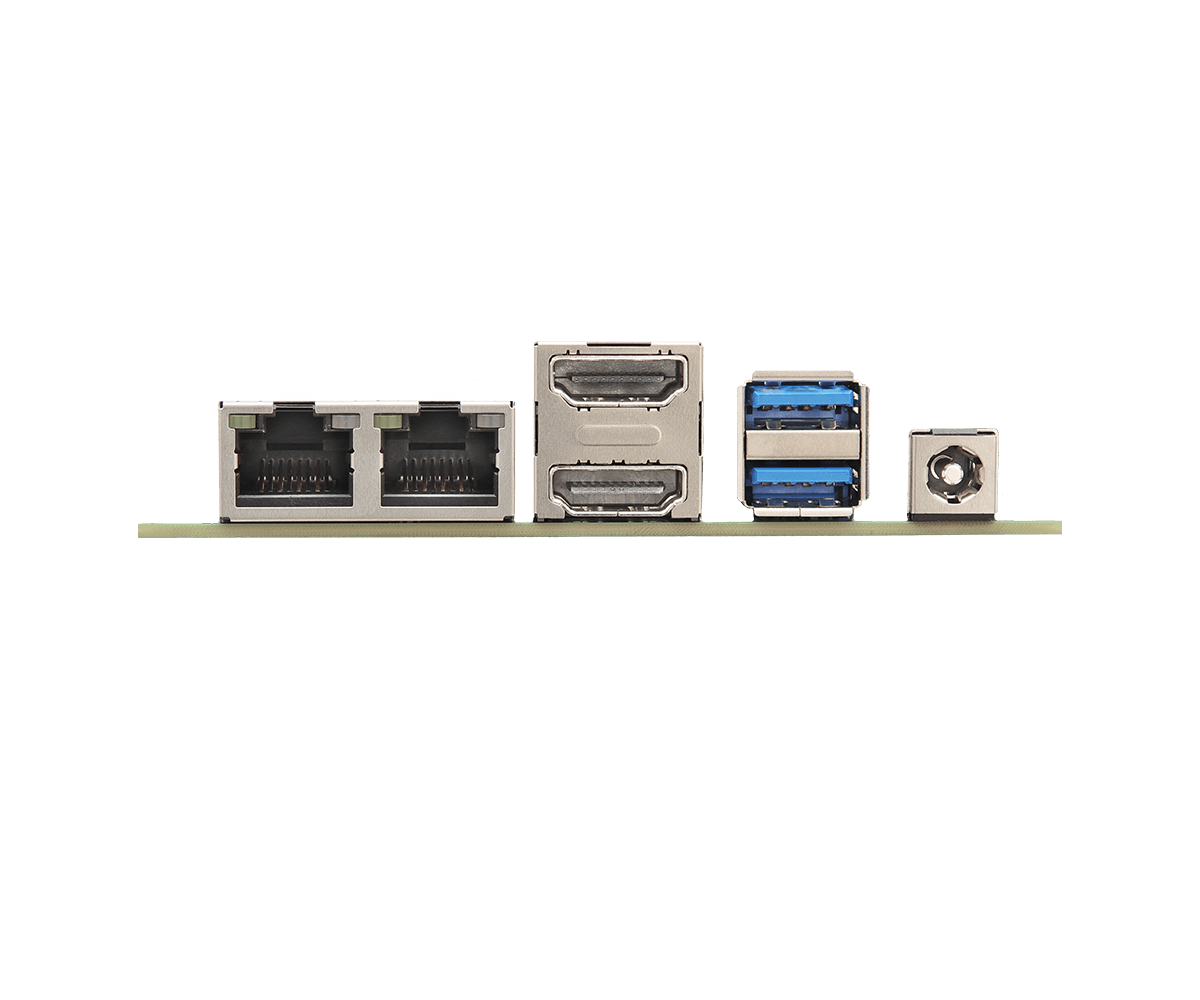

Rear I/O
| HDMI |
2 x HDMI 2.1 |
| Ethernet |
2 x 2.5 Gigabit LAN |
| USB |
2 x USB 3.2 Gen2 (Type-A) |
| DC Jack |
1 |
Internal Connector
| USB |
2 x USB 2.0 (1 x 2.00 pitch header) |
| COM |
1 x COM(RS-232/RS-422/RS-485) |
Security
Storage
| M.2 |
1 x M.2 (KEY M, 2242) with PCIe Gen4 x4 for SSD
1 x M.2 (KEY M, 2242/2280) with PCIe Gen5 x4 for SSD |
| RAID |
Intel® VMD RAID 0/1
**supported by identical interface (PCIe)
PCIe interface: 2*M.2 Key M |
Watchdog Timer
| Output |
From Super I/O to drag RESETCON# |
| Interval |
256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR |
12V~24V DC-In Jack |
| Power On |
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp |
-20ºC ~ 70ºC |
| Storage Temp |
-40° C ~ 85° C |
| Operating Humidity |
5% ~ 90% (non-condensing) |
| Storage Humidity |
5% ~ 90% (non-condensing) |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
