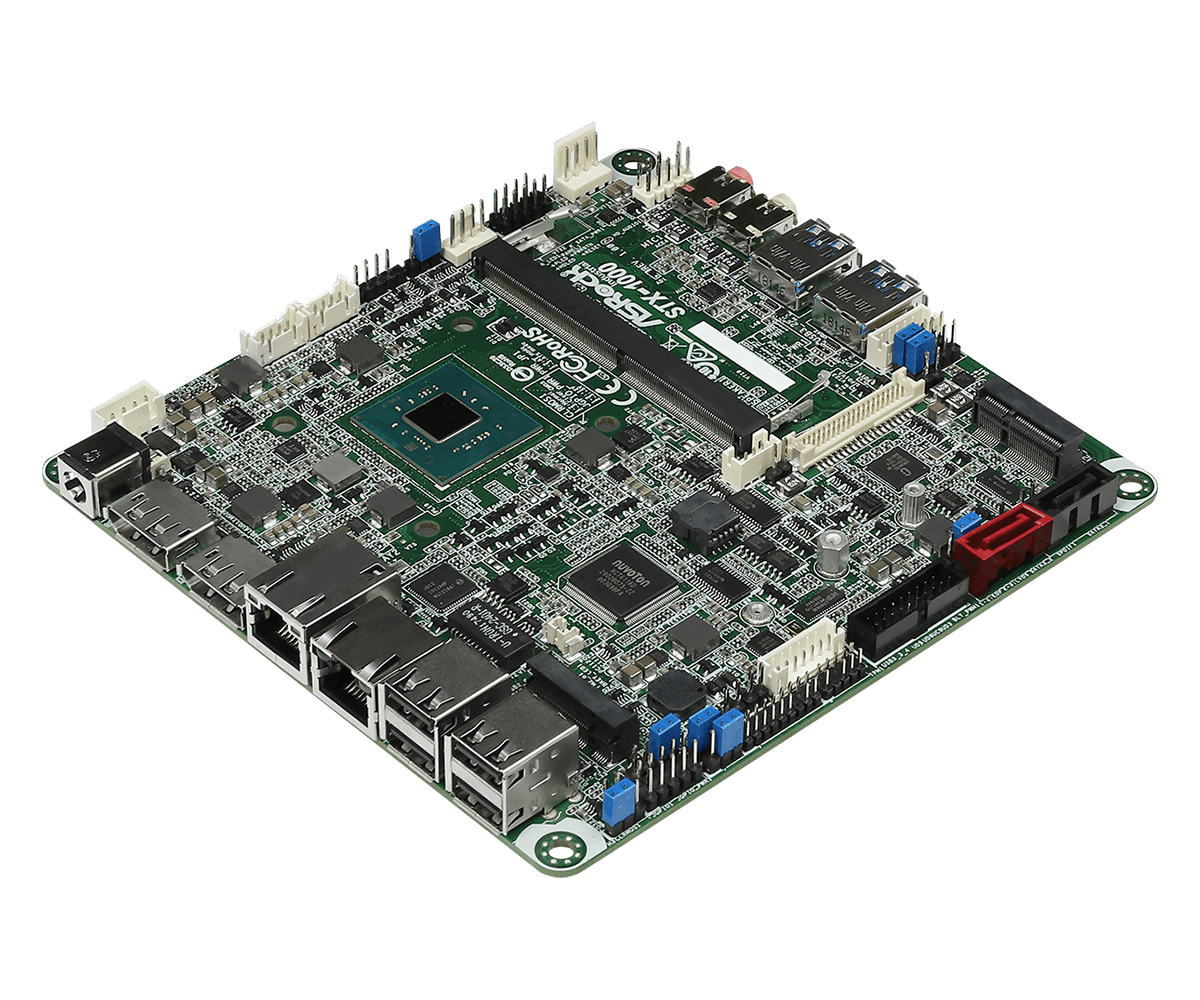

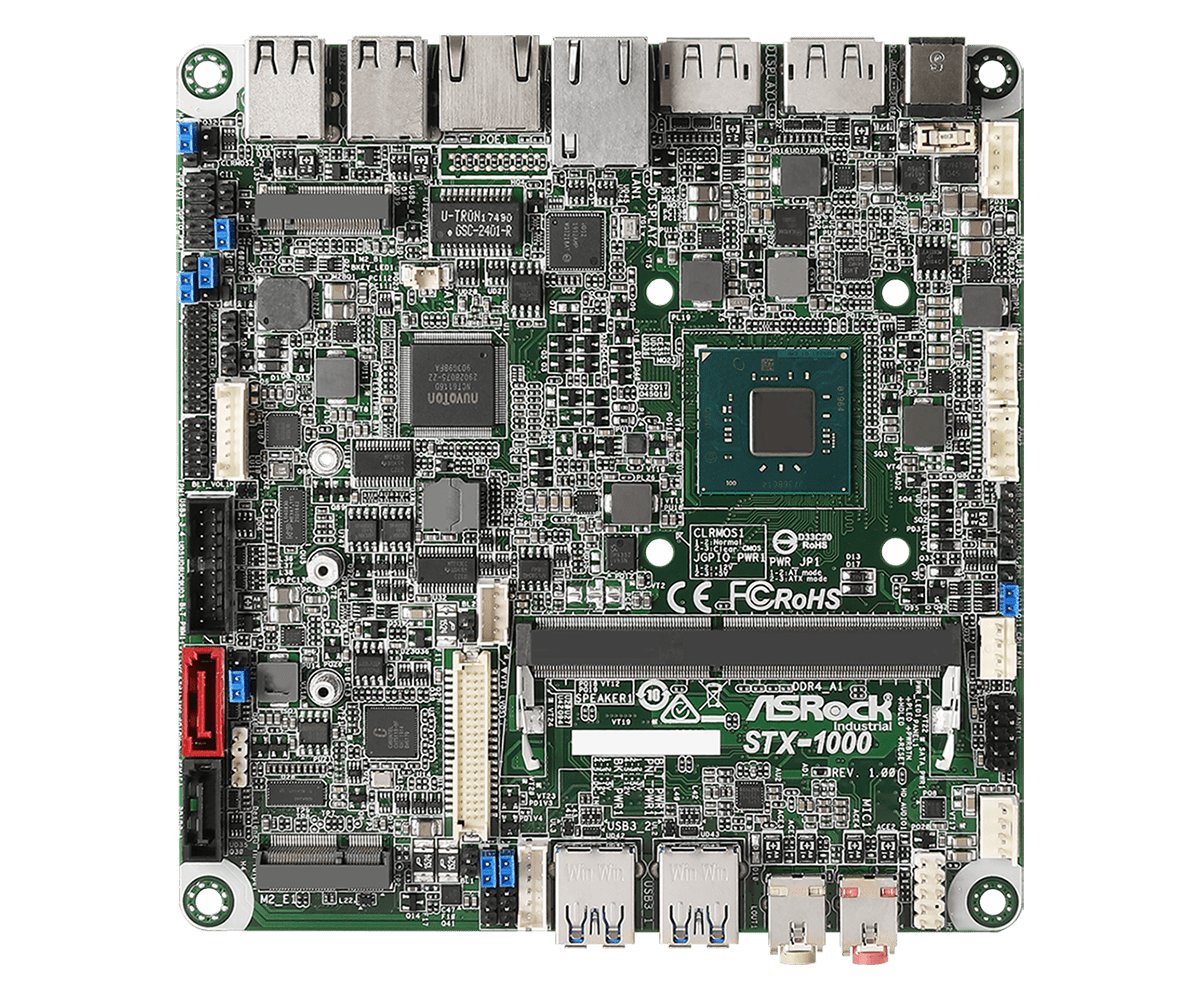

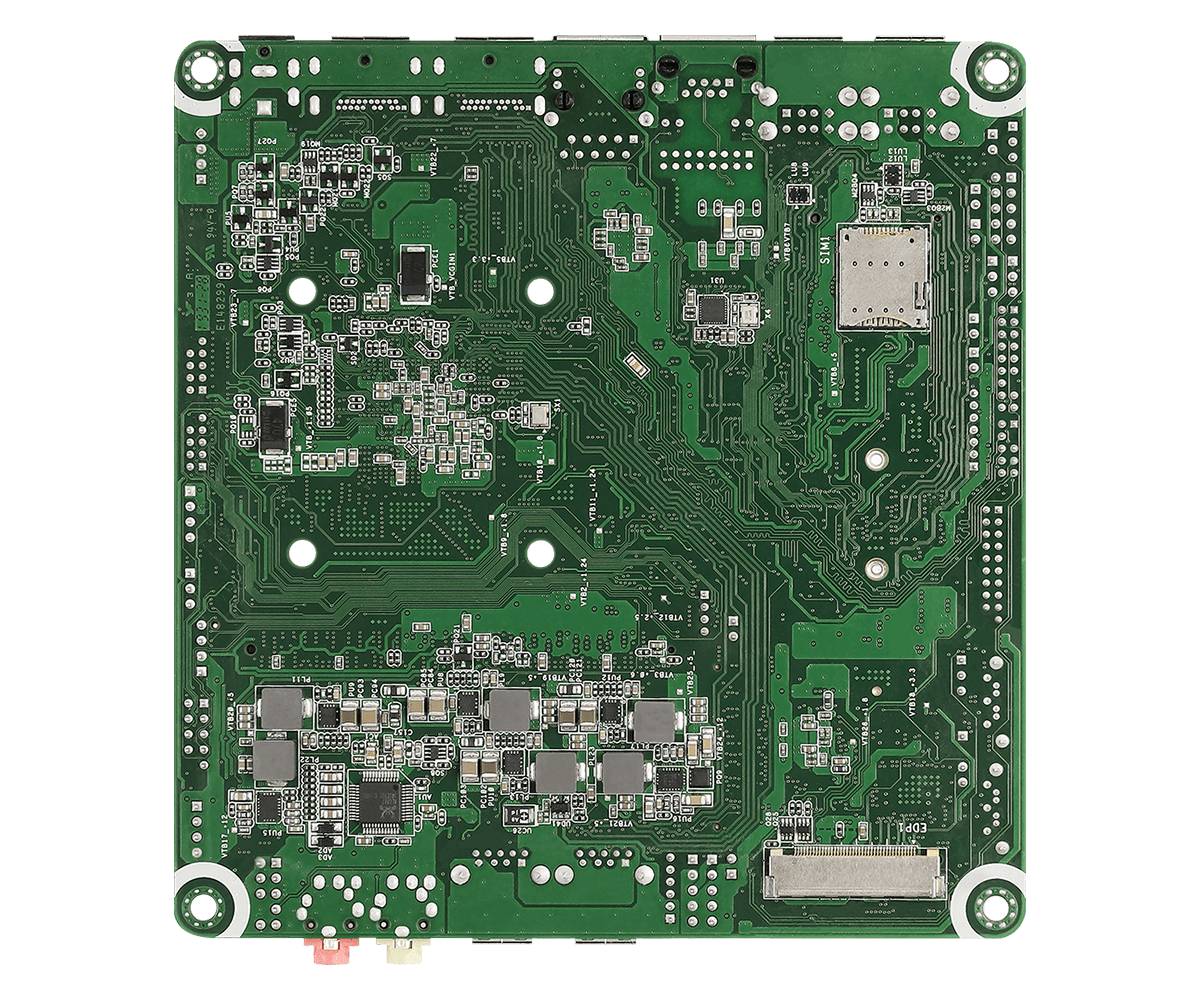

STX-1000 Mini-STX Motherboard

  • Intel® Gemini Lake SoC Processor
  • 1 x 260-pin SO-DIMM up to 8 GB DDR4 2400 MHz
  • 4 x USB 3.1 Gen1, 5 x USB 2.0, 1 x M.2 Key B, 1 x M.2 Key E, 2 x COM, 2 x SATA3
  • 1 x Intel Gigabit LAN,1 x Realtek Gigabit LAN
  • Supports triple display, 2 x DP, 1 x eDP or LVDS
  • TPM Header
  • 9~24V DC-In/ ATX PWR
Datasheet
Specification

Form Factor

Dimensions Mini-STX (5.5-in x 5.8-in x 1.12-in)

Processor System

CPU Intel® Gemini Lake SoC Processor
-STX-1000B (J4005, DC, 2.0 GHz, 10 W)
-STX-1000J (J4105, QC, 1.5 GHz, 10 W)
-STX-1000D (J5005, QC, 1.5 GHz, 10 W)
Intel® Gemini Lake Refresh SoC Processor
-STX-1000BR (J4025, DC, 2.0 GHz, 10 W)
-STX-1000JR (J4125, QC, 2.0 GHz, 10 W)
-STX-1000DR (J5040, QC, 2.0 GHz, 10 W)
Chipset SoC
BIOS AMI SPI 128 Mbit

Memory

Technology Single Channel DDR4 2400 MHz
Capacity 8GB
Socket 1 x 260-pin SO-DIMM

Graphics

Controller Intel® UHD Graphics
DisplayPort DisplayPort 1.2, DP++
Max resolution up to 4096x2160@60Hz
LVDS Dual channel 24 bit up to 1920X1200@60Hz (shared with eDP)
eDP eDP 1.4 (shared with LVDS) Max resolution up to 4096X2160@60Hz
MultiDisplay Triple Display

Expansion Slot

M.2 1 x M.2 (Key E, 2230) with PCIe x1, CNVi and USB 2.0 for WiFi+BT
SIM Socket 1 x Socket connected to M.2 Key_B

Audio

Interface Realtek ALC887, High Definition Audio. Line-out,Mic-in

Ethernet

Controller/ Speed LAN1: Intel I210AT with 10/100/1000 Mbps
LAN2: Realtek RTL8111G/RTL8111H-CG with 10/100/1000Mbps
Connector 2 x RJ-45

Front I/O

USB 2 x USB 3.1 (Gen1)
Audio 2 (Mic-in, Line-out)

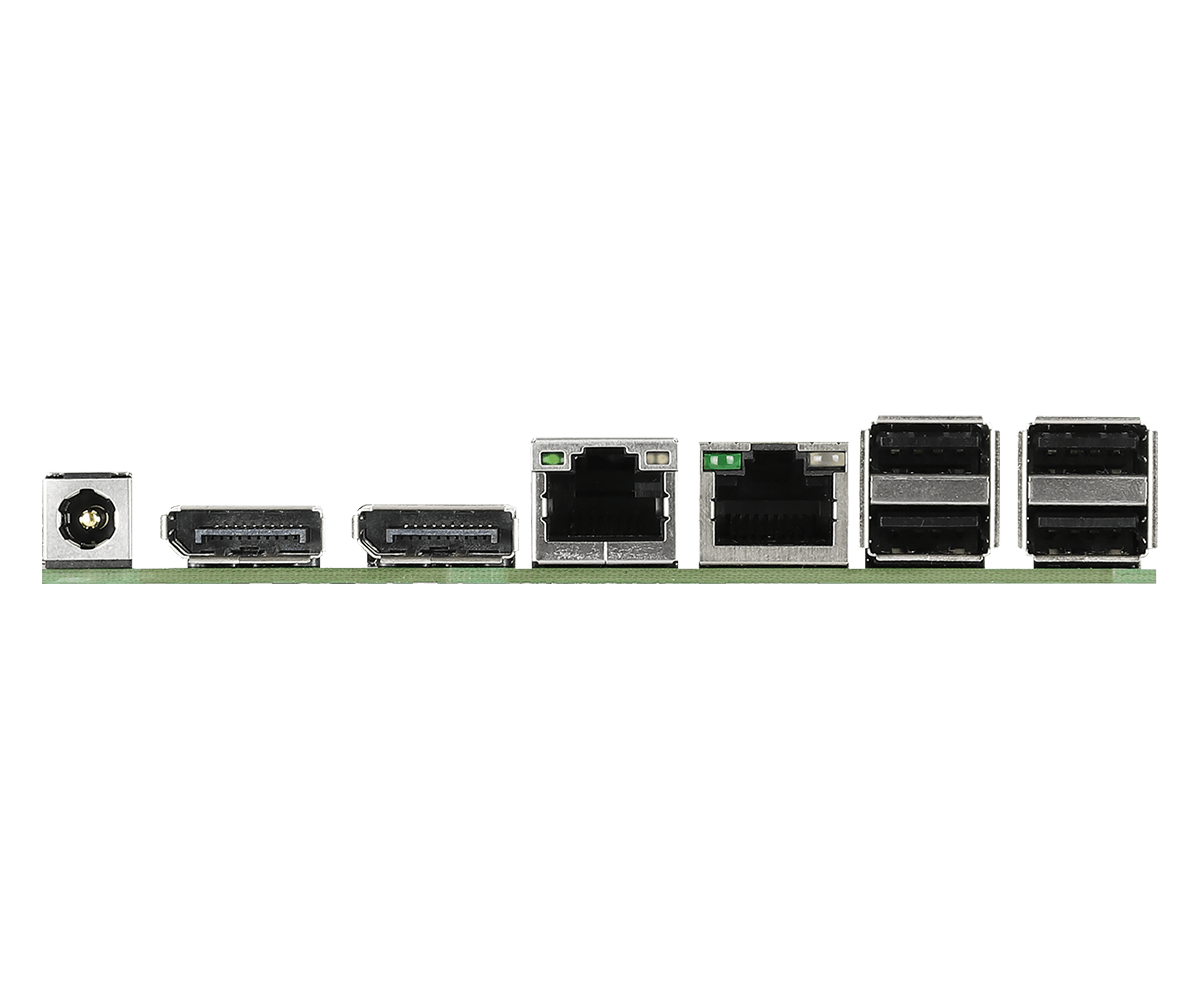

Rear I/O

DisplayPort 2 x DP 1.2
Ethernet 2 x 1 Gigabit LAN
USB 4 x USB 2.0
DC Jack 1

Internal Connector

USB 2 x USB 3.1 Gen1 (1 x USB 3.1 header)
1 x USB 2.0 (1 x 2.54 pitch header)
COM COM3(RS232/422/485)
COM2(RS232)
GPIO 4 x GPI, 4 x GPO
TPM TPM Header
LVDS 1 (shared with eDP)
eDP 1 (shared with LVDS)
SATA PWR Output 1
Speaker Header 1

Storage

M.2 1 x M.2 (Key B, 2242/2260/2280) with PCIe x1, USB 2.0 and SATA3
SATA 2 x SATA3 (6Gb/s), SATA3_2 shared with M.2 Key B

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 9~24V DC-In with 4-pin wafer PWR cable or DC Jack
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

Others

Longivity Support No

Accessories

Gift Package 2 x SCREW M2,D=5.3 (13G020302010AK)
1 x I/O Shield (13G020600000AK)
1 x COM Cable (14G000000310AK)
1 x SATA Data Cable (14G00010107DAK)
Bulk Package 2 x SCREW M2,D=5.3 (13G020302010AK)
1 x I/O Shield (13G020600000AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

Support

OS:

Description OS Date Download
Description [Beta] Realtek Lan driver ver:10047_02232021 OS Win 10 x 64 Date 2021-04-08 Download
Description Intel Bluetooth driver ver:20.10.0.9g_2745 OS Win 10 x 64 Date 2020-05-08 Download
Description Intel Trusted Execution Engine ver:1731.4.0.1199_0214 OS Win 10 x 64 Date 2020-05-08 Download
Description Realtek Lan driver ver:10018 OS Win 10 x 64 Date 2020-05-08 Download
Description INF driver ver:10.1.17479.8054 OS Win 10 x 64 Date 2020-05-08 Download
Description VGA driver ver:25.20.100.6617 OS Win 10 x 64 Date 2020-05-08 Download
Description Intel Serial IO driver ver:30.100.1726.2_PV OS Win 10 x 64 Date 2020-05-08 Download
Description Realtek high definition audio driver ver:8678_FF00 OS Win 10 x 64 Date 2020-05-08 Download
Description Intel Wireless Lan driver ver:20.20.0.4g_2295 OS Win 10 x 64 Date 2020-05-08 Download
Description Intel Dynamic Platform and Thermal Framework (Intel DPTF) driver ver:8.3.10208.5644 OS Win 10 x 64 Date 2020-05-08 Download
Description Intel Lan driver ver:24.1_PC OS Win 10 x 64 Date 2020-05-08 Download
Version Update BIOS Under / How to Update Description Date Download
Version 1.20 Update BIOS Under / How to Update BIOS Description First Released Date 2020-05-06 Download
Version 1.20 Update BIOS Under / How to Update DOS Description First Released Date 2020-05-06 Download
Version 1.20 Update BIOS Under / How to Update Windows Description First Released Date 2020-05-06 Download

The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.

Description Language Date Download
Description Jumpers and headers setting guide Language English Date 2020-05-06 Download
Description User Manual Language English Date 2020-05-06 Download
