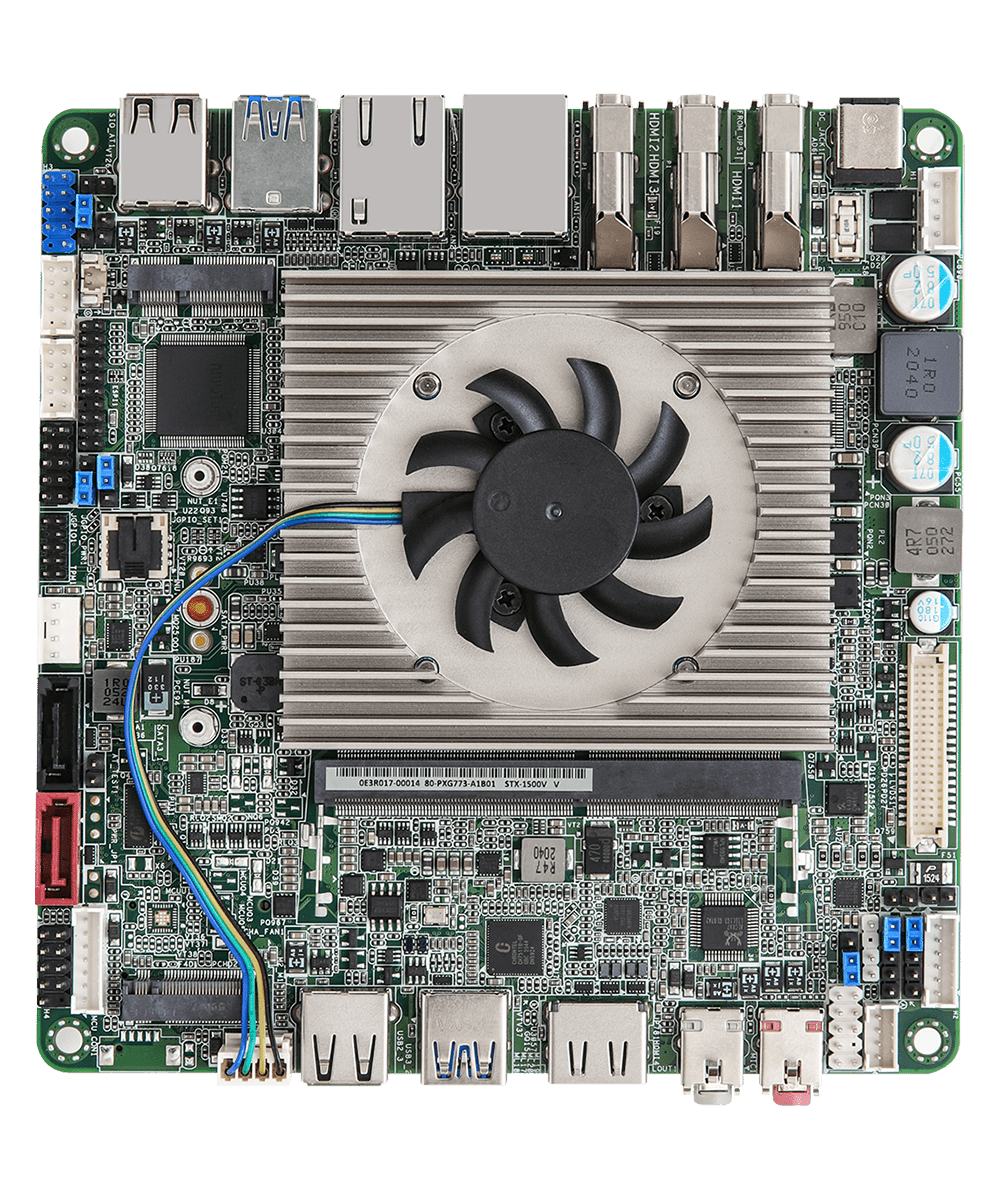

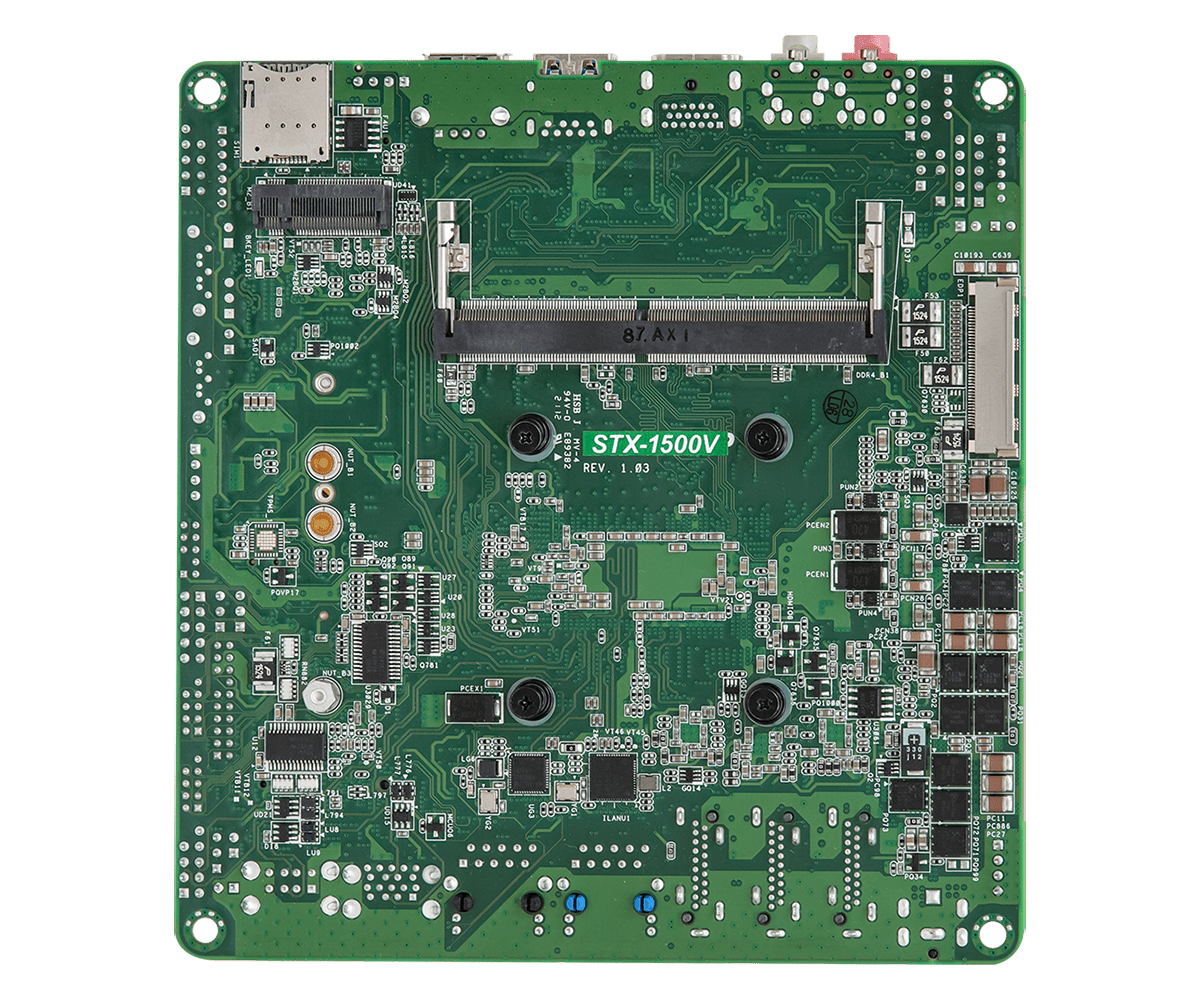

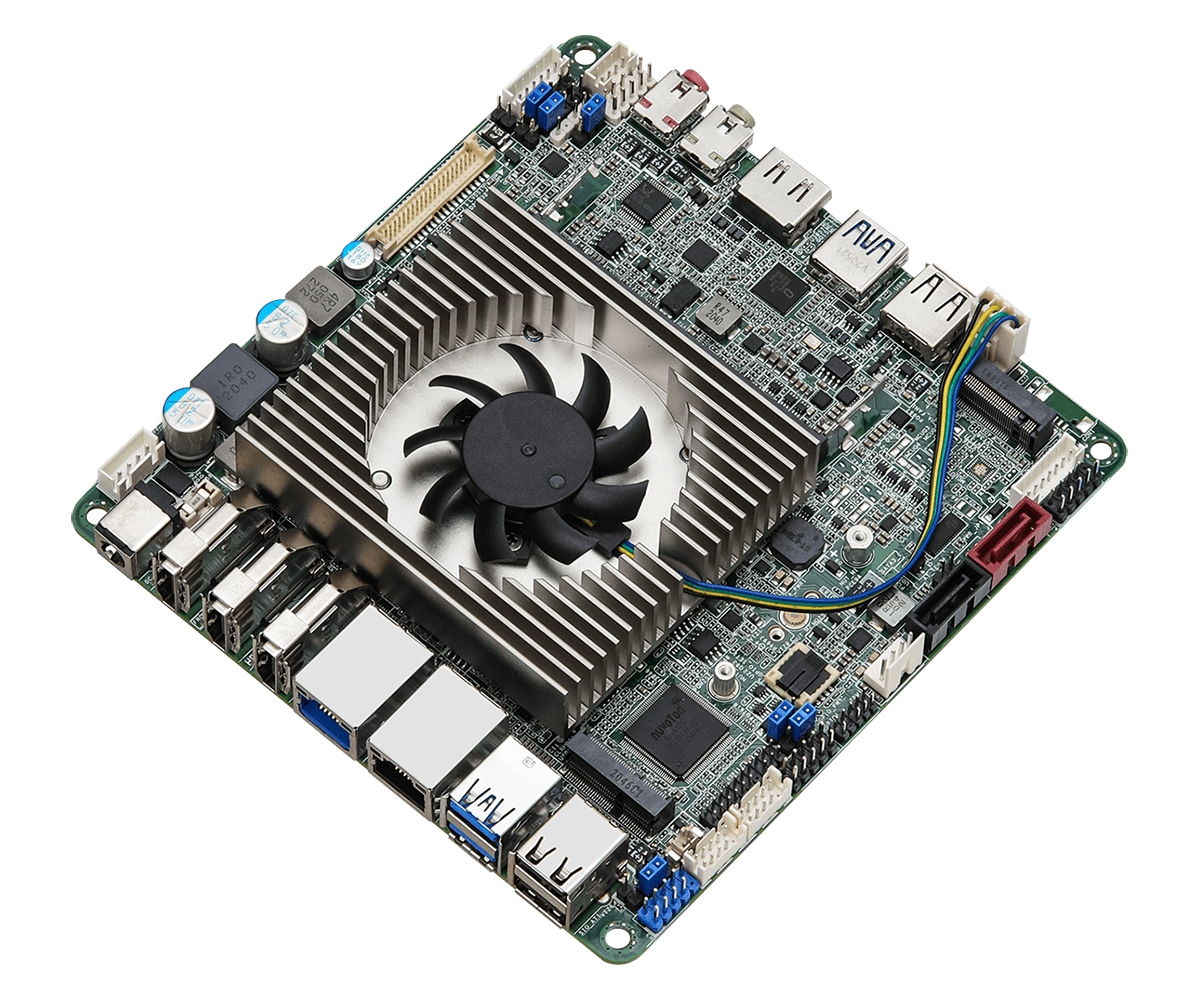

STX-1500M Mini-STX Motherboard

Form Factor

Dimensions	Mini-STX (5.5-in x 5.8-in, 14.0 cm x 14.7 cm)

Processor System

CPU	Intel® 11th Gen (Tiger Lake-UP3) Core™ Processors i5-1145G7E, QC, Max Speed up to 4.1GHz, up to 28W
Chipset	MCP
BIOS	AMI SPI 256 Mbit

Memory

Technology	Dual Channel DDR4 3200 MHz
Capacity	64GB (32GB per DIMM)
Socket	2 x 260-pin SO-DIMM

Graphics

Controller	Intel® Iris® Xe Graphics for i5 CPU
HDMI	HDMI 2.0a Max resolution up to 4096x2160@60Hz
LVDS	Dual channel 24 bit up to 1920 x 1200@60H
eDP	eDP 1.4 Max resolution up to 4096x2304@60Hz
MultiDisplay	Quadruple Display

Expansion Slot

M.2	1 x M.2 (Key E, 2230) with PCIe x1 ,USB 2.0 and CNVi for Wireless 1 x M.2 (Key B, 3042/3052/2280) with PCIe x1 / USB 3.2 / USB2.0 and SIM for 4G/5G
SIM Socket	1 x SIM socket connected to M.2 key B

Audio

Interface	Realtek ALC897 HD , High Definition Audio. Mic-In / Line-Out

Ethernet

Controller/ Speed	LAN1: Intel® I225LM with 10/100/1000/2500 Mbps LAN2: Intel® I219LM with 10/100/1000 Mbps
Connector	2 x RJ-45

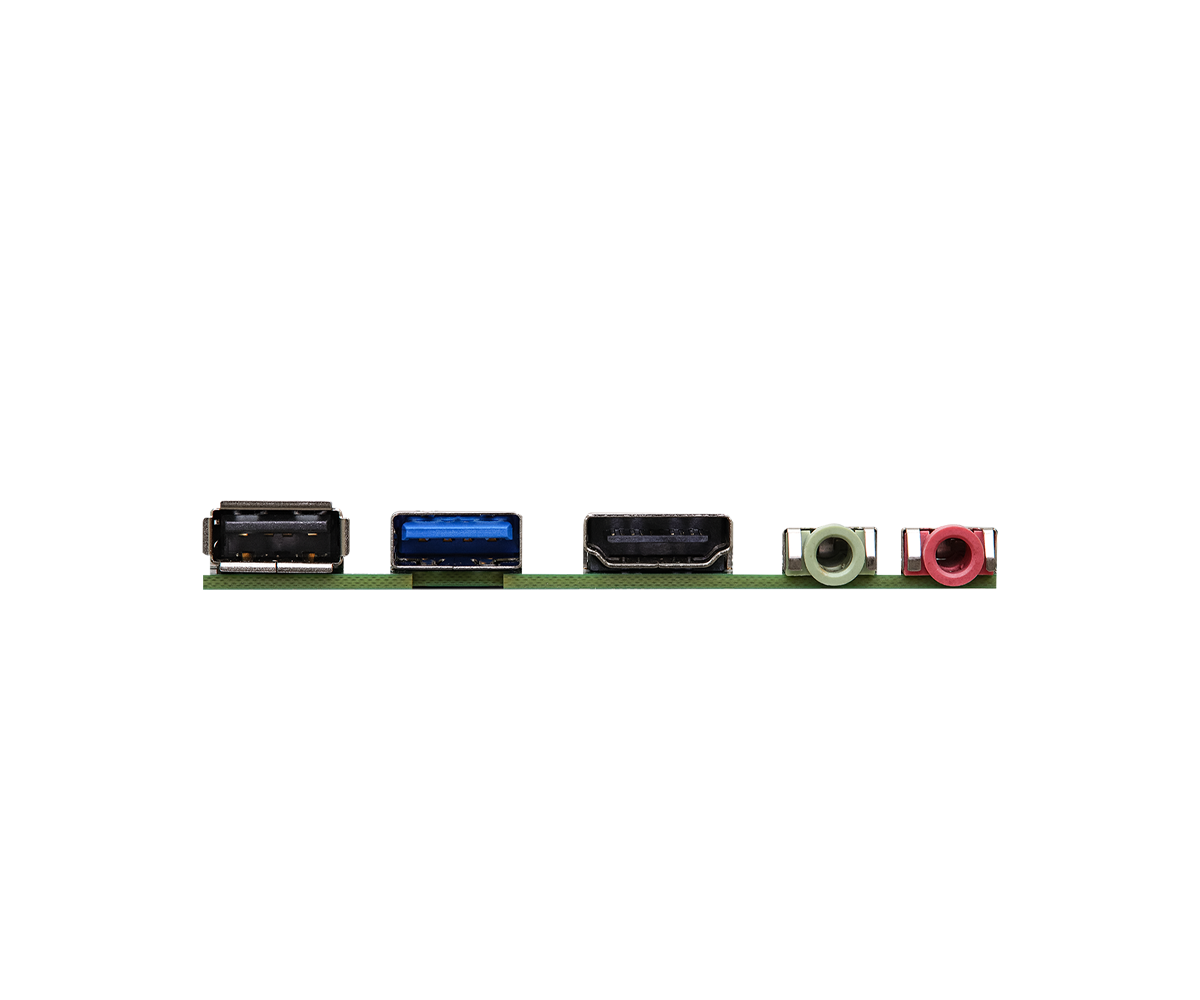

Front I/O

USB	1 x USB 3.2 Gen2, 1 x USB2.0
Audio	2 (Mic-in, Line-out)
HDMI	1 x HDMI 2.0a

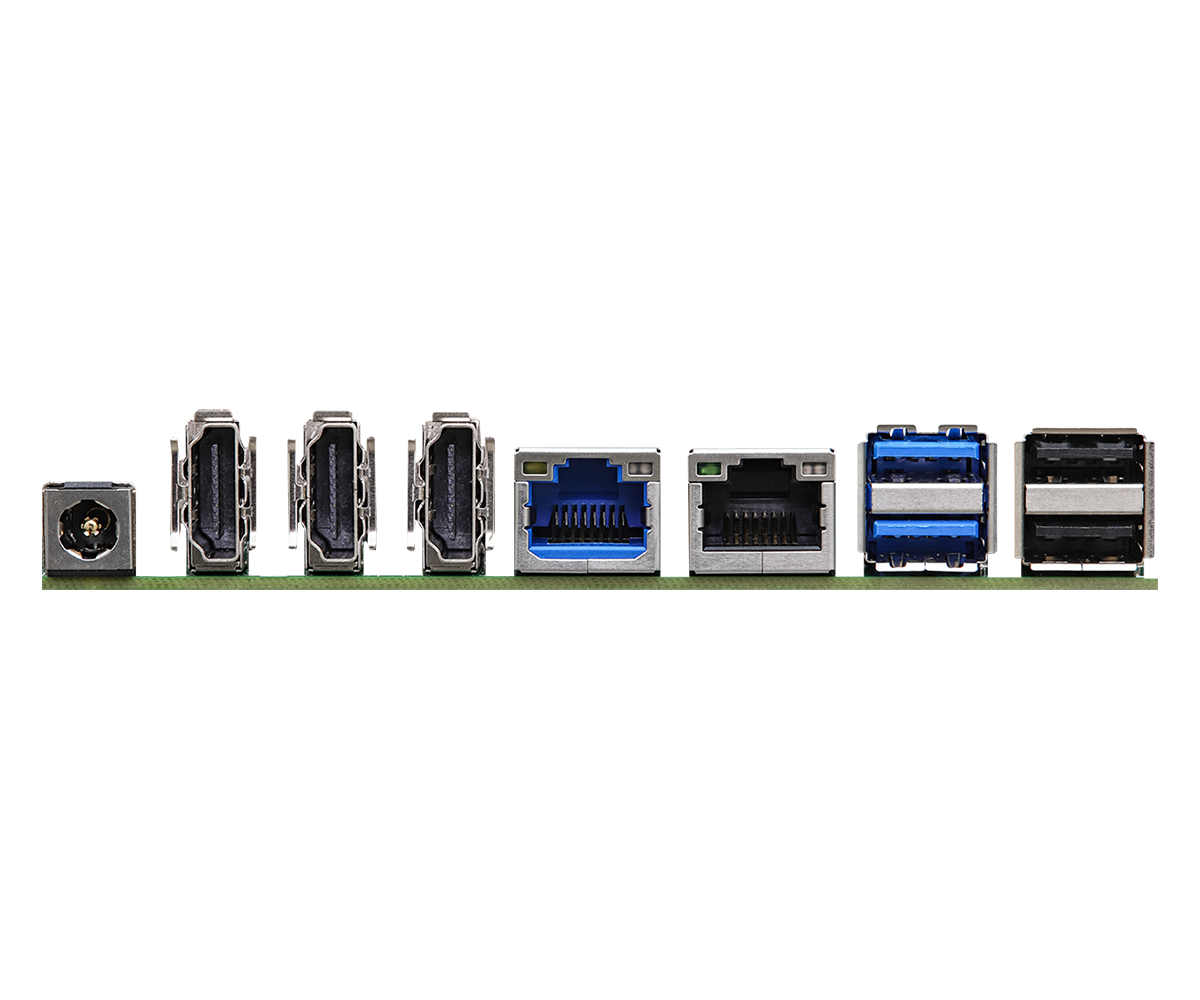

Rear I/O

HDMI	3 x HDMI 2.0a
Ethernet	1 x 2.5 Gigabit LAN 1 x 1 Gigabit LAN
USB	2 x USB 3.2 (Gen2), 2 x USB2.0
DC Jack	1

Internal Connector

USB	1 x USB 2.0 (1x2.54 pitch header)
COM	1 x COM (RS232/422/485) 1 x COM (RS232)
GPIO	4 x GPI, 4 x GPO
TPM	TPM 2.0 IC onboard
LVDS	1
eDP	1
SATA PWR Output	1
Speaker Header	1

Storage

M.2	1 x M.2 (Key M, 2242/2260/2280) with SATA3 and PCIe Gen4 x4 for SSD * Shared with SATA3_0
SATA	2 x SATA3 (6Gb/s)
RAID	Intel® SATA RAID 0/1

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	12~28V DC-In with 4-pin wafer PWR cable or DC Jack
Power On	AT/ATX Supported - AT : Directly PWR on as po wer input ready - ATX : Press button to PWR on after po wer input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Bulk Package	1 x I/O Shield (13G020673000AK) 3 x SCREW M2*2,D=5 (13G020302031AK)
Gift Package	1 x I/O Shield (13G020673000AK) 3 x SCREW M2*2,D=5 (13G020302031AK) 2 x COM Cable (14G000000310AK) 1 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000100410AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
