SBC-350E SBC 3.5

Form Factor

Dimensions	3.5"SBC (6.3-in x 4.0-in, 16.0 cm x 10.2 cm)

Processor System

CPU	Intel® 8th Gen (Whiskey lake-U) Core™ Processors CELERON-4305UE, DC, 2.0GHz,15W
Chipset	MCP
BIOS	AMI SPI 128 Mbit

Memory

Technology	Dual Channel DDR4 2400 MHz
Capacity	32 GB (16 GB per DIMM)
Socket	2 x 260-pin SO-DIMM

Graphics

Controller	Intel® Gen9 Graphics DX 12
DisplayPort	DisplayPort 1.2, DP++ Max resolution up to 4096 x 2160@60Hz
LVDS	Dual channel 24 bit up to 1920 x 1200@60Hz
MultiDisplay	Triple Display

Expansion Slot

M.2	1 x Key E (2230) with PCIe x1, CNVI and USB 2.0 for Wireless

Audio

Interface	Realtek ALC887/897, High Definition Audio. Line-out,Mic-in

Ethernet

Controller/ Speed	LAN1: Intel® I219V with 10/100/1000 Mbps LAN2: Intel® I210AT with 10/100/1000 Mbps
Connector	2 x RJ-45

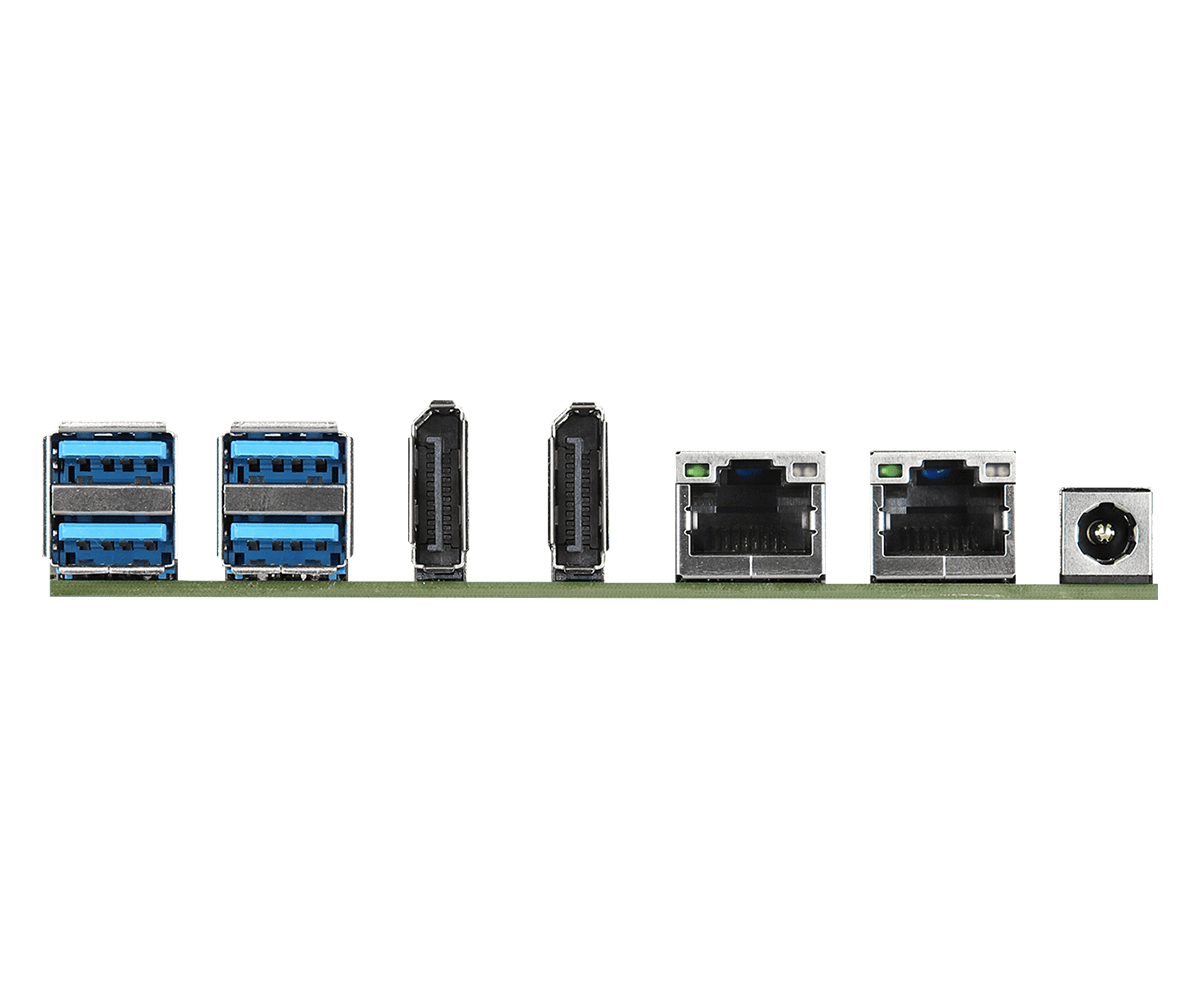

Rear I/O

DisplayPort	2 x DP1.2 ++
Ethernet	1 x Intel I210AT, 1 x Intel I219V
USB	4 x USB 3.2 (Gen2)
DC Jack	1

Internal Connector

USB	2 x USB 3.2 Gen1 (1 x header) 2 x USB 2.0 (1 x 2.54 pitch header)
COM	1 x COM (RS232/422/485) 3 x COM (RS232)
GPIO	4 x GPI, 4 x GPO
TPM	TPM 2.0 with Bios setting
LVDS	1
SATA PWR Output	1
Speaker Header	1

Storage

M.2	1 x Key M (2242 / 2280) with PCIe x4 and SATA3 for SSD 1 x Key M (2242) with SATA3 for SSD
RAID	Supports Intel® SATA RAID 0/1 * 7pin SATA signal via M2X4-SATA-4P with M2M_2 slot
SATA	1 x SATA3 (6Gb/s)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	9~36V DC-In
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	2 x SCREW M2*2,D=5 (13G020302031AK) 1 x Heat Spreader 102.22*147.01mm (13G070252031AK) 2 x COM Cable (14G000000310AK) 1 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000100410AK) 1 x DC-in Cable (14G000600900AK)
Bulk Package	2 x SCREW M2*2,D=5 (13G020302031AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
