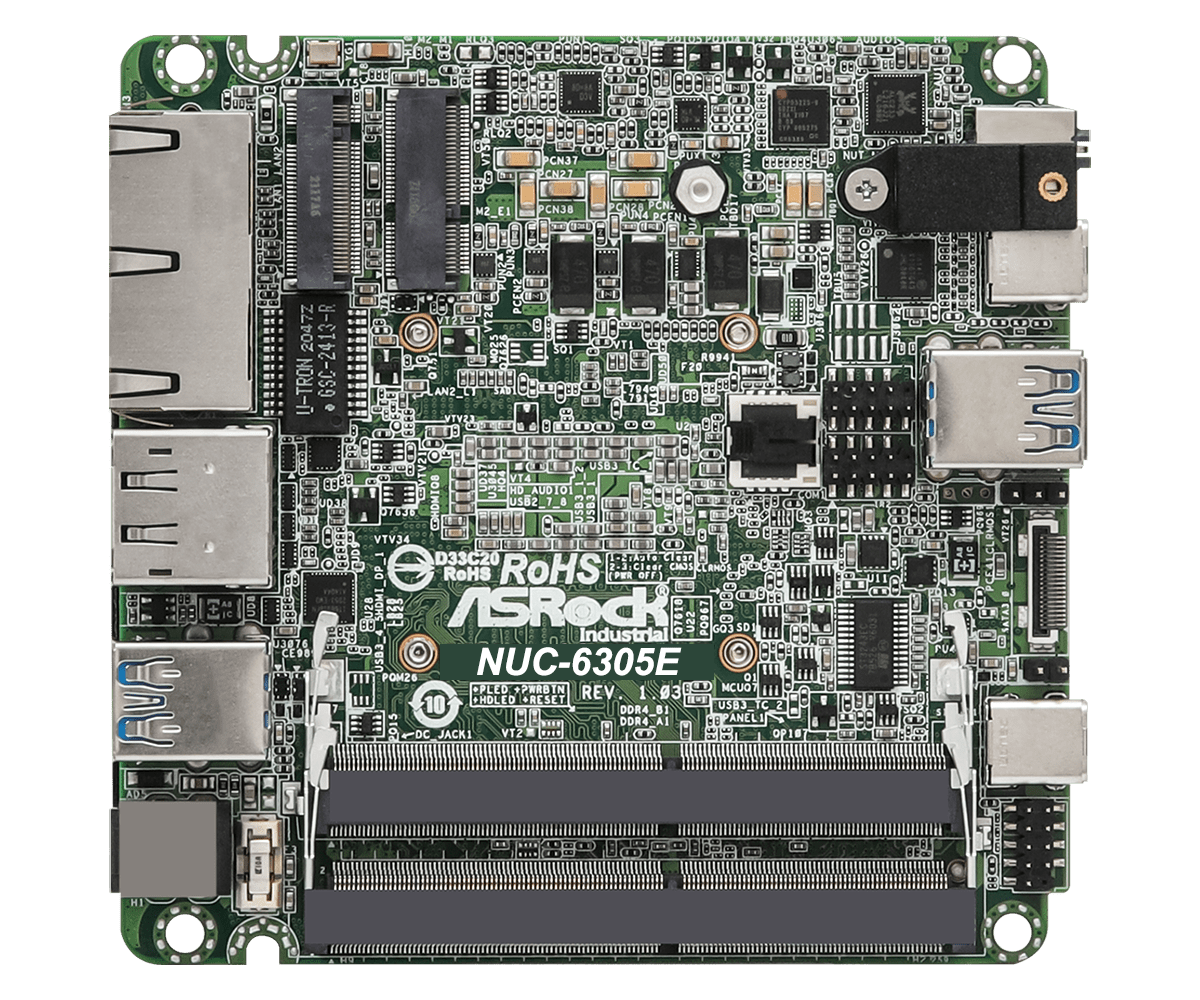

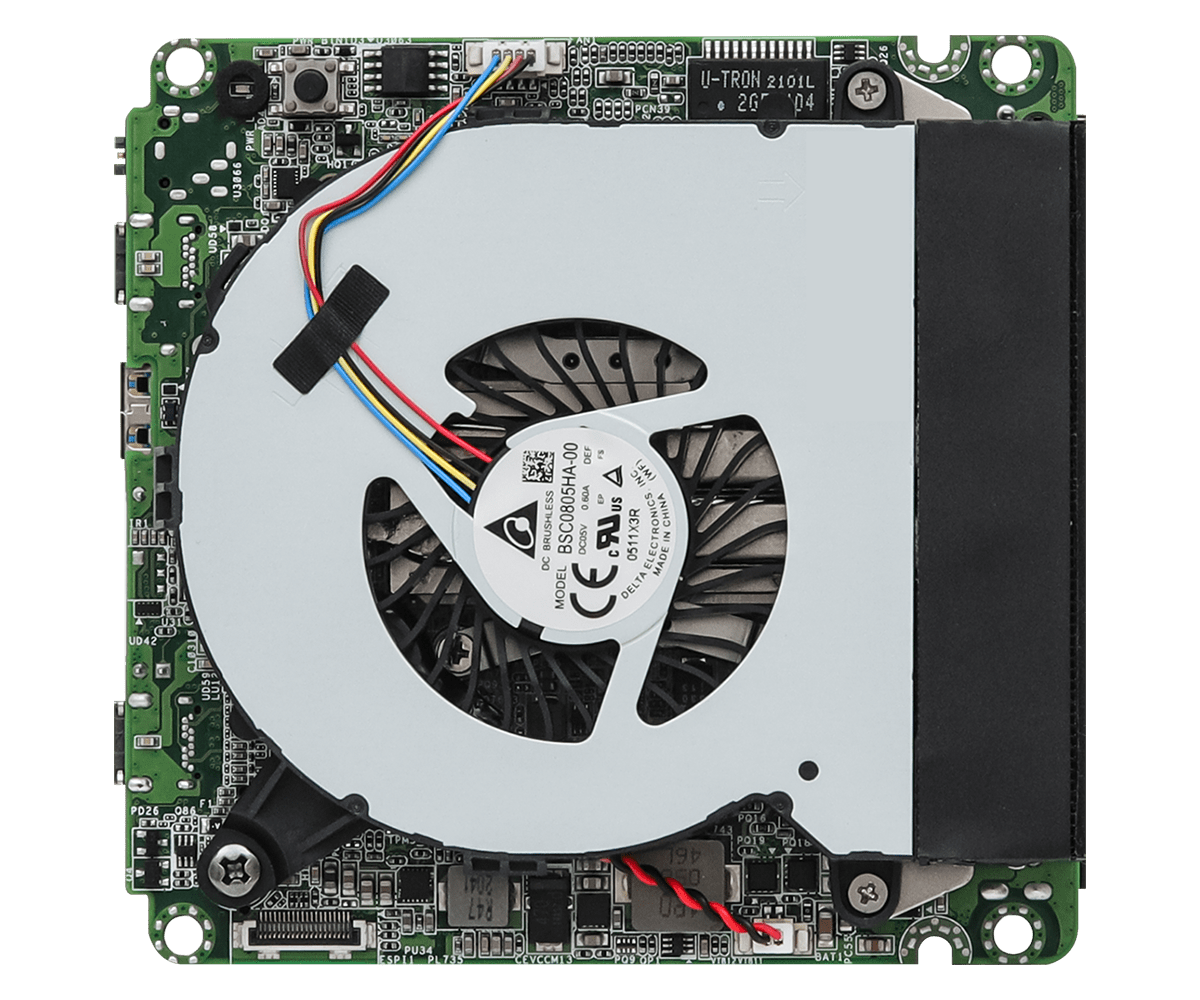

NUC-6305E NUC Motherboard
- Intel® 11th Gen (Tiger Lake-UP3) Core™ Processors
- 2 x 260-pin SO-DIMM DDR4 3200 MHz, up to 64GB
- 6 x USB 3.2 Gen2, 2 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E,1 x COM, 1 x SATA3
- 1 x Intel 1 Gigabit LAN, 1 x Intel 2.5 Gigabit LAN
- Supports Quad display, 1 x HDMI 2.0a, 3 x DP 1.4 (2 from Type-C)
- TPM 2.0 onboard IC
- 12V~19V DC-In
Overview
Specification
Form Factor
| Dimensions | NUC (4.09-in x 4.02-in, 10.4 cm x 10.2 cm) |
|---|
Processor System
| CPU | Intel® 11th Gen (Tiger Lake-UP3) Core™ Processors Celeron 6305E, DC, 1.8GHz |
|---|---|
| Chipset | MCP |
| BIOS | AMI SPI 256 Mbit |
Memory
| Technology | Dual Channel DDR4 3200 MHz |
|---|---|
| Capacity | 64GB (32 GB per DIMM) |
| Socket | 2 x 260-pin SO-DIMM |
Graphics
| Controller | Intel® UHD Graphics |
|---|---|
| HDMI | HDMI 2.0a Max resolution up to 4096x2160@60Hz |
| DisplayPort | DisplayPort 1.4, DP++ Max resolution up to 4096x2160@60Hz |
| MultiDisplay | Max 4 display (Included 2 outputs from Type-C) |
Expansion Slot
| M.2 | 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless |
|---|
Audio
| Interface | Realtek ALC233, High Definition Audio. |
|---|
Ethernet
| Controller/ Speed | LAN1: Intel® I219V with 10/100/1000 Mbps LAN2: Intel® I225LM with 10/100/1000/2500 Mbps |
|---|---|
| Connector | 2 x RJ-45 |

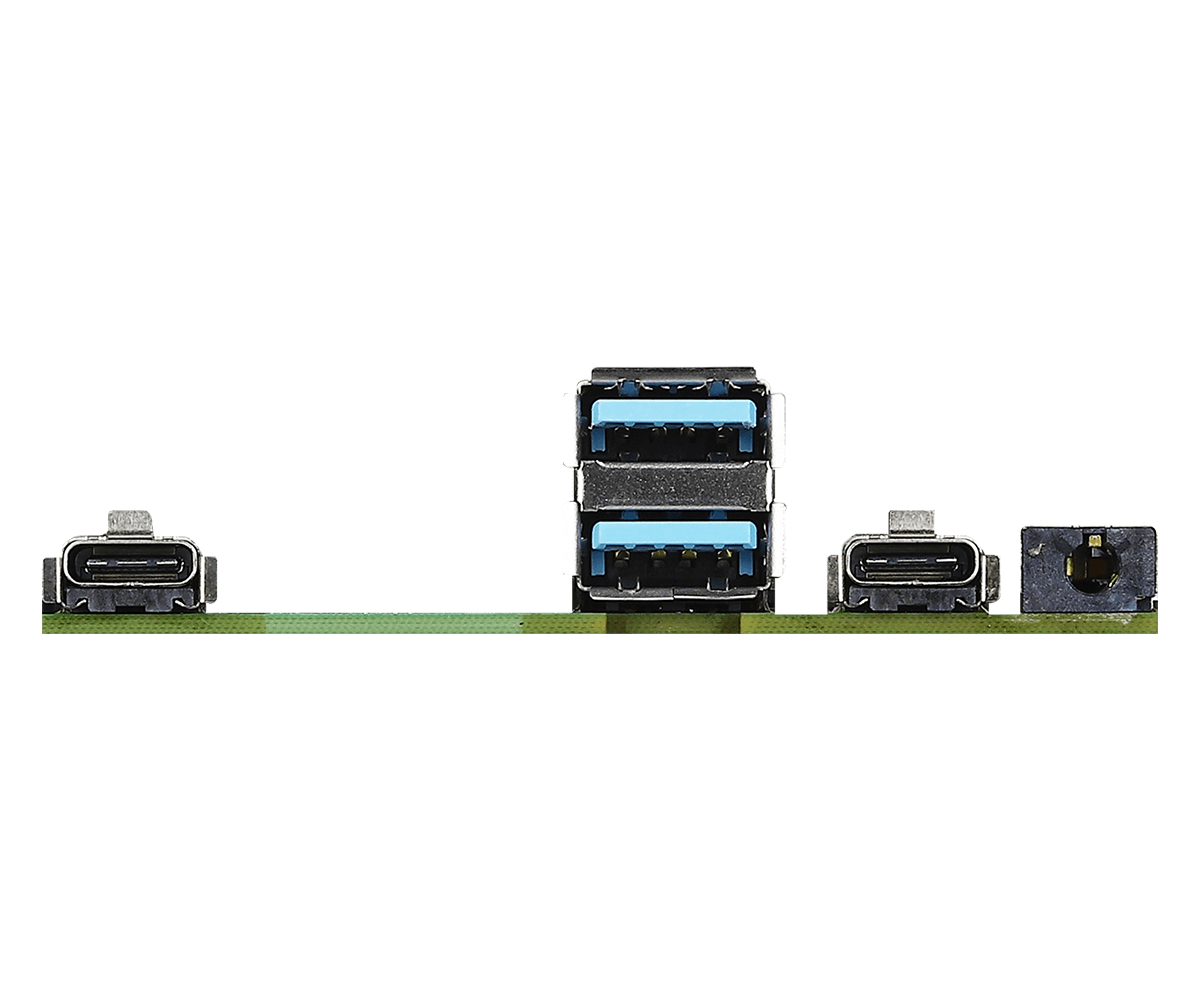

Front I/O
| USB | 2 x USB 3.2 Gen2 (Type-A) 2 x USB 3.2 Gen2 (Type-C, Supports DP1.4 display output) * USB4™ Compliance Test is pending for certification\ * For Thunderbolt support, please refer to support list. |
|---|---|
| Audio | 1 (headphone & microphone jack) |
Rear I/O
| HDMI | 1 x HDMI 2.0a |
|---|---|
| DisplayPort | 1 x DP 1.4 |
| Ethernet | 1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN |
| USB | 2 x USB 3.2 Gen2 (Type A) |
| DC Jack | 1 |
Internal Connector
| USB | 2 x USB 2.0 (1 x 2.00 pitch header) |
|---|---|
| COM | 1 x COM(RS-232) |
| TPM | TPM 2.0 onboard IC |
Storage
| M.2 | 1 x M.2 (KEY M, 2242/2260/2280) with PCIe Gen4 x4 and SATA3 for SSD *M.2 Key M 2280(Supported by bracket) |
|---|---|
| SATA | 1 x SATA3.0 (6.0 Gb/s) |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | 12V~19V DC-In Jack |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | 0ºC ~ 60ºC |
|---|---|
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Accessories
| Bulk Package | 2 x SCREW M2*2,D=5 (13G020302031AK) 1 x NUT M2 H=5.5mm (13G020195070AK) 1 x NUT M2 H=6.5mm (13G0201950B0AK) 1 x NUT M2 H=3.35mm (13G020271020AK) 1 x COM Cable (14G000000340AK) 1 x SATA HDD CABLE (14G000104503AK) |
|---|
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Support
OS:
| Description | OS | Date | Download | ||||
|---|---|---|---|---|---|---|---|
| Description | Thunderbolt(TM) Controller software ver:rev79 | OS | Win 10 x 64 | Date | 2021-04-16 | Download | |
| Description | Intel Dynamic Platform and Thermal Framework (Intel DPTF) driver ver:8.7.10400.15556 | OS | Win 10 x 64 | Date | 2020-09-24 | Download | |
| Description | VGA driver ver:27.20.100.8935 | OS | Win 10 x 64 | Date | 2020-09-24 | Download | |
| Description | Intel Management Engine driver ver:15.0.0.1320_CORP_SW_DCH | OS | Win 10 x 64 | Date | 2020-09-24 | Download | |
| Description | INF driver ver:10.1.18460.8229 | OS | Win 10 x 64 | Date | 2020-09-24 | Download | |
| Description | Intel Lan driver ver:27.4 | OS | Win 10 x 64 | Date | 2020-09-24 | Download | |
| Description | Realtek audio driver ver:9057_FF00 | OS | Win 10 x 64 | Date | 2020-09-24 | Download |
| Version | Update BIOS Under / How to Update | Description | Date | Download | |||||
|---|---|---|---|---|---|---|---|---|---|
| Version | 1.40 | Update BIOS Under / How to Update | BIOS | Description | 1. Update ME version 2. Enhance system compatibility |
Date | 2021-11-18 | Download | |
| Version | 1.40 | Update BIOS Under / How to Update | DOS | Description | 1. Update ME version 2. Enhance system compatibility |
Date | 2021-11-18 | Download | |
| Version | 1.40 | Update BIOS Under / How to Update | Windows | Description | 1. Update ME version 2. Enhance system compatibility |
Date | 2021-11-18 | Download | |
| Version | 1.20 | Update BIOS Under / How to Update | BIOS | Description | 1. Enhance memory compatibility 2. Enhance system compatibility |
Date | 2021-03-18 | Download | |
| Version | 1.20 | Update BIOS Under / How to Update | DOS | Description | 1. Enhance memory compatibility 2. Enhance system compatibility |
Date | 2021-03-18 | Download | |
| Version | 1.20 | Update BIOS Under / How to Update | Windows | Description | 1. Enhance memory compatibility 2. Enhance system compatibility |
Date | 2021-03-18 | Download | |
| Version | 1.10 | Update BIOS Under / How to Update | BIOS | Description | First Released | Date | 2020-12-29 | Download | |
| Version | 1.10 | Update BIOS Under / How to Update | DOS | Description | First Released | Date | 2020-12-29 | Download | |
| Version | 1.10 | Update BIOS Under / How to Update | Windows | Description | First Released | Date | 2020-12-29 | Download |
The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.
| Description | Language | Date | Download | ||||
|---|---|---|---|---|---|---|---|
| Description | User Manual | Language | English | Date | 2021-02-17 | Download | |
| Description | Jumpers and Headers Setting Guide | Language | English | Date | 2020-12-01 | Download |
| Description | Date | Download | |||
|---|---|---|---|---|---|
| Download | Thunderbolt Support List | Date | 2021-03-02 | Download |
