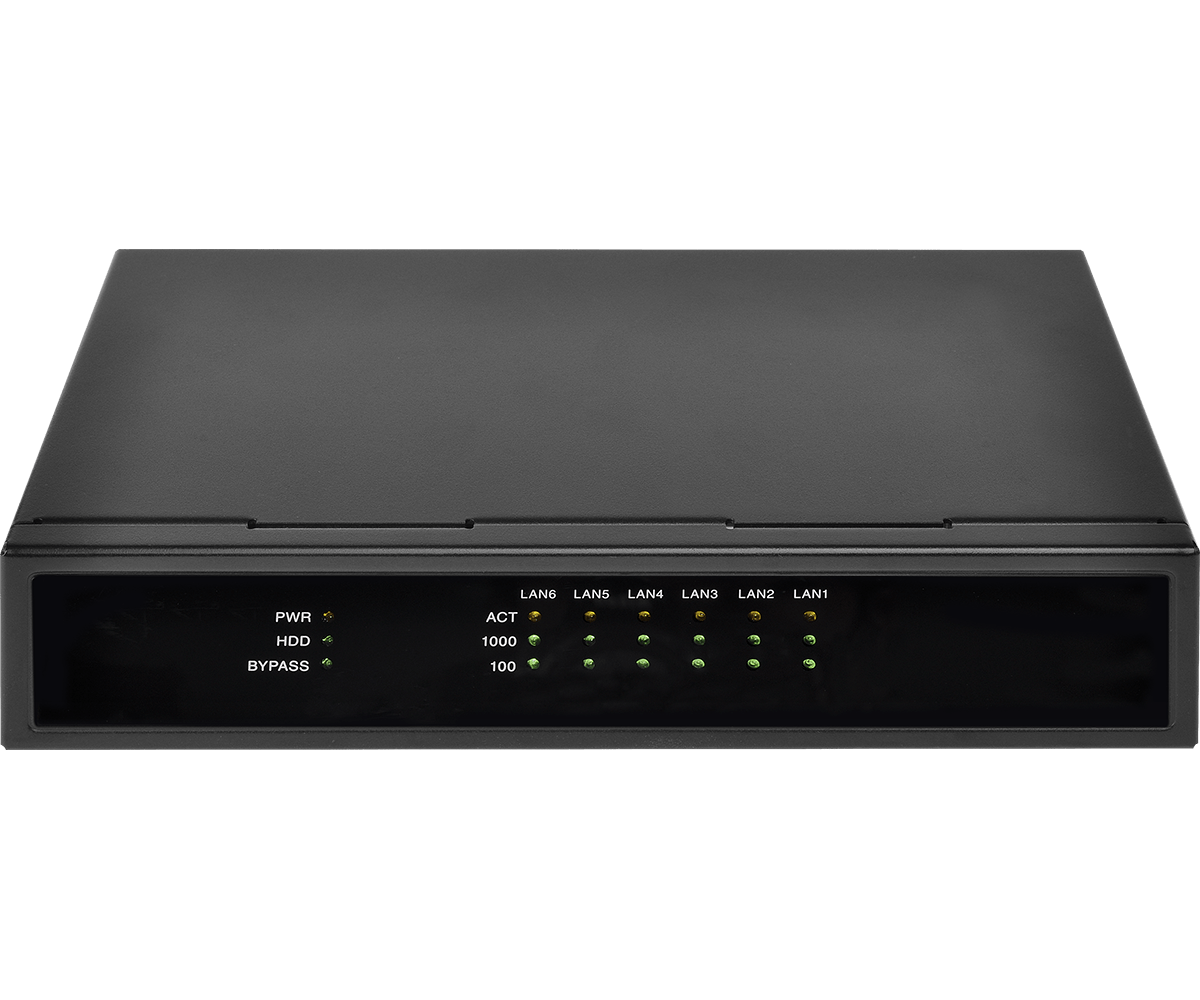

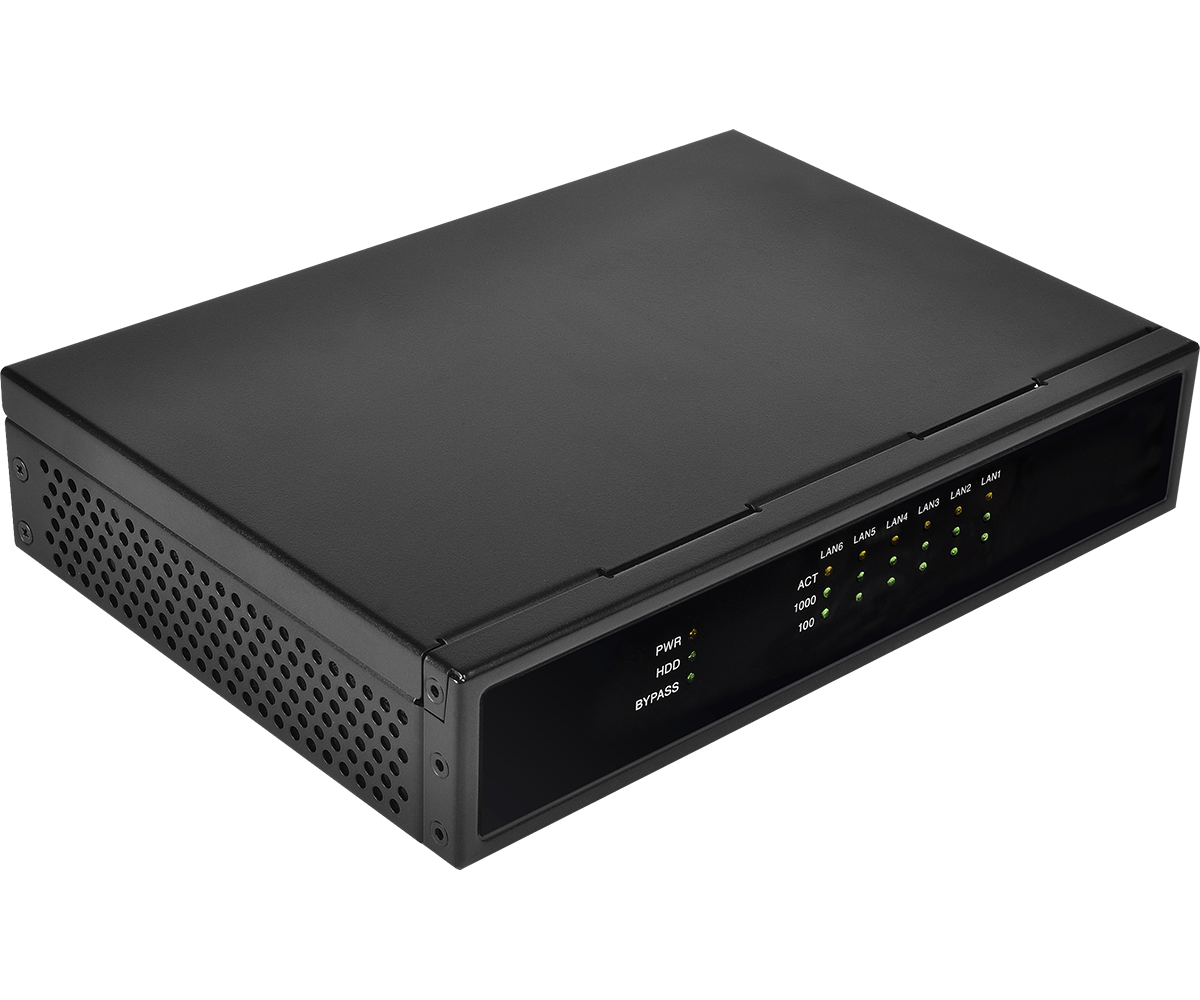

NAS-9602 Networking BB

  • Intel® Apollo Lake SoC Processor
  • Supports Single Channel DDR3L SO-DIMM 1866, up to 8GB
  • 1 x VGA
  • 2 x USB 3.0
  • 1 x M.2 (Key E) , 1 x M.2 (Key M)
  • 6 x Intel 1 Gigabit LAN
  • Supports Bypass Function
  • 1 x MiniPCIe with SIM socket for WiFI/3G/LTE
  • 1 x TPM 2.0 IC
  • 12V DC-in Jack / 4-pin ATX PWR Con.
Datasheet
Specification

Form Factor

Dimensions 220*145*44mm

Processor System

CPU Intel® Apollo Lake SoC Processor N4200, QC, 1.10GHz, 6W
Chipset SoC
BIOS AMI SPI 128 Mbit

Memory

Technology Single Channel DDR3L 1866 MHz
Capacity 8GB
Socket 1 x 204-pin SO-DIMM

Graphics

Controller Intel® Gen9 Graphics DX 12
VGA 1 x Header
(Supports max. resolution 1920 x 1200)

Expansion Slot

mini-PCIe 1x Full size with PCIe x1 and USB 2.0
M.2 1 x M.2 (Key E, 2230) with PCIe x1 and USB 2.0 for Wireless
SIM Socket 1

Audio

Interface N/A

Ethernet

Controller/ Speed 6 x Intel I211 with 10/100/1000 Mbps
Connector 6 x RJ-45

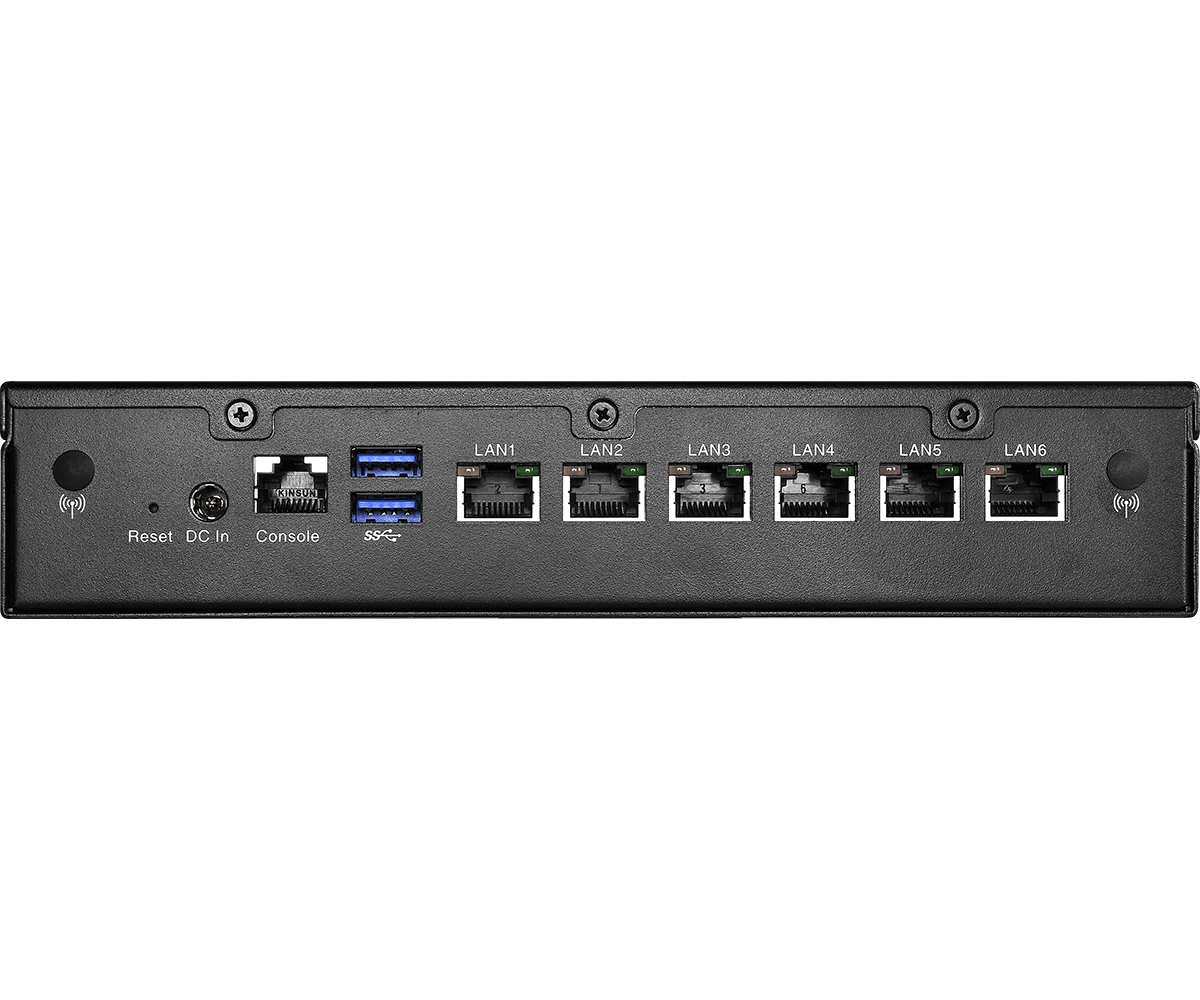

Rear I/O

Ethernet 6 x INTEL 1 Gigabit LAN
USB 2 x USB 3.0
DC Jack 1
Serial Port 1 x console (RS232)

Storage

M.2 1 x M.2 (K ey M, 2242/2260/2280) with SATA3 for SSD
SATA 1 x SATA3 (6Gb/s)

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 1 x 12V/36W Power Adapter
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 50ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 10% ~ 90%
Storage Humidity 10% ~ 90%

Mechanical

Construction Metal chassis
Dimensions (W x H x D) 220 x 145 x 44mm (W x D x H)
Weight Net Weight :1.1Kg

Others

OS Support Windows 10
TPM TPM 2.0 onboard IC
Certifications CE, FCC Class A
Packing List 1 x 12V/36W Power Adapter
1 x Screw Package
1 x Product DVD
Accessories 1 x VGA CABLE TO 2.0P 2*5PIN
1 x 8P8C TO D-SUB CABLE

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

Support

OS:

Description OS Date Download
Description [Beta] Intel iRMT ver:1.1.50.493_PC OS Win 10 x 64 , Win 7 x 64 Date 2020-05-19 Download
Description [Beta] Adobe Reader ver:9.0 OS Win 7 x 64 Date 2020-05-19 Download
Description [Beta] VGA driver ver:15.45.20.64.4727 OS Win 10 x 64 Date 2020-05-19 Download
Description [Beta] Microsoft .NET Framework 4.5 OS Win 7 x 64 Date 2020-05-19 Download
Description [Beta] Intel Trusted Execution Engine ver:3.1.75.2351 OS Win 10 x 64 , Win 7 x 64 Date 2020-05-19 Download
Description [Beta] Intel Serial IO driver ver:30.100.1631.03_PV OS Win 10 x 64 Date 2020-05-19 Download
Description [Beta] INF driver ver:10.1.1.34 OS Win 10 x 64 , Win 7 x 64 Date 2020-05-19 Download
Description [Beta] Intel Lan driver ver:23.2 OS Win 10 x 64 , Win 7 x 64 Date 2020-05-19 Download

The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.

Description Language Date Download
Description User Manual Language English Date 2020-05-06 Download
