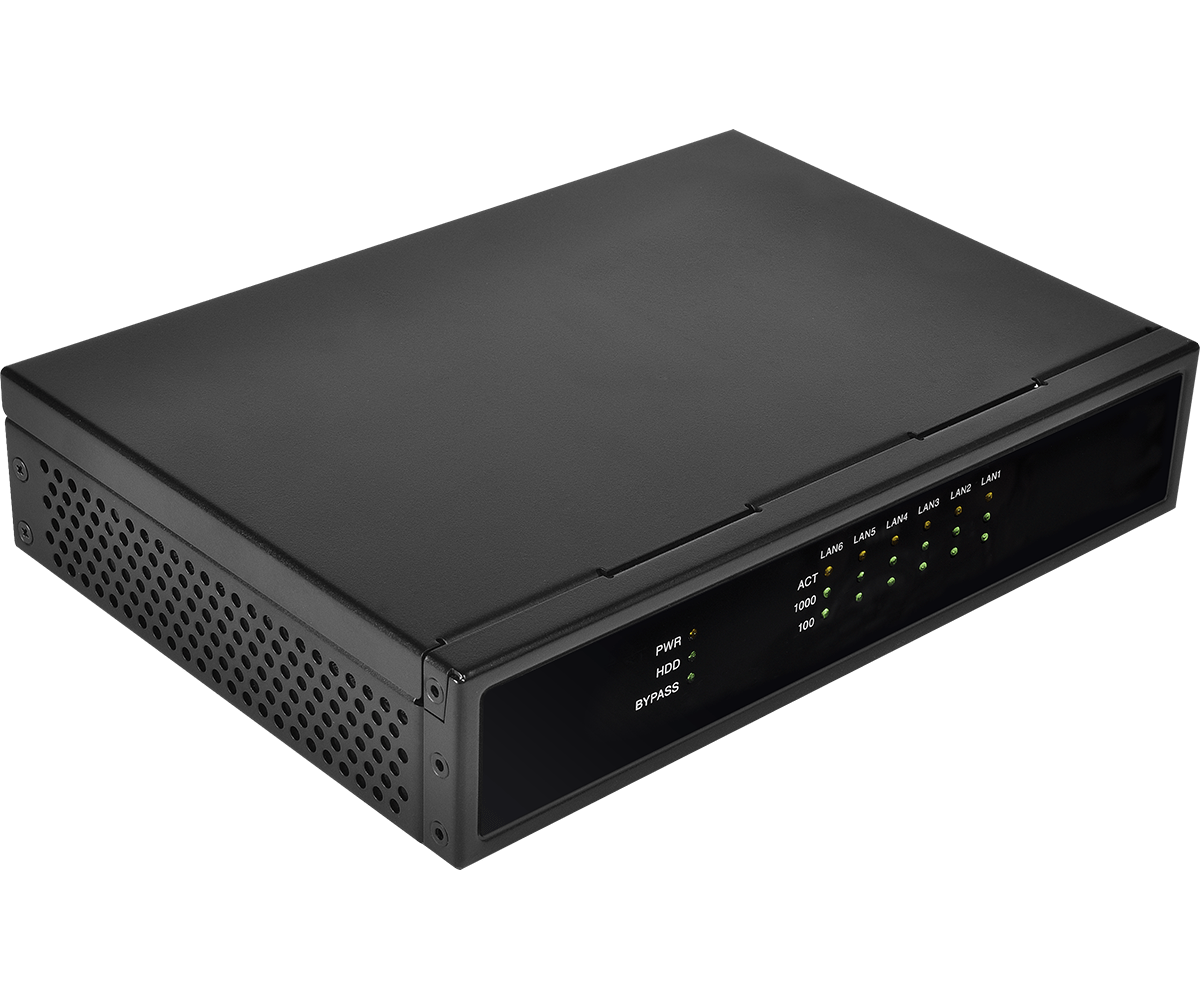

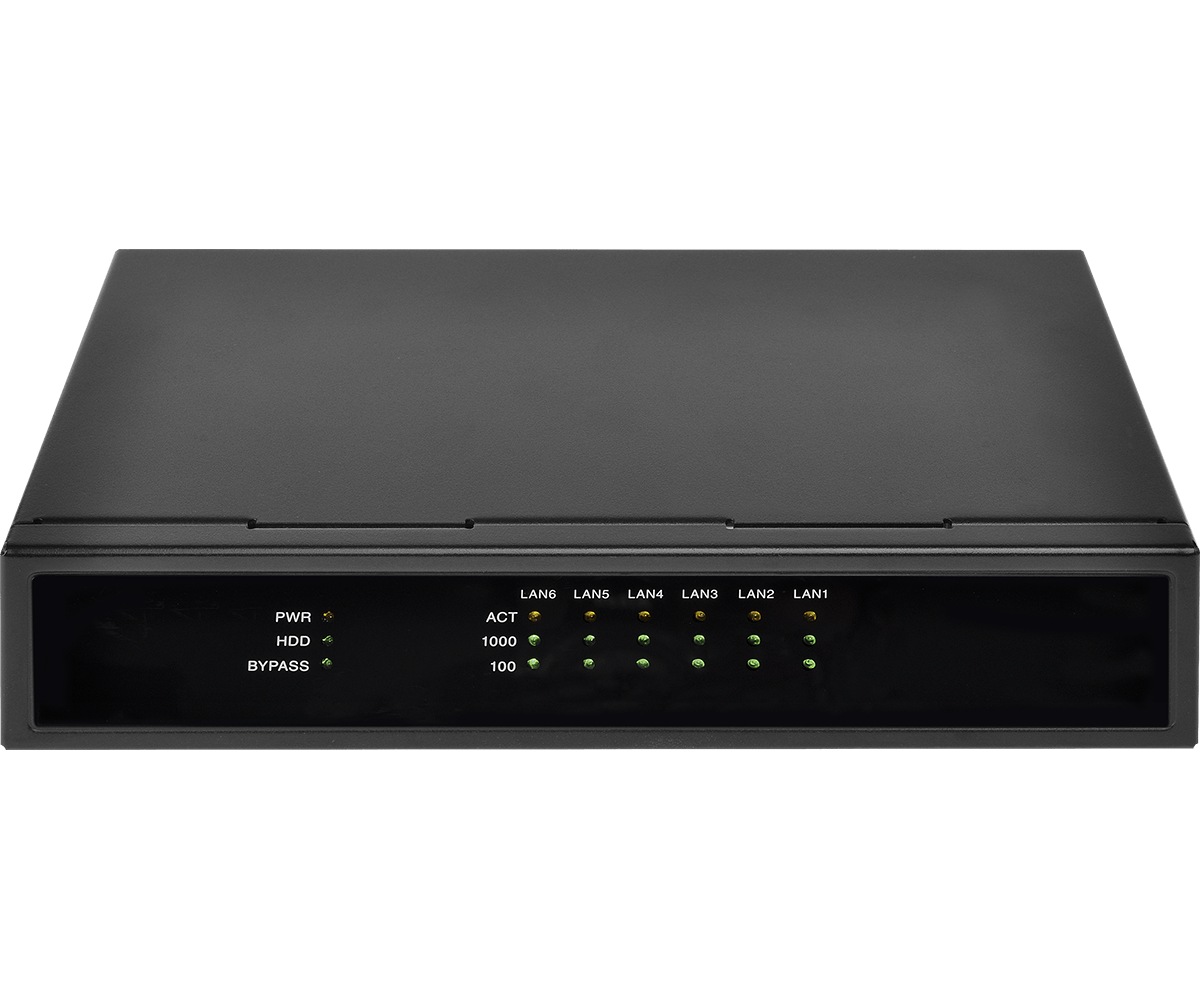

NAS-9601 Networking BB

  • Intel® Braswell SoC Processor
  • Supports Single Channel DDR3L up to 1600MHz, 1 x SO-DIMM, up to 8GB system memory
  • 1 x VGA
  • 2 x USB 3.0
  • 1 x M.2 (Key E) , 1 x M.2 (Key M)
  • 6 x Intel 1 Gigabit LAN
  • Supports Bypass Function
  • 1 x MiniPCIe with SIM socket for WiFI/3G/LTE
  • 1 x TPM 2.0 IC
  • 12V DC-in Jack / 4-pin ATX PWR Con.
Datasheet
Specification

Form Factor

Dimensions 220*145*44mm

Processor System

CPU Intel® Braswell SoC Processor N3160, QC, 1.60GHz, 6W
Chipset SoC
BIOS AMI SPI 128 Mbit

Memory

Technology Single Channel DDR3L 1600 MHz
Capacity 8GB
Socket 1 x 204-pin SO-DIMM

Graphics

Controller Intel® Gen8 Graphics DX 11,OGL3.2
VGA 1 x Header
(Supports max. resolution 1920 x 1200)

Expansion Slot

mini-PCIe 1x Full size with PCIe x1 and USB 2.0
M.2 1 x M.2 (Key E, 2230) with PCIe x1 and USB 2.0 for Wireless
SIM Socket 1

Audio

Interface N/A

Ethernet

Controller/ Speed 6 x Intel I211 with 10/100/1000 Mbps
Connector 6 x RJ-45

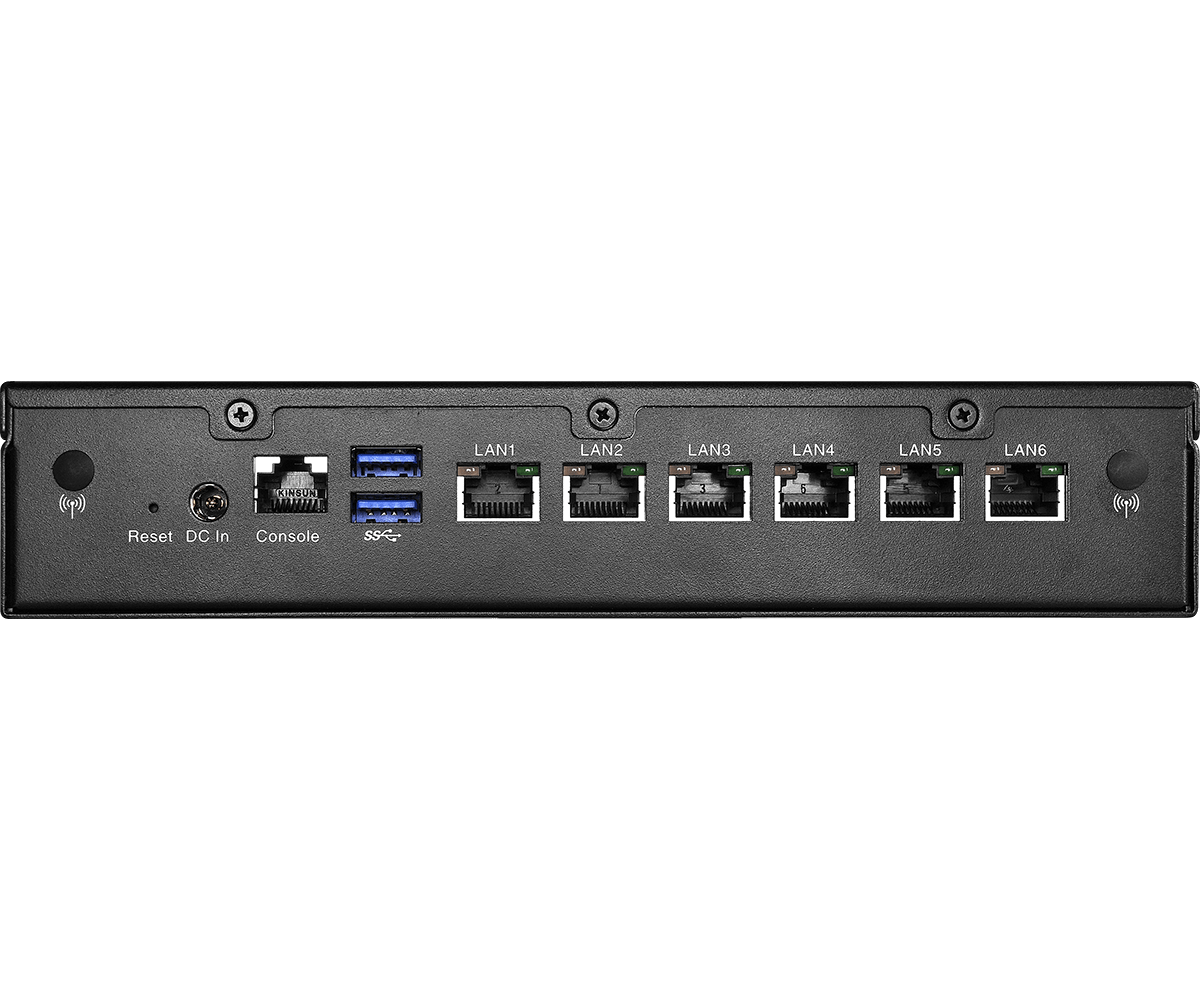

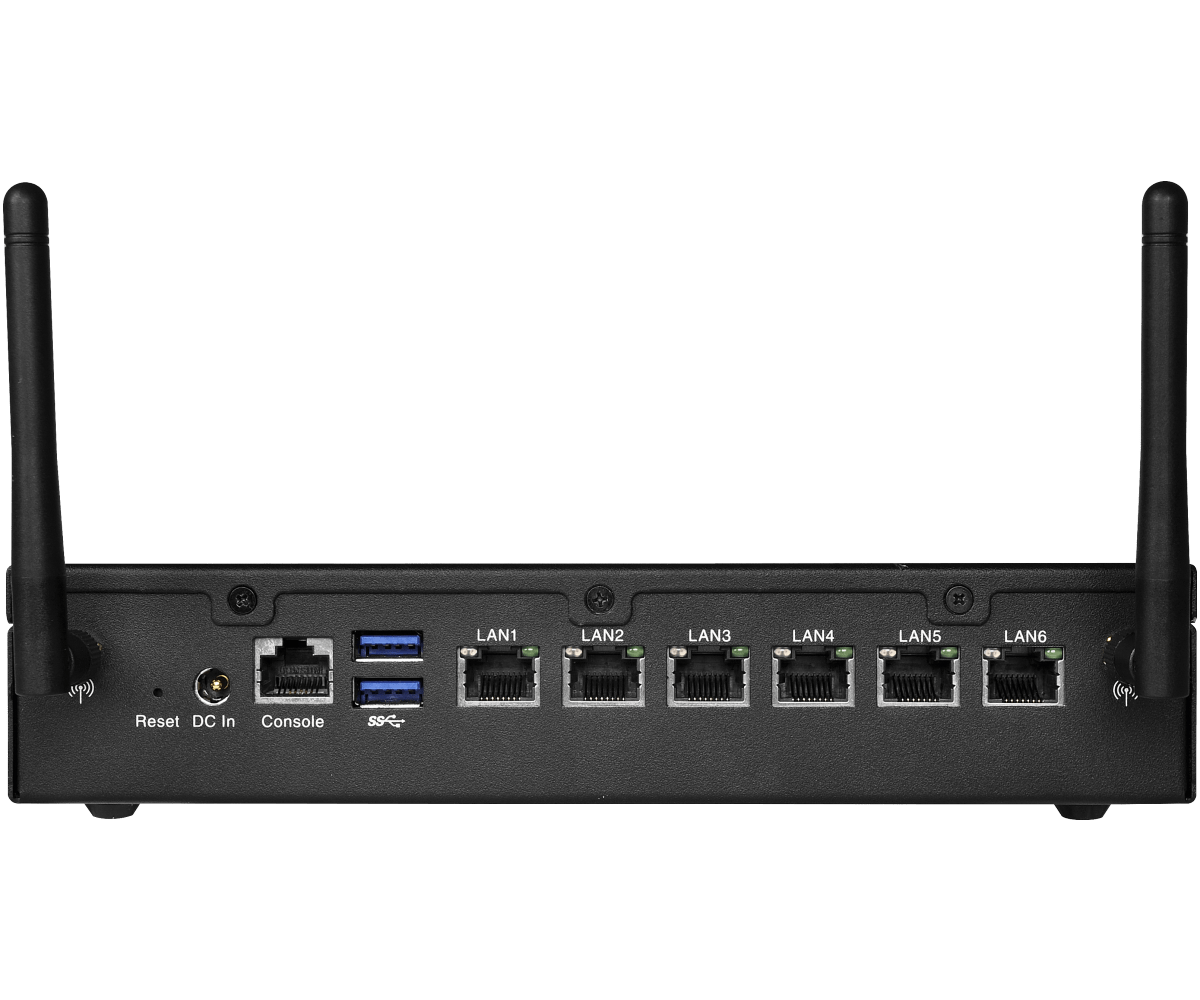

Rear I/O

Ethernet 6 x INTEL 1 Gigabit LAN
USB 2 x USB 3.0
DC Jack 1
Serial Port 1 x console (RS232)

Storage

M.2 1 x M.2 (K ey M, 2242/2260/2280) with SATA3 for SSD
SATA 1 x SATA3 (6Gb/s)

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 1 x 12V/36W Power Adapter
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 50ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 10% ~ 90%
Storage Humidity 10% ~ 90%

Mechanical

Construction Metal chassis
Dimensions (W x H x D) 220 x 145 x 44mm (W x D x H)
Weight Net Weight :1.1Kg

Others

OS Support Windows 7, Windows 10
TPM TPM 2.0 onboard IC
Certifications CE, FCC Class A
Packing List 1 x 12V/36W Power Adapter
1 x Screw Package
1 x Product DVD
Accessories 1 x VGA CABLE TO 2.0P 2*5PIN
1 x 8P8C TO D-SUB CABLE

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

Support

OS:

Description OS Date Download
Description ASRock 3TB+ Unlocker utility ver:1.1.1 OS Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-08 Download
Description Intel USB 3.0 Adaptation driver ver:1.0.0.26 OS Win 8.1 x 64 Date 2020-05-08 Download
Description Realtek high definition audio driver ver:7560 OS Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-08 Download
Description VGA driver ver:15.40.4.4300 OS Win 10 Date 2020-05-08 Download
Description VGA driver ver:38.15.0 OS Win 7 Date 2020-05-08 Download
Description Intel Lan driver ver:19.5 OS Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-08 Download
Description Intel Serial IO driver ver:1.0 OS Win 8.1 x 64 Date 2020-05-08 Download
Description Intel Trusted Execution Engine ver:2.0.0.2060 OS Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-08 Download
Description INF driver ver:10.0.26 OS Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-08 Download
Description VGA driver ver:15.38.5.64.4277 OS Win 8.1 x 64 , Win 8 x 64 , Win 7 x 64 Date 2020-05-08 Download
Description Intel Lan driver ver:20.3 OS Win 10 x 64 , Win 10 Date 2020-05-08 Download
Description Intel Smart Connect driver ver:4.2.41.2710 OS Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-08 Download
Description Intel USB 3.0 driver ver:4.0.0.27 OS Win 7 x 64 , Win 7 Date 2020-05-08 Download
Description VGA driver ver:15.33.30.3958 OS Win 8.1 , Win 8 Date 2020-05-08 Download
Description VGA driver ver:15.40.4.64.4300 OS Win 10 x 64 Date 2020-05-08 Download
Description Intel iRMT ver:1.1.50.493 OS Win 8.1 x 64 , Win 7 x 64 , Win 7 Date 2020-05-08 Download
Description COM Port driver ver:1.0.2011.1109 OS Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-08 Download

The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.

Description Language Date Download
Description Quick Installation Guide Language English Date 2020-05-06 Download
Description User Manual Language English Date 2020-05-06 Download
