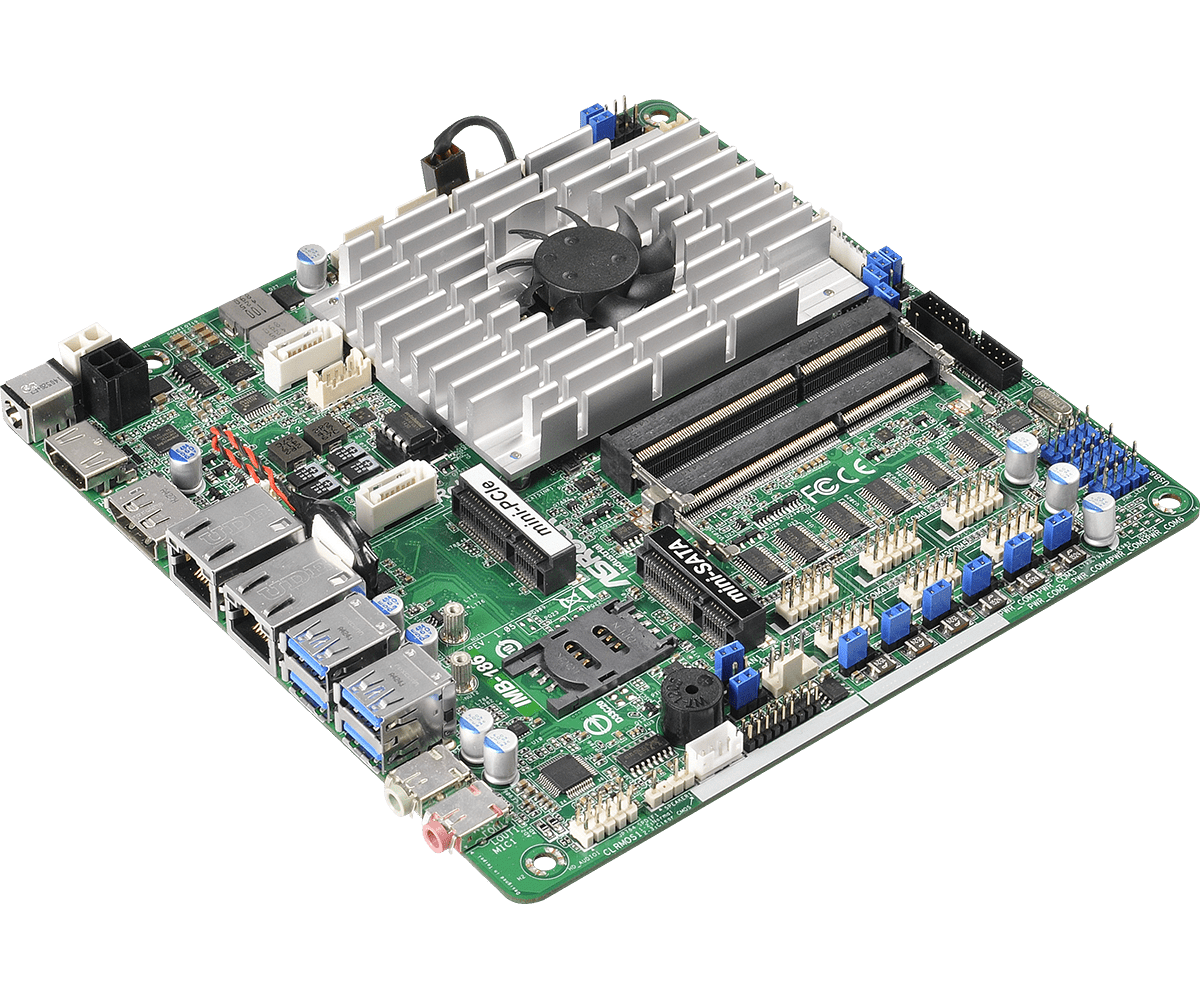

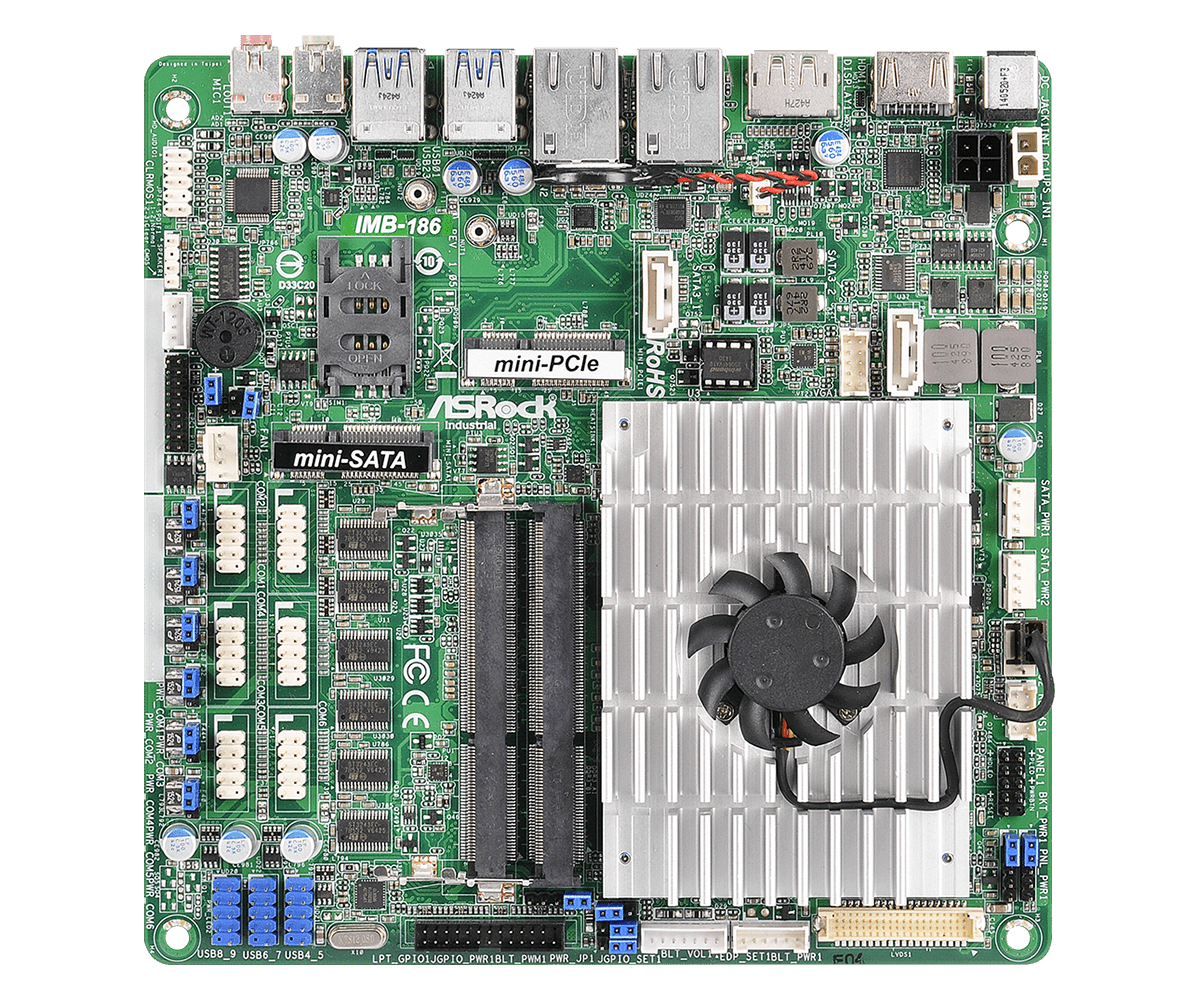

IMB-186M Mini-ITX Motherboard

  • Intel® 4th Gen (Haswell-U) Core™ MCP Processors i5-4300U, DC, 1.90 GHz, 15 W
  • Supports Dual Channel DDR3L SO-DIMM 1333 / 1600, up to 16GB
  • 1 x HDMI, 1 x DsplayPort, 1 x LVDS
  • 4 xUSB 3.0, 6 x USB 2.0, 2 x SATA3, 6 x COM
  • 1 x Mini-PCIe, 1 x mSATA
  • 1 x RTL8111G x1, 1 x Intel® I218LM (Intel® Core i7 / i5)
  • 1 x RTL8111G x1, 1 x Intel® I218V (Intel® Core i3)
  • 1 x TPM Header
  • DC 9-19 input
Datasheet
Specification

Form Factor

Dimensions Mini-ITX (6.7-in x 6.7-in)

Processor System

CPU Intel® 4th Gen (Haswell-U) Core™ MCP Processors i5-4300U, DC, 1.90 GHz, 15 W
Chipset SoC

Memory

Technology Dual Channel DDR3L 1333 / 1600MHz
Capacity 16GB
Socket 2 x SO-DIMM

Graphics

Controller Intel HD Graphics (By CPU)
HDMI Supports max resolution up to 4096 x 2304
VGA 1
MultiDisplay Triple Display
LVDS 1

Expansion Slot

mini-PCIe 1 x Half size with PCIe x1 and USB 2.0

Ethernet

Controller/ Speed LAN1: Intel® I218V with 10/100/1000 Mbps
LAN2: Intel® I218LM with 10/100/1000Mbps
Connector 2 x RJ-45

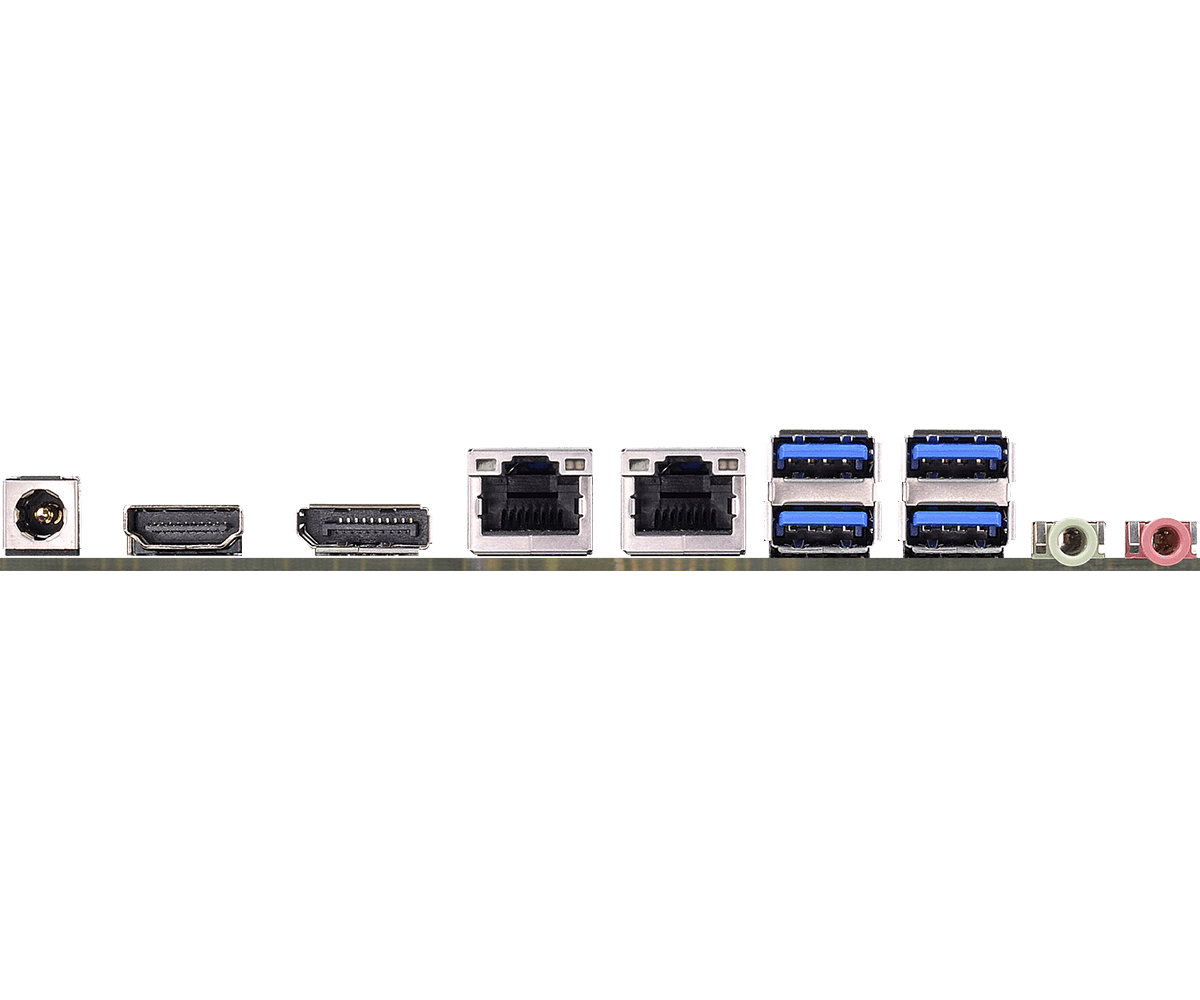

Rear I/O

HDMI 1
Ethernet 2
USB 4 x USB 3.0
Audio 2 (Mic-in, Line-out)
DisplayPort 1
DC Jack 1

Internal Connector

USB 6 x USB 2.0
COM 4 x COM (RS-232), 2 x COM (RS-232/422/485)
GPIO 8 x GPI + 8 x GPO (shared with LPT header)
TPM 1 x Header
LVDS 1
VGA 1
Speaker Header 1
SATA PWR Output 2
Parallel 1 (Co-lay with 8in / 8out DIO)

Storage

SATA 2 x SATA3
mSATA 1 x Full size with SATA3

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR DC 9-19 input
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

Accessories

Gift Package 2 x SCREW FOR WIFI CARD (13G020305011AK)
1 x I/O Shield (13G020256000AK)
1 x I/O Shield THIN (13G020256010AK)
2 x SATA Data Cable (14G000107101AK)
1 x SATA Power Cable (14G000100410AK)
Bulk Package 2 x SCREW FOR WIFI CARD (13G020305011AK)
1 x I/O Shield (13G020256000AK)
1 x I/O Shield THIN (13G020256010AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

Support

OS:

Description OS Date Download
Description Realtek high definition audio driver ver:9088_FF00 OS Win 10 x 64 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2021-01-29 Download
Description INF driver ver:10.1.1.7 OS Win 10 x 64 Date 2020-06-02 Download
Description INF driver ver:9.4.0.1026 OS Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-06-02 Download
Description Intel Management Engine driver ver:10.0.45.1022 OS Win 10 x 64 Date 2020-06-02 Download
Description Intel Management Engine driver ver:10.0.45.1022 OS Win 10 x 64 Date 2020-06-02 Download
Description Intel Management Engine driver ver:9.5.24.1790 OS Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-06-02 Download
Description Intel Management Engine driver ver:9.5.24.1790 OS Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-06-02 Download
Description Intel Rapid Start driver ver:4.0.0.1068 OS Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-06-02 Download
Description Intel Smart Connect driver ver:4.2.41.2710 OS Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-06-02 Download
Description Realtek Lan driver ver:7089 OS Win 7 x 64 , Win 7 Date 2020-06-02 Download
Description Realtek Lan driver ver:10012 OS Win 10 x 64 Date 2020-06-02 Download
Description Realtek Lan driver ver:8034 OS Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 Date 2020-06-02 Download
Description Intel Lan driver ver:20.7 OS Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-06-02 Download
Description Lan driver ver:20.7 OS Win 10 x 64 Date 2020-06-02 Download
Description COM Port driver ver:1.0.2011.1109 OS Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-06-02 Download
Description SATA Floppy Image ver:13.0.0.1098 OS Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-06-02 Download
Description Intel Rapid Storage Technology driver and utility ver:13.0.0.1098 OS Win 10 x 64 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-06-02 Download
Description Intel USB 3.0 driver ver:2.5.3.34 OS Win 7 x 64 , Win 7 Date 2020-06-02 Download
Description VGA driver ver:15.40.11.64.4312 OS Win 10 x 64 Date 2020-06-02 Download
Description VGA driver ver:15.36.2.3871 OS Win 8.1 , Win 8 , Win 7 Date 2020-06-02 Download
Description VGA driver ver:15.36.2.64.3871 OS Win 8.1 x 64 , Win 8 x 64 , Win 7 x 64 Date 2020-06-02 Download
Description ASRock 3TB+ Unlocker utility ver:1.1.1 OS Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 7 x 64 , Win 7 Date 2020-06-02 Download
Description Intel Rapid Start utility ver:1.0.7 OS Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-06-02 Download
Description Intel Smart Connect utility ver:1.0.7 OS Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-06-02 Download
Version Update BIOS Under / How to Update Description Date Download
Version 2.60 Update BIOS Under / How to Update BIOS Description 1. Update audio codec
2. Update Intel Microcode
3. Update TPM2.0 module
For IMB-186P
Date 2021-01-22 Download
Version 2.60 Update BIOS Under / How to Update DOS Description 1. Update audio codec
2. Update Intel Microcode
3. Update TPM2.0 module
For IMB-186P
Date 2021-01-22 Download
Version 2.60 Update BIOS Under / How to Update Windows Description 1. Update audio codec
2. Update Intel Microcode
3. Update TPM2.0 module
For IMB-186P
Date 2021-01-22 Download

The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.

Description Language Date Download
Description Jumpers and headers setting guide Language English Date 2020-06-02 Download
Description User Manual Language English Date 2020-06-02 Download
